Chapter 1: General information

1.1 Package contents

Check your industrial motherboard package for the following items.

1 x ASUS R680EI-IM-A Motherboard

1 x Serial ATA 6.0 Gb/s cable

1 x M.2 screw package

1 x ASUS I/O Shield

NOTE: If any of the above items is damaged or missing, contact your

distributor or sales representative immediately.

1.2 Features

• Intel®socket 1700 for 12th Gen Intel®Core™ i9/ i7/ i5/ i3, Pentium®, and

Celeron®processors，up to 65W

• Two Dual Channel DDR5 4800 MHz SO-DIMMs up to 64GB

• 4 x SATA 6.0 Gb/s, 3 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 6 x USB 2.0, 5 x

COM ports

• 1 x PCIe 5.0 x16 slot, 1 x M.2 (Key E, 2230) for WiFi/BT devices, 1 x M.2 (Key

M, 2242/2260/2280) with PCIe and SATA modes for SSD

• Multi-display: 3 x DisplayPorts, 1 x HDMI, 1 x LVDS/eDP

Chapter 1

Product overview

R680EI-IM-A

1-2

1.3 Specications

(continued on the next page)

CPU

Intel®socket 1700 for 12th Gen Intel®Core™ i9/ i7/ i5/ i3,

Pentium®, and Celeron®processors

Supports up to 65W TDP

Chipset Intel®R680E Chipset

Memory 2 x SO-DIMM, max. 64GB, DDR5 4800 MHz, ECC support

Graphics

Integrated graphics processor - Intel®HD Graphics support

Multi-VGA output support: DP/HDMI/eDP/LVDS ports

- Supports 3x DisplayPort 1.4 outputs with a maximum

resolution of 4k

-Supports HDMI output

-Supports either eDP or LVDS output (Switched by

BIOS)

Expansion slots

1 x PCI Express 5.0 x16 slot*

1 x M.2 socket 1 (Key E, 2230) with PCIe and CNVi modes

for WiFi/BT devices

1 x M.2 socket 3 (Key M, 2242/2260/2280) with PCIe and

SATA modes

* Supports PCIe bifurcation (16x to 8x+8x).

Storage

4 x SATA 6.0 Gb/s ports (Supports RAID 0,1,5,10)

1 x M.2 socket 3 (Key M, 2242/2260/2280) with PCIe and

SATA modes

LAN Dual Intel®Lan: 1 x Intel®I210AT (Co-lay I211AT), 1 x Intel®

I225LM (Intel vPro supported)

Audio Realtek ALC897 High Denition Audio CODEC

Rear panel I/O ports

1 x HDMI®port

3 x DisplayPorts

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x Type-C®)

1 x USB 3.2 Gen 1 port

4 x USB 2.0 ports

2 x LAN (RJ45) ports

1 x P/S2 keyboard port

1 x P/S2 mouse port

1 x COM port (RS232/422/485)

2 x Audio jacks

1-3

Chapter 1: General information

Internal I/O ports

4 x COM Port headers (1 x RS232/422/485, 3 x RS232)

1 x USB 3.2 Gen 1 connector supports additional 2 USB 3.2

Gen 1 ports

1 x USB 3.2 Gen 1 stick socket

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x CPU Fan header with PWM mode

1 x Chassis Fan header with PWM mode

1 x Disable ME jumper

1 x LVDS/eDP selection connector

1 x Panel SW header

1 x Front Panel Audio header (AAFP)

1 x System Panel header

1 x S/PDIF header

1 x Chassis Intrude header

1 x Speaker header

1 x Clear CMOS header

1 x COM Debug header

1 x AT/ATX mode selection header

1 x 24-pin ATX Power connector

1 x 8-pin ATX Power connector

1 x SPI TPM header

GPIO 1 x 8-bit GPIO header

Manageability WfM 2.0, DMI 2.0, WOL by PME

Watch dog timer Yes

Power requirement ATX mode

12V DC-IN (Supported by an additional cable)

Operation Temperature 0~60°C

Non-Operation

Temperature -40~85°C

Relative Humidity 5%~95%

OS support

Windows®10 (64-bit)

Windows®IoT Enterprise

Ubuntu

RedHat Enterprise

Fedora Workstation

OpenSUSE

Certication CE, FCC

Form Factor Mini-ITX Form Factor, 6.7”x 6.7” (17.0cm x 17.0cm)

NOTE: Specications are subject to change without notice. Please refer to the

ASUS website for the latest specications.

R680EI-IM-A

1-4

2-1

Chapter 2: Motherboard information

Chapter 2

Motherboard information

2.1 Before you proceed

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

CAUTION!

• Unplug the power cord from the wall socket before touching any

component.

• Before handling components, use a grounded wrist strap or touch a safely

grounded object or a metal object, such as the power supply case, to avoid

damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic

pad or in the bag that came with the component.

• Before you install or remove any component, always remove the AC power

by unplugging the power cord from the power outlet. Failure to do so may

cause severe damage to the motherboard, peripherals, or components.

R680EI-IM-A

2-2

R680EI-IM-A

17.0cm(6.7in)

EATXPWR

DDR5 SO-DIMM_B1 (64bit, 260-pin module)

DDR5 SO-DIMM_A1 (64bit, 260-pin module)

M.2(SOCKET3)

PCIE SATA IRST

4.0 X4 V V

COM_DEBUG

COM1_SEL

VCC_PWR_SEL

BKLTEN_SEL

AT_ATX_SEL

CHASSIS

SPDIF_OUT

F_PANEL

SPEAKER

LCD_BLKT_PANEL

COM3

USB_213

COM4 COM5

COM2

SATA6G_3

SATA6G_4

SATA6G_2SATA6G_1

CLRTC

AAFP

BATTERY

AUDIO

Super

I/O

LAN1_U32G1_5

DP_12

LAN1_U32G2_45

U32G2_C1

U32G1_6

COM2_SEL

KBMS

128Mb

BIOS

LGA1700

LVDS_EDP

U32G1_78

Intel®

R680E

Intel®

i210AT

Intel®

I225LM

ALC

897

PCIEX16(G5)

CPU_FAN

CHA_FAN

USB_9~12

DP3

HDMI

COM1

PANEL_SW

GPIO_CON

TPM

M.2(WIFI)

2280 2260 2242

EATX12V

DIS_ME

202122

8 9 1 11 121032 76

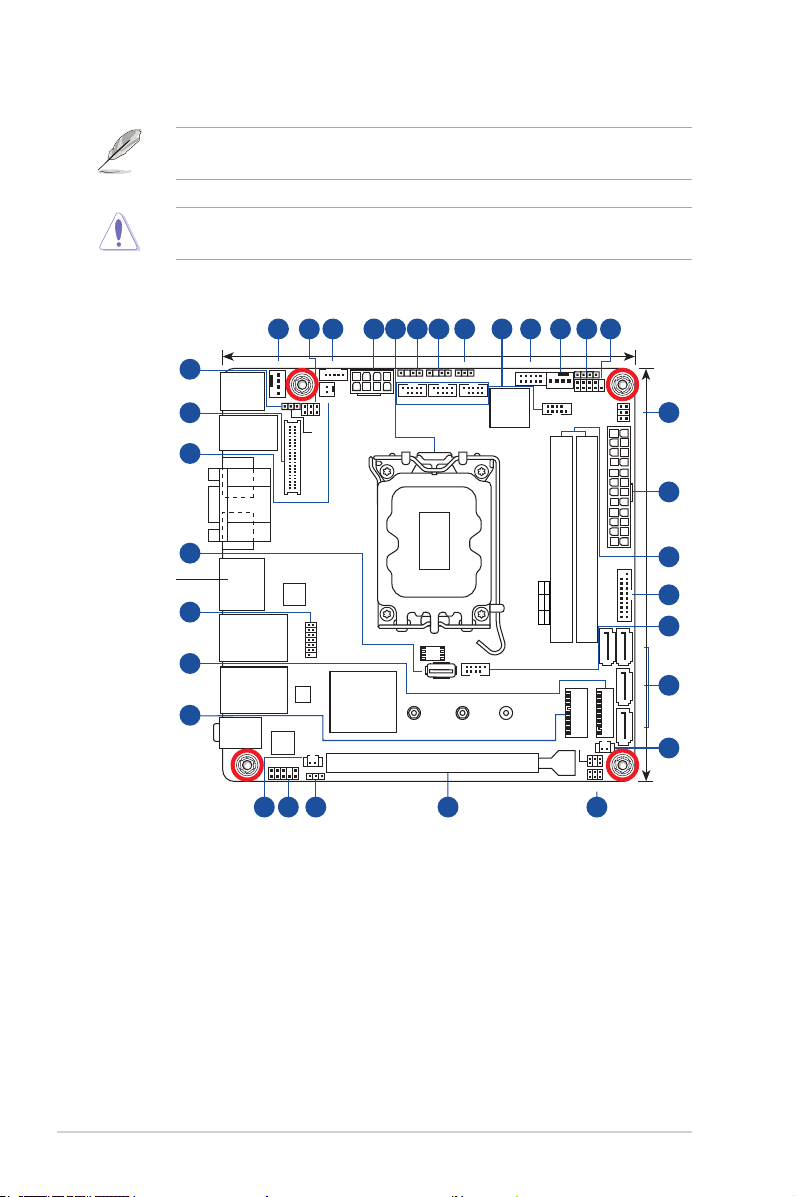

2.2 Motherboard layout

Place this side

towards the rear

of the chassis

NOTE: Place four screws into the holes indicated by circles to secure the

motherboard to the chassis.

CAUTION! Do not overtighten the screws! Doing so can damage the

motherboard.

Table des matières

Autres manuels Asus Carte mère

Asus

Asus F1A75-M PRO R2.0 Manuel utilisateur

Asus

Asus M5A88-M Guide de démarrage rapide

Asus

Asus P5K PREMIUM/WIFI-AP - Pearl Special Edition... Manuel utilisateur

Asus

Asus PRIME H310-PLUS R2.0 Manuel utilisateur

Asus

Asus P/I-P55TVP4 Manuel utilisateur

Asus

Asus SABERTOOTH X79 Manuel utilisateur

Asus

Asus F1A75-V PRO Manuel utilisateur

Asus

Asus P5SD1-FM2 Manuel utilisateur

Asus

Asus P5GD1-FM Manuel utilisateur

Asus

Asus P5N32-E SLI Plus Manuel utilisateur

Asus

Asus P5KPL-CM 1600 Manuel utilisateur

Asus

Asus TUF GAMING H470-PRO Manuel utilisateur

Asus

Asus P5BP-E/4L - Motherboard - ATX Manuel utilisateur

Asus

Asus P8H77-V LE Manuel utilisateur

Asus

Asus P5GDC Pro Manuel utilisateur

Asus

Asus ASUS K8V SE Manuel utilisateur

Asus

Asus P4SP-MX SE Manuel utilisateur

Asus

Asus P5K Pro Manuel utilisateur

Asus

Asus A7S266-VM U2 Manuel utilisateur

Asus

Asus A55-C Manuel utilisateur

Asus

Asus P5N-VM WS - Motherboard - Micro ATX Manuel utilisateur

Asus

Asus P5LD2-TVM SE Manuel utilisateur

Asus

Asus P5K SE EPU Manuel utilisateur

Asus

Asus ROG STRIX Z390-H Gaming Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur

Epson

Epson S5U13700P00C000 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur
