Asus Pro B660M-C D4 Manuel utilisateur

Motherboard

Pro B660M-C D4

E19940

Revised Edition V2

February 2022

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Safety information...................................................................................................... iv

About this guide.......................................................................................................... v

Package contents....................................................................................................... vi

Pro B660M-C D4 specications summary ............................................................... vi

Chapter 1 Product Introduction

1.1 Before you proceed...................................................................................... 1-1

1.2 Motherboard overview ................................................................................. 1-1

1.3 Central Processing Unit (CPU).................................................................... 1-8

1.4 System memory.......................................................................................... 1-10

Chapter 2 BIOS and RAID Support

2.1 BIOS setup program..................................................................................... 2-1

2.2 BIOS menu screen........................................................................................ 2-2

2.3 Event Log ...................................................................................................... 2-3

2.4 Exit menu ...................................................................................................... 2-4

2.5 RAID congurations..................................................................................... 2-5

Appendix

Warranty................................................................................................................... A-6

ASUS contact information...................................................................................... A-8

Service and Support ............................................................................................... A-8

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power

cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices

could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not

sure about the voltage of the electrical outlet you are using, contact your local power

company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals

that came with the package.

• Before using the product, ensure all cables are correctly connected and the power cables

are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may be exposed to moisture.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

• Your motherboard should only be used in environments with ambient temperatures

between 0°C and 40°C.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product Introduction

This chapter describes the features of the motherboard and the new technology it

supports. It includes descriptions of the switches, jumpers, and connectors on the

motherboard.

• Chapter 2: BIOS and RAID Support

This chapter tells how to boot into the BIOS and support RAID.

Where to nd more information

Refer to the following sources for additional information and for product and software

updates.

1. ASUS website

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

CAUTION: Information to prevent damage to the components and injuries to yourself when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Pro B660M-C D4 specications summary

CPU

Intel®Socket LGA1700 for 12th Gen Intel®Core™, Pentium®Gold and

Celeron®Processors*

Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max

Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel®B660 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/

3733(OC)/3600(OC)/3466(OC)/3400(OC)/

3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered

Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Prole (XMP)

OptiMem

* Actual Memory data rate depends on the CPU types and DRAM modules, for more

information refer to www.asus.com for the Memory QVL (Qualied Vendors Lists).

Graphics

2 x DisplayPort**

1 x D-Sub port

1 x HDMI® port***

Graphics specications may vary between CPU types. Please refer to www.intel.

com for any updates.

** Supports max. 4K@60Hz as specied in DisplayPort 1.4.

*** Supports 4K@60Hz as specied in HDMI 2.1.

Expansion Slots

Intel®12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel®B660 Chipset

2 x PCIe 3.0 x1 slots

(continued on the next page)

Package contents

Check your motherboard package for the following items.

Motherboard 1 x Pro B660M-C D4 motherboard

Cables 2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media 1 x Support DVD

Documentation 1 x ACC Express Activation Key Card

1 x User guide

If any of the above items is damaged or missing, contact your retailer.

vii

Pro B660M-C D4 specications summary

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel®12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel®12th Gen processors support PCIe 4.0 x4 mode

Intel®B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

4 x SATA 6Gb/s ports

*Intel®Rapid Storage Technology supports SATA RAID 0/1/5/10.

**Intel®Rapid Storage Technology supports Intel®Optane Memory H Series on

PCH attached M.2 slots.

Ethernet 1 x Intel®1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe interface)*

*Wi-Fi module is sold separately.

USB

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Denition Audio CODEC*

- Supports: Jack detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192kHz playback

* A chassis with an HD audio module in the front panel is required to support 7.1

Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMI®port

1 x D-Sub port

1 x Intel®1Gb Ethernet

3 x Audio jacks

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Internal I/O

Connectors

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

(continued on the next page)

viii

Pro B660M-C D4 specications summary

Internal I/O

Connectors

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrusion header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x SMBUS header

1 x Speaker header

1 x 10-1 pin System Panel header

Special Features

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- Q-LED Core

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

TPM IC onboard

Software Features

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS 128Mb Flash ROM

Manageability WOL by PME, PXE

Operating System Windows®11 - 64 bit

Windows®10 - 64 bit

Form Factor mATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Specications are subject to change without notice. Refer to the ASUS website for the

latest specications.

1-1

Pro B660M-C D4

Product Introduction

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change

any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded

object or a metal object, such as the power supply case, to avoid damaging them due

to static electricity.

• Before you install or remove any component, ensure that the ATX power supply is

switched off or the power cord is detached from the power supply. Failure to do so

may cause severe damage to the motherboard, peripherals, or components.

Unplug the power cord before installing or removing the motherboard. Failure to do so can

cause you physical injury and damage motherboard components.

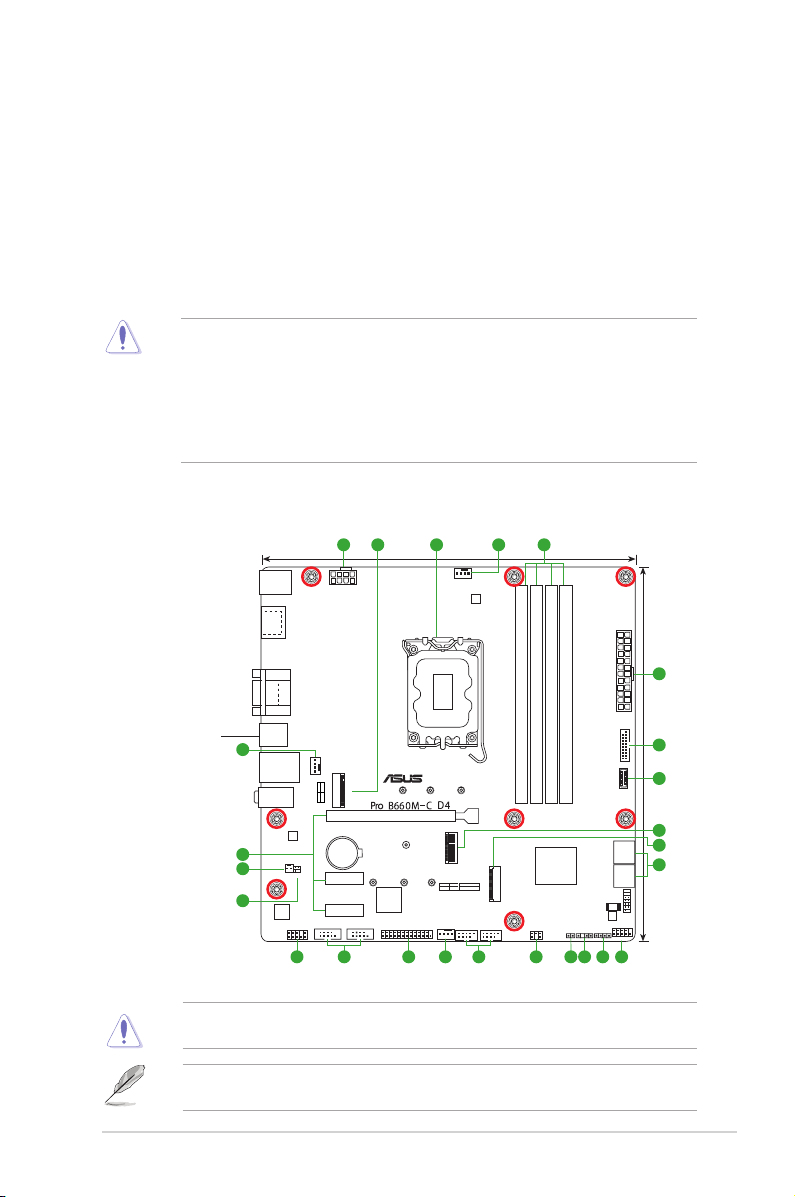

1.2 Motherboard overview

Place this

side towards

the rear of the

chassis

SATA6G_12SATA6G_34

VGA

PCIEX1(G3)_1

PCIEX1(G3)_2

SPEAKER

CHASSIS

CLRTC F_PANEL

COM_DEBUG

USB_1011USB_78

LPT

U32G1_34U32_9

AAFP

MONO_OUT

SMBUS

ATX_12V

ATX_PWR

CPU_FAN

CHA_FAN1

CHA_FAN2

BATTERY

PCIEX16(G4)

Super

I/O

DIGI+

VRM

24.4cm(9.6in)

Intel®

B660

DDR4 DIMM_B1 (64bit, 288-pin module)

2280

2260

2280 2260 2242

2230

2242

M.2_2(SOCKET3)

PCIE SATA Optane Memory

4.0 X4 X V

M.2_1(SOCKET3)

DDR4 DIMM_B2 (64bit,288-pin module)

DDR4 DIMM_A1 (64bit, 288-pin module)

DDR4 DIMM_A2 (64bit, 288-pin module)

AUDIO

KBMS

HDMI_DP1

DP2

LAN_USB_56

U32G1_12

128Mb

BIOS

TPM

COM1COM2

Ethernet

Audio

Codec

M.2_1(SOCKET3)

PCIE SATA

4.0 X4 X

M.2(WIFI)

LGA1700

65 1 24

2111 20121016 41315 14

The pin denitions in this chapter are for reference only. The pin names depend on the

location of the header/jumper/connector.

1-2

1.2.1 Layout contents

1. CPU socket

The motherboard comes with a surface mount Intel®Socket LGA1700 designed for 12th Gen

Intel®Core™, Pentium®Gold and Celeron®Processors.

For more details, refer to Central Processing Unit (CPU).

2. DDR4 DIMM slots

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4

(Double Data Rate 4) memory modules.

For more details, refer to System memory.

3. Expansion slots

This motherboard supports one PCIe 4.0 x16 graphics card and two PCIe 3.0 x1 network

cards, SCSI cards or other cards that comply with the PCI Express specication.

4. Fan headers

The Fan headers allow you to connect fans to cool the system.

5. Power connectors

These Power connectors allow you to connect your motherboard to a power supply. The

power supply plugs are designed to t in only one orientation. Find the proper orientation and

push down rmly until the power supply plugs are fully inserted.

Ensure to connect the 8-pin power plug.

• We recommend that you use a PSU with a higher power output when conguring a

system with more power-consuming devices. The system may become unstable or

may not boot up if the power is inadequate.

• If you are uncertain about the minimum power supply requirement for your system, we

recommend you to refer to online resources for Power Supply Wattage Calculator.

6. M.2 slots (Key M)

The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.

• Intel®12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel®12th processors support PCIe 4.0 x4 mode

• Intel®B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

GND

FAN PWR

FAN IN

FAN PWM

FAN IN

FAN PWR

GND

FAN PWM

FAN IN

FAN PWR

GND

Chapter 1: Product Introduction

Table des matières

Autres manuels Asus Carte mère

Asus

Asus P5G41T-M LE Manuel utilisateur

Asus

Asus ROG STRIX B365-G GAMING Manuel utilisateur

Asus

Asus P4C800-E Deluxe Manuel utilisateur

Asus

Asus M2N-CM DVI Manuel utilisateur

Asus

Asus M2A-VM HDMI Manuel utilisateur

Asus

Asus H170I-PRO Manuel utilisateur

Asus

Asus TUF Z370-PLUS GAMING Manuel utilisateur

Asus

Asus M3N78-AM Manuel utilisateur

Asus

Asus P5QPL-AM - Motherboard - Micro ATX Manuel utilisateur

Asus

Asus ROG STRIX X570-E GAMING Manuel utilisateur

Asus

Asus P3B-F Manuel utilisateur

Asus

Asus PRIME H610M-K ARGB Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

Asus

Asus P4V533-MX Manuel de l'opérateur

Asus

Asus P8Z77-V PREMIUM Manuel utilisateur

Asus

Asus M2N-X PLUS Manuel utilisateur

Asus

Asus SP98-N Manuel utilisateur

Asus

Asus M2N-MX DVI2 Manuel utilisateur

Asus

Asus PRIME H310M-E Manuel utilisateur

Asus

Asus P4P8X SE Manuel utilisateur

Asus

Asus PRIME B550M-A Manuel utilisateur

Asus

Asus Hummingbird Manuel utilisateur

Asus

Asus P5B-PLUS Manuel utilisateur

Asus

Asus M2N-SLI Deluxe Wireless Edition Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur

Epson

Epson S5U13700P00C000 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur
