Asus P/I-XP55TVP4 Manuel utilisateur

P/I-XP55TVP4

Pentium ATX Motherboard

USER'S MANUAL

ASUS P/I-XP55TVP4 User's Manual

USER'S NOTICE

Product Name: ASUS P/I-XP55TVP4

Manual Revision: 1.01

Release Date: January 1997

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any lan-

guageinanyformbyanymeanswithouttheexpresswrittenpermissionofASUSTeK

COMPUTER INC. (hereinafter referred to as ASUS) except documentation kept

by the purchaser for backup purposes.

ASUS provides this manual "as is" without warranty of any kind, either express or

implied, including but not limited to the implied warranties or conditions of mer-

chantability or fitness for a particular purpose. In no event shallASUS be liable for

any loss or profits, loss of business, loss of use or data, interruption of business, or

for indirect, special, incidental, or consequential damages of any kind, even ifASUS

has been advised of the possibility of such damages arising from any defect or error

in this manual or product. ASUS may revise this manual from time to time without

notice.

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies.

The product name and revision number are both printed on the board itself. Manual

revisions are released for each board design represented by the digit before and

after the period of the manual revision number. Manual updates are represented by

the third digit in the manual revision number. For updated BIOS, drivers, or prod-

uctreleaseinformationyoumay visitASUS' home page at: http://www.asus.com.tw/

ASUS P/I-XP55TVP4 User's Manual III

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC.

Marketing Info:

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan, ROC

Telephone: 886-2-894-3447

Fax: 886-2-894-3449

Email: [email protected]

Technical Support:

Fax: 886-2-895-9254

BBS: 886-2-896-4667

Email: [email protected]

WWW: http://www.asus.com.tw/

Gopher: gopher.asus.com.tw

FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL

Marketing Info:

Address: 721 Charcot Avenue, San Jose, CA 95131, USA

Telephone: 1-408-474-0567

Fax: 1-408-474-0568

Email: [email protected]

Technical Support:

BBS: 1-408-474-0555

Email: [email protected]

ASUS COMPUTER GmbH

Marketing Info:

Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany

Telephone: 49-2102-445011

Fax: 49-2102-442066

Email: [email protected]

Technical Support:

BBS: 49-2102-448690

Email: [email protected]

ASUS P/I-XP55TVP4 User's Manual

CONTENTS

I. INTRODUCTION...........................................................................1

How this manual is organized..........................................................1

Item Checklist ..................................................................................1

II. FEATURES ....................................................................................2

Features of the ASUS Motherboard .................................................2

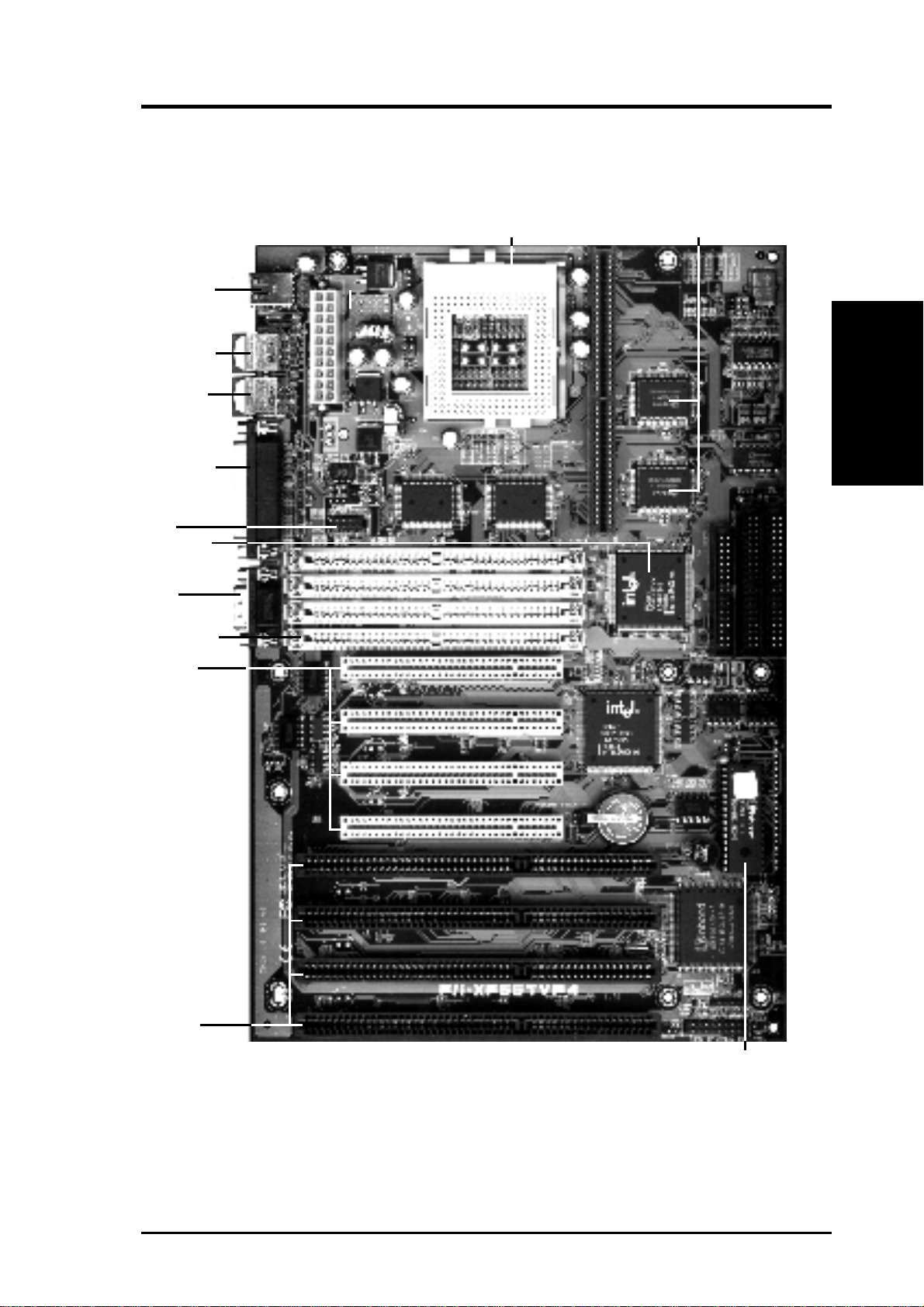

Parts of the ASUS Motherboard.................................................3

III. INSTALLATION ..........................................................................4

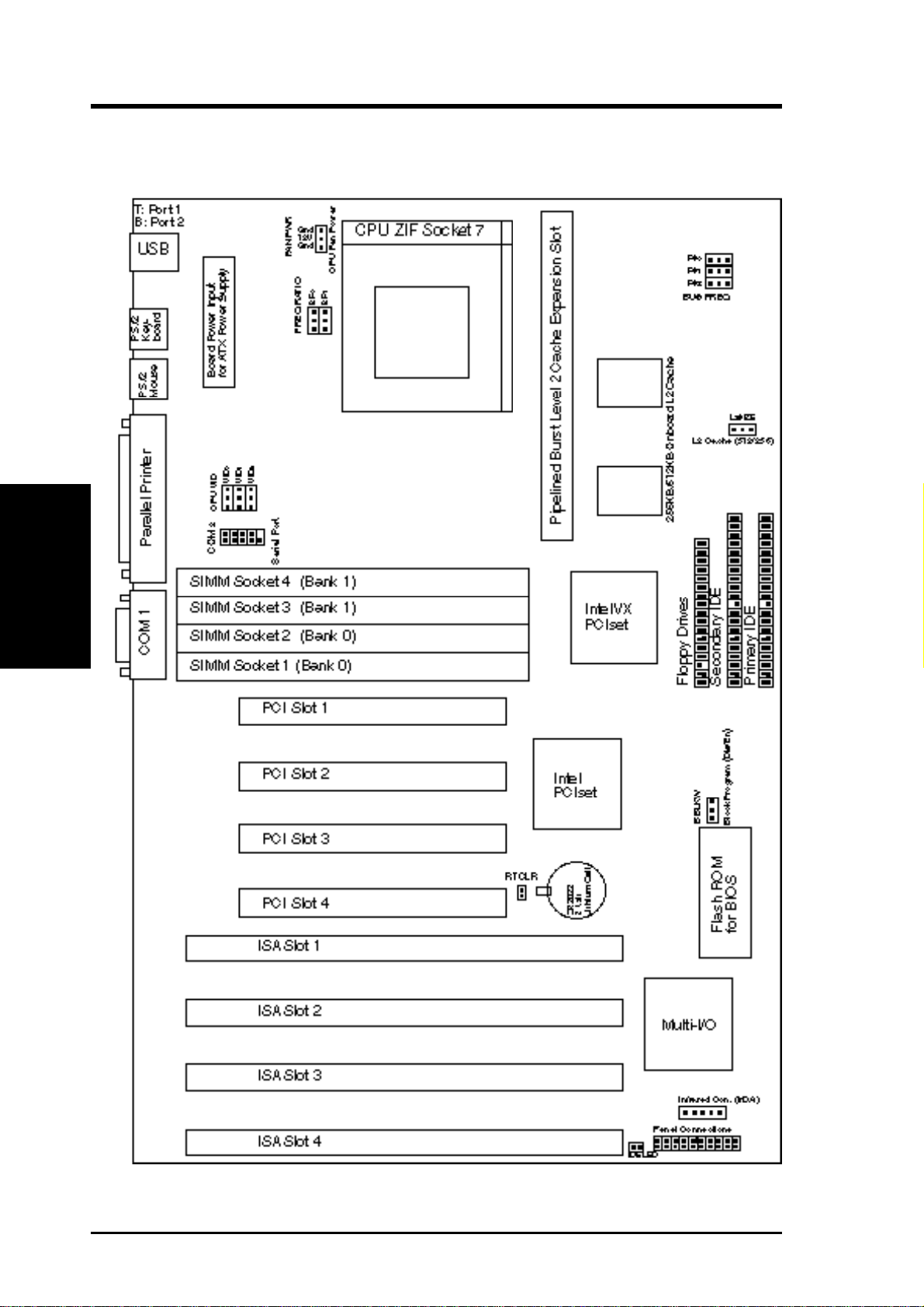

Map of the ASUS Motherboard .......................................................4

Installation Steps..............................................................................6

1. Jumpers ........................................................................................6

Jumper Settings ....................................................................7

Compatible Cyrix CPU Identification ................................ 11

2. System Memory (DRAM & SRAM)........................................12

DRAM Memory Installation Procedures: ..........................13

Static RAM (SRAM) for Level 2 (External) Cache ...........14

Compatible Cache Modules for this Motherboard .............14

3. Central Processing Unit (CPU).................................................15

4. Expansion Cards .......................................................................16

Expansion Card Installation Procedure: .............................16

Assigning IRQs for Expansion Cards.................................16

Assigning DMA Channels for ISA Cards...........................17

5. External Connectors..................................................................19

Power Connection Procedures .................................................25

IV. BIOS SOFTWARE .....................................................................26

Support Software ...........................................................................26

Flash Memory Writer Utility .........................................................26

Main Menu .........................................................................26

Advanced Features Menu ...................................................27

Updating your Motherboard's BIOS ........................................28

6. BIOS Setup ...............................................................................29

Load Defaults .....................................................................30

Standard CMOS Setup .............................................................30

Details of Standard CMOS Setup:......................................31

BIOS Features Setup ................................................................34

Details of BIOS Features Setup..........................................34

Chipset Features Setup .............................................................37

Details of Chipset Features Setup.......................................37

ASUS P/I-XP55TVP4 User's Manual V

CONTENTS

Power Management Setup........................................................40

Details of Power Management Setup .................................40

PNP and PCI Setup ..................................................................42

Details of PNP and PCI Setup ............................................42

Load BIOS Defaults .................................................................44

Load Setup Defaults .................................................................44

Supervisor Password and User Password ................................45

IDE HDD Auto Detection ........................................................46

Save and Exit Setup .................................................................47

Exit Without Saving .................................................................47

V. DESKTOP MANAGEMENT......................................................49

Desktop Management Interface (DMI)..........................................49

Introducing the ASUS DMI Configuration Utility .............49

System Requirements .........................................................49

Using the ASUS DMI Configuration Utility ......................50

Notes:..................................................................................50

VI. ASUS PCI-SC200 SCSI Card....................................................53

NCR SCSI BIOS and Drivers ........................................................53

The ASUS PCI-SC200 SCSI Interface Card .................................54

Setting Up the ASUS PCI-SC200 ............................................54

Setting the INTAssignment .....................................................55

Terminator Settings ..................................................................55

SCSI ID Numbers ....................................................................56

VII. DOS 3.1 & Windows 3.1x Audio Software

(with optional I-A16C Audio Card Bundle Only)

VIII. Windows 95Audio Software

(with optional I-A16C Audio Card Bundle Only)

ASUS P/I-XP55TVP4 User's Manual

FCC & DOC COMPLIANCE

FederalCommunications CommissionStatement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with manufacturer's instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the inter-

ference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: The use of shielded cables for connection of the monitor to thegraphics

card is required to assure compliance with FCC regulations. Changes or modifica-

tions to this unit not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

CanadianDepartment ofCommunications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the Cana-

dian Department of Communications.

ASUS P/I-XP55TVP4 User’s Manual 1

I. INTRODUCTION

(Manual / Checklist)

How this manual is organized

This manual is divided into the following sections:

I. Introduction: Manual information and checklist

II. Features: Information and specifications

III. Installation: Instructions on setting up the motherboard

IV. BIOS Setup: BIOS software setup information

V. ASUS DMI Utility: BIOS supported Desktop Management Interface

VI. ASUS PCI-SC200: Installation of an optional SCSI card

VII. ASUS I-A16C: Installation of an optional Audio card

VIII. DOS/Win3.1x: Audio Software Manual (with I-A16C bundle only)

IX. Windows 95: Audio Software Manual (with I-A16C bundle only)

Item Checklist

Please check that your package is complete. If you discover damaged or missing

items, please contact your retailer.

√The ASUS P/I-XP55TVP4 motherboard

√1 IDE ribbon cable

√1 floppy ribbon cable

√1 serial cable & bracket set

√Support drivers and utilities as follows (view FILELIST.TXT for details)

• Flash Memory Writer utility to update the FLASH BIOS

• Desktop Management Interface (DMI) utility

• Bus Master IDE Drivers for various operating systems

• Audio drivers and utilities (included with I-A16C bundle only)

• Readme files for descriptions and use of the files

• Technical Support Form

√This user's manual (audio sections included with I-A16C bundle only)

Optional infrared module

Optional ASUS PCI-SC200 Fast-SCSI card

Optional ASUS I-A16C Audio Card

2ASUS P/I-XP55TVP4 User’s Manual

Features of the ASUS Motherboard

The ASUS P/I-XP55TVP4 is carefully designed for the demanding PC user who

wants many features in a small package. This motherboard:

•Easy Installation: Is equipped with BIOS that supports auto detection of hard

drives, PS/2 mouse, and Plug and Play devices to make setup of hard drives,

expansion cards, and other devices virtually automatic.

•Multi-Processor/Multi-Speed Support: Supports one Intel P54C Pentium

(75-200MHz), Intel P55C Pentium (200MHz), Cyrix P166+ (Rev 2.7 or later),

or AMD-K5 (PR75-133MHz) (See page 10).

•Intel Chipset: Features Intel's 430VX PCIset with I/O subsystems.

•Desktop Management Interface (DMI): Supports DMI through BIOS which

allows hardware to communicate within a standard protocol creating a higher

level of compatibility. (Requires DMI-enabled components.) (See section V)

•L2 Cache: Provides the option of 0KB upgradeable to 256KB or 512KB, on-

board256KB upgradeable to 512KB, or512KB onboard Pipelined Burst SRAM.

Upgrades are made through a Synchronous SRAM cache module. (See page

14 for compatible cache modules.)

•Versatile DRAM Memory Support: Supports 72-pin SIMMs of 4MB, 8MB,

16MB, or 32MB to form a memory size between 8MB to 128MB. Supports both

Fast Page Mode (FPM) and Extended Data Output (EDO) SIMMs. (see p. 12)

•ISA & PCI Expansion Slots: Provides four 16-bit ISA & four 32-bit PCI slots.

•Super Multi-I/O: Provides two high-speed UART compatible serial ports and

one parallel port with EPP and ECP capabilities. UART2 can also be directed

from COM2 to the Infrared Module for wireless connections. Two floppy drives

of either 5.25" or 3.5" (1.44MB or 2.88MB) are also supported without an exter-

nal card. The Japanese "Floppy 3 mode" (3.5" 1.2MB) floppy standard is

also supported.

•PCI Bus Master IDE Controller: Comes with an onboard PCI Bus Master

IDE controller with two connectors that supports four IDE devices in two chan-

nels, provides faster data transfer rates, and supports Enhanced IDE devices

such asTape Backup and CD-ROM drives. This controller supports PIO Modes

3 and 4 and Bus Master IDE DMA Mode 2. BIOS now supports IDE CD-

ROM or SCSI bootup.

•Optional IrDA Connector: Has an optional ribbon & bracket set to support an

optional infrared port module for wireless interface.

•NCR SCSI BIOS: This motherboard has firmware that supports the optional

ASUS PCI-SC200 SCSI controller cards.

II. FEATURES

(Features)

II. FEATURES

ASUS P/I-XP55TVP4 User’s Manual 3

Parts of the ASUS Motherboard

II. FEATURES

(Parts of Board)

Intel's 430VX

PCIset

256/512KB Pipelined

Burst L2 Cache

CPU ZIF Socket 7

4 PCI Slots

4ISASlots

T: USB Port 1

B: USB Port 2

Floppy Drive Connector

BIOS Flash ROM

Parallel Conn.

IDE 2 Connector

IDE 1 Connector

COM 1

COM 2

PS/2 Keyboard

PS/2 Mouse

4 SIMM Slots

4ASUS P/I-XP55TVP4 User’s Manual

III. INSTALLATION

Map of the ASUS Motherboard

(Map of Board)

III. INSTALLATION

Table des matières

Autres manuels Asus Carte mère

Asus

Asus PRIME B250M-J Manuel utilisateur

Asus

Asus P2L-N Manuel utilisateur

Asus

Asus P8P67 WS Revolution Manuel utilisateur

Asus

Asus PRIME H310M-C R2.0 Manuel utilisateur

Asus

Asus Prime B460M-A Manuel utilisateur

Asus

Asus M4A77TD PRO U3S6 Manuel utilisateur

Asus

Asus F1A55-V PLUS Manuel utilisateur

Asus

Asus Z8PE-D12X - Motherboard - SSI EEB 3.61 Manuel utilisateur

Asus

Asus SABERTOOTH Z97 MARK 2/USB 3.1 Manuel utilisateur

Asus

Asus MIX-EHLD1 Manuel utilisateur

Asus

Asus Pro B650M-CT Manuel utilisateur

Asus

Asus STRIX B250H GAMING Manuel utilisateur

Asus

Asus P4C800 Deluxe Manuel utilisateur

Asus

Asus PVI-486AP4 Manuel utilisateur

Asus

Asus Q170S1 Manuel utilisateur

Asus

Asus B85M-E/DASH Manuel utilisateur

Asus

Asus P7F7-E WS SUPERCOMPUTER Manuel utilisateur

Asus

Asus H81M-K Manuel utilisateur

Asus

Asus PRIME B760M-A WIFI D4 Manuel utilisateur

Asus

Asus P8H67-M PRO/CSM Manuel utilisateur

Asus

Asus P4G8X Manuel utilisateur

Asus

Asus P8H61-I LX R2.0 RM SI Manuel utilisateur

Asus

Asus PCI E-P54NP4 Manuel utilisateur

Asus

Asus X99-S Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur

Epson

Epson S5U13700P00C000 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur
