Asus P5QL-I SI Manuel utilisateur

Motherboard

P5QL-I/SI

E4649

First Edition V1

May 2009

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

iii

Contents

Notices.......................................................................................................... v

Safety information ...................................................................................... vi

About this guide ......................................................................................... vi

P5QL-I/SI specications summary.......................................................... viii

Chapter 1: Product introduction

1.1 Before you proceed ..................................................................... 1-1

1.2 Motherboard overview................................................................. 1-2

1.2.1 Motherboard layout ......................................................... 1-2

1.2.2 Layout contents............................................................... 1-3

1.3 Central Processing Unit (CPU) ................................................... 1-3

1.4 System memory ........................................................................... 1-4

1.4.1 Overview ......................................................................... 1-4

1.4.2 Memory congurations.................................................... 1-4

1.5 Expansion slots............................................................................ 1-8

1.5.1 Installing an expansion card ........................................... 1-8

1.5.2 Conguring an expansion card ....................................... 1-8

1.5.3 PCI slots.......................................................................... 1-8

1.5.4 PCI Express x16 slot....................................................... 1-8

1.6 Jumpers ........................................................................................ 1-9

1.7 Connectors ................................................................................. 1-11

1.7.1 Rear panel connectors...................................................1-11

1.7.2 Internal connectors ....................................................... 1-12

1.8 Software support........................................................................ 1-16

1.8.1 Installing an operating system ...................................... 1-16

1.8.2 Support CD information ................................................ 1-16

Chapter 2: BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................ 2-1

2.1.2 ASUS EZ Flash 2 utility................................................... 2-2

2.1.3 ASUS CrashFree BIOS 3 utility ...................................... 2-3

2.2 BIOS setup program .................................................................... 2-4

2.3 Main menu .................................................................................... 2-5

2.3.1 System Time ................................................................... 2-5

2.3.2 System Date ................................................................... 2-5

Contents

2.3.3 SATA1~4 ......................................................................... 2-5

2.3.4 Storage Conguration ..................................................... 2-6

2.3.5 System Information ......................................................... 2-6

2.4 Advanced menu ........................................................................... 2-7

2.4.1 CPU Conguration .......................................................... 2-7

2.4.2 Chipset............................................................................ 2-8

2.4.3 Onboard Devices Conguration...................................... 2-8

2.4.4 USB Conguration .......................................................... 2-9

2.4.5 PCI PnP ........................................................................ 2-10

2.5 Power menu................................................................................ 2-10

2.5.1 Suspend Mode.............................................................. 2-10

2.5.2 ACPI 2.0 Support .......................................................... 2-10

2.5.3 ACPI APIC Support........................................................2-11

2.5.4 APM Conguration.........................................................2-11

2.5.5 Hardware Monitor ..........................................................2-11

2.6 Boot menu .................................................................................. 2-12

2.6.1 Boot Device Priority ...................................................... 2-12

2.6.2 Boot Settings Conguration .......................................... 2-12

2.6.3 Security ......................................................................... 2-13

2.7 Tools menu ................................................................................. 2-14

2.7.1 ASUS EZ Flash 2.......................................................... 2-14

2.7.2 AI NET 2........................................................................ 2-14

2.8 Exit menu.................................................................................... 2-15

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with manufacturer’s instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of

Chemicals) regulatory framework, we published the chemical substances in our products at

ASUS REACH website at http://green.asus.com/english/REACH.htm.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority

to operate this equipment.

DO NOT throw the motherboard in municipal waste. This product has been designed to

enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin

indicates that the product (electrical and electronic equipment) should not be placed in

municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol

of the crossed out wheeled bin indicates that the battery should not be placed in municipal

waste.

Safety information

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables

for the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure that all

power cables are unplugged.

•

Seek professional assistance before using an adpater or extension cord. These devices

could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are

not sure about the voltage of the electrical outlet you are using, contact your local power

company.

•

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals

that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power

cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors,

slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area

where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it

supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

vii

Where to nd more information

Refer to the following sources for additional information and for product and software

updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the

standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used

throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

NOTE: Tips and additional information to help you complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or

Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+).

Example: <Ctrl>+<Alt>+<D>

viii

P5QL-I/SI specications summary

(continued on the next page)

CPU LGA775 Socket for Intel®Core™2 Extreme /

Core™2 Quad / Core™2 Duo / Pentium®Dual-Core /

Celeron®Dual-Core / Celeron®processors

Supports Intel®45nm multi-core CPU

* Refer to www.asus.com for Intel®CPU support list.

Chipset Intel®P43 / ICH10 with Intel®Fast Memory Access

Technology

System bus 1333/1066/800 MHz

Memory Dual channel memory architecture

- 2 x 240-pin DIMM sockets support unbuffered

non-ECC DDR2 800/667MHz memory modules

- Supports up to 8GB system memory

* Refer to www.asus.com or this user manual for the

Memory QVL (Qualied Vendors Lists)

** When you install a total memory of 4GB capacity

or more, Windows®32-bit operating system may only

recognize less than 3GB. We recommend a maximum

of 3GB system memory if you are using a Windows®

32-bit operating system.

Expansion slots 1 x PCIe x16 slot

3 x PCI slots

Storage Intel®ICH10 southbridge supports:

- 4 x Serial ATA 3.0Gb/s connectors

LAN Realtek®RTL8112, PCIe Gigabit LAN controller

Audio VIA VT1705, 6-channel High-Denition Audio CODEC

- Supports Jack-detect and Multi-streaming

technologies

- ASUS Noise Filter

USB 8 x USB 2.0/1.1 ports (2 ports at mid-board, 6 ports at

back panel)

ASUS special features ASUS Q-FAN

ASUS MyLogo 2

ASUS AI NET 2

ASUS CrashFree BIOS 3

ASUS EZ Flash 2

ASUS EPU Lite

P5QL-I/SI specications summary

*Specications are subject to change without notice.

Back panel I/O ports 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x COM port

1 x LAN (RJ-45) port

6 x USB 2.0/1.1 ports

6-channel audio I/O ports

Internal I/O connectors 1 x USB 2.0/1.1 connector supports 2 additional

USB 2.0/1.1 ports

4 x Serial ATA connectors

1 x CPU fan connector

1 x Chassis fan connector

1 x Front panel audio connector

1 x 24-pin EATX power connector

1 x 4-pin ATX 12V power connector

1 x System panel connector

BIOS features 8Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0,

SM BIOS 2.5, ACPI 2.0a

Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support CD Contents Drivers

ASUS PC Probe II

ASUS Update

Anti-virus software (OEM version)

Accessories 1 x Serial ATA cable

1 x I/O shield

Support CD

User manual

Form factor ATX form factor: 12.0 in x 7.1 in (30.5 cm x 18.0 cm)

ASUS P5QL-I/SI 1-1

Chapter 1

Product introduction

If any of the items is damaged or missing, contact your retailer.

Thank you for buying an ASUS®P5QL-I/SI motherboard!

Before you start installing the motherboard, and hardware devices on it, check the items in

your motherboard package. Refer to page ix for the list of accessories.

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change

any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded

object or a metal object, such as the power supply case, to avoid damaging them due to

static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the

bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is

switched off or the power cord is detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals, or components.

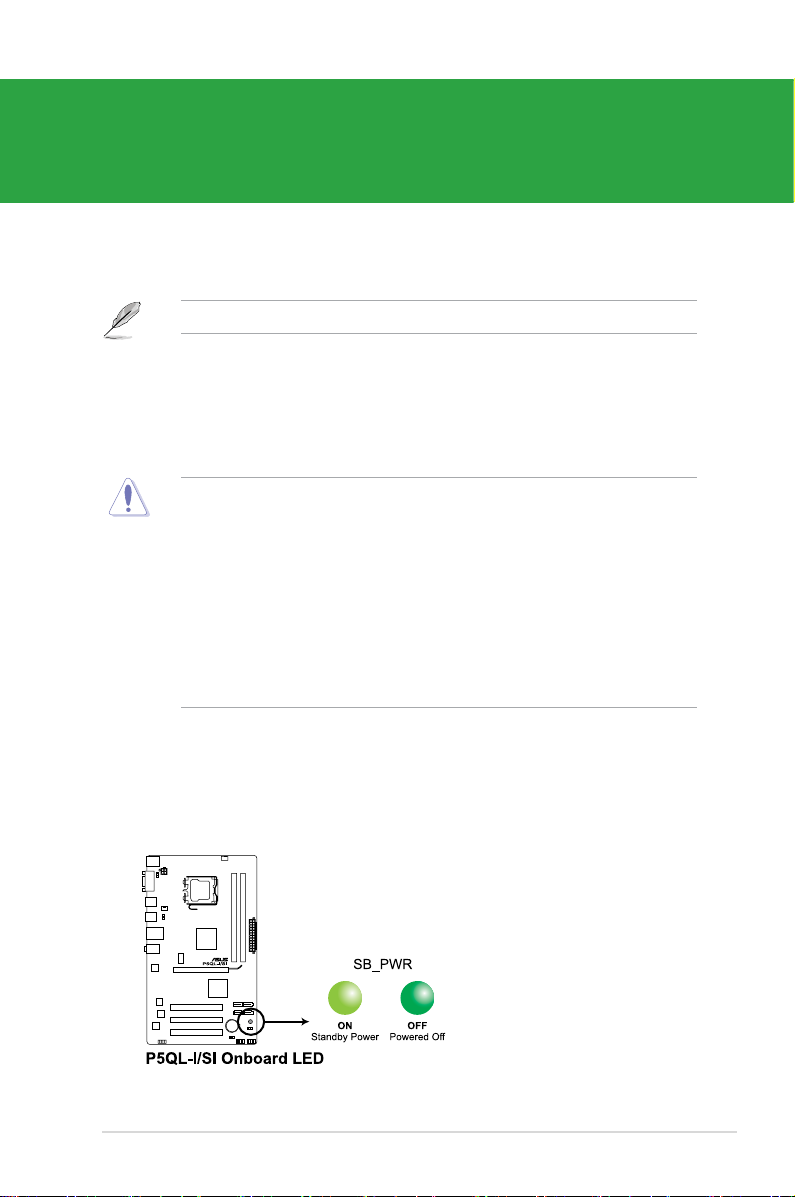

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate that the system

is ON, in sleep mode, or in soft-off mode. This is a reminder that you must shut down

the system and unplug the power cable before removing or plugging in any motherboard

component. The illustration below shows the location of the onboard LED.
