Asus P4B-LA Manuel utilisateur

P4B-LA

Intel®845

Micro-ATX Motherboard

Quick Start

USER’S MANUAL

2P4B-LA Quick Start Manual

Product Name: P4B-LA

Manual Revision: 1.03 E841

Release Date: August 2001

No part of this manual, including the products and software described in it, may be repro-

duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in

any form or by any means, except documentation kept by the purchaser for backup purposes,

without the express written permission.

PROVIDES THIS MANUAL“AS IS” WITHOUTWARRANTYOFANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WAR-

RANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPARTICU-

LAR PURPOSE. IN NO EVENT SHALL , ITS DIRECTORS, OFFICERS, EMPLOYEES

ORAGENTS BE LIABLE FORANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSE-

QUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF

BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESSANDTHE LIKE),

EVEN IF HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARIS-

ING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or

altered, unless such repair, modification of alteration is authorized in writing by ; or (2) the

serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trade-

marks or copyrights of their respective companies, and are used only for identification or

explanation and to the owners’ benefit, without intent to infringe.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.

• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

The product name and revision number are both printed on the product itself. Manual revi-

sions are released for each product design represented by the digit before and after the period

of the manual revision number. Manual updates are represented by the third digit in the manual

revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact at

http://www..com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-

NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT

ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-

MITMENT BY . ASSUMES NO RESPONSIBILITYOR LIABILITY FORANYERRORS

ORINACCURACIESTHATMAYAPPEARINTHISMANUAL, INCLUDINGTHE PROD-

UCTS AND SOFTWARE DESCRIBED IN IT.

USER'S NOTICE

P4B-LA Quick Start Manual 3

Contents

1. INTRODUCTION ........................................................ 5

1.1 How This Manual Is Organized ................................................. 5

1.2 Item Checklist ............................................................................ 5

2. FEATURES ................................................................... 6

2.1 The P4 -LA ............................................................................... 6

2.1.1 Core Specifications ........................................................... 6

2.1.2 Connectors......................................................................... 7

2.1.3 Performance ...................................................................... 8

2.1.4 Intelligence ........................................................................ 9

3. HARDWARE SETUP ................................................... 10

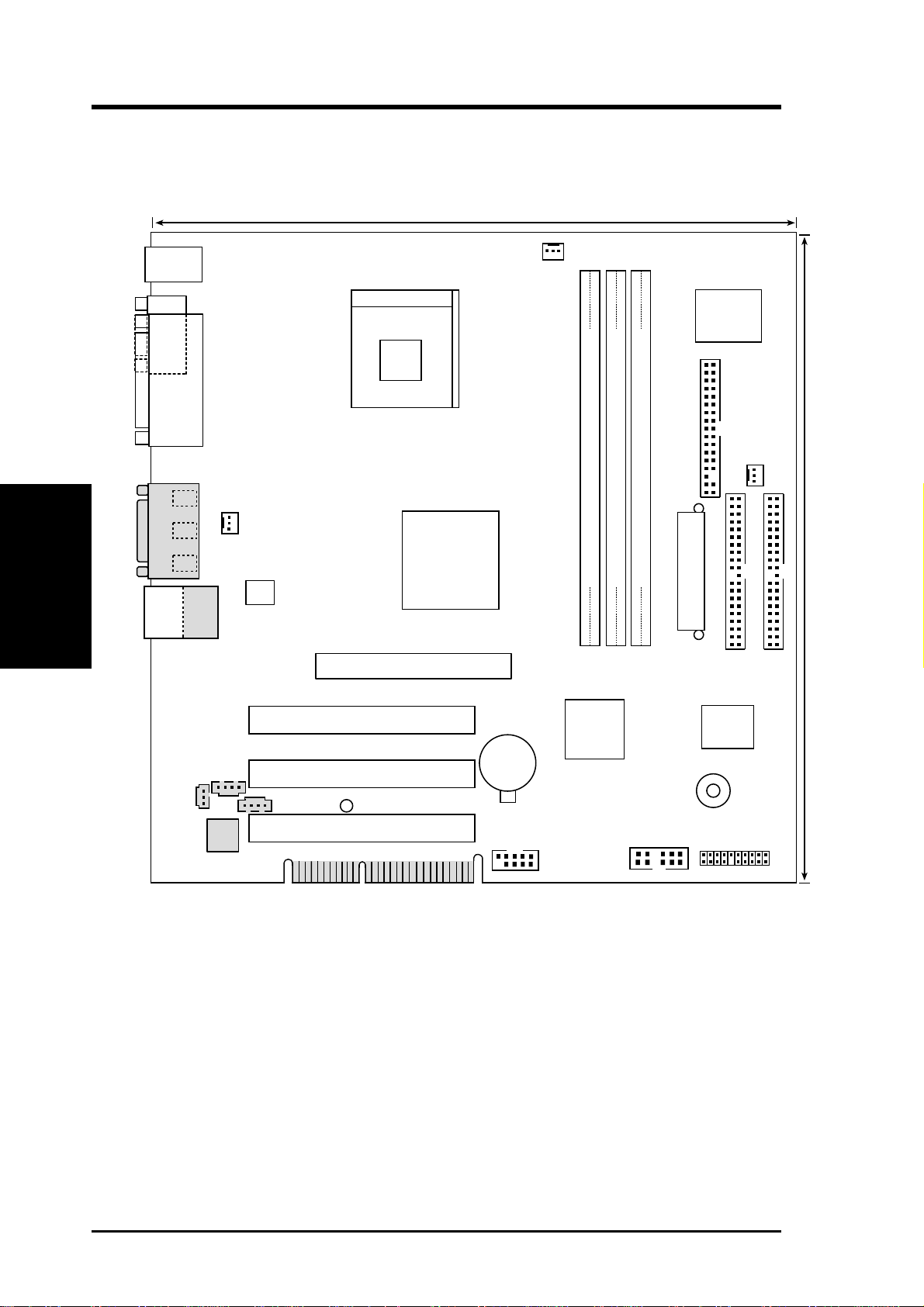

3.1 P4 -LA Motherboard Layout .................................................... 10

3.2 Layout Contents ......................................................................... 11

3.3 Motherboard Setup .................................................................... 12

3.4 System Memory (DIMM) .......................................................... 14

3.4.1 General DIMM Notes ....................................................... 14

3.4.2 Memory Installation .......................................................... 15

3.5 Central Processing Unit (CPU) .................................................. 16

3.6 Installing the heatsink and fan ................................................... 17

3.7 Expansion Cards ........................................................................ 20

3.7.1 Installing an Expansion Card ............................................ 21

3.7.2 Assigning IRQs for Expansion Cards ............................... 21

3.7.3 Accelerated Graphics Port (AGP) Pro Slot ....................... 22

3.7.4 PCI Extension Card Golden Finger................................... 23

3.8 External Connectors ................................................................... 24

4P4B-LA Quick Start Manual

FCC & DOC COMPLIANCE

FederalCommunicationsCommission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with manufacturer's instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly ap-

proved by the manufacturer could void any assurances of safety or performance

and could result in violation of Part 15 of the FCC Rules.

Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.Washington DC: Office of the

Federal Register, National Archives and Records Administration, U.S. Government Printing Office.

CanadianDepartmentof Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the Canadian

Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

P4B-LA Quick Start Manual 5

1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Instructions on setting up the motherboard.

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items,

contact your retailer.

Package Contents

(1) Motherboard

1. INTRODUCTION

6P4B-LA Quick Start Manual

2. FEATURES

2.1 The P4B-LA

The P4B-LA motherboard is carefully designed for the demanding PC user who

wants advanced features processed by the fastest processors.

2.1.1 Core Specifications

•Latest Intel Processor Support

Pentium4

Socket 478/Northwood 100/133MHz FSB

•North bridge controller. The Intel Memory Controller Hub (MCH) is one part

of the Intel 845 (Brookdale) chipset.The MCH along with the south bridge Intel

I/O Controller Hub 2 (ICH2) are interconnected through the Intel proprietary

Hub interface. The MCH provides the processor interface, system memory in-

terface, AGP interface, and Hub Interface.

•South bridge controller. Referred to as the Intel I/O Controller Hub 2 (ICH2)

of the Intel 845 chipset, this controller provides the I/O subsystem that allows

access to the rest of the system. The ICH2 integrates I/O functions such as sys-

tem bus interface, Ultra ATA/100, Low Pin Count (LPC) interface, Universal

Serial Bus (USB) 1.1 interface, PCI interface.

•PC100/PC133 SDRAM DIMM Memory Sockets: Equipped with two Dual

Inline Memory Module (DIMM) sockets to support PC100/PC133-compliant

non-ECC SDRAMs (available in 64, 128, 256, 512Mb densities) up to 512MB.

•Super I/O chipset. A Low Pin Count (LPC) chipset combines the commonly

used Super I/O functionality and system hardware monitoring capability. The

chipset incorporates Fan Speed Control Monitor (FSCM), event wake-up

feature, floppy disk controller, keyboard/mouse controller, a parallel port, two

enhanced serial ports, watchdog timer, and a MIDI interface compatible with

MPU-401 UART mode.

•UltraDMA33/66/100 Support: Comes with an onboard PCI Bus Master IDE

controller with two connectors that support four IDE devices on two channels.

Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and

Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM,

CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.

•FlashEEPROM: 2Mb firmware programmable BIOS program offers enhanced

ACPI for Windows 98/ME/2000 compatibility, and autodetection of most de-

vices for virtually automatic setup..

P4B-LA Quick Start Manual 7

2. FEATURES

2.1.2 Connections

•CPU socket: 478-pin surface mount, ZIF socket PGA478 B.

•PCI Expansion Slots: Provides three 32-bit PCI (PCI 2.2 compliant) expansion

slots. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN

cards. (PCI supports up to 133MB/s maximum throughput.)

•IDE connectors: These dual-channel bus master IDE connectors support up to

four Ultra DMA/100/66, PIO Modes 3 & 4 IDE devices. Both the primary (blue)

and secondary (black) connectors are slotted to prevent incorrect insertion of the

IDE ribbon cable.

•Floppy disk connector. This connector accommodates the floppy disk drive

ribbon cable. One side of the connector is slotted to prevent incorrect insertion

of the floppy disk cable.

•ATX powerconnector.This 20-pin connector supplies anATX 12Vpower sup-

ply. The power supply must have at least 1Aon the +5V standby lead (+5VSB).

•ATX 12V connector. This power connector supplies the 4-pin 12V plug from

the ATX 12V power supply.

•AGP slot: The Accelerated Graphics Port (AGP) slot supports 1.5V AGP4X

mode graphics cards for 3D graphical applications.

•RJ-45port: This port allows connection toa LocalAreaNetwork(LAN) through

a network hub.

•Microphone jack: Pink jack connects a microphone.

•Line In jack: Light blue jack connects a tape player or other audio sources.

•Line Out jack: Lime jack connects a headphone or a speaker.

•USB ports. Two 4-pin Universal Serial Bus (USB) ports are available for con-

necting USB devices such as a mouse and PDA.

•Game/MIDI connector. This connector supports a joystick or a game pad for

playing games, and MIDI devices for playing or editing audio files.

•Serial ports: Two 9-pin COM1/COM2 ports are for pointing devices or other

serial devices.

•Parallel port: A 25-pin port connects a parallel printer, a scanner, or other de-

vices.

•PS/2 mouse port: Green 6-pin connector is for a PS/2 mouse.

•PS/2 keyboard port: Purple 6-pin connector is for a PS/2 keyboard.

8P4B-LA Quick Start Manual

2. FEATURES

2.1.3 Performance

•Onboard LED: The onboard LED will light up when there is standby power to

the motherboard. This acts as a reminder to the user to turn OFF the power

before plugging and unplugging devices so as not to damage the motherboard,

peripherals, and/or components.

•UltraPerformance:OnboardIDEBus Mastercontrollerwith two connectorsthat

support four IDE devices in two channels. Supports UltraDMA/100, UltraDMA/

66,UltraDMA/33 (IDE DMAMode 2), PIOModes 3 &4, and supportsEnhanced

IDEdevices:DVD-ROM, CD-ROM,CD-R/RW,LS-120,andTapeBackupdrives.

•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter buses to memory and processor.

•SDRAM Optimized Performance: This motherboard supports PC133-com-

pliant Synchronous Dynamic RandomAccess Memory (SDRAM), which increases

the data transfer rate to 1066MB/s max.

•ACPIReady:ACPI (Advanced ConfigurationandPower Interface) isalsoimple-

mented on all smart series motherboards. ACPI provides more Energy Saving

Features for operating systems (OS) supporting OS Direct Power Management

(OSPM). With these features implemented in the OS, PCs can be ready around

the clock, yet satisfy all the energy saving standards. To gain all the benefits, an

ACPI-supported OS, such as Windows 98/2000/ME is required.

•Audio CODEC. This AC ‘97 audio codec provides stereo analog I/O on the

motherboard and peripheral devices to deliver high quality audio to PC-con-

nected speakers, headphones, and microphones. The codec includes analog-to-

digital and digital-to-analog sample rate converters, as power amplifiers and

programmable gain blocks.

•NewCompliancy: Both the BIOS and hardware levels of the motherboard meet

the stringent requirements for PC 99 certification.The new PC 99 requirements

for systems and components are based on high-level goals: support for Plug and

Play compatibility and power management for managing all system compo-

nents, and 32-bit device drivers and installation procedures for Windows 95/98/

NT. Color-coded connectors and descriptive icons make identification easy.

P4B-LA Quick Start Manual 9

2. FEATURES

2.1.4 Intelligence

•Fan Status Monitoring and Alarm: To prevent system overheat and system

damage, the CPU, power supply, and system fans can be monitored for RPM

and failure. All the fans are set for its normal RPM range and alarm thresholds.

•TemperatureMonitoringandAlert:Topreventsystem overheat and systemdam-

age, this motherboard supports processor thermal sensing and auto-protection.

•Dual Function Power Button: Through BIOS, the power button can be defined

as the “Stand by”(a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX

Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.

Regardless of the setting, pushing the power button for more than 4 seconds will

enter the Soft-Off mode.

10 P4B-LA Quick Start Manual

3. HARDWARE SETUP

3.1 P4B-LA Motherboard Layout

Motherboard Layout

2. H/W SETUP

24.4cm (9.60in)

24.4cm (9.6in)

PS/2KBMS

T: Mouse

B: Keyboard

PCI3

HPD-PANEL

FLOPPY

SECONDARYIDE

PRIMARYIDE

Intel I/O

Controller

Hub

(ICH2)

P4B-LA

Accelerated Graphics Port (AGP)

CR2032 3V

Lithium Cell

CMOS Power

ATX Power Connector

2Mbit

Firmware

Hub

Multi

I/O

ATX12V

Intel 845

Memory

Controller

Hub (MCH)

AUX

CPU_FAN

Audio

Codec

CD_IN

BUZZER

LED1

USB1

USB2

Bottom:

RJ-45

Top:

COM1

PARALLEL PORT

PCI2

PCI1

Socket 478

DIMM Socket 1 (64/72-bit, 168-pin module)

0 1

DIMM Socket 2 (64/72-bit, 168-pin module)

2 3

DIMM Socket 3 (64/72-bit, 168-pin module)

4 5

GAME_AUDIO

Mic

Line

Out

Line

SYSTEM_FAN

HPDCOM2

SPKR_OUT

USB-HPD

PS_FAN

Grayed components are optional at the time of purchase.

Table des matières

Autres manuels Asus Carte mère

Asus

Asus EX-B760M-V5 Manuel utilisateur

Asus

Asus J1800I-C Manuel utilisateur

Asus

Asus prime B250M-K Manuel utilisateur

Asus

Asus E3M-PLUS V5 Manuel utilisateur

Asus

Asus M5A97 LE R2.0 Manuel utilisateur

Asus

Asus P5B SE - Motherboard - ATX Manuel utilisateur

Asus

Asus A8N-SLI SE Manuel utilisateur

Asus

Asus H61M-C/SI Manuel utilisateur

Asus

Asus H81M-CS Manuel utilisateur

Asus

Asus P5G-MX Manuel utilisateur

Asus

Asus Prime H510M-A Manuel utilisateur

Asus

Asus M4A785G HTPC Series Manuel utilisateur

Asus

Asus J1800I-C/BR Manuel utilisateur

Asus

Asus P10S-M-DC Manuel utilisateur

Asus

Asus P5K PREMIUM/WIFI-AP - Pearl Special Edition... Manuel utilisateur

Asus

Asus ROG STRIX B760 Series Manuel utilisateur

Asus

Asus PR-DLSW Manuel utilisateur

Asus

Asus Z10PA-D8 Series Manuel utilisateur

Asus

Asus P5L 1394 Manuel utilisateur

Asus

Asus P7P55D PREMIUM Manuel utilisateur

Asus

Asus P5GPL-X SE Manuel utilisateur

Asus

Asus PRIME H410M-K R2.0 Manuel utilisateur

Asus

Asus MAXIMUS IX EXTREME Manuel utilisateur

Asus

Asus ROG STRIX X570-I GAMING Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur

Epson

Epson S5U13700P00C000 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur
