Getting Started

This Quick Setup Guide will help you get your motherboard up and running quickly. Refer to the Quick Reference Card included in

the User Guide when using this Quick Setup Guide. For detailed setup instructions, refer to the User Guide.

What’s in the box?

Check your motherboard package for the following items.

Motherboard

80-Conductor IDE

signal cable Floppy disk

signal cable

Bag of jumper

caps User Guide

Motherboard

support CD

40-Conductor IDE

signal cable

Quick Setup Guide

SAFETY INFORMATION

Computer components are extremely sensitive to electrostatic discharge (ESD). Before handling any

components, be sure to wear an anti-static wrist strap (not included) and touch a grounded metal object to

release any built-up static electricity.

Serial ATA

signal cable

English

Installation

WARNING! Do not connect any power cable to live AC outlets until configuration and setup is complete.

Install memory modules

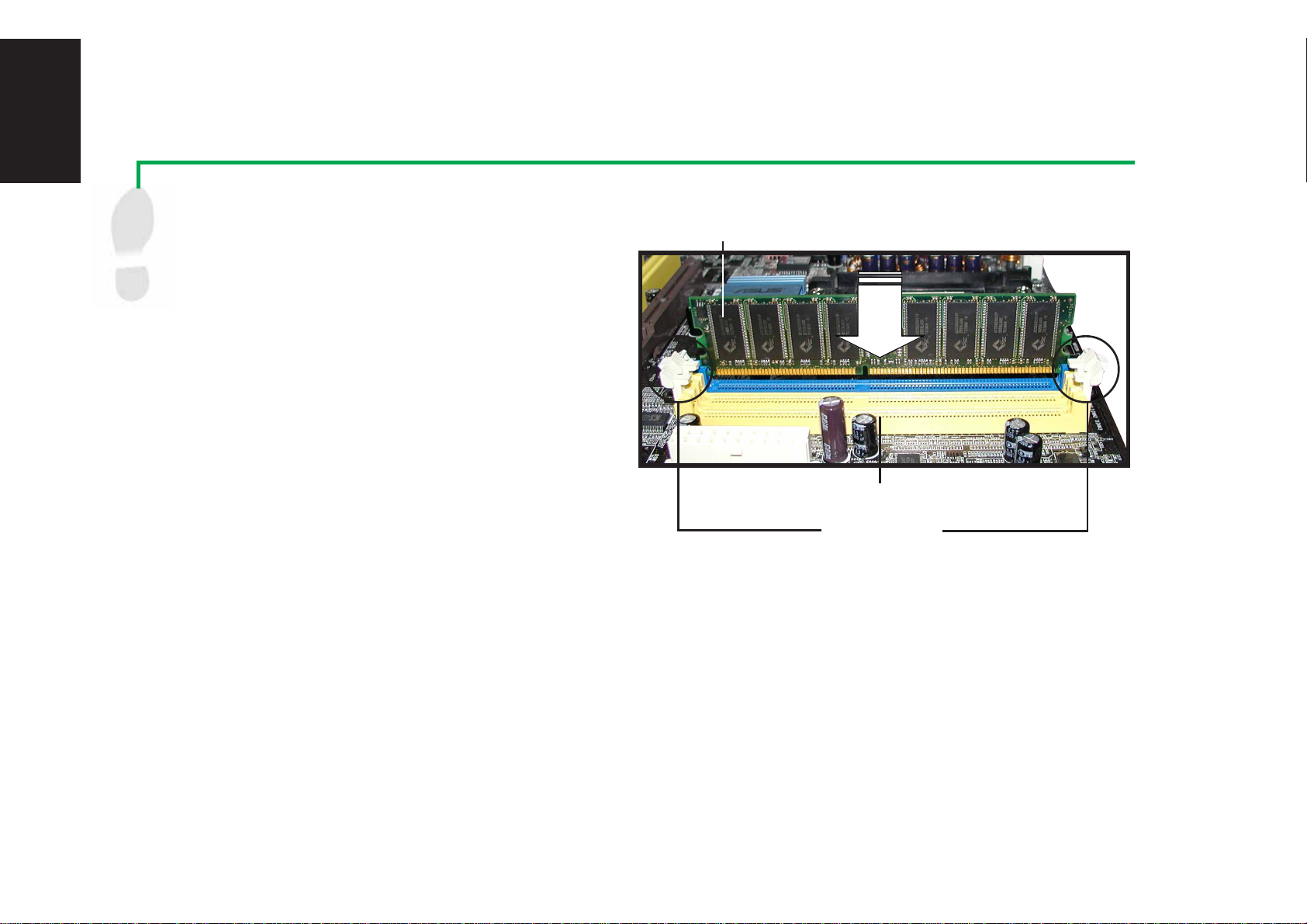

1. Unlock the DIMM socket by pressing the

retaining clips outward.

2. Align a DIMM on the socket such that the notch

on the DIMM matches the break on the socket.

3. Firmly insert the DIMM into the socket until the

retaining clips snap back in place and the DIMM

is properly seated.

4. Follow steps 1-3 to install additional modules.

Retaining clips

Memory module

Memory socket

English

Heatsink with fan

Socket

Lever

CPU

Gold

triangle

Small triangle

Install the CPU and heatsink with fan

1. Unlock the socket by pressing the level sideways, then lift it up to a

90º~100º angle.

2. Position the CPU above the socket such that the CPU corner with the

gold triangle matches the socket corner with a small triangle, while

making sure that the CPU is parallel to the socket.

3. Carefully insert the CPU into the socket until it fits in place.

WARNING!

The CPU fits only in one orientation. DO NOT force the CPU into

the socket to prevent bending the pins and damaging the CPU. If the CPU

does not fit, check its orientation or check for bent pins.

4. When the CPU is in place, push down the socket lever to secure the CPU.

The lever clicks on the side tab to indicate that it is locked.

5. Install a heatsink with fan assembly. (Refer to the documentation that

came with the heatsink with fan and the motherboard user guide.)

6. Connect the CPU fan power cable to the CPU fan connector on the

motherboard.

English

Mount the motherboard

NOTE: The following procedure applies to most standard

chassis. Before you install the motherboard, study the

configuration of your chassis to ensure that the motherboard

fits into it.

1. Screw the standoffs that came with your chassis into the

appropriate screw holes on the chassis.

2. Remove the temporary metal shield on the rear panel that

covers the rear I/O slot opening.

3. Install the rear I/O shield that came with the motherboard

package. Orient the I/O shield such that the openings for the

keyboard and mouse ports are aligned to the top of the

chassis fan.

4. Position the I/O side of the motherboard towards the chassis

rear panel, matching the I/O ports to the openings of the I/O

shield.

5. Secure the motherboard with screws. Make sure that the

underside of the motherboard is not touching the chassis,

otherwise, a short circuit may occur.

Mounting screws Standoffs

Screws

Motherboard screw holes

English

4Install hard disk and floppy drives

1. If installing two IDE hard disk drives on the same cable,

set one device as “Master” and the other as “Slave.”

Check the label on the IDE device for the jumper settings.

2. Mount the drives in the chassis.

3. Connect the floppy disk signal cable and power cable.

4. If installing IDE hard disk drives, connect the IDE signal

cable and power cable.

5. If installing SATAhard disk drives, connect the SATA

signal cable and power cable.

IDE

Floppy disk

SerialATA

Power cable

Floppy disk signal cable

Power cable

IDE signal

cable

Power cable SATA signal

cable

English

5Connect drive signal cables

1. Connect the floppy disk signal cable. Make sure the side of the

cable with the colored stripe is plugged into pin 1 of the floppy

disk connector.

2. If you are using IDE hard disk drives, connect the IDE signal

cable. Make sure the side of the cable with the colored stripe is

plugged into pin 1 of the IDE connector.

3. If you’re using SATA hard disk drives, connect the SATA signal

cable. The SATAconnector fits only in one orientation. If the

connector doesn’t fit, try reversing it.

Floppy disk

Serial ATA

IDE

English

LED and switch leads

Install expansion cards

1. Remove the slot covers from the chassis where you

wish to install the expansion cards.

2. Install your AGP graphics card in the proper slot.

3. Press the card firmly into the slot.

4. Secure the card with a screw.

5. Install other expansion cards using the same

procedure.

Connect the chassis LED and power switch cable

On the front of your chassis, you will find some LED and power

switch leads. Connect these leads to the panel connector on the

motherboard.

PCI card AGP card Wi-Fi card

English

20-pin connector 4-pin connector

Connect the power supply cables

The plugs from an ATX power supply are designed to fit the power connectors on the motherboard.

1. Orient the 20-pin power plug such that the plastic clip on the side matches the plastic tab on motherboard power

connector. The plug is in place when the clip snaps over the tab.

2. Follow step 1 to connect the 4-pin ATX 12V power plug.

IMPORTANT!

Make sure that your ATX 12V power supply can provide 8A on the +12V lead and at least 1A on the +5-volt standby lead

(+5VSB). The minimum recommended wattage is 350W. The system may become unstable or may not boot up if the power is

inadequate.

English

Connect the peripherals and accessories

PS/2

Serial

USB

Line Out

Line in

DVI

Mic

IEEE

1394

Parallel

PS/2

S/PDIF

Mouse

Digital

Speakers

Printer

Mobile

HDD

Flat Panel

Monitor

Power strip

Keyboard

PDA cradle

Storage device

Microphone

Speakers

Tape recorder

RJ-45 Switch

Hub

VGA CRT

Monitor

English

Troubleshooting

10 Power Up

Turn on the power of the monitor, peripherals and system. If necessary, format your hard disk drive and install an operating system.

NOTE: If you encounter any BIOS related problems, enter the BIOS setup by pressing <Del> during startup. To restore all BIOS

settings to the default value, press <F5> and select

Yes

If you encounter any of the following conditions when powering up the system, try performing one of the possible solutions before

calling for technical support.

CONDITIONS

PC won’t start up

PC starts up, but no display

Memory error

Floppy disk error

Hard disk drive or CD-ROM drive error

CMOS error

POSSIBLE SOLUTIONS

• Check the power cord and make sure it is connected properly.

• Make sure that the monitor is turned ON and properly connected to the graphics port.

• Check the brightness and contract controls of the monitor, make sure it is turned up.

• Shutdown the computer, disconnect the power cord, and make sure the graphics card

is inserted properly in its expansion slot.

• Check the memory modules and make sure they are of the correct type.

• Make sure that the memory modules are properly inserted into the sockets.

• Make sure that you are using a tested and qualified memory module. See User Guide

for the memory Qualified Vendors List (QVL).

• Check the floppy drive configuration in the BIOS setup.

• Check the floppy drive cable, make sure it is connected properly.

• Check drive jumper setting.

• Check the drive configuration in the BIOS setup.

• Check the IDE drive cables, make sure they are corrected properly.

• Make sure that the device drivers are installed.

• Enter BIOS setup and load default settings.

• Make sure that the power cable is connected properly to the motherboard.

• Make sure that the drive cables are connected properly.

• Update the motherboard BIOS.
