Assa Abloy Corbin Russwin BLSS ML2000 Series Manuel utilisateur

Installation Instructions

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

FM522 08/19

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

WARNING

This product can expose you to lead

which is known to the state of California

to cause cancer and birth defects or other

reproductive harm. For more information

go to www.P65warnings.ca.gov.

BLSS Freewheeling

Trim Retrofit

For Trim purchased prior to August 2019

For Mortise Locks

ML2000 Series

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

TOC Table of Contents

1 Tools Required ..................................................................3

2 Package Contents ...............................................................3

3 Assembly........................................................................3

a Prepare Spring Cartridges .......................................................3

b Assemble Spring Cartridges into BLSS Levers .....................................4

c Rose Assembly ..................................................................4

d Assemble Outside Adapter Plate and Rose .......................................4

4 Installation ......................................................................5

a Install Adapter Clutch............................................................5

b Install Outside Lever Assembly...................................................5

c Install Outside Trim ..............................................................6

d Install Inside Adapter Plate Assembly ............................................6

e Install Inside BLSS Rose Assembly ................................................7

f Install Inside Lever Assembly.....................................................7

Attention Installer

Please read these instructions carefully to prevent missing important steps.

Notes

• Improper installation may result in damage to lock and void factory warranty.

• Other product brand names may be trademarks or registered trademarks of their respective owners

and are mentioned for reference only.

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

1 Tools Required

• Phillips Screwdriver (# 2)

• Torx Tamper Resistant Driver (T-20)

• Torx Tamper Resistant Driver (T-10)

• Hex Key Driver 5/64"

2 Package Contents

805F017

Spindle Spring

812F647

Behavior Health Lever

Reuse from existing BLSS Trim

857F598 Spindle

813F958

Torx Screw 6-32x5/16

857F617-32D

Security Rose BLSS

857F637

Screw Button Head Hex Socket 6-32 x 7/16

857F658

Adapter Clutch

857F658

Adapter Clutch

857F068 Inside BLSS Adapter Plate Assembly

814F798

Machine Screw (#8-32 x 5/8")

857F617-32D

Security Rose BLSS

858F057

Spring Cartridge BLSS

857F648

Bushing (Outside)

857F518

Adapter and Plate Assembly

858F057

Spring Cartridge BLSS

857F598 (Used with 1/8"SCAR Plate) Spindle (1.72")

857F608 (Used without 1/8 SCAR Plate) Spindle (1.60")

Inside

Outside

813F958

Torx Screw 6-32x5/16

857F637

Screw Button Head Hex Socket 6-32 x 7/16

812F657-32D

Behavior Health Lever

812F887-32D

Set Screw (1/4-28 x 7/8”)

805F017 Spindle Spring

BLSS Freewheeling Trim Retrofit Parts

(Left Hand Reverse Bevel Door Shown)

Figure1

3 Assembly

a Prepare Spring Cartridges

Remove clear adhesive tape liners from spring

cartridges before use. (Figure2)

Figure2

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

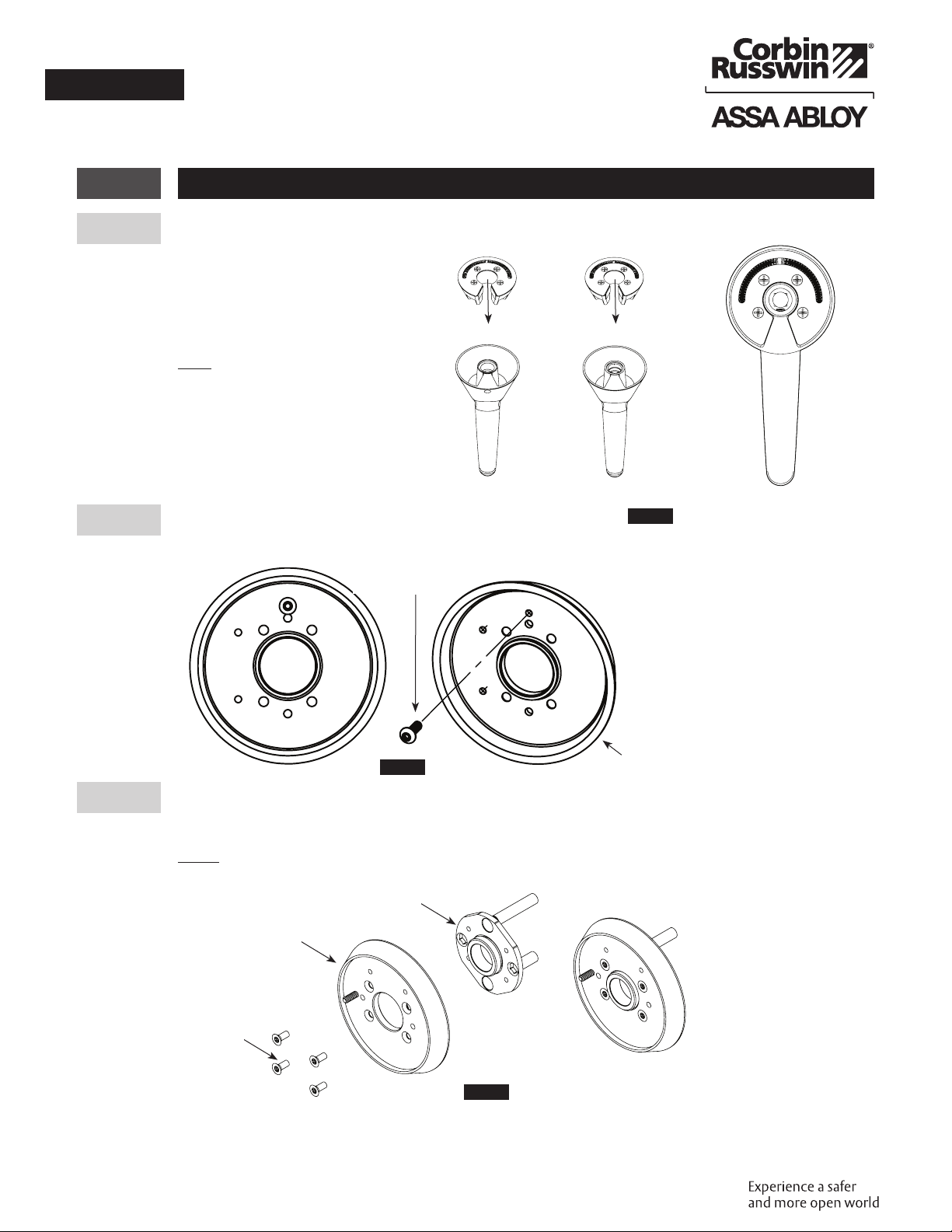

3 Assembly (cont.)

b Assemble Spring Cartridges into BLSS Levers

Press spring cartridge assemblies

into levers so that top of

spring cartridge is flush or slightly

below flush to lever’s top

surface. (Figure3)

Note

Clean lever surface with rubbing

alcohol prior to installing

spring cartridge.

c Rose Assembly

• Install button head screw into each rose. Use a 1/16"hex key to tighten screw firmly to rose. (Figure4)

Figure4 Security Rose BLSS

813F958 Button Head

Screw 6-32 X 7/16

d Assemble Outside Adapter Plate and Rose

• Install rose using four (4) security torx screws.

Note:

Tighten screws evenly.

(4) Security

Torx Screws

Rose Assembly

Adapter and Plate Assembly

with Mounting Posts

LH/LHR Outside Shown

Figure5

Figure3

INCH

ANGLES

FRACTIONS

SURFACE FINISH

UNLESS OTHERWISE

SPECIFIED TOLERANCES

.01

DRAWN BY

MATERIAL

V8_03/14/2019

SURFACE/FINISH

THIRD ANGLE

HEAT TREATMENT

NOTICE TO PERSONS RECEIVING THIS DRAWING

AND/OR TECHNICAL INFORMATION

LEGACY ID

SHEET

CONFIGURATION

Default

VOLUME

SURFACE AREA

0.000000

SIZE

DATE CREATED DESIGNED BY

REV

SCALE

1:1

DOCUMENT ID

MASS

DRAWING NUMBER (ALT ID)

Inside Lever

812F657-32D

Outside Lever

812F647-32D

Finished Lever Assembly

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

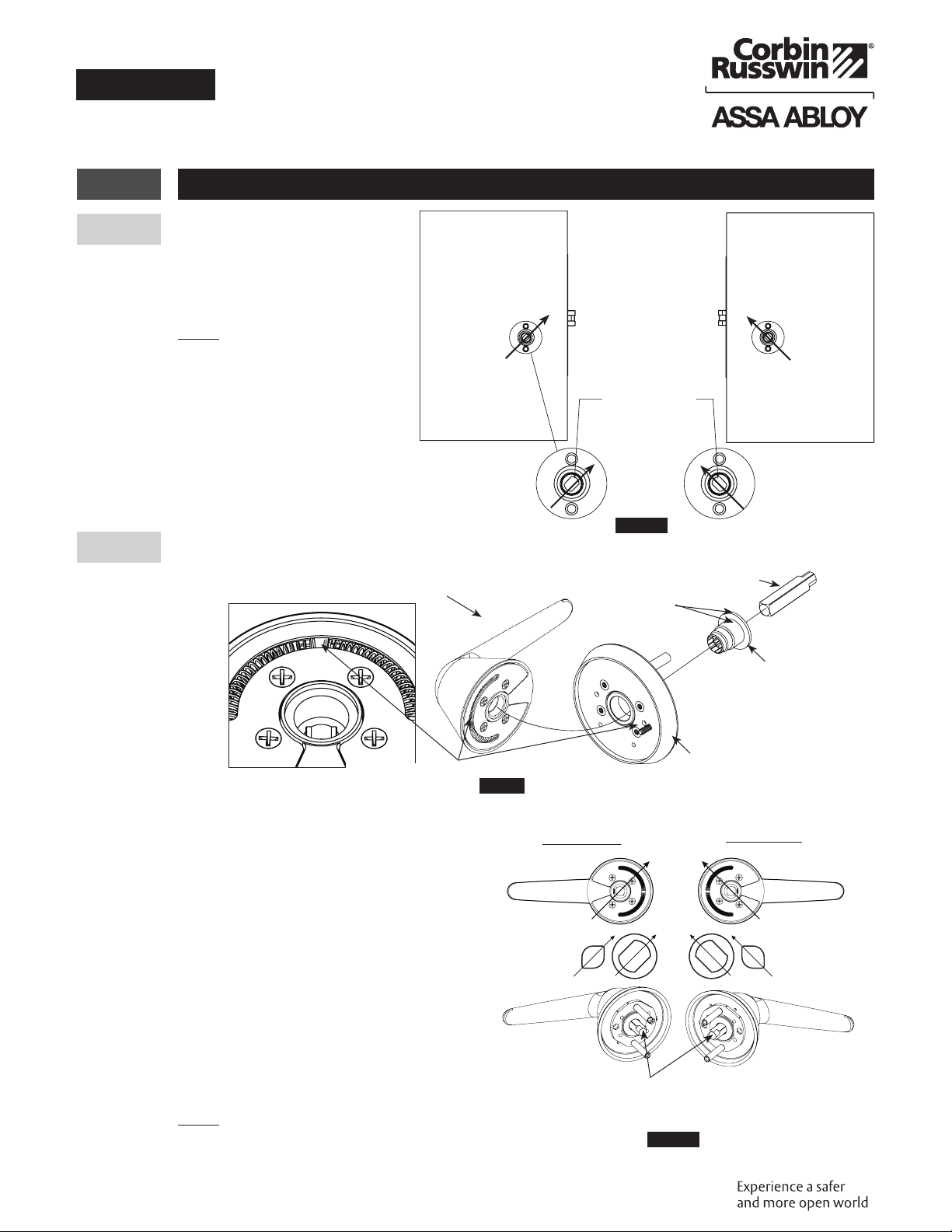

4 Installation

a Install Adapter Clutch

Install adapter clutch into mortise

lock hub. (Figure6)

Note:

Adapter clutch is oriented toward

latchbolt as shown.

b Install Outside Lever Assembly

Figure7

Bushing

(Outside)

Rose/Adapter Plate Assembly

Align rose screw with gap in spring cartridge

Outside Lever Assembly

857F598 Spindle

Apply grease to

these surfaces

Use outside bushing and spindle to connect

rose/adapter plate assembly to outside lever

assembly. (Figure7)

• Insert spindle into bushing; ensure that

spindle is inserted no more than ¾"deep.

• Use spindle to rotate bushing

clockwise into outside lever hole.

• Fully tighten bushing, then unthread

bushing just enough to allow spindle to

be inserted into lever, keeping

bushing as tight as possible.

• Once assembled, spindle orientation

should be as shown. (Figure8)

Note:

Longer spindle used on outside

Figure6

857F658

Adapter Clutch

Hinge Side

Figure8

Note position

and orientation

of spindles.

RH Outside LH Outside

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

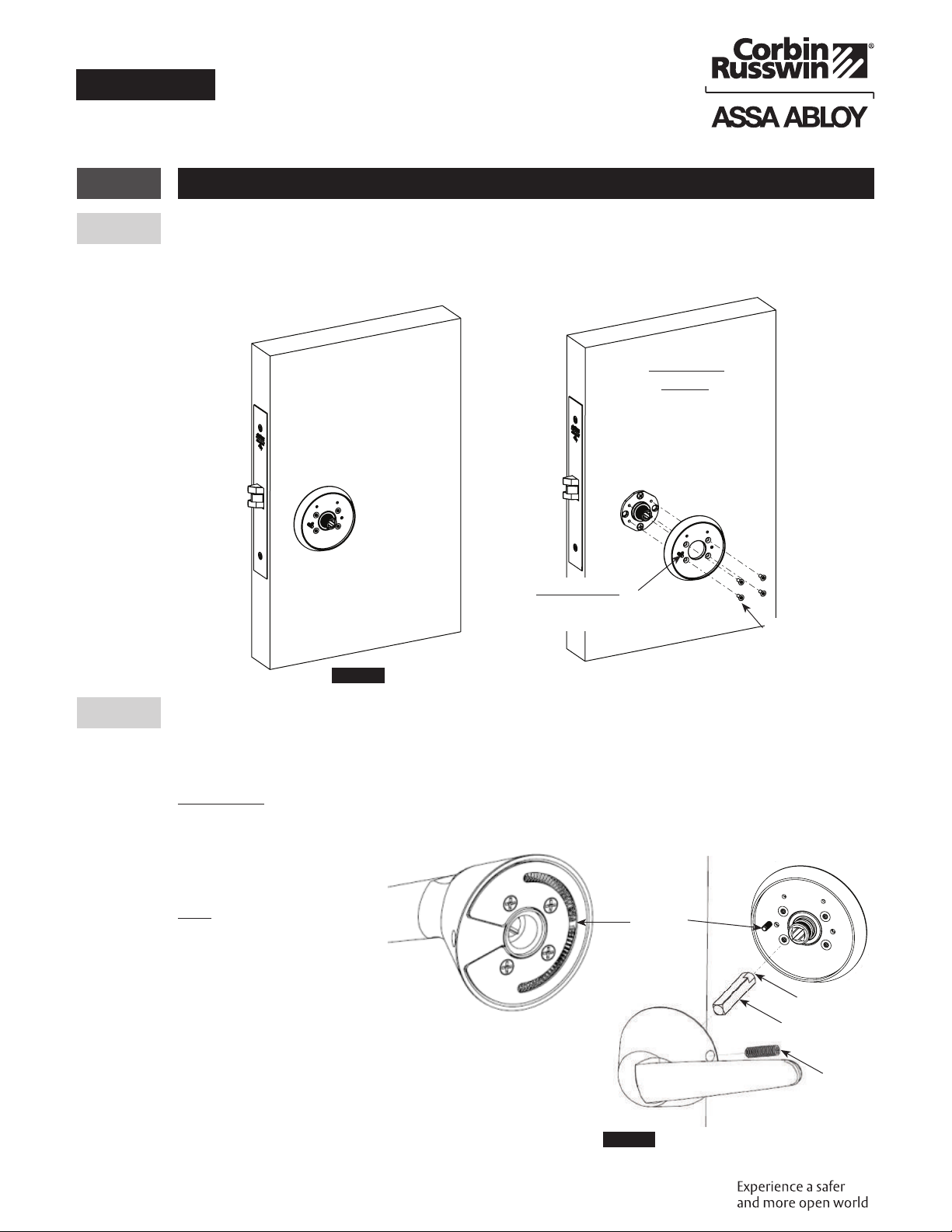

4 Installation (cont.)

c Install Outside Trim

Figure9

LHR Outside Shown

Make sure spindle seats into clutch adapter then proceed

to step 4d in order to retain Outside Trim to door.

d Install Inside Adapter Plate Assembly

Install inside adapter plate assembly using two (2) machine screws. (Figure10)

Figure10

814F798

Machine Screws #8-32x5/8

Inside Adapter Plate Assembly

LHR Inside

Shown

BLSS Freewheeling Trim Retrofit

Installation Instructions

ML2000 Series

FM522 08/19

in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

4 Installation (cont.)

e Install Inside BLSS Rose Assembly

Attach inside rose assembly to inside adapter plate using four (4) security Torx screws. Tighten screws

evenly. (Figure11)

Figure11

IMPORTANT

Screw oriented

towards latchbolt Security

Torx

Screws

LHR Inside

Shown

f Install Inside Lever Assembly

• Install inside Spindle. (Figure12)

• Install inside BLSS lever assembly to inside adapter plate assembly using security torx set screw.

IMPORTANT

• Line up rose screw with gap on spring cartridge.

• Make sure machined end of spindle seats into clutch adapter before assembling lever onto rose.

(Figure12)

Note

• Inside of LHR shown.

• Shorter spindle used

on inside.

Figure12

Gap

Spindle

Security

Torx Set

Screw

Machined End

Rose Screw

Note position and

orientation of spindle.

Corbin Russwin is a brand associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company.

without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Corbin Russwin, Inc.

225 Episcopal Road

Berlin, CT 06037 USA

Phone: 800-543-3558

Fax: 800-447-6714

www.corbinrusswin.com

FM522 08/19
