Assa Abloy Yale nexTouch Caractéristiques techniques

P/N 80-8470-0900-000 (09-19)

Retroﬁtting or modifying this product may impact ﬁre rating, safety features and warranty.

Consult with code speciﬁcations to ensure compliance with all codes and ratings.

nexTouch

Touchscreen and Push Button Exit Device Trim

Installation and Programming Instructions

WARNING

This product can expose you to lead which is known to the state of California to cause

cancer and birth defects or other reproductive harm. For more information go to

www.P65warnings.ca.gov.

P/N 80-8470-0900-000 (09-19)

?Before You Begin

Fire

Guard

Optional

Technology Module

template

#3 & #2

1/2"3/4"

Left Hand

Reverse

Right Hand

Reverse

Face a door swinging open

toward you.

If it swings open to the right, it

is a right hand reverse door. If it

swings opens to the left, it is a

left hand reverse door.

Exterior

Outswinging Door

Interior

Optional

Privacy DPS Switch

P/N 80-8470-0900-000 (09-19)

1Prepare Door

?Door Position Switch Option

template

Privacy DPS Switch

With Door Position Switch installed

and door closed, all keypad functions

can be disabled by Privacy Button.

Drill holes 1/2 way thru

door then complete

from other side to

prevent splitting.

DPS Option

for Privacy Function

Wood Door:

3/8" Dia. Thru to

Hole in Door Face

*Metal Door:

3/4" Dia. Thru to

Hole in Door Face

*Metal Door Installations

Supplied plastic collar MUST

be installed for DPS to function

properly.

P/N 80-8470-0900-000 (09-19)

Tighten

counter-clockwise

to secure lock.

Use key to thread

cylinder. Pull key

out of cylinder to

ﬁrst blade cut for

best operation.

2Install Cylinder

?Test Cylinder

iIf using cylinder other than 1-1/8", a new collar must

be used that is sized appropriately for cylinder length.

Test cylinder by turning key counter-clockwise to unlock trim. If

there is any binding then cylinder is not at correct depth and needs

to be threaded further into escutcheon.

P/N 80-8470-0900-000 (09-19)

3Change Hand of Trim (if necessary)

There is a

spring inside

spindle. Be

sure to keep

spring for

reassembly.

iSet screw should be

located on same side

as lever arm.

Right Hand ReverseLeft Hand Reverse

Tighten nut then

loosen just enough

that spindle tab

aligns with top of

hole.

!Be sure spring

is inside spindle.

Spindle

Tab

Nut

P/N 80-8470-0900-000 (09-19)

Do not take

apart outside

assembly.

#10-32 x 1" OHPMS

Exit Device

Mounting

Holes

Do not tighten

screws until

exit device

installation -Step 5.

2 hinge side screws

hold outside trim

assembly until exit

device is installed.

All 4 screws MUST be

used for proper

installation.

Install Outside Trim Assembly

P/N 80-8470-0900-000 (09-19)

Tighten all screws.

Refer to exit device installation instructions

for details of device installation.

5Install Exit Device

Test Mechanical Lock Function by Key, Lever and Touchpad

#10-32 x 1" PHMS

P/N 80-8470-0900-000 (09-19)

Refer to exit device installation instructions

for details of strike installation.

3-1/2"

DPS Option

for Privacy Function

*Metal Frame:

3/4" Dia. x 1"

See Instructions with DPS Kit

*Supplied plastic collar MUST

be installed for DPS to function

properly.

Install Strike and Optional DPS

Frame

#10-24 PFHMS

!Strike must be centered with exit device bolt. For proper

engagement, door should remain latched and not rattle

when pushed, pulled or shaken in/out.

#10-32 x 1-1/2" THPMS

#8 x 3/8" PRH

Sheet Metal

#8 x 1/2" PHWS

Wood

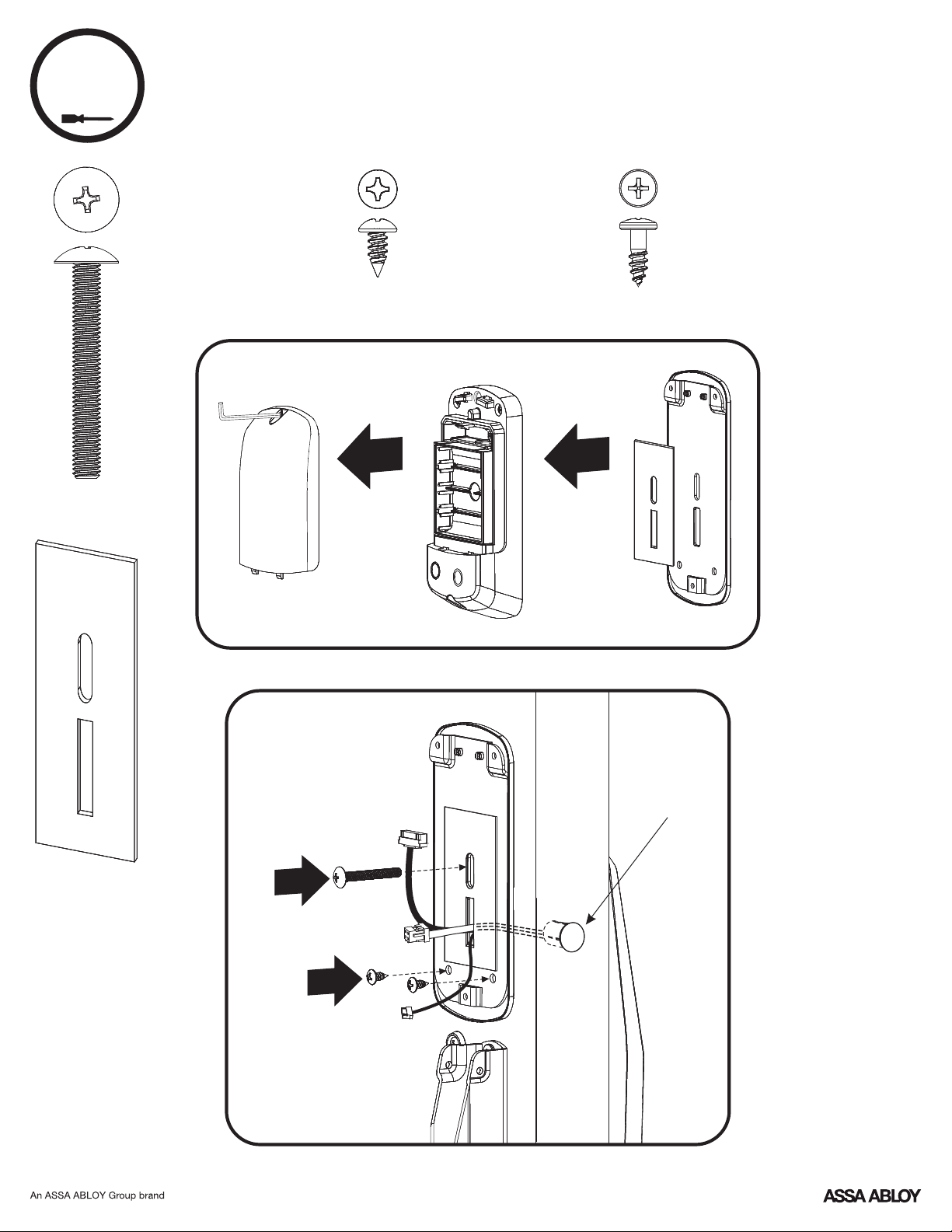

Install Inside Escutcheon Plate

Inside of Door

Optional DPS

P/N 80-8470-0900-000 (09-19)

8Attach Cables to Inside Escutcheon

Optional

DPS

Connection

Motor

Connection

Keypad

Connection

Reset

Button

External

Power
