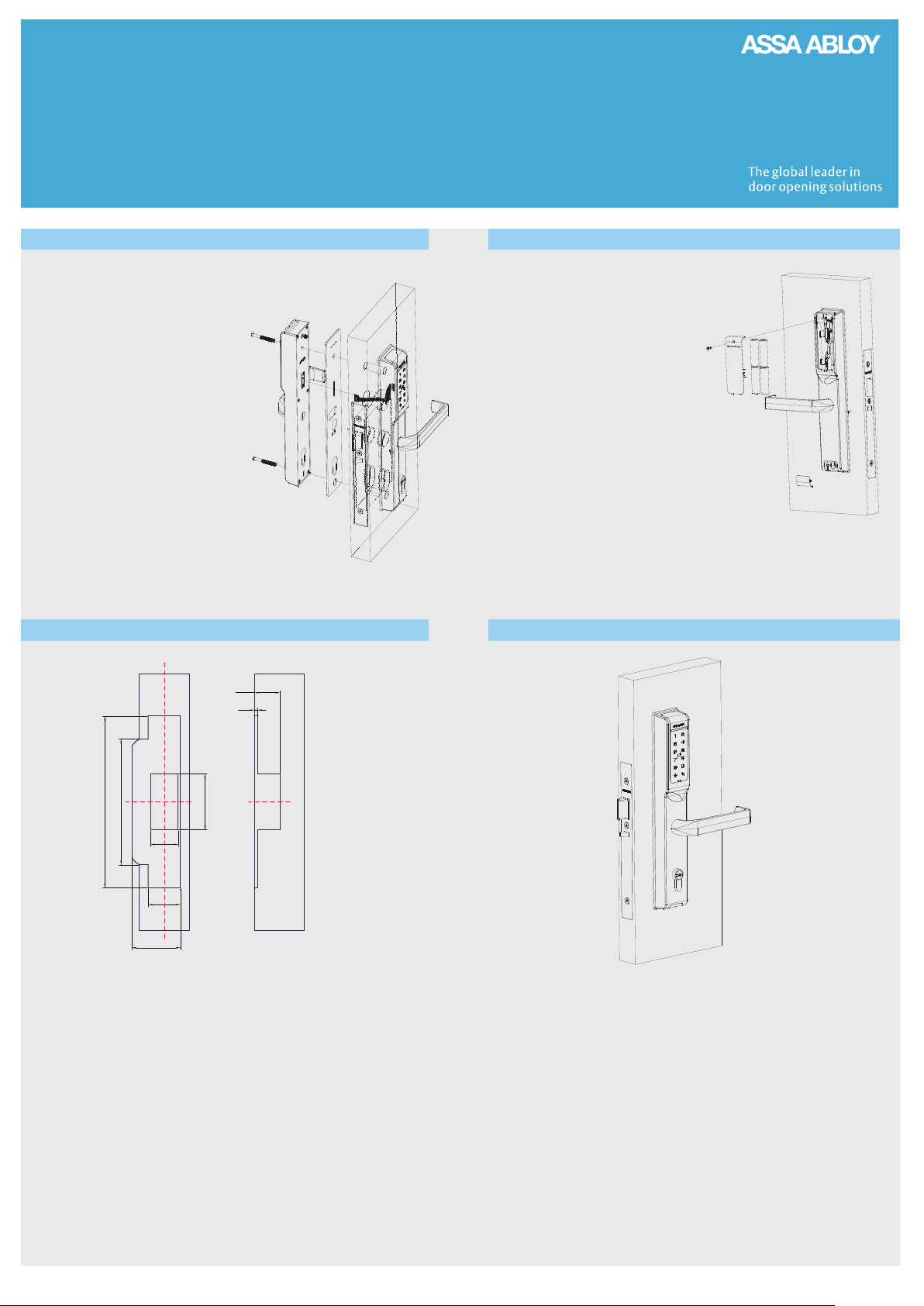

AUE100 Aperio and CTX/E3608 Cortex

European Mortice Locks Installation Guide

Product Applications:

Suitable for metal doors, wooden doors; Door thickness: 35~50mm, Ability for fire-proof test.

Pull the top tab

1) Pull the tab at top of lock, the latch will pop out 2) Turn the latch 180 degrees 3) Push back the latch along the latch hole

Push back

Rotate latch

180

When installing the lock case, the bevel of latch should face to the door opening direction.

When the latch is not facing the right direction, it needs to be rotated 180 degrees.

Pull



CTX/E3608SC / AUE103MUSC1 Installation Instructions

Ø25

Ø12

R10

109

242

205

235

178

1）The lockcase is made of high quality steel, high strength, high temperature resistance.

2）The latch can be opened by key and snib, convenient and reliable. Can change the direction of latch, easy to install.

Note:

1) Pull the lever when changing the direction to avoid scratching the base.

2) Don't remove the protective bag before rotating the lever to required position.

1) Insert the lockcase into door, secure the lockcase

with timber fix screws.

2) If cylinder is required, insert the cylinder into lockcase,

tighten the cylinder retaining screw, retract the latch

by key to check whether the latch is working smoothly.

3) Insert the spindles into lockcase, (use the correct

spindles for the right door thickness) tighten the

spindle nut.

4) Place lock faceplate on and secure with the metal

thread screws.

External Escutcheon

and Lever

Internal Escutcheon

and Lever

For External lever handing - Insert flat blade screwdriver in slot as shown

Engage with Internal tab and push down

Rotate lever to required position

For External lever handing - Rotate lever to required position

Door Preparation

IMPORTANT

Firstly, for the chosen mortice lock, please

prepare the door as per the manufacturer's

instructions.

Once the door has been morticed for the lock,

position the appropriate Aperio or Cortex

template on the door and prepare the door for

escutcheon/lockset.

Exterior Spindle A

(Thickness of door 43-50mm)

Exterior Spindle B

(Thickness of door 35-42mm)

Interior Spindle

(Thickness of door 35-50mm)

Nut

Features:

Latch Adjustment

Handing of Lockset

Fitting the Mortice Locks Mounting the External Escutcheon

Assemble the external spindle into the lever hub.

Use either spindle A or B depending on the door

thickness into the external side of the door.

Place the loom completely through the door and

insert mounting posts into the required holes.

Engage spindle into latch or mortice lock hub.

Ensure spindle and hub are aligned with the

mortice lock hub.



AUE100 Aperio and CTX/E3608 Cortex

European Mortice Locks Installation Guide

CTX/E3608SC / AUE103MUSC1 Installation Instructions

Installation of BatteriesMounting of Internal Lockset

Strike Hole Making Dimension Ready for Use

113

154

43.5

Fix bottom screw cover into place.

Insert the four supplied AA batteries.

Use the Cortex or Aperio

User Guide to program your

locksets to the desired function.

When complete, assemble battery

cover by engaging the small tabs near

the top of the battery opening with

the tabs on the cover.

Then slide the cover down and secure

with the hexhead screw supplied.

With the external lockset on the door

pass the main loom through the slot in

the rubber gasket. Assistance may be

required to ensure external escutcheon

is supported to the door in the process.

Plug the main loom into the main plug

on the internal escutcheon. Only the main

loom is required.

Bring the internal escutcheon to the door

and engage the spindle in the lever.

Using the supplied long mounting

screws, secure the escutcheons

together to the door. Ensure you use

the correct mounting hole position.

 


