ASROCK Z87M Extreme4 Manuel utilisateur

User Manual

Version 1.0

Published May 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

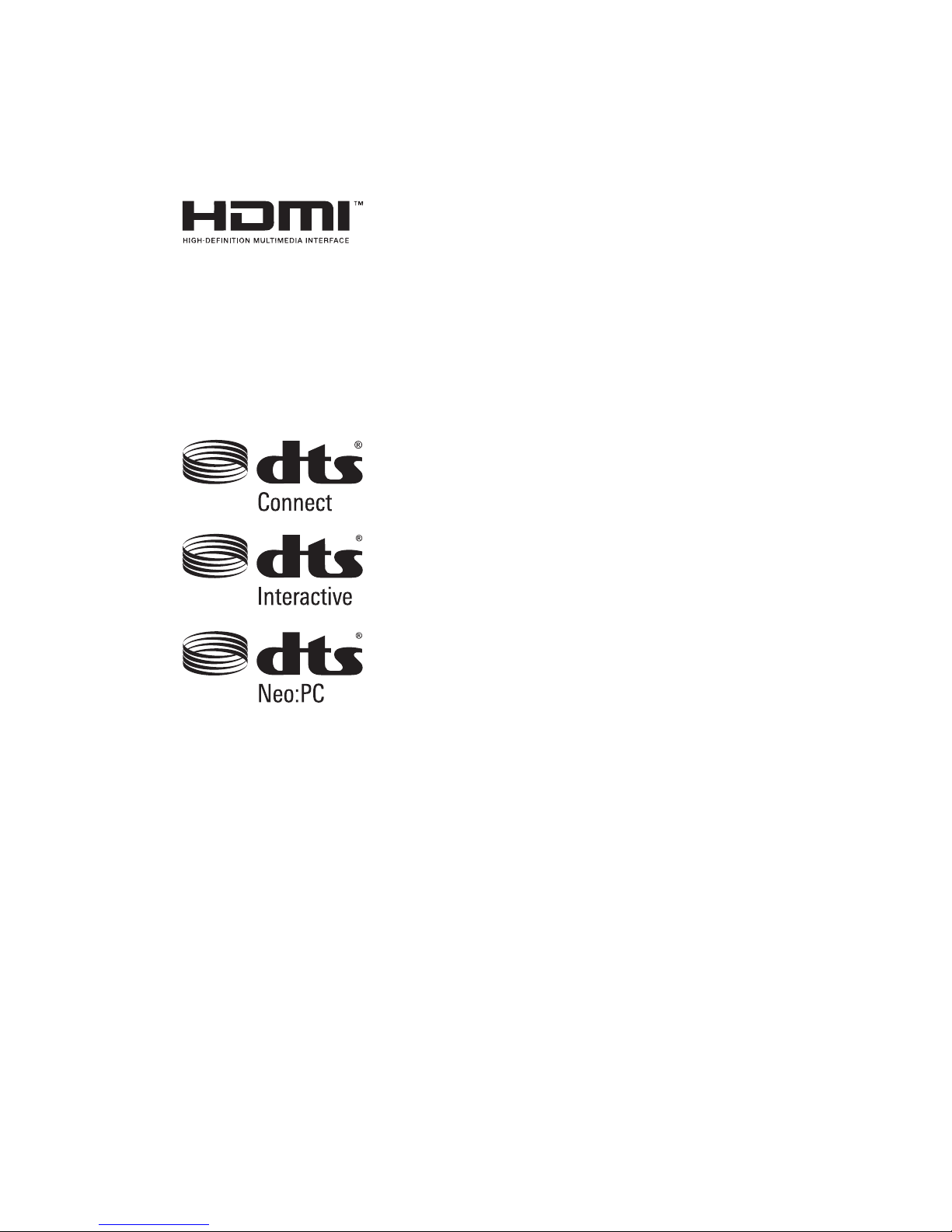

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Unique Features 7

1.4 Motherboard Layout 11

1.5 I/O Panel 13

Chapter 2 Installation 15

2.1 Installing the CPU 16

2.2 Installing the CPU Fan and Heatsink 19

2.3 Installing Memory Modules (DIMM) 20

2.4 Expansion Slots (PCI and PCI Express Slots) 22

2.5 Jumpers Setup 23

2.6 Onboard Headers and Connectors 24

2.7 SLITM and Quad SLITM Operation Guide 29

2.7.1 Installing Two SLITM-Ready Graphics Cards 29

2.7.2 Driver Installation and Setup 31

2.8 CrossFireXTM, 3-Way CrossFireXTM and Quad CrossFireXTM

Operation Guide 32

2.8.1 Installing Two CrossFireXTM-Ready Graphics Cards 32

2.8.2 Installing Three CrossFireXTM-Ready Graphics Cards 33

2.8.3 Driver Installation and Setup 34

Chapter 3 Software and Utilities Operation 35

3.1 Installing Drivers 35

3.2 A-Tuning 36

3.3 Intel® Rapid Start Technology 40

3.4 Intel® Smart Connect Technology 45

3.5 Intel® Remote Wake Technology 50

3.5.1 Conguring and Using MeshCentral 50

3.5.2 Conguring and Using Splashtop 55

3.6 Intel® Extreme Tuning Utility (IXTU) 58

3.7 Start8 60

Chapter 4 UEFI SETUP UTILITY 63

4.1 Introduction 63

4.1.1 UEFI Menu Bar 63

4.1.2 Navigation Keys 64

4.2 Main Screen 65

4.3 OC Tweaker Screen 66

4.4 Advanced Screen 75

4.4.1 CPU Conguration 76

4.4.2 Chipset Conguration 78

4.4.3 Storage Conguration 80

4.4.4 Intel® Rapid Start Technology 81

4.4.5 Intel® Smart Connect Technology 82

4.4.6 Super IO Conguration 83

4.4.7 ACPI Conguration 84

••••••4.4.8 USB Conguration 86

4.4.9 Trusted Computing 87

4.5 Tools 88

4.6 Hardware Health Event Monitoring Screen 91

4.7 Boot Screen 93

4.8 Security Screen 96

4.9 Exit Screen 97

Z87M Extreme4

English

Chapter 1 Introduction

ank you for purchasing ASRock Z87M Extreme4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

•ASRock Z87M Extreme4 Motherboard (Micro ATX Form Factor)

•ASRock Z87M Extreme4 Quick Installation Guide

•ASRock Z87M Extreme4 Support CD

•4 x Serial ATA (SATA) Data Cables (Optional)

•1 x I/O Panel Shield

•1 x ASRock SLI_Bridge_Card

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform •Micro ATX Form Factor

•Premium Gold Capacitor design (100% Japan-made high-

quality Conductive Polymer Capacitors)

A-Style •Home Cloud

•Purity SoundTM

CPU •Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

•Digi Power Design

•8 Power Phase Design

•Supports Intel®Turbo Boost 2.0 Technology

•Supports Intel®K-Series unlocked CPU

•Supports ASRock BCLK Full-range Overclocking

Chipset •Intel®Z87

Memory •Dual Channel DDR3 Memory Technology

•4 x DDR3 DIMM slots

•Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/

1866(OC)/1600/1333/1066 non-ECC, un-buered memory

•Max. capacity of system memory: 32GB

(see CAUTION)

•Supports Intel®Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

•2 x PCI Express 3.0 x16 slots (PCIE1/PCIE3: single at x16

(PCIE1) or dual at x8/x8 mode)

•1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)

•1 x PCI Express 2.0 x1 slot

•Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM and

CrossFireXTM

•Supports NVIDIA® Quad SLITM and SLITM

Z87M Extreme4

English

Graphics •Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

•Pixel Shader 5.0, DirectX 11.1

•Max. shared memory 1792MB

•ree VGA Output options: D-Sub, DVI-D and HDMI

•Supports Triple Monitors

•Supports HDMI Technology with max. resolution up to 4K ×

2K (4096x2304) @ 24Hz

•Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

•Supports HDCP function with DVI-D and HDMI ports

•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI ports

Audio •7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

•Premium Blu-ray audio support

•Supports Purity Sound™

- 115dB SNR DAC with dierential amplier

- TI® NE5532 Premium Headset Amplier (supports up to

600 Ohms headsets)

- Direct Drive Technology

- EMI shielding cover

- PCB isolate shielding

•Supports DTS Connect

English

LAN •Gigabit LAN 10/100/1000 Mb/s

•Giga PHY Intel® I217V

•Supports Intel® Remote Wake Technology

•Supports Wake-On-LAN

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse/Keyboard Port

•1 x D-Sub Port

•1 x DVI-D Port

•1 x HDMI Port

•1 x Optical SPDIF Out Port

•1 x eSATA Connector

•4 x USB 2.0 Ports

•4 x USB 3.0 Ports

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

Storage •6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

12 and Intel Smart Response Technology), NCQ, AHCI and

“Hot Plug” functions (SATA3_1 connector is shared with

eSATA port)

•1 x eSATA connector, supports NCQ, AHCI, and “Hot Plug”

Connector •1 x Chassis Intrusion header

•1 x TPM header

•1 x IR header

•1 x COM port header

•1 x Power LED header

•2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

•2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)

•1 x Power Fan connector (3-pin)

•1 x 24 pin ATX power connector

•1 x 8 pin 12V power connector

•1 x Front panel audio connector
