ASRock P4i65G Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

PublishedNovember 2006

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ASRock P4i65G Motherboard

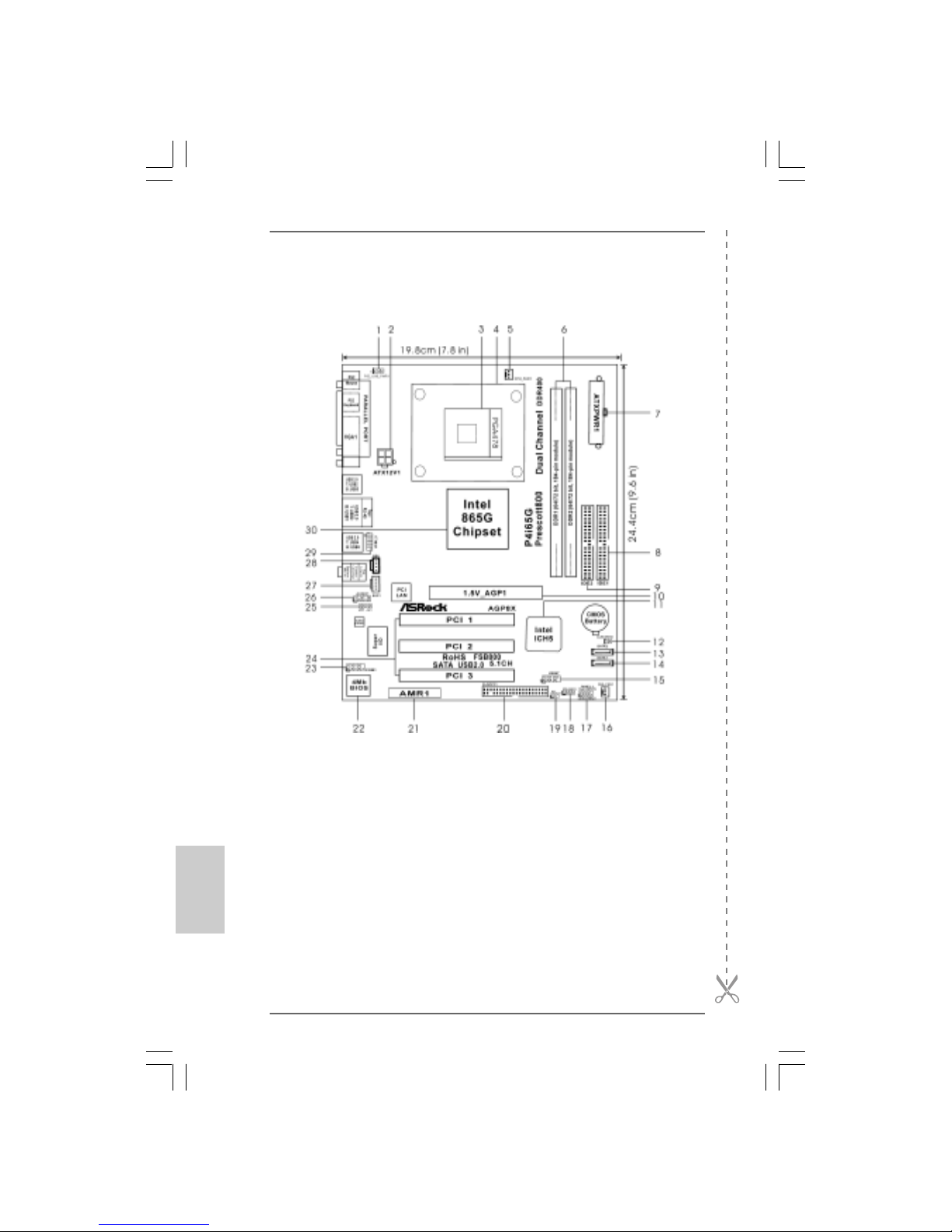

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 17 System Panel Header (PANEL1)

3 P4-478 CPU Socket 18 Chassis Speaker Header (SPEAKER 1)

4 CPU Heatsink Retention Module 19 Infrared Module Header (IR1)

5 CPU Fan Connector (CPU_FAN1) 20 Floppy Connector (FLOPPY1)

6 184-pin DDR DIMM Slots (DDR1- 2) 21 AMR Slot (AMR1)

7 ATX Power Connector (ATXPWR1) 22 BIOS FWH Chip

8 Primary IDE Connector (IDE1, Blue) 23 Serial Port Connector (COM1)

9 Secondary IDE Connector (IDE2, Black) 24 PCI Slots (PCI1- 3)

10 AGP Slot (1.5V_AGP1) 25 JR1 / JL1 Jumpers

11 South Bridge Controller 26 Front Panel Audio Header (AUDIO1)

12 Clear CMOS Jumper (CLRCMOS0) 27 Internal Audio Connector: AUX1 (White)

13 Secondary Serial ATA Connector (SATA2) 28 Internal Audio Connector: CD1 (Black)

14 Primary Serial ATA Connector (SATA1) 29 Shared USB 2.0 Header (USB4_5, Blue)

15 USB 2.0 Header (USB67, Blue) 30 North Bridge Controller

ASRock P4i65G Motherboard

EnglishEnglish

English

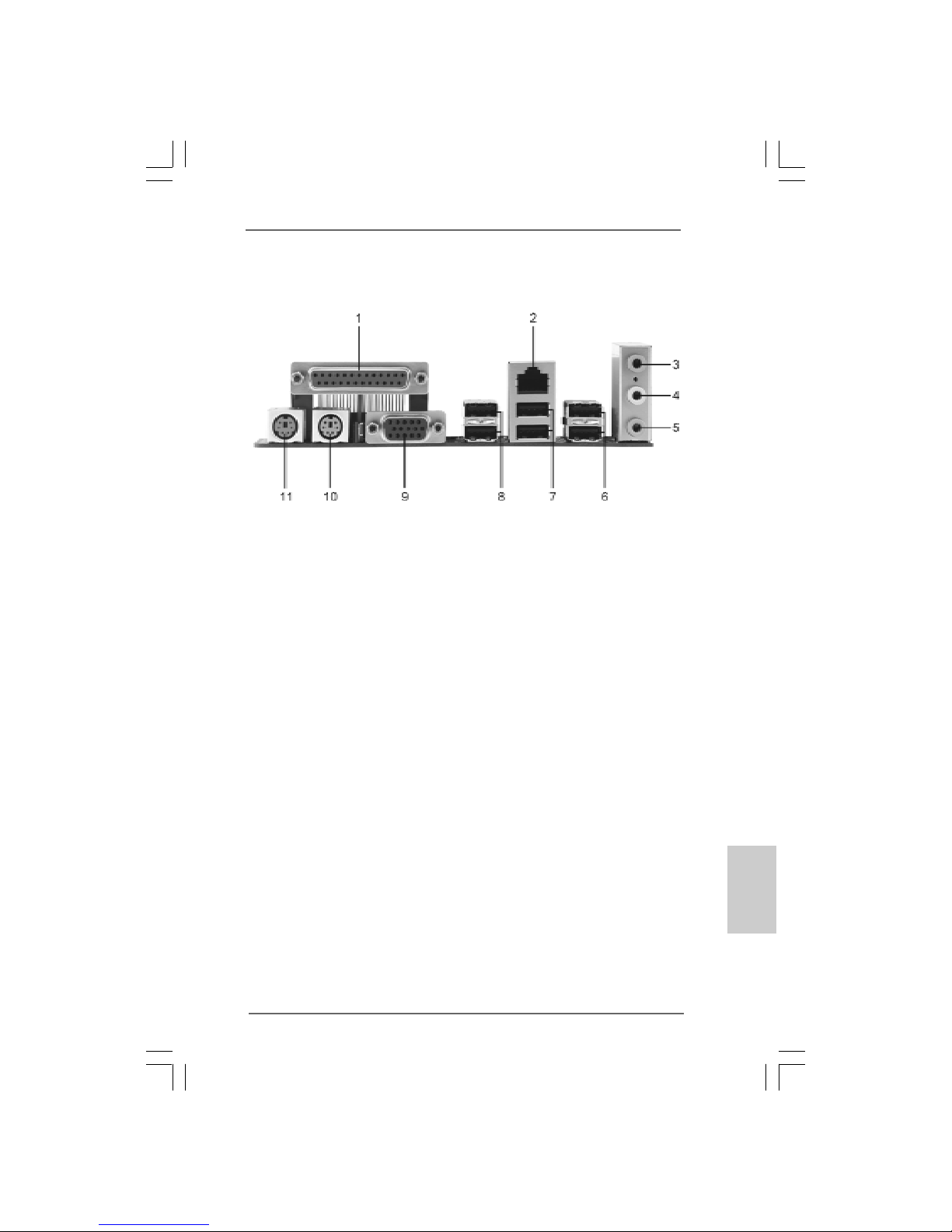

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 VGA Port

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

ASRock P4i65G Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P4i65G motherboard, a reliable motherboard pro-

duced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P4i65G Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

ASRock P4i65GQuick Installation Guide

ASRock P4i65G Support CD

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

One COM Port Bracket

OneASRock MR Card (Optional)

EnglishEnglish

English

ASRock P4i65G Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

CPU - Socket 478 for Intel®Pentium® 4 / Celeron®D(Prescott,

Northwood, Willamate) processors

- FSB 800/533/400 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

Chipset - Northbridge: Intel® 865G chipset

- Southbridge: Intel®ICH5

Memory - Dual Channel DDR Memory Technology (see CAUTION 3)

- 2 xDDRDIMM slots

- Support DDR400/333/266 (see CAUTION 4)

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 5)

- ASRock U-COP (see CAUTION 6)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 3 x PCI slots

- 1 x AGP slot for 1.5V 8X/4X AGP card (see CAUTION 7)

- 1 x AMR slot

Graphics - Integrated Intel® ExtremeGraphics 2

- DirectX 8.0 VGA

- Max. shared memory 96MB

Audio - Cmedia 9761A 5.1 channel audio CODEC

LAN - Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O ASRock I/O PlusTM

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- Audio Jack: Line In / Line Out / Microphone

ASRock P4i65G Motherboard

EnglishEnglish

English

Connector - 2 x Serial ATA 1.5Gb/s connectors

(No Support for “RAID” and “Hot Plug” functions)

- 2 x ATA100 IDE connector (supports 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- AUX in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are

shared with USB4_5) (see CAUTION 8)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Overheat Shutdown to Protect CPU Life

- CPU Fan Tachometer

- Chassis Fan Tachometer

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 98SE/ME/2000/XP compliant

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock P4i65G Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 23

of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 15 for details.

3. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 9 for proper installation.

4. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

5. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

6. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

7. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

8. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 or SP2 / 2000 SP4. It may not work properly under Microsoft®Win-

dows®98/ ME.

ASRock P4i65G Motherboard

EnglishEnglish

English

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded

object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

STEP1: Unlock the socket by lifting the lever up to a 90oangle.

STEP2: Position the CPU directly above the socket such that its marked

corner matches the base of the socket lever.

STEP3: Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

STEP4: When the CPU is in place, press it firmly on the socket while you

push down the socket lever to secure the CPU. The lever clicks on

the side tab to indicate that it is locked.

STEP5: Install CPU fan and heatsink. For proper installation, please kindly

refer to the instruction manuals of your CPU fan and heatsink vendors.

ASRock P4i65G Motherboard

EnglishEnglish

English

2.22.2

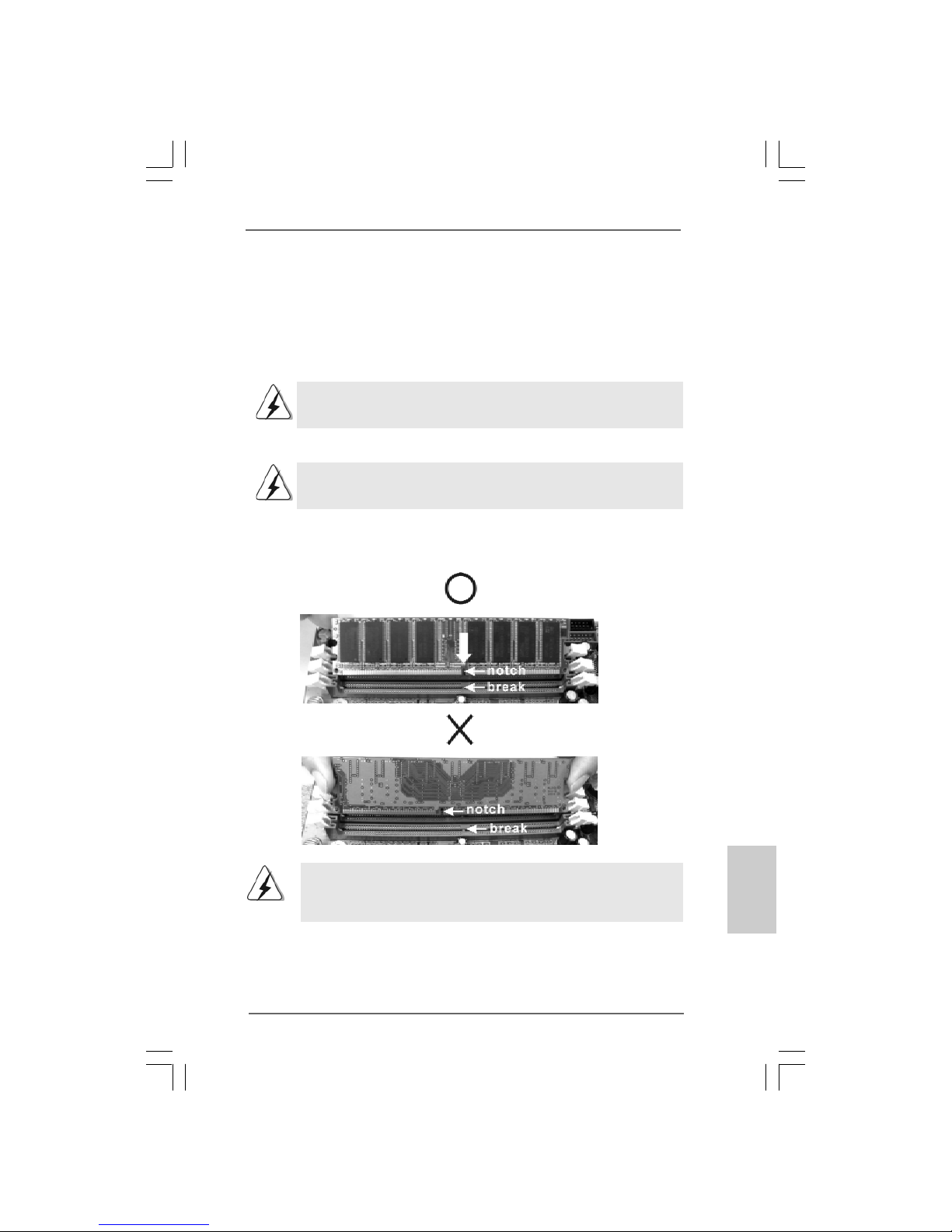

2.2 Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)

This motherboard provides two 184-pin DDR (Double Data Rate) DIMM slots, and

supports Dual Channel Memory Technology. For dual channel configuration, you

always need to install two identical (the same brand, speed, size and chip-type)

memorymodulesintheDDRDIMMslotstoactivateDualChannel MemoryTechnology.

Otherwise, it will operate at single channel mode.

If you install only one memory module or two non-identical memory

modules, it is unable to activate the Dual Channel Memory Technology.

Installing a DIMMInstalling a DIMM

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on theDIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and theDIMM is properly seated.

ASRock P4i65G Motherboard

1010

EnglishEnglish

English

2.3 Expansion Slots (PCI,AGP and AMR Slots)2.3 Expansion Slots (PCI,AGP and AMR Slots)

2.3 Expansion Slots (PCI,AGP and AMR Slots)

There are 3 PCI slots, 1 AGP slot, and 1 AMR slot on this motherboard.

PCI slots: The PCI slots are used to install expansion cards that have the 32-bit

PCI interface.

AGP slot: The AGP slot is used to install a graphics card. TheASRockAGP slot has

a special design of clasp that can securely fasten the inserted graphics

card.

Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

AMR slot: AMR slot is used to insert an ASRock MR card (optional) with v.92

Modem functionality.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

Autres manuels pour P4I65G

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Fatal1ty Z77 Professional-M series Manuel utilisateur

ASROCK

ASROCK G41M-VS2 Manuel utilisateur

ASROCK

ASROCK P43R1600TWINS Manuel utilisateur

ASROCK

ASROCK Velocita X570 PG Manuel utilisateur

ASROCK

ASROCK P43ME Manuel utilisateur

ASROCK

ASROCK H610M Manuel utilisateur

ASROCK

ASROCK ADLD4-P1 Manuel utilisateur

ASROCK

ASROCK 4Core1333-eSATA2 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z87 Professional Manuel utilisateur

ASROCK

ASROCK A780LM - V1.1 Manuel utilisateur

ASROCK

ASROCK 2Core1333-2.66G Manuel utilisateur

ASROCK

ASROCK P43R1600TWINS - V1.0 Manuel utilisateur

ASROCK

ASROCK A75iCafe Manuel utilisateur

ASROCK

ASROCK IMB-185 Manuel utilisateur

ASROCK

ASROCK H510M-ITX/ac Manuel utilisateur

ASROCK

ASROCK CONROEXFIRE-ESATA2 Manuel utilisateur

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK A75M-DGS Manuel utilisateur

ASROCK

ASROCK X99 Extreme6/3.1 Manuel utilisateur

ASROCK

ASROCK 90-MXB150-A0UAYZ Manuel utilisateur

ASROCK

ASROCK PENRYN1600SLI-110DB Manuel utilisateur

ASROCK

ASROCK H67M Manuel utilisateur

ASROCK

ASROCK FM2A88X Pro Manuel utilisateur

ASROCK

ASROCK P55 PRO/USB3 - Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
