ASROCK Q2900-ITX Manuel utilisateur

Q2900-ITXQ2900-ITX

Version 1.1

Published November 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 9

2.1 Installing Memory Modules (SO-DIMM) 10

2.2 Expansion Slots (PCI Express Slots) 12

2.3 Jumpers Setup 13

2.4 Onboard Headers and Connectors 14

Chapter 3 Software and Utilities Operation 18

3.1 Installing Drivers 18

3.2 A-Tuning 19

3.3 Intel® Smart Connect Technology 21

3.4 ASRock APP Shop 26

3.4.1 UI Overview 26

3.4.2 Apps 27

3.4.3 BIOS & Drivers 30

3.4.4 Setting 31

3.5 Start8 32

Chapter 4 UEFI SETUP UTILITY 35

4.1 Introduction 35

4.1.1 UEFI Menu Bar 35

4.1.2 Navigation Keys 36

4.2 Main Screen 37

4.3 Advanced Screen 38

4.3.1 CPU Conguration 39

4.3.2 Chipset Conguration 41

4.3.3 Storage Conguration 43

4.3.4 Intel® Smart Connect Technology 45

4.3.5 Super IO Conguration 46

4.3.6 ACPI Conguration 47

4.3.7 USB Conguration 49

4.3.8 Trusted Computing 50

4.4 Tools 51

4.5 Hardware Health Event Monitoring Screen 53

4.6 Security Screen 54

4.7 Boot Screen 55

4.8 Exit Screen 57

Q2900-ITX

English

Chapter 1 Introduction

ank you for purchasing ASRock Q2900-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock Q2900-ITX Motherboard (Mini-ITX Form Factor)

• ASRock Q2900-ITX Quick Installation Guide

• ASRock Q2900-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

• 1 x WiFi Module Screw

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Intel® Quad-Core Pentium® Processor J2900 (2.41 GHz)

Memory • Dual Channel DDR3/DDR3L Memory Technology

• 2 x DDR3/DDR3L SO-DIMM Slots

• Supports DDR3/DDR3L 1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

* If only one SO-DIMM module is installed, please install it into

DDR3_A1.

Expansion

Slot

• 1 x PCI Express 2.0 x1 Slot

• 1 x mini-PCI Express Slot

Graphics

• Intel®7th generation (Gen 7) graphics

• DirectX 11.0, Pixel Shader 5.0

• ree graphics output options: D-Sub, DVI-D and HDMI

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection (ASRock Full Spike Protection)

Q2900-ITX

English

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

Storage • 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x TPM Header

• 1 x Chassis Intrusion Header

• 1 x CPU Fan Connector (3-pin)

• 1 x Chassis Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

English

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header by ASMedia ASM1074 (Supports 2 USB 3.0

ports) (Supports ESD Protection (ASRock Full Spike Protec-

tion))

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with GUI support

• Supports Plug and Play

• ACPI 1.1 compliant wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

Q2900-ITX

English

1.3 Motherboard Layout

PCIE1

ATXPWR1

AUDIO

CODE C

TPMS 1

Super

I/O

SATA3 _A1

PS2

Keyboard

PS2

Mouse

USB 2.0

T: USB3

B: USB4

HDMI

DDR3_B1

DDR3_A1

CPU_FAN1

USB1_2

HDLED R ESE T

PLED PW RBT N

PANEL1

SPE AKE R1

COM1

CI1

SATA3 _A

CMOS

Battery

Q2900-ITX

RoHS

HD_AUDIO1

64Mb

BIOS

MINI_PCIE1

Front USB 3.0

LPT1

LAN

CLRCMO S1

USB3_1_2

SATA2 _1

SATA2 _2

VGA1

DVI1

Top:

RJ-45

USB 3.0

T: USB3

B: USB4

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

English

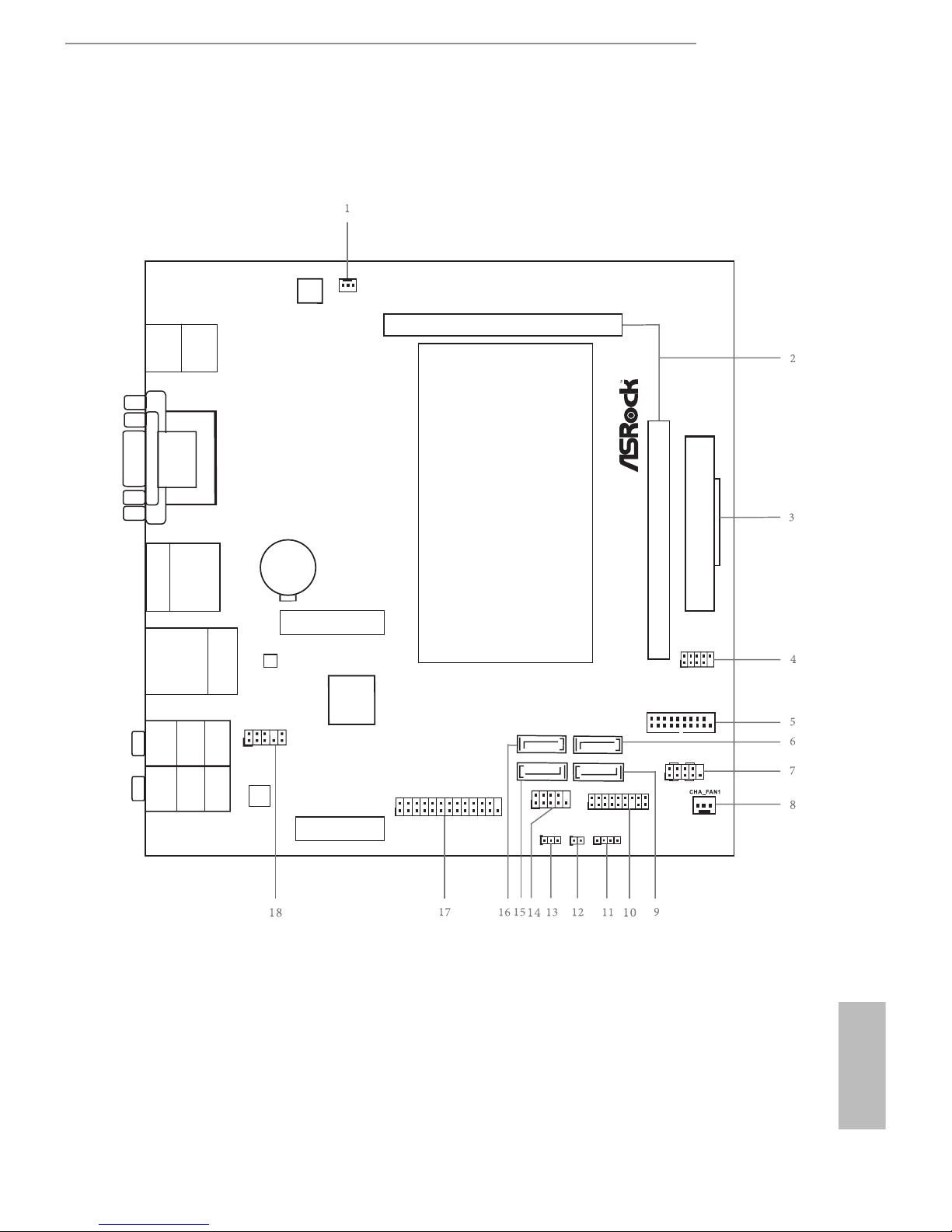

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 2 x 204-pin DDR3 SO-DIMM Slots (DDR3_A1, DDR3_B1)

3 ATX Power Connector (ATXPWR1)

4 USB 2.0 Header (USB1_2)

5 USB 3.0 Header (USB3_1_2)

6 SATA2 Connector (SATA2_2)

7 System Panel Header (PANEL1)

8 Chassis Fan Connector (CHA_FAN1)

9 SATA2 Connector (SATA2_1)

10 TPM Header (TPMS1)

11 Chassis Speaker Header (SPEAKER1)

12 Chassis Intrusion Header (CI1)

13 Clear CMOS Jumper (CLRCMOS1)

14 COM Port Header (COM1)

15 SATA3 Connector (SATA3_A1)

16 SATA3 Connector (SATA3_A2)

17 Print Port Header (LPT1)

18 Front Panel Audio Header (HD_AUDIO1)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 760GM-GS3 - V1.0 Manuel utilisateur

ASROCK

ASROCK 939A8X-M Manuel utilisateur

ASROCK

ASROCK B460M PRO4 Manuel utilisateur

ASROCK

ASROCK H61M-HVGS Manuel utilisateur

ASROCK

ASROCK A780FULLDISPLAYPORT Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK ALIVEDUAL-ESATA2 Manuel utilisateur

ASROCK

ASROCK H110M-DGS Manuel utilisateur

ASROCK

ASROCK B365M Pro4-F Manuel utilisateur

ASROCK

ASROCK UTX-111 Manuel utilisateur

ASROCK

ASROCK H61M-PS4 Manuel utilisateur

ASROCK

ASROCK FM2A75M-ITX R2.0 Manuel utilisateur

ASROCK

ASROCK H110M-HDV R3.0 Manuel utilisateur

ASROCK

ASROCK 4CoreDual-VSTA Manuel utilisateur

ASROCK

ASROCK ALIVENF5SLI-1394 Manuel utilisateur

ASROCK

ASROCK H470M-STX Manuel utilisateur

ASROCK

ASROCK Super Alloy B150M COMBO-G Manuel utilisateur

ASROCK

ASROCK Z87 Extreme6 Manuel utilisateur

ASROCK

ASROCK M266A R3.0 Manuel utilisateur

ASROCK

ASROCK 880GM-LE FX Manuel utilisateur

ASROCK

ASROCK B450M-HDV Manuel utilisateur

ASROCK

ASROCK H97 Pro4 Manuel utilisateur

ASROCK

ASROCK J5005-ITX Manuel utilisateur

ASROCK

ASROCK M3A785GM-LE/128M Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
