ASROCK H97 Pro4 Manuel utilisateur

Version 1.1

Published July 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

H97 Pro4

English

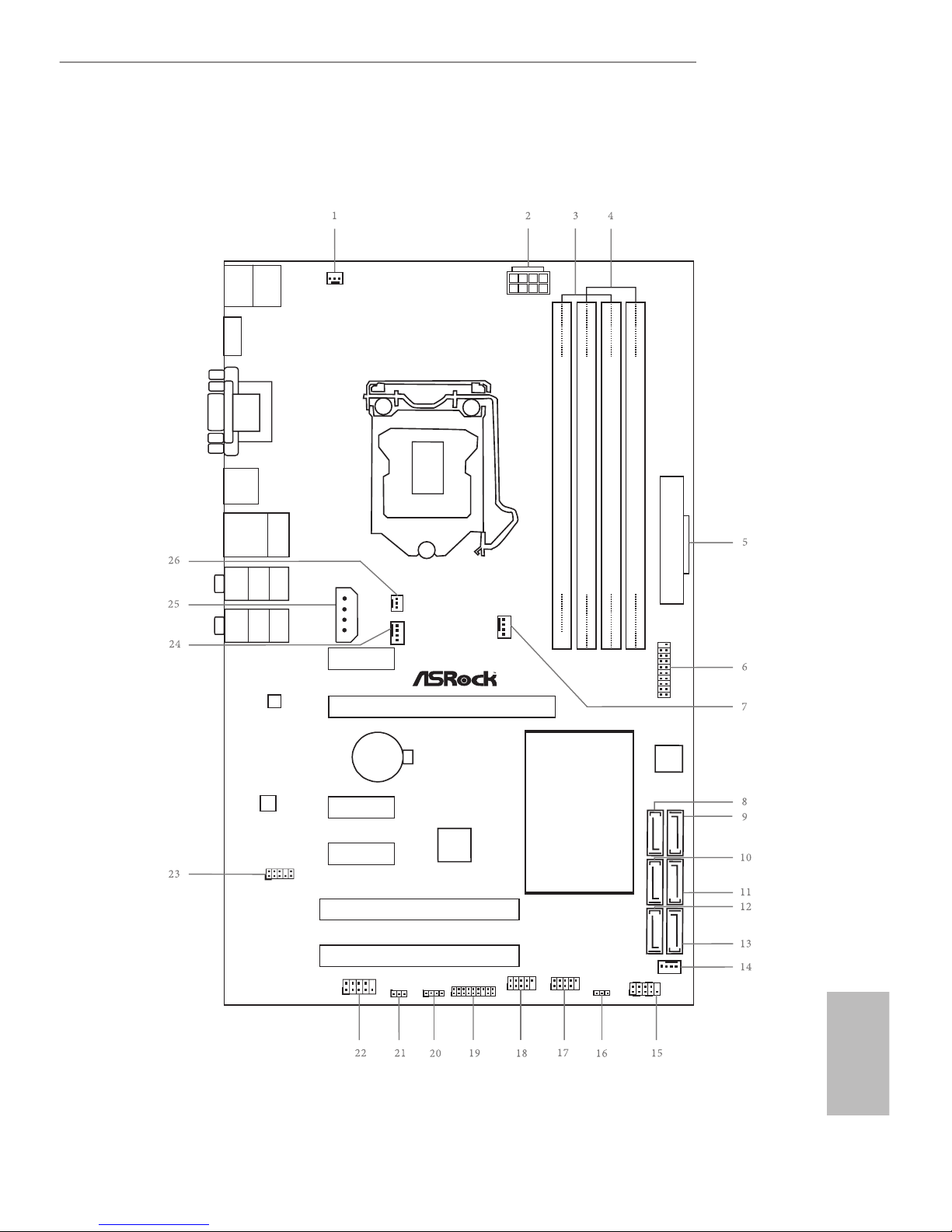

Motherboard Layout

Intel

H97

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V1

CMOS

Battery

Super

I/O

ATXPWR1

USB3_4_5

LAN

Top:

RJ-45

USB 3.0

T: USB2

B: USB3

CLRCMOS1

PLED1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

USB4_5

USB2_3

COM1

HD_AUDIO1

H97 Pro4

CHA_FAN1

PCI1

RoHS

CPU_FAN1

CPU_FAN2

128Mb

BIOS

HDMI1

PWR_FAN1

SATA3_5

SATA3_4

SATA3_3

SATA3_2

SATA3_1

SATA3_0

PCI2

PCIE3

USB 3.0

T: USB0

B: USB1

Audio

CODEC

PCIE2

PCIE4

PCI Express 3.0

Front USB 3.0

Top:

SIDE SPK

Center:

REAR SPK

Bottom:

CTR BAS S

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

CHA_FAN2

PCIE1

PCIE_PWR1

TPMS1

USB 2.0

T: USB0

B: USB1

Ps2

Keyboard/

Mouse

VGA1

DVI1

English

No. Description

1 Power Fan Connector (PWR_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_4_5)

7 Chassis Fan Connector (CHA_FAN2)

8 SATA3 Connector (SATA3_1)

9 SATA3 Connector (SATA3_0)

10 SATA3 Connector (SATA3_3)

11 SATA3 Connector (SATA3_2)

12 SATA3 Connector (SATA3_5)

13 SATA3 Connector (SATA3_4)

14 Chassis Fan Connector (CHA_FAN1)

15 System Panel Header (PANEL1)

16 Power LED Header (PLED1)

17 USB 2.0 Header (USB2_3)

18 USB 2.0 Header (USB4_5)

19 TPM Header (TPMS1)

20 Chassis Speaker Header (SPEAKER1)

21 Clear CMOS Jumper (CLRCMOS1)

22 COM Port Header (COM1)

23 Front Panel Audio Header (HD_AUDIO1)

24 CPU Fan Connector (CPU_FAN1)

25 PCIe Power Connector (PCIE_PWR1)

26 CPU Fan Connector (CPU_FAN2)

H97 Pro4

English

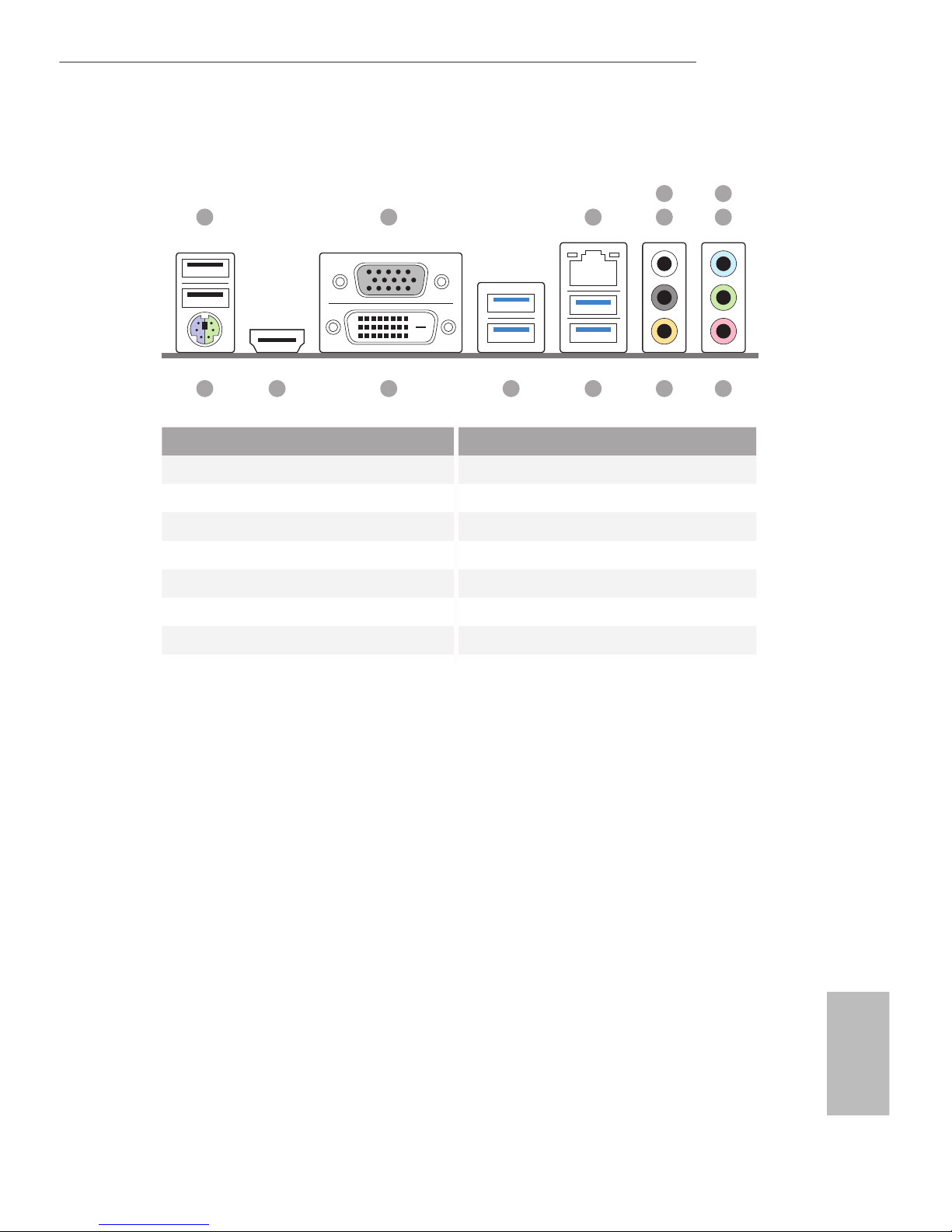

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 8 Microphone (Pink)

2 D-Sub Port 9 Central / Bass (Orange)

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_23)

4 Side Speaker (Gray) 11 USB 3.0 Ports (USB3_01)

5 Rear Speaker (Black) 12 DVI-D Port

6 Line In (Light Blue) 13 HDMI Port

7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port

8914 10111213

1 2 3 5

English

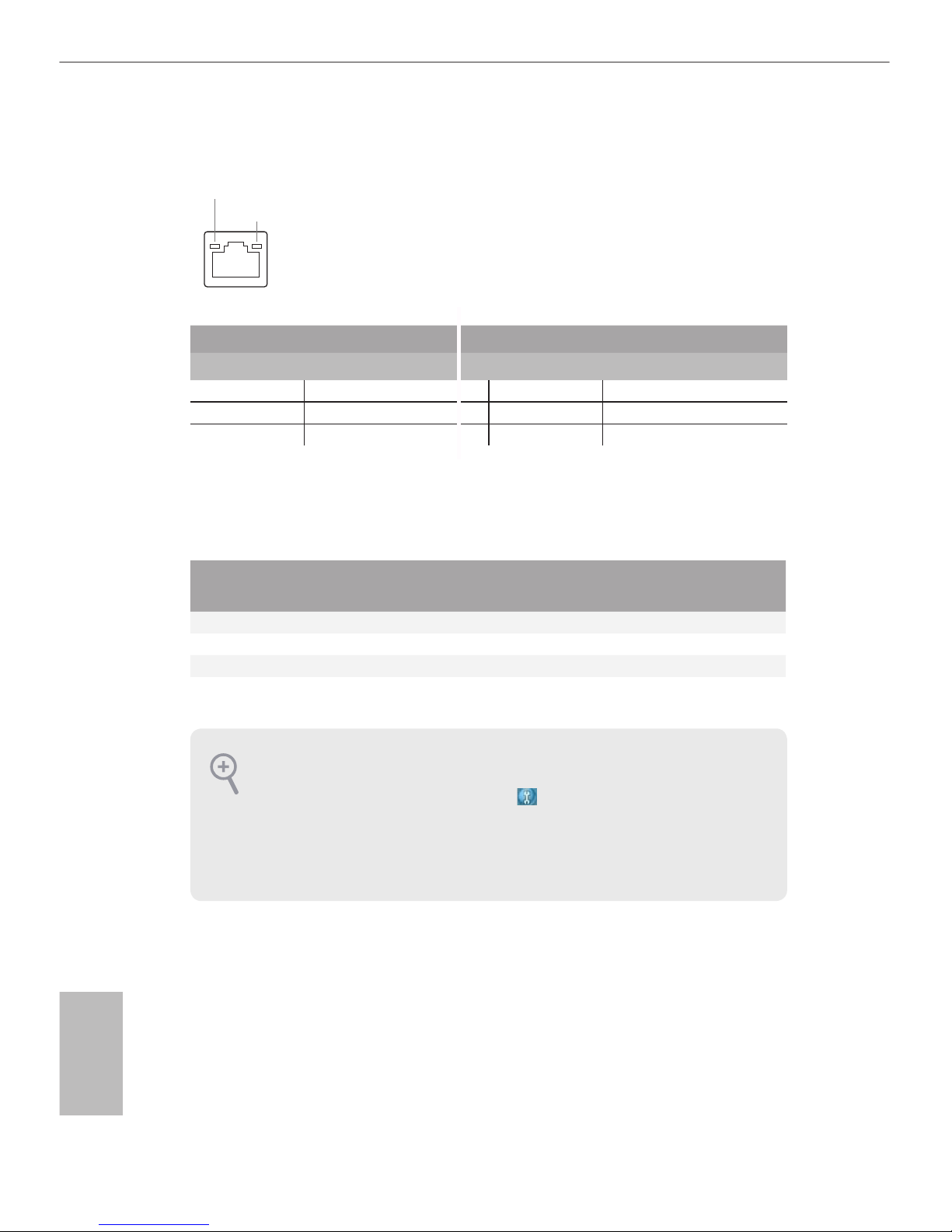

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 9)

Line In

(No. 6)

2V -- -- --

4V V -- --

6V V V --

8V V V V

ACT/LINK LED

SPEED LED

LAN Port

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool

on your system. Please select “Mixer ToolBox” , click “Enable playback multi-

streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are

allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/

Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front

panel audio.

H97 Pro4

English

Chapter 1 Introduction

ank you for purchasing ASRock H97 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock H97 Pro4 Motherboard (ATX Form Factor)

• ASRock H97 Pro4 Quick Installation Guide

• ASRock H97 Pro4 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modica-

tions of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard,

please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well.

ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports 5th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1150)

• Supports New 4th and 4th Generation Intel® Xeon®/CoreTM i7/

i5/i3/Pentium®/Celeron® Processors (Socket 1150)

• Digi Power design

• 4 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® H97

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 32GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

• 3 x PCI Express 2.0 x1 Slots

• 2 x PCI Slots

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree graphics output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitor

H97 Pro4

English

• Supports HDMI with max. resolution up to 1920x1200 @

60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I218V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

English

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass

/ Line in / Front Speaker / Microphone

Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

13 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug

Connector • 1 x COM Port Header

• 1 x TPM Header

• 1 x Power LED Header

• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan Connectors (2 x 4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x PCIe Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Autres manuels pour H97 Pro4

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK STX-1500 Manuel utilisateur

ASROCK

ASROCK A780FULLHD - V1.0 Manuel utilisateur

ASROCK

ASROCK IMB-190 Manuel utilisateur

ASROCK

ASROCK H61M-U3S3 Manuel utilisateur

ASROCK

ASROCK FM2A55M-DGS Manuel utilisateur

ASROCK

ASROCK Z97M Pro4 Manuel utilisateur

ASROCK

ASROCK H61DE/SI Manuel utilisateur

ASROCK

ASROCK 990FX Extreme4 Manuel utilisateur

ASROCK

ASROCK P4I65PE-M Manuel utilisateur

ASROCK

ASROCK SIS741GX-NB Manuel utilisateur

ASROCK

ASROCK B150M-ITX/D3 Manuel utilisateur

ASROCK

ASROCK H310CM-HDVP/DASH Manuel utilisateur

ASROCK

ASROCK 970DE3/U3S3 Manuel utilisateur

ASROCK

ASROCK WRX80 CREATOR Manuel utilisateur

ASROCK

ASROCK A520M-HDV Manuel utilisateur

ASROCK

ASROCK QC5000-ITX/WiFi Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4+ R2.0 Manuel utilisateur

ASROCK

ASROCK A790GMH128M-832 - Manuel utilisateur

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Manuel utilisateur

ASROCK

ASROCK FM2A78M-ITX+ Manuel utilisateur

ASROCK

ASROCK 4CORE1333-GLAN - V1.1 Manuel utilisateur

ASROCK

ASROCK 785G Pro Manuel utilisateur

ASROCK

ASROCK H61M-XT PLUS Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
