ASROCK P4I45PE Manuel utilisateur

P4i45PE

User Manual

Version 1.0

Published May 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 4

1.1 Package Contents .......................................................... 4

1.2 Specifications ................................................................ 5

1.3 Motherboard Layout ...................................................... 9

1.4 ASRock I/OTM .................................................................. 10

2 Installation...................................................... 11

2.1 Screw Holes ................................................................. 11

2.2 Pre-installation Precautions ........................................... 11

2.3 CPU Installation .............................................................. 12

2.4 Installation of Heatsink and CPU fan ............................. 12

2.5 Installation of Memory Modules (DIMM) ......................... 13

2.6 Expansion Slots ............................................................. 13

2.7 Jumpers Setup .............................................................. 14

2.8 Connectors .................................................................... 15

3 BIOS Setup ...................................................... 18

3.1 BIOS Setup Utility ........................................................... 18

3.1.1 BIOS Menu Bar ....................................................... 18

3.1.2 Legend Bar ............................................................. 18

3.2 Main Menu...................................................................... 19

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 21

4 Software Support ........................................... 22

4.1 Installing Operating System ........................................... 22

4.2 Support CD Information ................................................. 22

4.2.1 Running Support CD ............................................... 22

4.2.2 Drivers Menu .......................................................... 22

4.2.3 Utilities Menu ........................................................... 22

4.2.4 ASRock “PC-DIY Live Demo” Program ................... 22

4.2.5 Contact Information ................................................ 22

Appendix: Advanced BIOS Setup ................... 23

1. Advanced Menu ............................................................... 23

2. Security Menu................................................................... 28

3. Power Menu ..................................................................... 29

4. Boot Menu ......................................................................... 30

5. Exit Menu .......................................................................... 31

Chapter 1 Introduction

Thank you for purchasing ASRock P4i45PE motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and Support CD information.

For advanced users’ reference, the Appendix appearing on page 23 offers more

advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4i45PE motherboard

(ATX form factor: 12" x 8.6", 30.5 x 21.8 cm)

ASRock P4i45PE Quick Installation Guide

ASRock Intel-Intel Series Support CD

1 Cable for IDE devices (1 x ATA 66/100)

1 Cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1.2 Specifications

Platform: ATX form factor (12" x 8.6", 30.5 x 21.8 cm)

CPU: Socket 478 for Intel®Pentium® 4/ Celeron®processor

Chipsets: North Bridge:

Intel®845PE chipsets, standard FSB 400 / 533MHz,

Max. 800+ MHz (overclocking, see CAUTION 1),

supports Hyper-Threading Technology (see CAUTION 2);

South Bridge:

Intel®ICH4

Clock Generator: 100 MHz - 248MHz

Memory: 2 DDR DIMM slots: DDR1 and DDR2 (PC2100 / PC2700), Max. 2GB

IDE: IDE1: ATA 100 / Ultra DMA Mode 5;

IDE2: ATA 100 / Ultra DMA Mode 5;

Can connect up to 4 IDE devices

Floppy Port: Supports 1 floppy disk drive

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life (ASRock U-COP)

(see CAUTION 3);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 5 PCI slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 4X AGP card (see CAUTION 4)

USB 2.0: 4 default USB 2.0 ports and one extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 5)

ASRock I/OTM :PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port;

4 rear default USB 2.0 ports;

1 serial port: COM1; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out/ Line In/ Microphone + 1 Game port

BIOS: AMI legal BIOS;Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree; SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 6);

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. P4i45PE motherboard may be fine tuned to support higher CPU bus

frequencies on certain condition (over-clocking mode). Please refer

to the NOTE on page 7 for the details.

2. About the setting of “Hyper Threading Technology”, please check

page 23.

3. While CPU overheat is detected, the system will automatically

shutdown. Please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve heat

dissipation, remember to spray thermal grease between the CPU

and the heatsink when you install the PC system.

4. Do NOT plug a 3.3VAGP card in the AGP slot on P4i45PE motherboard!

It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft®

Windows®XP. It may not work properly under Microsoft®Windows®

98/ME/2000. Please refer to Microsoft®official document at

http://www.microsoft.com/HWDEV/BUS/usb/USB2support.asp

6. Although P4i45PE offers stepless control, it is not recommended to

perform over clocking.

When the CPU frequency of P4i45PE is set to perform over clocking,

other clocks, such as PCI clock, AGP clock, and Memory clock will

also be overclocked proportionally. Frequencies other than the

recommended CPU bus frequencies may cause the instability of the

system or damage the CPU and the motherboard.

NOTE

P4i45PE may be fine tuned to support higher CPU front side bus frequencies on certain

condition at over-clocking mode. Please refer to the tables below for the details.

CPU FSB Configuration Note

P4i45PE 800 MHz 1. Set the “FSB” jumper to “TEST” mode (see page 18).

2. Only support one DDR 400 memory module on DDR1

DIMM. (If it is set to DDR 400 mode, then it does not

support CL3 module.)

3. Update BIOS version to 1.10 or later version.

The Recommended Memory Modules lists for P4i45PE motherboard.

FSB 800 MHz / DDR 400 Mode

DRAM SIZE TYPE CELL CELL NO. SINGLE SIDE /

VENDOR (MB) VENDOR DOUBLE SIDE

TWINMOS 512 DDR400 TWINMOS TTD7608F8E50B DOUBLE SIDE

TWINMOS 512 DDR400 M.TEC TTD7608F8E50B DOUBLE SIDE

TWINMOS 256 DDR400 M.TEC TTD7608F8E50B SINGLE SIDE

TWINMOS 256 DDR400 TWINMOS TMD7608F8E50B SINGLE SIDE

TWINMOS 256 DDR400 TWINMOS TMD7608F8E50C SINGLE SIDE

TWINMOS 256 DDR400 WINBOND W942508BH-5 SINGLE SIDE

KINGMAX 256 DDR400 KINGMAX KDL684T4AA DOUBLE SIDE

ADATA 256 DDR400 WINBOND W942508BH-5 SINGLE SIDE

TWINMOS 512 DDR466 TWINMOS TMD7608F8E43B DOUBLE SIDE

TWINMOS 256 DDR466 TWINMOS TMD7608F8E43B SINGLE SIDE

FSB 533 MHz / DDR 266 Mode

DRAM SIZE TYPE CELL CELL NO. SINGLE SIDE /

VENDOR (MB) VENDOR DOUBLE SIDE

TWINMOS 256 DDR266 M.TEC TTD7608F8E75B SINGLE SIDE

KINGSTON 256 DDR266 KINGSTON D328DM-75 0240PT10 SINGLE SIDE

TRANSCEND 128 DDR266 SAMSUNG K4H280838D-TCB0 SINGLE SIDE

TRANSCEND 256 DDR266 MITSUBISHI M2S56D30ATP SINGLE SIDE

APACER 128 DDR266 NANYA NT5DS32M8AT-6 SINGLE SIDE

FSB 533 MHz / DDR 333 Mode

DRAM SIZE TYPE CELL CELL NO. SINGLE SIDE /

VENDOR (MB) VENDOR DOUBLE SIDE

TWINMOS 512 DDR333 WINBOND W942508AH-6 DOUBLE SIDE

KINGMAX 256 DDR333 KINGMAX KDL684T4AA-60 DOUBLE SIDE

KINGSTON 512 DDR333 INFINEON HYB25D256800BT-6 DOUBLE SIDE

TRANSCEND 256 DDR333 SAMSUNG K4H5608380-TCB3 SINGLE SIDE

NANYA 512 DDR333 NANYA NT5DS32MBAT-6 DOUBLE SIDE

Since the memory types are changing rapidly, please visit ASRock website

(http://www.asrock.com/support/index.htm) for the latest recommended memory support list.

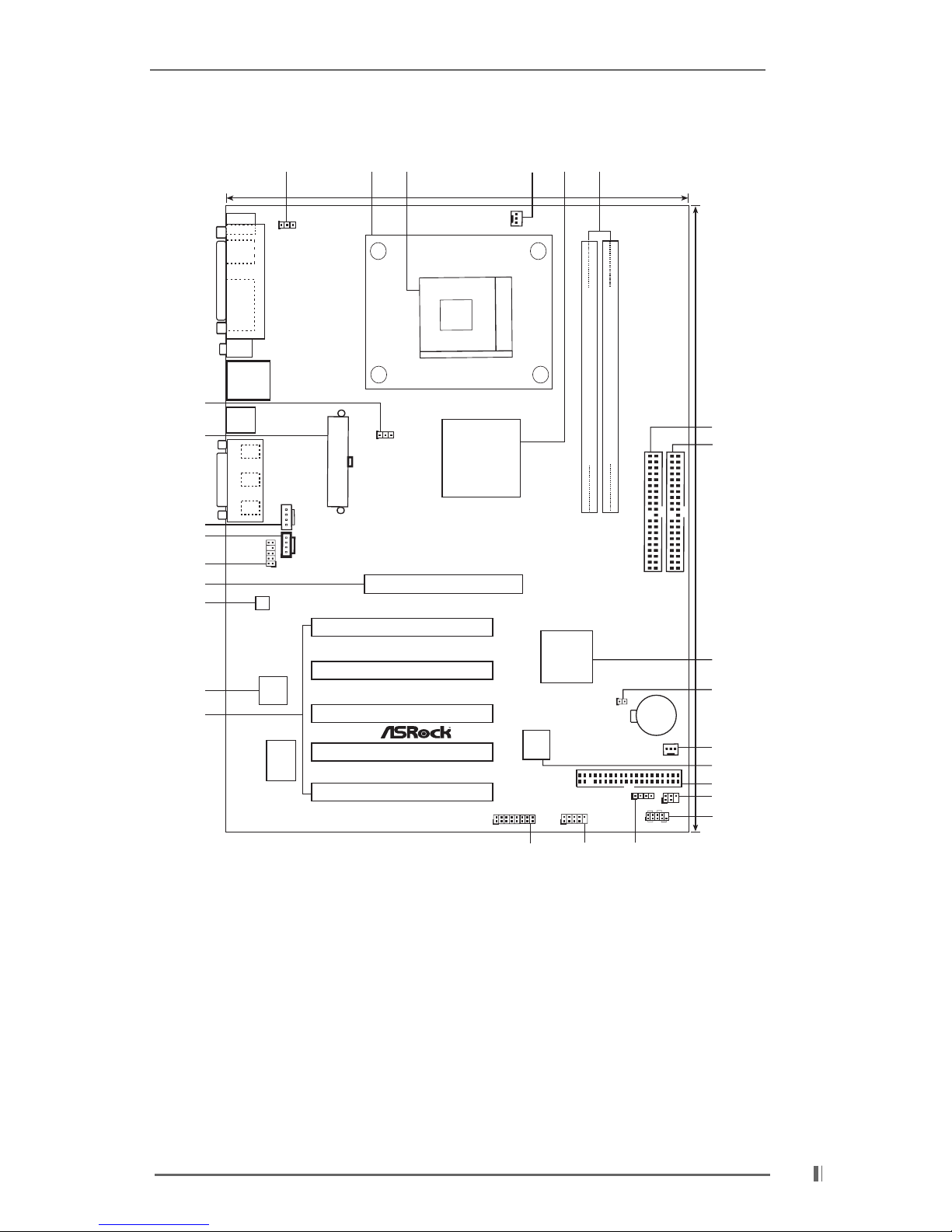

1.3 Motherboard Layout

1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)

2 CPU socket 15 Chassis speaker connector (SPEAKER1)

3 CPU fan connector (CPU_FAN1) 16 South Bridge controller

4 North Bridge controller 17 Clear CMOS (CLRCMOS1, 2-pin jumper)

5 184-pin DDR DIMM slots (DDR1, DDR2) 18 PCI slots (PCI 1- 5)

6 CPU heatsink retention module 19 Audio CODEC

7 Primary IDE connector (IDE1, Blue) 20 Front panel audio connector (AUDIO1)

8 Secondary IDE connector (IDE2, Black) 21 PCI LAN

9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper

10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (White)

11 BIOS FWH chip 24 Internal audio connectors: CD1 (Black)

12 System panel connector (PANEL1) 25 AGP slot (1.5V_AGP1)

13 USB 2.0 header (USB45, Blue) 26 FSB select jumper (FSB)

27 Easy I/O header (EASY_IO1)

P4i45PE

PCI 5

PCI 4

PCI 3

PCI 2

PCI 1

PCI

LAN

Super

I/O

Audio CODEC

USB2.0

5.1CH

FSB800

USB45

IR1

SPEAKER1

FLOPPY1

2MB

BIOS

1.5V_AGP1

Intel

ICH4

CMOS

Battery

IDE1

IDE2

DDR DIMM1 (64/72 bit, 184-pin module)

DDR DIMM2 (64/72 bit, 184-pin module)

Intel

845PE

Chipset

mPGA478B

ATXPWR1

PS2_USB_PWR1

AUDIO1

HDLED RST

PLED PWRBTN

PANEL 1

CPU_FAN1

CLRCMOS1

CHA_FAN1

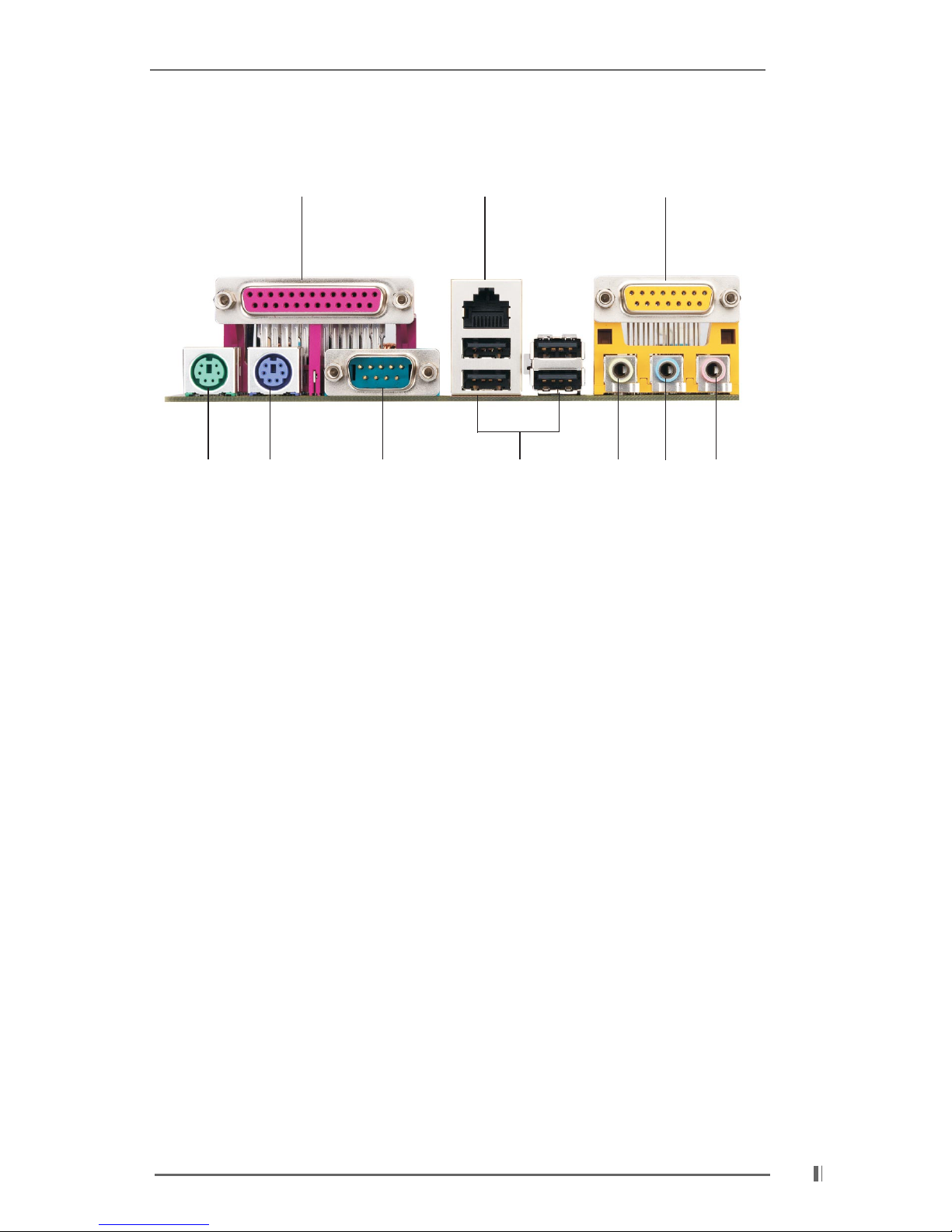

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

Line

Line in

USB 2.0

Ports

CD1

AUX1

30.5cm (12.0 in)

21.8cm (8.6 in)

22 2

EASY_IO1

1.4 ASRock I/OTM

1 Parallel port 6 Line Out (Lime)

2 RJ-45 port 7 USB 2.0 ports

3 Game port 8 Serial port (COM1)

4 Microphone (Pink) 9 PS/2 keyboard port (Purple)

5 Line In (Light Blue) 10 PS/2 mouse port (Green)

123

4567

910

Autres manuels pour P4I45PE

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B75M-DGS R2.0 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z68 Professional Gen3 Manuel utilisateur

ASROCK

ASROCK E3C224D41-14S Manuel utilisateur

ASROCK

ASROCK B650E PG Riptide WiFi Manuel utilisateur

ASROCK

ASROCK H61M-IDE Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4+ Manuel utilisateur

ASROCK

ASROCK K8NF6P-VSTA Manuel utilisateur

ASROCK

ASROCK P45R2000-WiFi Manuel utilisateur

ASROCK

ASROCK Z97M Pro4 Manuel utilisateur

ASROCK

ASROCK H97M Anniversary Manuel utilisateur

ASROCK

ASROCK X48TURBOTWINS-WIFI Manuel utilisateur

ASROCK

ASROCK N3160-NUC IPC Manuel utilisateur

ASROCK

ASROCK gaia 404 Manuel utilisateur

ASROCK

ASROCK Z790 LiveMixer Manuel utilisateur

ASROCK

ASROCK FM2A88M Pro3 Plus Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK 970M Pro3 Manuel utilisateur

ASROCK

ASROCK N68C-SE Manuel utilisateur

ASROCK

ASROCK P65iCafe Manuel utilisateur

ASROCK

ASROCK 775i915PL-SATA2 Manuel utilisateur

ASROCK

ASROCK N3700M Manuel utilisateur

ASROCK

ASROCK Z390M-ITX/ac Manuel utilisateur

ASROCK

ASROCK B75M-ITX Manuel utilisateur

ASROCK

ASROCK B75M-GL Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
