ASROCK H97M Anniversary Manuel utilisateur

H97M AnniversaryH97M Anniversary

Version 1.1

Published November 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

Chapter 2 Installation 9

2.1 Installing the CPU 10

2.2 Installing the CPU Fan and Heatsink 13

2.3 Installing Memory Modules (DIMM) 14

2.4 Expansion Slots (PCI Express Slots) 16

2.5 Jumpers Setup 17

2.6 Onboard Headers and Connectors 18

Chapter 3 Software and Utilities Operation 22

3.1 Installing Drivers 22

3.2 A-Tuning 23

3.3 Intel® Rapid Start Technology 29

3.4 Intel® Smart Connect Technology 34

3.5 ASRock APP Shop 39

3.5.1 UI Overview 39

3.5.2 Apps 40

3.5.3 BIOS & Drivers 43

3.5.4 Setting 44

3.6 Start8 45

Chapter 4 UEFI SETUP UTILITY 48

4.1 Introduction 48

4.1.1 UEFI Menu Bar 48

4.1.2 Navigation Keys 49

4.2 Main Screen 50

4.3 OC Tweaker Screen 51

4.4 Advanced Screen 60

4.4.1 CPU Conguration 61

4.4.2 Chipset Conguration 63

4.4.3 Storage Conguration 65

4.4.4 Intel® Rapid Start Technology 67

4.4.5 Intel® Smart Connect Technology 68

4.4.6 ACPI Conguration 69

4.4.7 USB Conguration 71

4.4.8 Trusted Computing 73

4.5 Tools 74

4.6 Hardware Health Event Monitoring Screen 77

4.7 Boot Screen 78

4.8 Security Screen 81

4.9 Exit Screen 82

•

H97M Anniversary

English

Chapter 1 Introduction

ank you for purchasing ASRock H97M Anniversary motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock H97M Anniversary Motherboard (Micro ATX Form Factor)

• ASRock H97M Anniversary Quick Installation Guide

• ASRock H97M Anniversary Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports 5th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1150)

• Supports New 4th and 4th Generation Intel® Xeon®/CoreTM i7/

i5/i3/Pentium®/Celeron® Processors (Socket 1150)

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® H97

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 32GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 2 x PCI Express 2.0 x1 Slots

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree graphics output options: D-Sub, DVI-D and HDMI

Ports

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 1920x1200 @

60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

H97M Anniversary

English

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

English

Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

13 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug

Connector • 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

H97M Anniversary

English

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

English

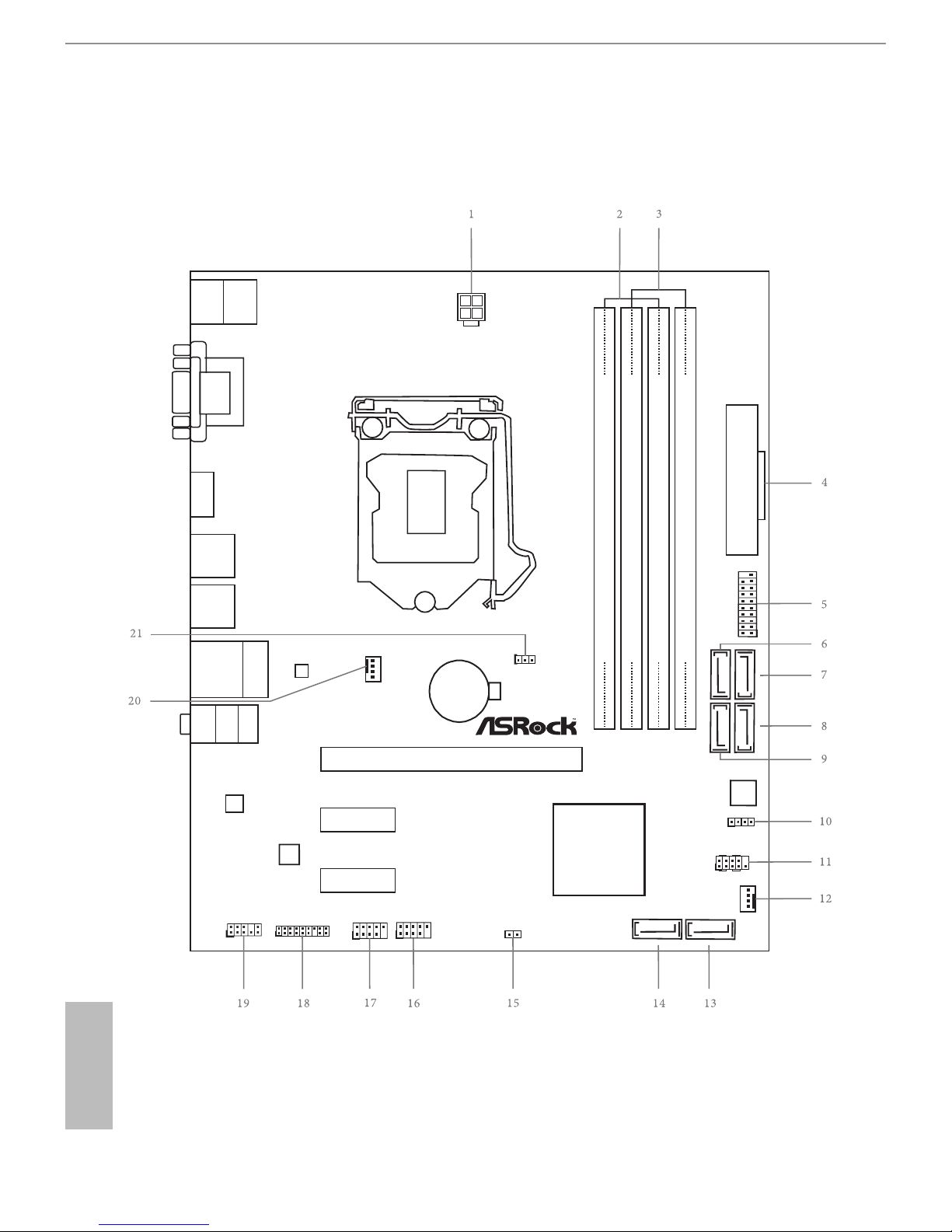

1.3 Motherboard Layout

Intel

H97

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

USB3_2_3

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

Top:

LINE IN

Center :

FRONT

Bottom :

MIC IN

CLRCM OS1

SPE AK ER 1

HDL ED R ES ET

PLE D PW RB TN

PANE L1

USB4_5

HD_AUDIO1

H97M Anniversary

SATA_ 3

CHA_FAN1

RoHS

CPU_FAN1

64Mb

BIOS

HDMI1

VGA1

DVI1

USB 2.0

T: USB0

B: USB1

Audio

CODEC

PCIE1

PCI Express 3.0

Front USB 3.0

TPMS 1

CI1

SATA_ 1

SATA_ 2 SATA_0

ATX12V1

USB6_7

SATA_ 5 SATA_4

PCIE2

PCIE3

PS2

Keyboard

PS2

Mouse

USB 3.0

T: USB0

B: USB1

Autres manuels pour H97M Anniversary

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 775Dual-915GL Manuel utilisateur

ASROCK

ASROCK A320M/ac Manuel utilisateur

ASROCK

ASROCK H310M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK IMB-1312 Manuel utilisateur

ASROCK

ASROCK 890GX Pro3 Manuel utilisateur

ASROCK

ASROCK H510M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK Z68 Extreme4 Gen3 Manuel utilisateur

ASROCK

ASROCK EP2C612D16SM Manuel utilisateur

ASROCK

ASROCK E3C204 Manuel utilisateur

ASROCK

ASROCK Z97E-ITX/ac Manuel utilisateur

ASROCK

ASROCK N68C-SE - V1.0 Manuel utilisateur

ASROCK

ASROCK FM2A55M-VG3 Manuel utilisateur

ASROCK

ASROCK 880GXH/USB3 Manuel utilisateur

ASROCK

ASROCK A55M-VS Manuel utilisateur

ASROCK

ASROCK Z68 Pro3 Gen3 Manuel utilisateur

ASROCK

ASROCK E350M1 - Manuel utilisateur

ASROCK

ASROCK IMB-197-D Manuel utilisateur

ASROCK

ASROCK A330ION - V1.0 Manuel utilisateur

ASROCK

ASROCK G31M-VS Manuel utilisateur

ASROCK

ASROCK 985GM-GS3 FX Manuel utilisateur

ASROCK

ASROCK Phantom Gaming B650M PG LIGHTING Manuel utilisateur

ASROCK

ASROCK Z87 Extreme6 Manuel utilisateur

ASROCK

ASROCK X38TURBOTWINS Manuel utilisateur

ASROCK

ASROCK CONROEXFIRE-ESATA2 - INSTALLATION - 03-2007 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
