2ASRock P43DE3L Motherboard

EnglishEnglish

English

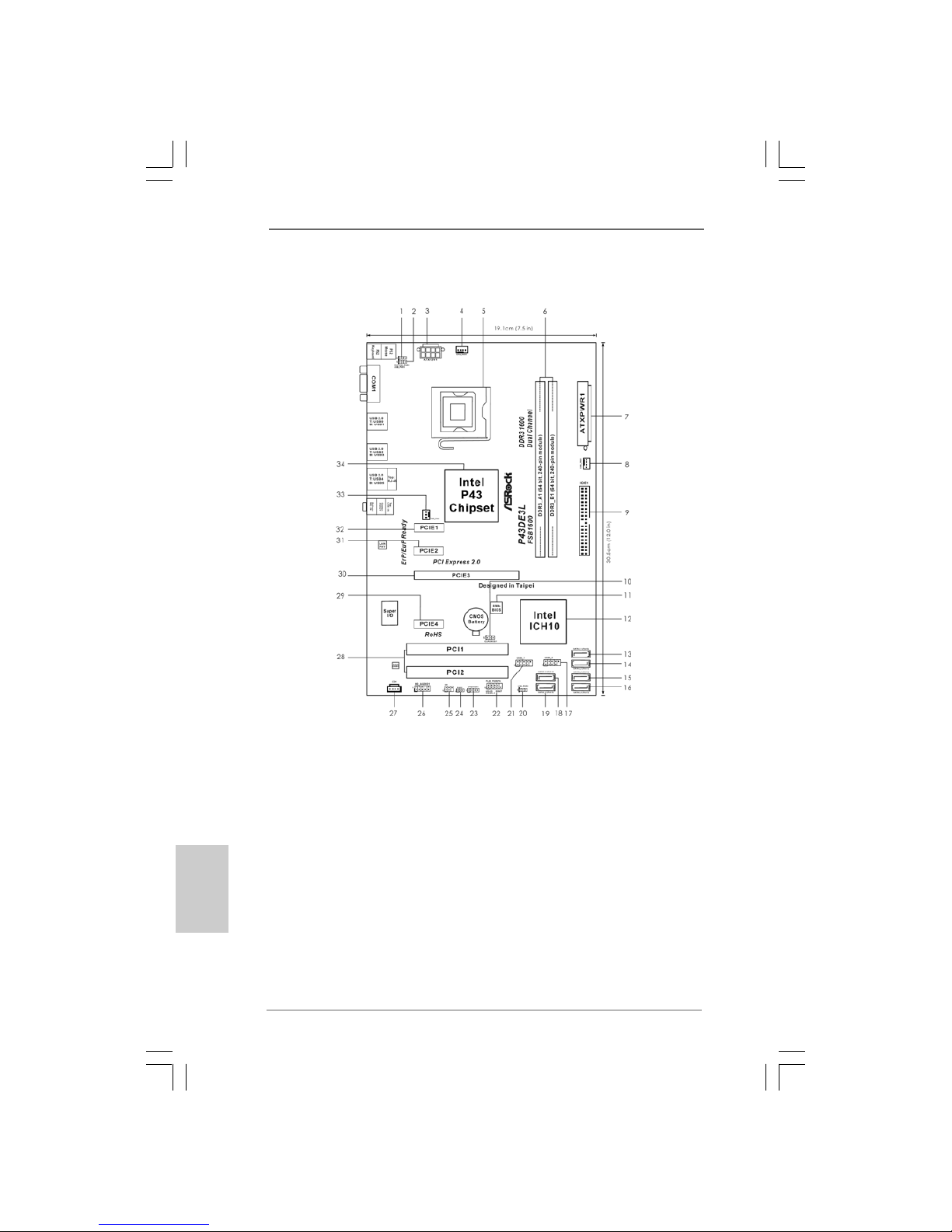

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 19 Sixth SATAII Connector

2 USB_PWR1 Jumper (SATAII_6 (Port 5), Blue)

3 ATX 12V Connector (ATX12V1) 20 USB_PWR2 Jumper

4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB6_7, Blue)

5 775-Pin CPU Socket 22 System Panel Header (PANEL1, White)

6 2 x 240-pin DDR3 DIMM Slots 23 Chassis Speaker Header

(Dual Channel: DDR3_A1, DDR3_B1; Blue) (SPEAKER 1, White)

7 ATX Power Connector (ATXPWR1) 24 Power LED Header (PLED1)

8 Chassis Fan Connector (CHA_FAN1) 25 Infrared Module Header (IR1)

9 IDE1 Connector (IDE1, Blue) 26 Front Panel Audio Header

10 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, White)

11 SPI BIOS Chip 27 Internal Audio Connector: CD1 (Black)

12 South Bridge Controller 28 PCI Slots (PCI1 - 2)

13 Primary SATAII Connector (SATAII_1 (Port 0), Blue) 29 PCI Express x1 Slot (PCIE4, White)

14 Secondary SATAII Connector (SATAII_2 (Port1), Blue) 30 PCI Express 2.0 x16 Slot (PCIE3, Blue)

15 Third SATAII Connector (SATAII_3 (Port 2), Blue) 31 PCI Express x1 Slot (PCIE2, White)

16 Fourth SATAII Connector (SATAII_4 (Port 3), Blue) )32 PCI Express x1 Slot (PCIE1, White)

17 USB 2.0 Header (USB8_9, Blue) 33 Power Fan Connector (PWR_FAN1)

18 Fifth SATAII Connector (SATAII_5 (Port 4), Blue) 34 North Bridge Controller

ASRock P43DE3L Motherboard

EnglishEnglish

English

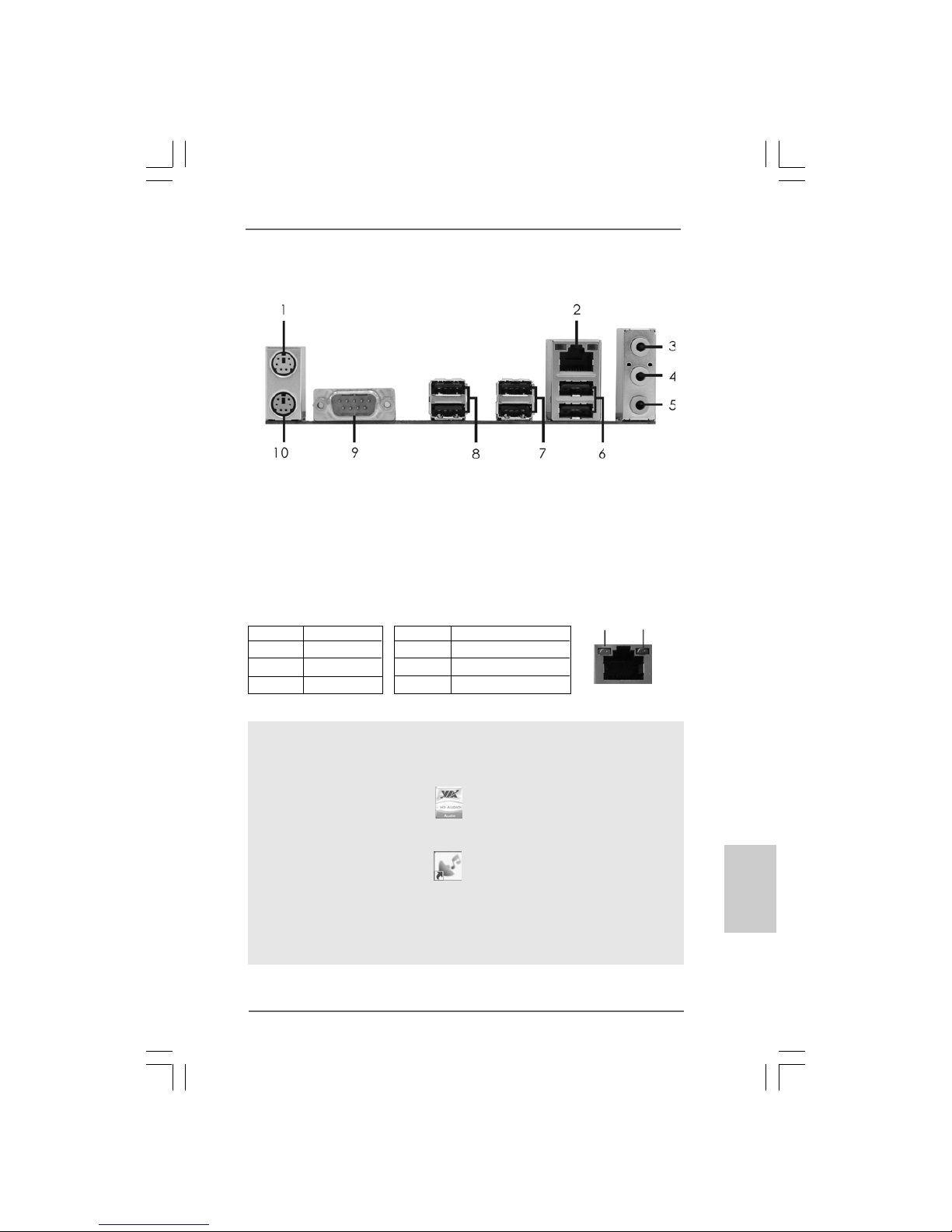

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB45)

* 2 LAN RJ-45 Port (LAN1) 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 USB 2.0 Ports (USB01)

* 4 Front Speaker (Lime) 9 Serial Port: COM1

5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel” or “4 Channel”. Click “Power” to save your change.

For Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

4ASRock P43DE3L Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P43DE3L motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P43DE3L Motherboard

(ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock P43DE3L Quick Installation Guide

ASRock P43DE3L Support CD

2 x SerialATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock P43DE3L Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

- Solid Capacitor for CPU power

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield and Dual Core

Wolfdale processors

- Supports FSB1600/1333/1066/800 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P43

- Southbridge: Intel®ICH10

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 3)

- 2 xDDR3DIMM slots

- Support DDR3 1600/1333/1066/800 non-ECC, un-buffered

memory (see CAUTION 4)

- Max. capacity of system memory: 8GB (see CAUTION 5)

- Supports Intel®Extreme Memory Profile (XMP)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 3 x PCI Express x1 slots

- 2 x PCI slots

Audio - 5.1 CH HDAudio (VIA®VT1705 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort with LED(ACT/LINK LEDand SPEED LED)

- HDAudio Jack: Line in/Front Speaker/Microphone

Connector - 6 x SATAII 3.0Gb/s connectors, support NCQ, AHCI and

“Hot Plug” functions (see CAUTION 6)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x IR header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

6ASRock P43DE3L Motherboard

EnglishEnglish

English

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,GTLREF,NB,NB GTLREF, SB Core, SB 1.1V,

VTT, PLL Voltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock

Software Suite (CyberLink DVD Suite - OEM and Trial;

Creative Sound Blaster X-Fi MB - Trial)

Unique Feature - ASRock OC Tuner (see CAUTION 7)

- Intelligent Energy Saver (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock OC DNA (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit /

XP / XP 64-bit compliant

Certifications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 13)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock P43DE3L Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper ThreadingTechnology”, please check page 37

of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 19 for details.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

4. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1600 DDR3 800, DDR3 1066, DDR3 1333,

DDR3 1600

1333 DDR3 800, DDR3 1066, DDR3 1333

1066 DDR3 800, DDR3 1066

800 DDR3 800

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limitation.

6. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 23 of “User Manual” in the support

CD to adjust your SATAII hard disk drive to SATAII mode. You can also

connect SATA hard disk to SATAII connector directly.

7. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

8. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide exceptional

power saving and improve power efficiency without sacrificing computing

performance. Please visit our website for the operation procedures of

Intelligent Energy Saver.

ASRock website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

8ASRock P43DE3L Motherboard

EnglishEnglish

English

9. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

10. The software name itself – OC DNA literally tells you what it is capable of.

OC DNA, an exclusive utility developed by ASRock, provides a conve-

nient way for the user to record the OC settings and share with others. It

helps you to save your overclocking record under the operating system

and simplifies the complicated recording process of overclocking settings.

With OC DNA, you can save your OC settings as a profile and share with

your friends! Your friends then can load the OC profile to their own system

to get the same OC settings as yours! Please be noticed that the OC

profile can only be shared and worked on the same motherboard.

11. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

13. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard of

5v standby power efficiency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

ASRock P43DE3L Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

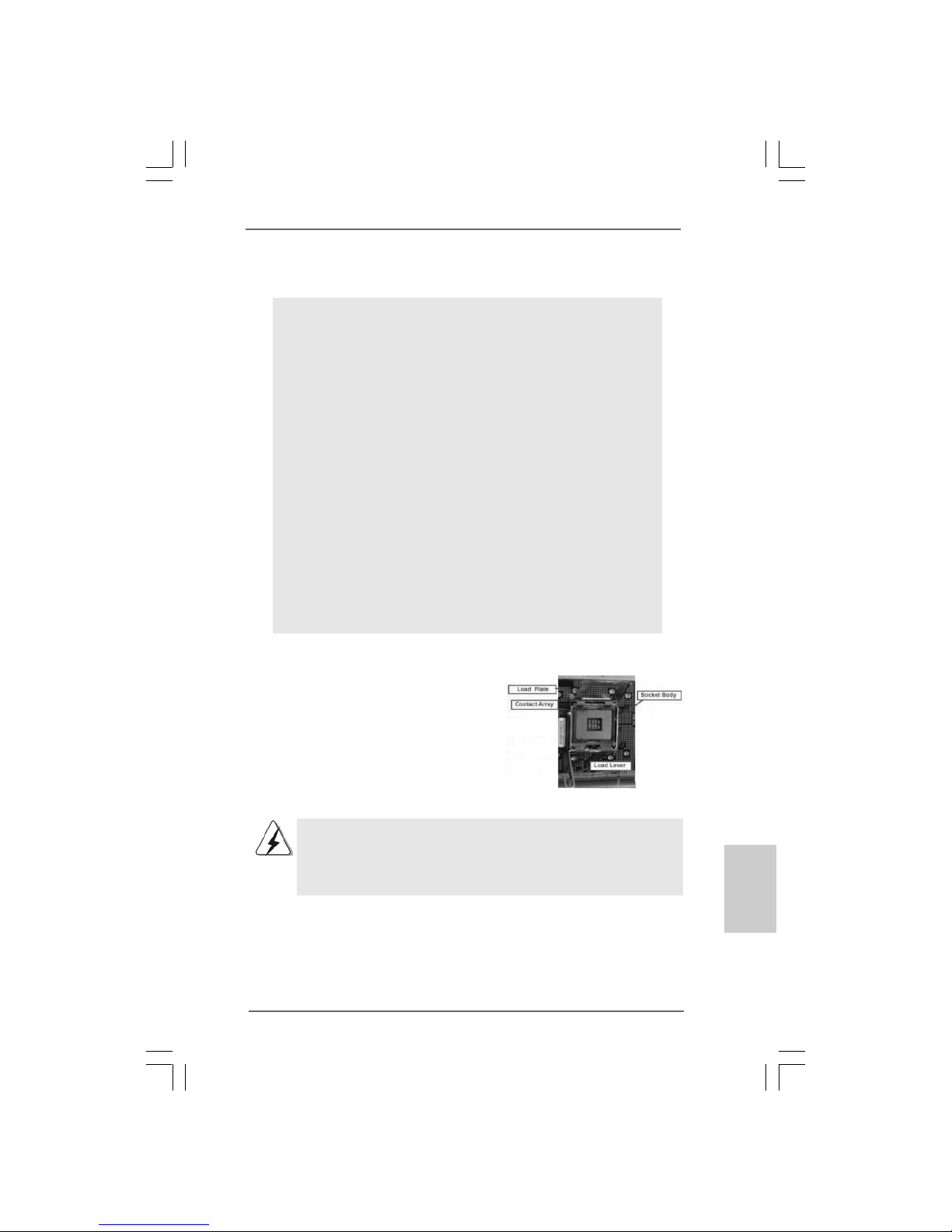

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock P43DE3L Motherboard

EnglishEnglish

English

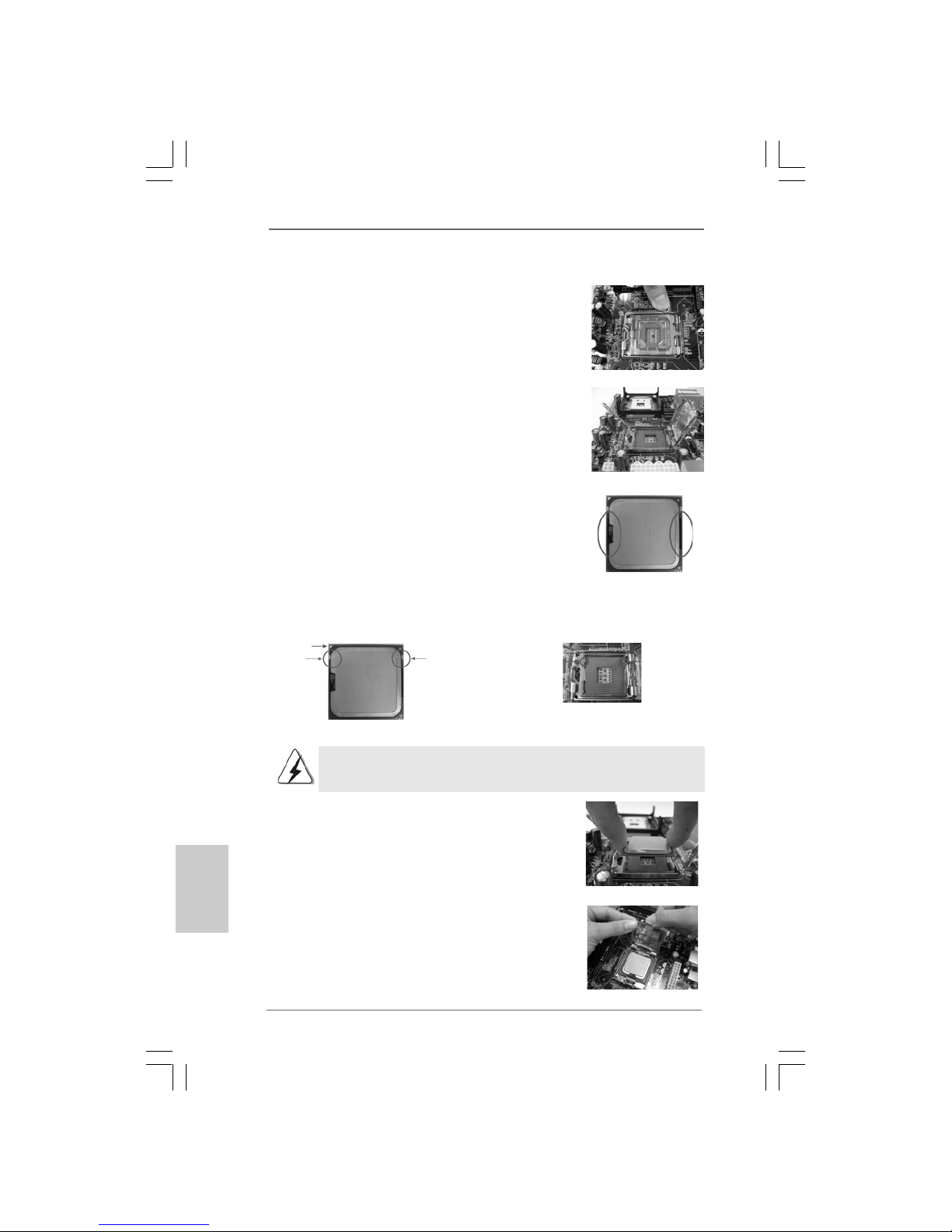

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Autres manuels pour P43DE3L

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK FM2A75M Pro4 Manuel utilisateur

ASROCK

ASROCK X299 Extreme4 Manuel utilisateur

ASROCK

ASROCK M3A790GXH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK Z97 Anniversary Manuel utilisateur

ASROCK

ASROCK Z77 Pro3 Manuel utilisateur

ASROCK

ASROCK M3A790GXH/USB3 Manuel utilisateur

ASROCK

ASROCK P65iCafe Manuel utilisateur

ASROCK

ASROCK N3700-ITX Manuel utilisateur

ASROCK

ASROCK AB350 Pro4 Manuel utilisateur

ASROCK

ASROCK Z390M-ITX/ac Manuel utilisateur

ASROCK

ASROCK P41C-DE Manuel utilisateur

ASROCK

ASROCK A780LM Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 Manuel utilisateur

ASROCK

ASROCK SP55DE3 - Manuel utilisateur

ASROCK

ASROCK 775i48 Manuel utilisateur

ASROCK

ASROCK H110M-PIO Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 R3.0 Manuel utilisateur

ASROCK

ASROCK FM2A85X Extreme4-M Manuel utilisateur

ASROCK

ASROCK NF6-GLAN Manuel utilisateur

ASROCK

ASROCK H61M-VG3 Manuel utilisateur

ASROCK

ASROCK H610M-ITX/eDP Manuel utilisateur

ASROCK

ASROCK Q370M vPro Manuel utilisateur

ASROCK

ASROCK NAB-9601 Manuel de service

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
