ASROCK H67M-GE/HT Manuel utilisateur

ASRock H67M-GE/HT Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published November 2010

2ASRock H67M-GE/HT Motherboard

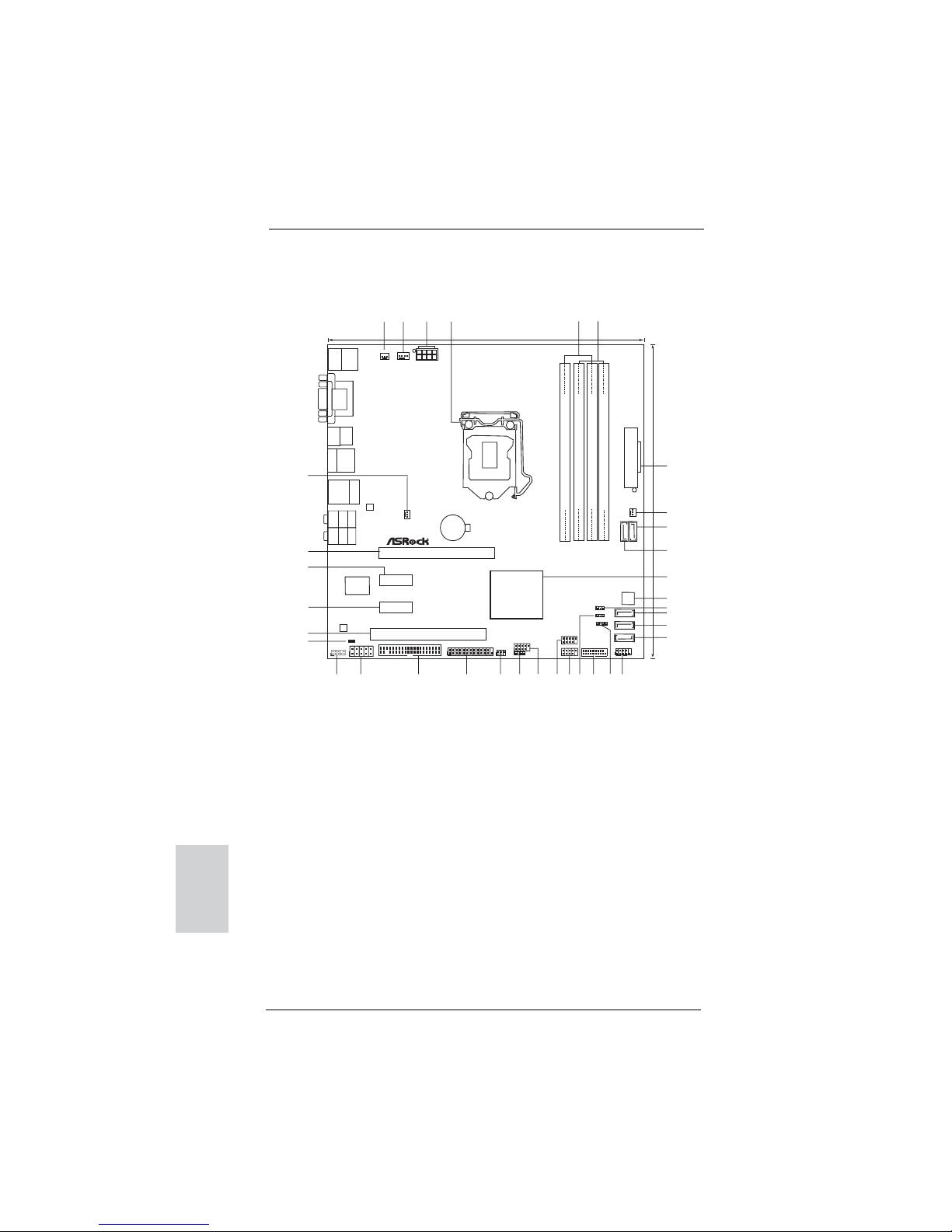

Motherboard Layout

English

1 Power Fan Connector (PWR_FAN1) 20 Power LED Header (PLED1)

2 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB8_9, Blue)

3 ATX 12V Power Connector (ATX12V1) 22 USB 2.0 Header (USB10_11, Blue)

4 1155-Pin CPU Socket 23 USB 2.0 Header (USB6_7, Blue)

5 2 x 240-pin DDR3 DIMM Slots 24 Consumer Infrared Module Header

(Dual Channel: DDR3_A1, DDR3_B1, Blue) (CIR1)

6 2 x 240-pin DDR3 DIMM Slots 25 Infrared Module Header (IR1)

(Dual Channel: DDR3_A2, DDR3_B2, White) 26 Print Port Header (LPT1, White)

7 ATX Power Connector (ATXPWR1) 27 Floppy Connector (FLOPPY1)

8 Chassis Fan Connector (CHA_FAN1) 28 COM Port Header (COM1)

9 SATA3 Connector (SATA3_1, White) 29 Front Panel Audio Header

10 SATA3 Connector (SATA3_0, White) (HD_AUDIO1, White)

11 Intel H67 Chipset 30 HDMI_SPDIF Header

12 64Mb SPI Flash (HDMI_SPDIF1, White)

13 Clear CMOS Jumper (CLRCMOS1) 31 PCI Slot (PCI1)

14 SATA2 Connector (SATA2_2, Blue) 32 PCI Express 2.0 x1 Slot (PCIE3, White)

15 SATA2 Connector (SATA2_3, Blue) 33 PCI Express 2.0 x1 Slot (PCIE2, White)

16 SATA2 Connector (SATA2_4, Blue) 34 PCI Express 2.0 x16 Slot (PCIE1, Blue)

17 System Panel Header (PANEL1, White) 35 Chassis Fan Connector (CHA_FAN2)

18 Chassis Speaker Header (SPEAKER 1, White)

19 USB 3.0 Header (USB_12_13, Light Blue)

Intel

H67

H67M-GE/HT

ATXPWR1

Designed in Taipei

24.4cm (9.6 in)

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

Dual Channel

DDR3

PCIE1

PCIE2

PCIE3

PCI1

Top:

RJ-45

USB 3.0

T: USB4

B: USB5

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

VGA1

DVI_CON1

HDMI1

eSATA

USB 2.0

T:USB2

B: USB3

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

CMOS

Battery

ATX12V1

PWR_FAN1

DX10.1

SATA3 6Gb/s

CHA_FAN2

CPU_FAN1

PCI Express 2.0

ErP/EuP Ready

HDMI 1.4a

LAN

PHY

HD_AUDIO1

HDMI_SPDIF1

AUDIO

CODEC

COM1

RoHS

USB 3.0

USB8_9

IR1

USB10_11

USB6_7

CIR1

CLRCMOS1

64Mb

BIOS

PLED1

SATA2_3

SATA2_2

SATA3_0

SATA3_1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

SATA2_4

CHA_FAN1

FLOPPY1

LPT1

Gigabit LAN

123456

24 19

2122

USB_12_13

DisplayPort1

ASRock H67M-GE/HT Motherboard

English

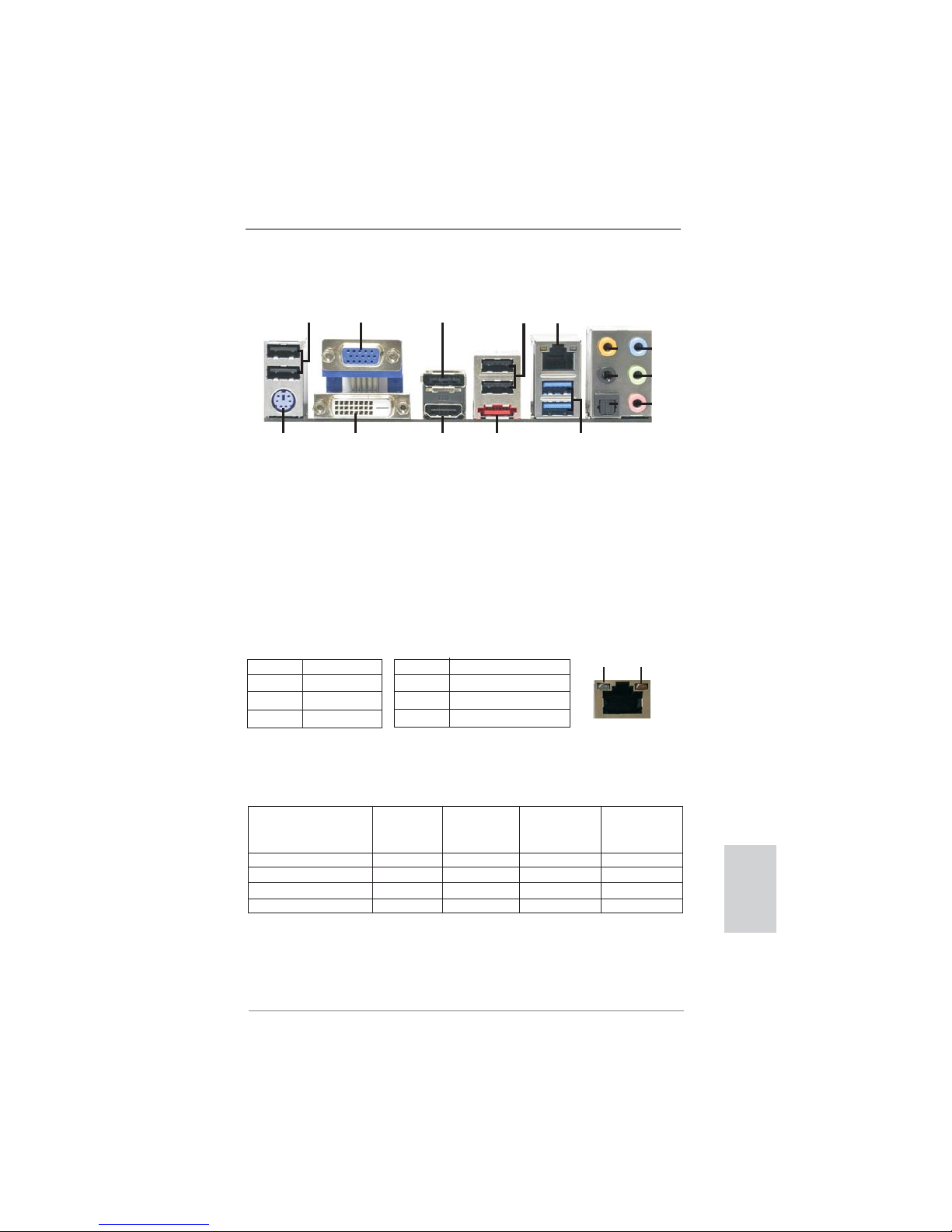

I/O Panel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 10) (No. 7) (No. 6) Side Speaker

(No. 9)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 USB 2.0 Ports (USB01) 9 Line In (Light Blue)

2 VGA/D-Sub Port ** 10 Front Speaker (Lime)

3 DisplayPort (DP1) 11 Microphone (Pink)

4 USB 2.0 Ports (USB23) 12 USB 3.0 Ports (USB45)

* 5 LAN RJ-45 Port 13 eSATA2 Port

6 Central / Bass (Orange) 14 VGA/HDMI Port

7 Rear Speaker (Black) 15 VGA/DVI-D Port

8 Optical SPDIF Out Port 16 PS/2 Keyboard Port (Purple)

125

16 13

14 12

4ASRock H67M-GE/HT Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

English

ASRock H67M-GE/HT Motherboard

English

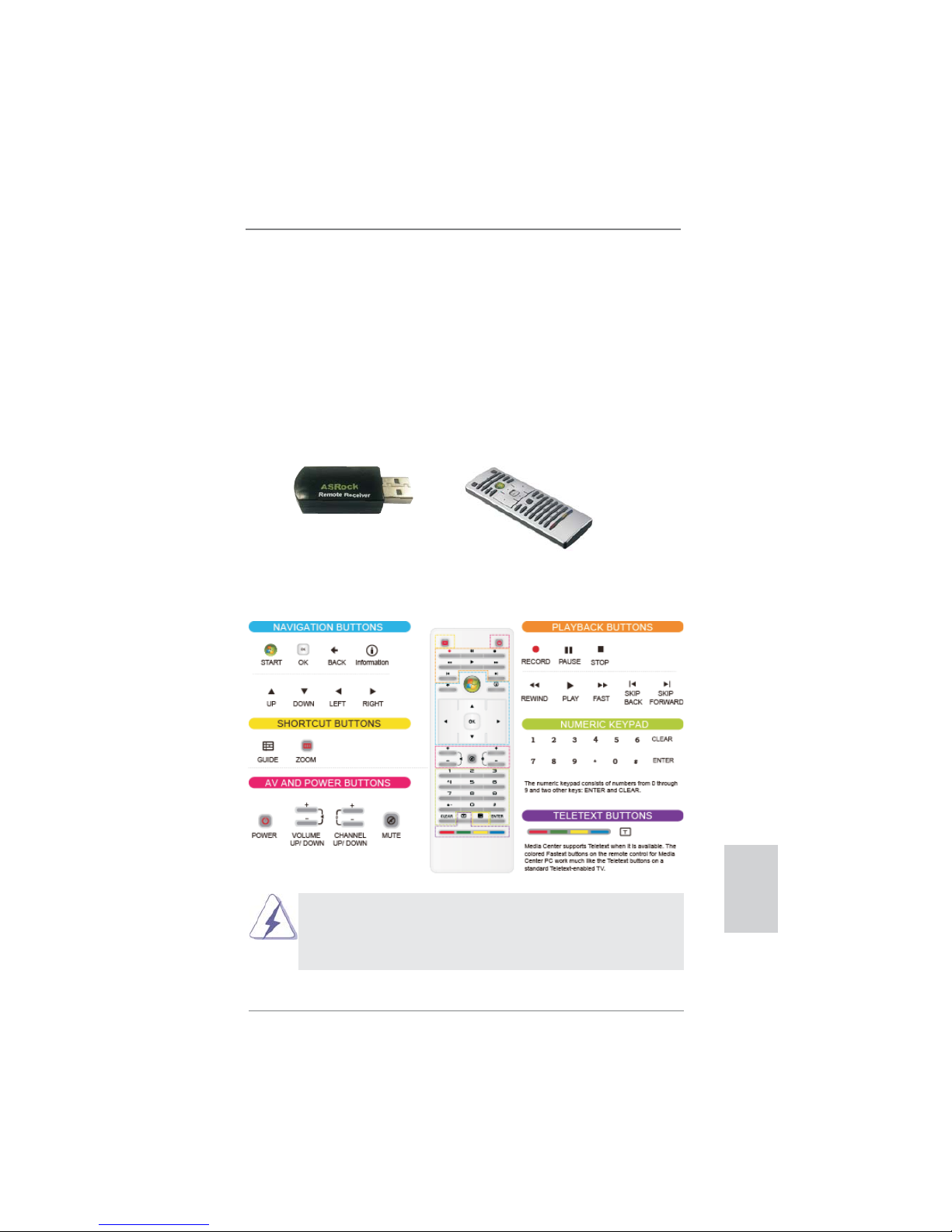

Remote Receiver and Remote Controller

This motherboard is bundled with one Remote Receiver and one Remote Controller.

You can enjoy more of your favorite entertainment by MCE (Media Center Edition)

Remote Controller. The MCE features the entertainment center which allows you

to enjoy a more convenient way of power on/off the system, watching DVDs, TV,

listening to music, and so on by the easy-operate Remote Controller. The Remote

Receiver is able to receive the multi-direction infrared signals from the Remote

Controller (top, down and front), which is compatible with most of the chassis on the

market. For the installation guide, please refe to page 22 for details.

* OS support: Windows®VistaTM / 7 (above Home Premium)

Some remote controller functions listed above are only available with the

relative hardware equipments. If the hardware equipments you adopt

are not compatible with the system, you are not allowed to use these

functions. This product is designed to meet MCE standards.

Remote Receiver

Remote Controller

Remote Controller Introduction

6ASRock H67M-GE/HT Motherboard

1. Introduction

Thank you for purchasing ASRock H67M-GE/HT motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H67M-GE/HT Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

ASRock H67M-GE/HT Quick Installation Guide

ASRock H67M-GE/HT Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x Front USB 3.0 Panel

4 x HDD Screws

6 x Chassis Screws

1 x Rear USB 3.0 Bracket

1 x 3D Red/Cyan Anaglyph Glasses (Optional)

1 x Remote Receiver (Optional)

1 x Remote Controller (Optional)

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

English

ASRock H67M-GE/HT Motherboard

English

1.2 Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

- All Solid Capacitor design

CPU - Supports 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- 4 + 1 Power Phase Design

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Intel®H67

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 4 x DDR3 DIMM slots

- Supports DDR3 1333/1066 non-ECC, un-buffered

memory

- Max. capacity of system memory: 32GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 2 x PCI Express 2.0 x1 slots

- 1 x PCI slot

Graphics * * Requires a Processor with Intel®Graphics Technology

- Intel®HD Graphics 2000/3000

- Pixel Shader 4.1, DirectX 10.1

- Max. shared memory 1759MB (see CAUTION 4)

- Four VGA Output options: D-Sub, DVI-D, HDMI and

DisplayPort (see CAUTION 5)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports DisplayPort with max. resolution up to 2560x1600

@ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI

(Compliant HDMI monitor is required) (see CAUTION 6)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports HDCP function with DVI, HDMI and DisplayPort

ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI, HDMI and DisplayPort ports

8ASRock H67M-GE/HT Motherboard

English

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio PROTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x HDMI Port

- 1 x DisplayPort

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA2 Connector

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 7)

SATA3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ,

AHCI and "Hot Plug" functions

USB3.0 - 2 x Rear USB 3.0 ports by Etron EJ168A, support

USB 1.0/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by

Etron EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 3 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ,

AHCI and Hot Plug functions

- 2 x SATA3 6.0Gb/s connectors

- 1 x Floppy connector

- 1 x IR header

- 1 x CIR header

- 1 x Print port header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

ASRock H67M-GE/HT Motherboard

English

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI BIOS

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock

Software Suite (CyberLink DVD Suite - OEM and Trial)

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock AIWI (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- SmartView (see CAUTION 12)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 13)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 14)

- Good Night LED

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed

Auto-Adjust by CPU or MB Temperature)

- CPU Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

10 ASRock H67M-GE/HT Motherboard

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

50 of “User Manual” in the support CD.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 16 for proper installation.

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limita-

tion.

4. The maximum shared memory size is deﬁned by the chipset vendor and

is subject to change. Please check Intel®website for the latest informa-

tion.

5. You can choose to use two of the four monitors only. D-Sub, DVI-D,

HDMI and DisplayPort monitors cannot be enabled at the same time.

Besides, with the DVI-to-HDMI adapter, the DVI-D port can support the

same features as HDMIport.

6. xvYCC and Deep Color are only supported under Windows®7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows®7 64-bit / 7 / VistaTM 64-bit /

VistaTM.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

8. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ﬁne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In

Hardware Monitor, it shows the major readings of your system. In Fan

Control, it shows the fan speed and temperature for you to adjust. In

Overclocking, you are allowed to overclock CPU frequency for optimal

system performance. In OC DNA, you can save your OC settings as a

proﬁle and share with your friends. Your friends then can load the OC

proﬁle to their own system to get the same OC settings. In IES (Intelligent

Energy Saver), the voltage regulator can reduce the number of output

phases to improve efﬁciency when the CPU cores are idle without

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or

using the third-party overclocking tools. Overclocking may affect your system

stability, or even cause damage to the components and devices of your system.

It should be done at your own risk and expense. We are not responsible for possible

damage caused by overclocking.

Autres manuels pour H67M-GE/HT

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK P4I65PE Manuel utilisateur

ASROCK

ASROCK PV530-ITX - V1.0 Manuel utilisateur

ASROCK

ASROCK B560M-HDV Manuel utilisateur

ASROCK

ASROCK J3710M Manuel utilisateur

ASROCK

ASROCK A780GXH-128M Manuel utilisateur

ASROCK

ASROCK H97M Anniversary Manuel utilisateur

ASROCK

ASROCK Z590M Pro4 Manuel utilisateur

ASROCK

ASROCK A785GM Manuel utilisateur

ASROCK

ASROCK 939N68PV-GLAN Manuel utilisateur

ASROCK

ASROCK 4Core1600Twins-P35D Manuel utilisateur

ASROCK

ASROCK Z68 Pro3 Gen3 Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 R2.0 Manuel utilisateur

ASROCK

ASROCK SP2C741D16HM3 Manuel utilisateur

ASROCK

ASROCK FM2A78 Pro3+ Manuel utilisateur

ASROCK

ASROCK X58 SUPERCOMPUTER - Manuel utilisateur

ASROCK

ASROCK M3A785GMH/128M Manuel utilisateur

ASROCK

ASROCK X470 Master SLI/ac Manuel utilisateur

ASROCK

ASROCK IMB-A180-H Manuel utilisateur

ASROCK

ASROCK FM2A78M-DG3+ Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional Manuel utilisateur

ASROCK

ASROCK P45XE Manuel utilisateur

ASROCK

ASROCK Taichi Razer Edition X570 Manuel utilisateur

ASROCK

ASROCK H55 PRO - V1.0 Manuel utilisateur

ASROCK

ASROCK EP2C612D16-4L Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
