ASROCK M3A-GLAN Manuel utilisateur

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published May 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock M3A-GLAN Motherboard

EnglishEnglish

English

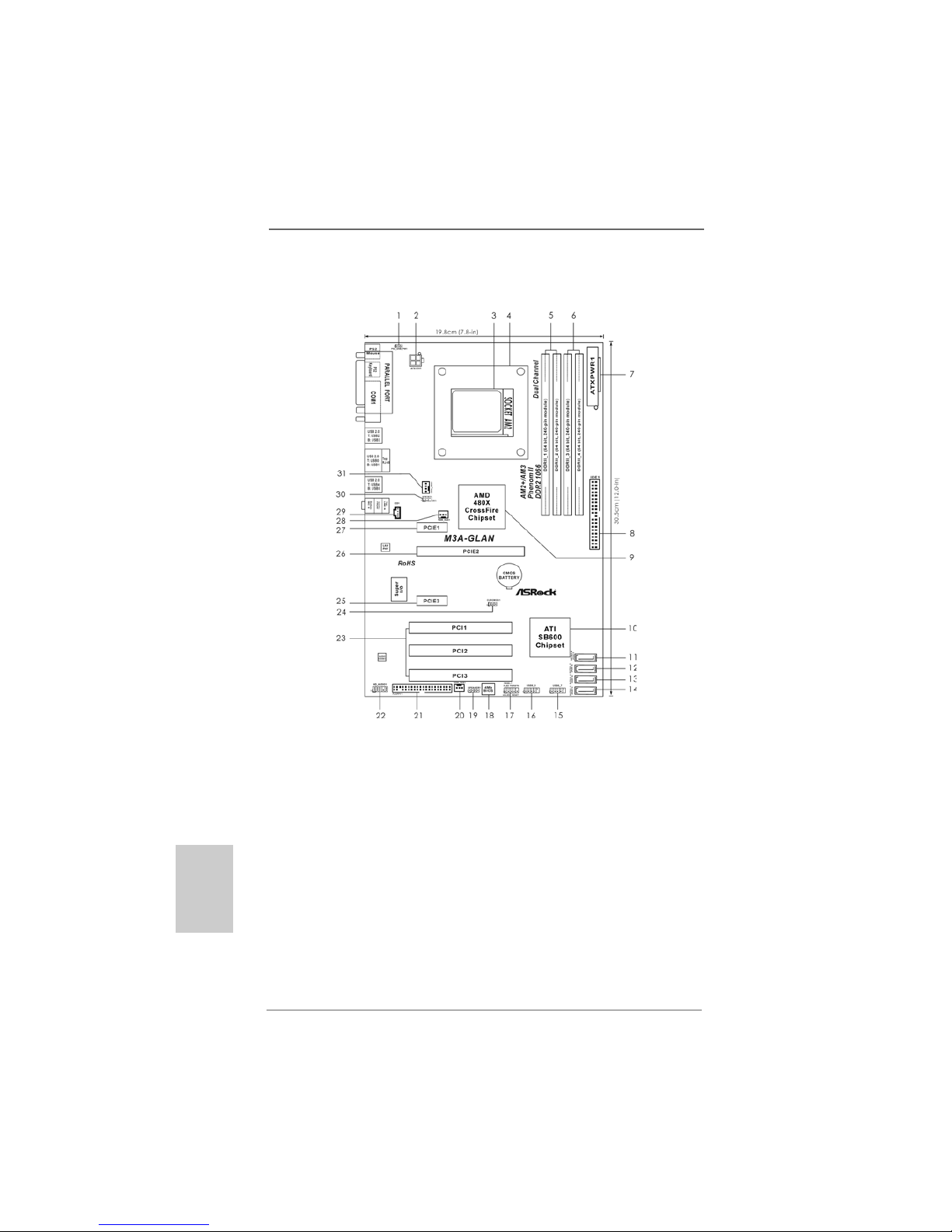

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 17 System Panel Header (PANEL1, Orange)

2 ATX 12V Power Connector (ATX12V1) 18 SPI Flash Memory (4Mb)

3 AM2 940-Pin CPU Socket 19 Chassis Speaker Header

4 CPU Heatsink Retention Module (SPEAKER 1, Purple)

5 2 x 240-pin DDR2 DIMM Slots 20 Chassis Fan Connector (CHA_FAN1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 22 Front Panel Audio Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HD_AUDIO1, Lime)

7 ATX Power Connector (ATXPWR1) 23 PCI Slots (PCI1- 3)

8 Primary IDE Connector (IDE1, Blue) 24 Clear CMOS Jumper (CLRCMOS1)

9 Northbridge Controller 25 PCI Express x1 Slot (PCIE3)

10 Southbridge Controller 26 PCI Express x16 Slot (PCIE2)

11 Fourth SATAII Connector (SATAII_4 (PORT4)) 27 PCI Express x1 Slot (PCIE1)

12 Third SATAII Connector (SATAII_3(PORT3)) 28 Power Fan Connector (PWR_FAN1)

13 Secondary SATAII Connector (SATAII_2 (PORT2)) 29 Internal Audio Connector: CD1 (Black)

14 Primary SATAII Connector (SATAII_1 (PORT1)) 30 Infrared Module Header (IR1)

15 USB 2.0 Header (USB6_7, Blue) 31 CPU Fan Connector (CPU_FAN1)

16 USB 2.0 Header (USB8_9, Blue)

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

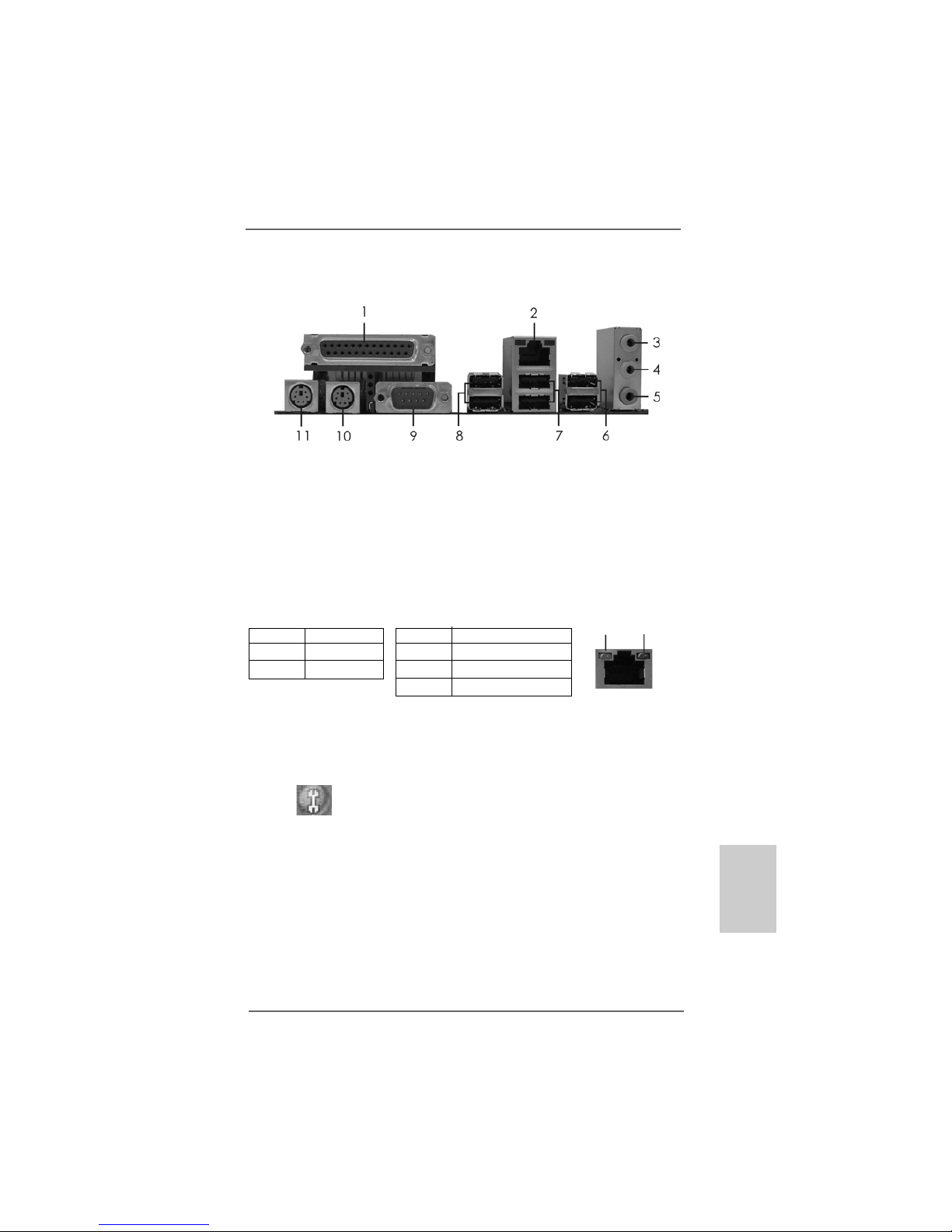

I/O PI/O P

I/O Panelanel

anelanel

anel

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HDAudio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 Parallel Port 7 USB 2.0 Ports (USB01)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB45)

4ASRock M3A-GLAN Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock M3A-GLAN motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock M3A-GLAN Motherboard

(ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm)

1 x ASRock M3A-GLAN Quick Installation Guide

1 x ASRock M3A-GLAN Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x SerialATA (SATA) Data Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 x I/O Panel Shield

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm

CPU - Support for Socket AM2+ / AM2 processors: AMD PhenomTM

FX / Phenom /Athlon 64 FX / Athlon 64 X2 Dual-Core /Athlon

X2 Dual-Core / Athlon 64 / Sempronprocessor

- Support forAM3 processors: AMD PhenomTM II X4 / X3 / X2

and Athlon II X4 / X3 / X2 processors

-AMDLIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport Technology

Chipset - Northbridge: AMD 480X CrossFireTM Chipset

- Southbridge:AMD SB600

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio - 5.1 CH Windows®VistaTM Premium Level HDAudio

(ALC662 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O ASRockHD 6CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Line in/Front Speaker/Microphone

Connector - 4 x SerialATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1 and RAID10), NCQ, AHCI and “Hot Plug” functions

(see CAUTION 5)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

6ASRock M3A-GLAN Motherboard

EnglishEnglish

English

- 1 x IR header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 6)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Voltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 7)

- Intelligent Energy Saver (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 10)

-ASRock U-COP (see CAUTION 11)

- Boot Failure Guard (B.F.G.)

-ASRockAM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 12)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 20 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 11 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 22 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

6. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

7. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

8. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

8ASRock M3A-GLAN Motherboard

EnglishEnglish

English

9. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

10. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

11. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

12. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt.

Enabling this function will overclock the chipset/CPU reference clock. However,

we can not guarantee the system stability for all CPU/DRAM configurations.

If your system is unstable after AM2 Boost function is enabled, it may not be

applicative to your system. You may choose to disable this function for

keeping the stability of your system.

ASRock M3A-GLAN Motherboard

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is an ATX form factor (12.0-in x 7.8-in, 30.5 cm x 19.8 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to ensure

that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

EnglishEnglish

English

1010

10 ASRock M3A-GLAN Motherboard

EnglishEnglish

English

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.22.2

2.2 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat

dissipation. Make sure that the CPU and the heatsink are securely fas-

tened and in good contact with each other. Then connect the CPU fan to

the CPU FAN connector (CPU_FAN1, see Page 2, No. 31). For proper

installation, please kindly refer to the instruction manuals of the CPU fan

and the heatsink.

STEP 1:

Lift Up The Socket Lever

STEP 2 / STEP 3:

Match The CPU Golden Triangle

To The Socket Corner Small

Triangle

STEP 4:

Push Down And Lock

The Socket Lever

Lever 90° Up

CPU Golden Triangle

Socket Corner

Small Triangle

Autres manuels pour M3A-GLAN

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B450M/ac R2.0 Manuel utilisateur

ASROCK

ASROCK X99 Extreme11 Manuel utilisateur

ASROCK

ASROCK B75 Pro3 Manuel utilisateur

ASROCK

ASROCK G41MH-LE3 Manuel utilisateur

ASROCK

ASROCK P4V88 Manuel utilisateur

ASROCK

ASROCK E35LM1 R2.0 Manuel utilisateur

ASROCK

ASROCK AM2NF3-VSTA Manuel utilisateur

ASROCK

ASROCK 770DE3L - AMD RAID Manuel utilisateur

ASROCK

ASROCK X79 Extreme4 Manuel de l'opérateur

ASROCK

ASROCK Z270 Extreme4 Manuel utilisateur

ASROCK

ASROCK SP2C741D16HM3 Manuel utilisateur

ASROCK

ASROCK N68-GS4/USB3 FX R2.0 Manuel utilisateur

ASROCK

ASROCK N68-GS Manuel utilisateur

ASROCK

ASROCK H55M/USB3 R2.0 Manuel utilisateur

ASROCK

ASROCK Taichi Razer Edition X570 Manuel utilisateur

ASROCK

ASROCK K8NF6P-VSTA Manuel utilisateur

ASROCK

ASROCK FM2A55M-DGS Manuel utilisateur

ASROCK

ASROCK FM2A78M-ITX+ Manuel utilisateur

ASROCK

ASROCK C621A WS Manuel utilisateur

ASROCK

ASROCK Fatal1ty B360M Performance Manuel utilisateur

ASROCK

ASROCK Intel N100 Series Manuel utilisateur

ASROCK

ASROCK DeskMini B660 Manuel utilisateur

ASROCK

ASROCK H67M-GE Manuel utilisateur

ASROCK

ASROCK Z790 Steel Legend WiFi Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
