ASROCK Intel N100 Series Manuel utilisateur

Intel N100 Series

Motherboard

Software/BIOS Setup Guide

Version 1.0

Published March 2023

Version 1.0

Published March 2023

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

Contact Information:

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer

for further information. For technical questions, please submit a support request

form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: in[email protected].tw

ASRock EUROPE B.V.

e-mail: sales@asrock.nl

ASRock America, Inc.

e-mail: sa[email protected]

Contents

Chapter 1 Introduction 1

Chapter 2 Software and Utilities Operation 2

2.1 Auto Driver Installer (ADI) 2

2.1.1 Installing Drivers for the First Time 2

2.1.2 Updating Drivers 6

2.2 ASRock Live Update & APP Shop 7

2.2.1 Installing ASRock Live Update & APP Shop 7

2.2.2 UI Overview 8

2.2.3 Apps 9

2.2.4 BIOS & Drivers 12

2.2.5 Setting 13

2.3 ASRock Motherboard Utility (A-Tuning) 14

2.3.1 Installing ASRock Motherboard Utility (A-Tuning) 14

2.3.2 Using ASRock Motherboard Utility (A-Tuning) 14

Chapter 3 UEFI SETUP UTILITY 17

3.1 Introduction 17

3.1.1 Entering BIOS Setup 17

3.1.2 EZ Mode 18

3.1.3 Advanced Mode 19

3.1.4 UEFI Menu Bar 19

3.1.5 Navigation Keys 20

3.2 Main Screen (Advanced Mode) 21

3.3 OC Tweaker Screen 22

3.4 Advanced Screen 33

3.4.1 CPU Conguration 35

3.4.2 Chipset Conguration 38

3.4.3 Storage Conguration 41

3.4.4 Super IO Conguration 42

3.4.5 ACPI Conguration 43

3.4.6 USB Conguration 45

3.4.7 Trusted Computing 46

3.5 Tools 48

3.6 Hardware Health Event Monitoring Screen 49

3.7 Security Screen 53

3.8 Boot Screen 57

3.9 Exit Screen 60

Intel N100 Series

Chapter 1 Introduction

is user guide is a complete setup guide for all Intel N100 motherboard series. e

screenshots in this manual are for reference only. Settings and options may vary due

to the motherboard you purchased.

In this documentation, Chapter 1 gives an overview of the setup guide. Chapter 2

contains the operation guide of the soware and utilities. Chapter 3 contains the

conguration guide of the BIOS setup.

Soware Setup Guide

• Auto Driver Installer (ADI)

• ASRock Live Update & APP Shop

• ASRock Motherboard Utility (A-Tuning)

BIOS Setup Guide

• UEFI Setup Utility

Because the motherboard specications and the soware might be updated, the content of

this documentation will be subject to change without notice. In case any modications of

this documentation occur, the updated version will be available on ASRock’s website with-

out further notice. If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using. ASRock website http://

www.asrock.com.

Chapter 2 Software and Utilities Operation

2.1 Auto Driver Installer (ADI)

Optical drive or driver DVD is no longer needed for driver installation. ASRock

motherboard already has its Ethernet driver prepacked in BIOS ROM. When you nish

installing the operation system, simply use the Auto Driver Installer to download and

install all necessary drivers automatically.

2.1.1 Installing Drivers for the First Time

Follow the instructions to install all necessary drivers via the Auto Driver Installer.

Please note that the Internet access is required during the following procedures.

Step 1

Aer you install the Windows OS, connect your computer to the Internet.

RJ-45 Cable

Modem

Internet

LAN Port

Intel N100 Series

Step 2

Boot into the system, and a notication will pop up in the lower right corner of your

screen saying, "Do you want to one-step-install the latest drivers simply from ASRock

Auto Driver Installer?".

Select “Yes” to install Auto Driver Installer.

Select “No” to skip the installation.

1. e Auto Driver Installer will automatically pop up for users to install drivers only

when the “Auto Driver Installer“ item under the “Tool“ menu in the BIOS is set to

[Enabled]. e item is enabled by default; therefore, for the rst-time users, there is

no need to change the setting in the BIOS.

2. An available Internet connection is a prerequisite for using the Auto Driver In-

staller. If you boot into the system without Internet, the Auto Driver Installer won’t

appear. Now connect your computer to the Internet, wait a few seconds, and then

the Auto Driver Installer will pop up.

3. If you select “No“ in Step 2 and skip the installation, the Auto Driver Installer will

be removed. If you would like to run the application again, please enable the “Auto

Driver Installer“ item in the BIOS setting.

Step 3

When it's completed, you will see the Auto Driver Installer icon on your desktop and then

the Auto Driver Installer appears.

Step 4

e Auto Driver Installer panel lists all available drivers that your motherboard supports.

Select one or more drivers to be installed.

Click "Select All" to select all items.

Click "Unselect All" to remove all of your selections.

Click "Update" to start downloading and installing drivers.

If there are no drivers to be installed, click “Finish” to exit. If you would like to run

the application again, please enable the “Auto Driver Installer“ item in the BIOS

setting.

Intel N100 Series

Step 5

A messages pops up saying, "During installation, your system may reboot and continue

installing remaining item(s)".

Click "Yes" to continue.

Click “No” to exit.

Step 6

Once all drivers are successfully installed, a message pops up saying, "Installation has

been successfully completed! For further drivers and utilities, please visit ASRock's

website."

Click "Ok" to complete the procedure.

When driver installation is completed, the Auto Driver Installer tool will be uninstalled

automatically from your computer.

Aer driver installation, the Auto Driver Installer will be removed. If you would like

to run the application again, please go to the “Tool“ menu in the BIOS setting, and

set the “Auto Driver Installer“ item to [Enabled].

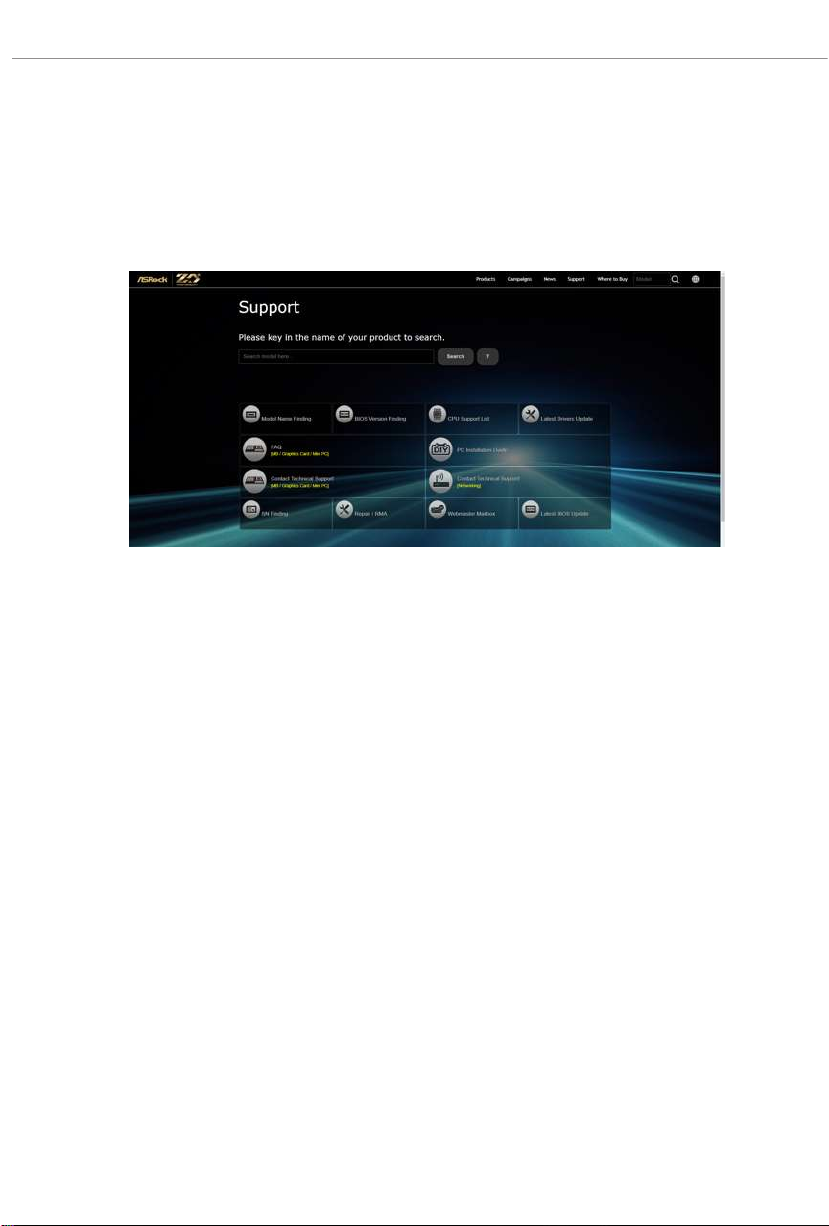

2.1.2 Updating Drivers

Updating drivers ensures that your system work well without any issue. To update drivers,

please go to ASRock' website (https://www.asrock.com) and select "Support" > "Latest

Drivers Update".
