ASROCK K10N7SLI Manuel utilisateur

ASRock K10N7SLI Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

PublishedNovember2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock K10N7SLI Motherboard

EnglishEnglish

English

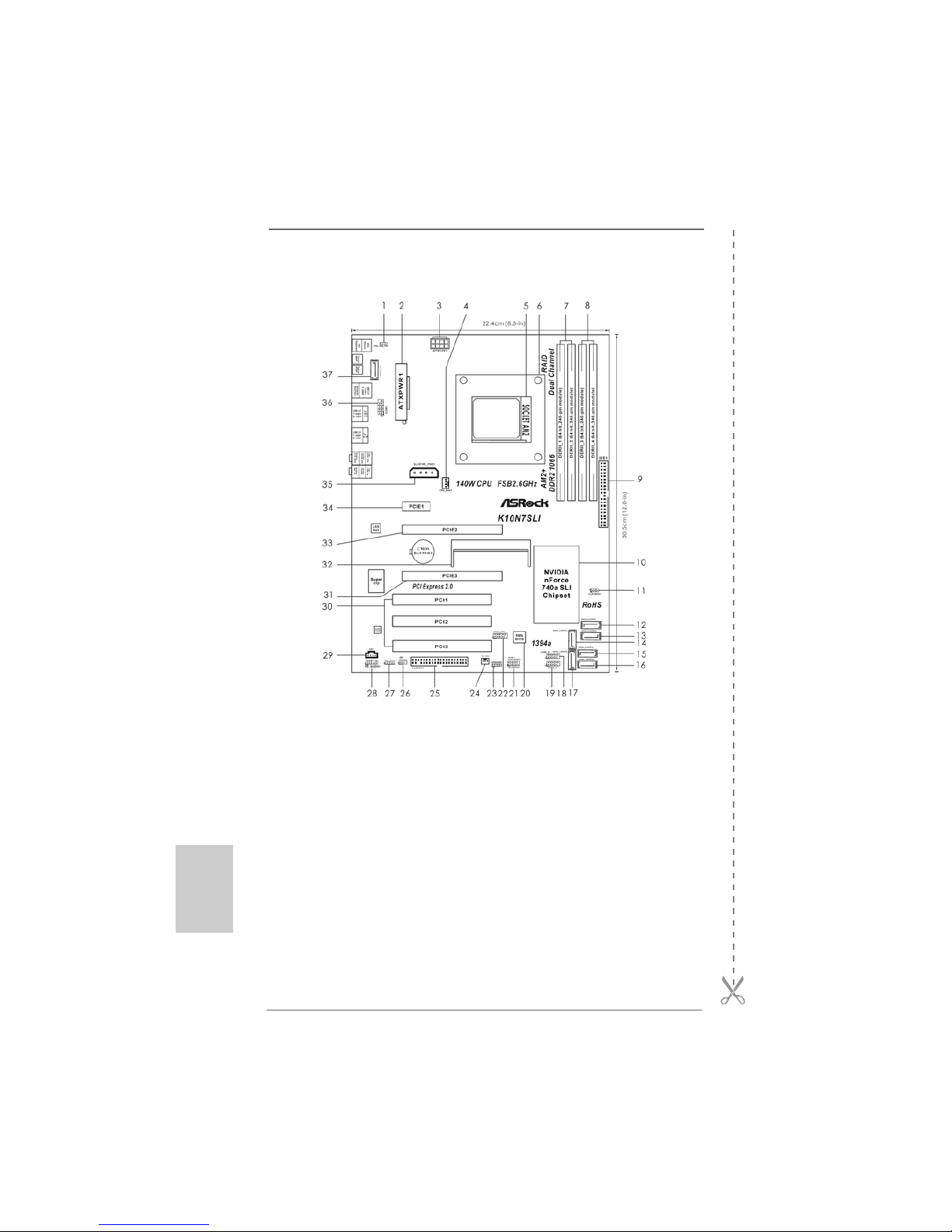

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 21 System Panel Header (PANEL1, Orange)

2 ATX Power Connector (ATXPWR1) 22 Front Panel IEEE 1394 Header

3 ATX 12V Power Connector (ATX12V1) (FRONT_1394, Red)

4 CPU Fan Connector (CPU_FAN1) 23 Chassis Speaker Header

5 AM2 940-Pin CPU Socket (SPEAKER 1, Purple)

6 CPU Heatsink Retention Module 24 Chassis Fan Connector (CHA_FAN1)

7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 Infrared Module Header (IR1)

8 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HDMI_SPDIF1, Yellow)

9 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header

10 NVIDIA nForce 740a SLI Chipset (HD_AUDIO1, Lime)

11 Clear CMOS Jumper (CLRCMOS1) 29 Internal Audio Connector: CD1 (Black)

12 SATAII Connector (SATAII_6 (PORT5), Orange) 30 PCI Slots (PCI1- 3)

13 SATAII Connector (SATAII_5 (PORT4), Red) 31 PCI Express x16 Slot (PCIE3, Blue)

14 SATAII Connector (SATAII_2 (PORT1), Red) 32 SLI/XFire Switch Card Retention Slot

15 SATAII Connector (SATAII_4 (PORT3), Red) 33 PCI Express x16 Slot (PCIE2, Green)

16 SATAII Connector (SATAII_3 (PORT2), Red) 34 PCI Express x1 Slot (PCIE1, White)

17 SATAII Connector (SATAII_1 (PORT0), Red) 35 SLI / XFIRE Power Connector

18 USB 2.0 Header (USB8_9, Blue) 36 COM Port Header (COM1)

19 USB 2.0 Header (USB6_7, Blue) 37 eSATAII Connector (eSATAII_TOP, Orange)

20 SPI BIOS Chip

ASRock K10N7SLI Motherboard

EnglishEnglish

English

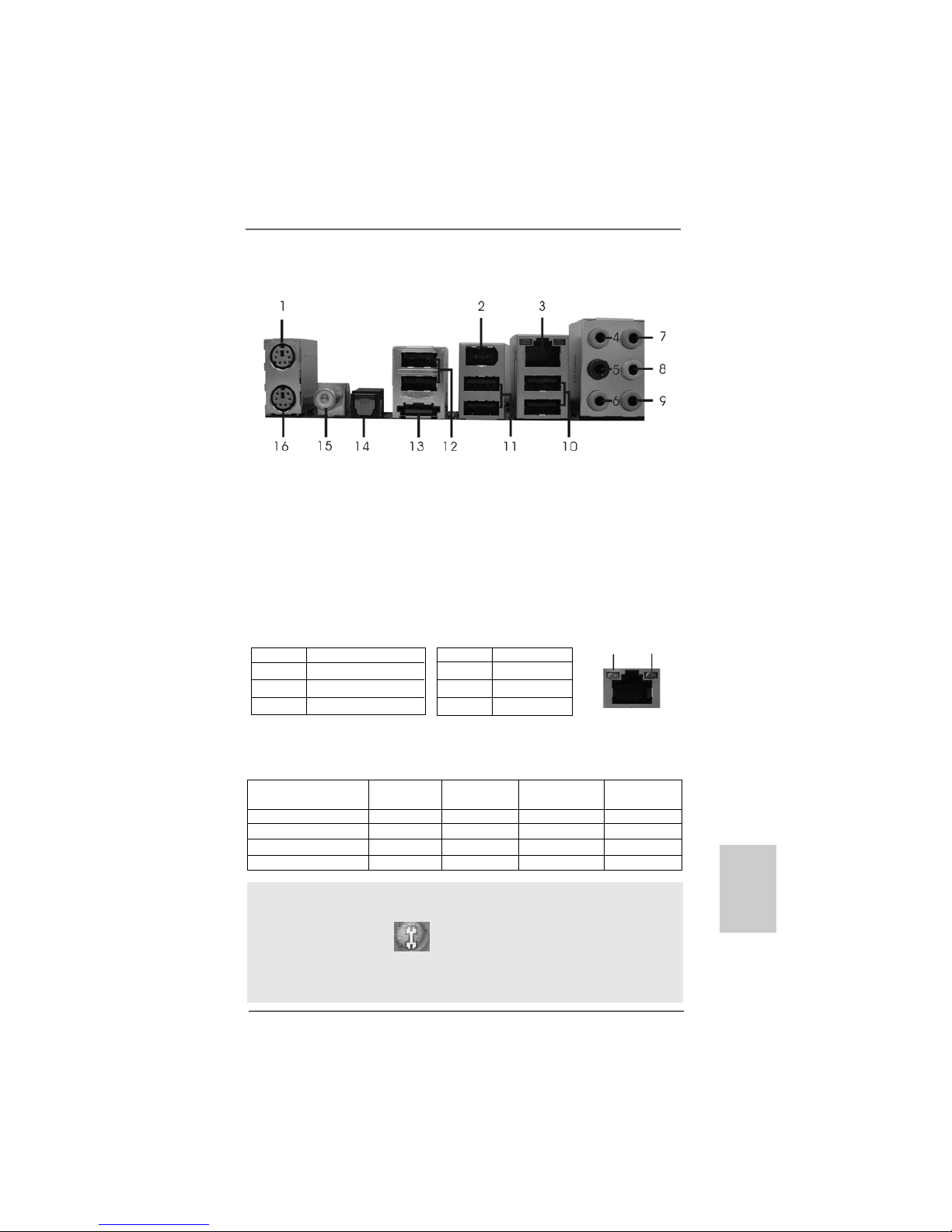

I/O PI/O P

I/O Panelanel

anelanel

anel

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

1 PS/2 Mouse Port (Green) 9 Microphone (Pink)

2 IEEE 1394 Port 10 USB 2.0 Ports (USB01)

* 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB45)

5 Rear Speaker (Black) 13 eSATAII Port

6 Central / Bass (Orange) 14 Optical SPDIF Out Port

7 Line In (Light Blue) 15 Coaxial SPDIF Out Port

**8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking DataActivity

4ASRock K10N7SLI Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock K10N7SLI motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 PP

Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRockK10N7SLI Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock K10N7SLI Quick InstallationGuide

ASRock K10N7SLI Support CD

OneASRock SLI Bridge

OneASRock SLI/XFire Switch Card

One 80-conductor UltraATA66/100/133 IDE Ribbon Cable

One 3.5-in FloppyDrive Ribbon Cable

Two SerialATA(SATA)Data Cables (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One I/O Panel Shield

ASRock K10N7SLI Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

-All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Support for SocketAM2+ / AM2 processors:AMDPhenomTM

FX / Phenom / Athlon 64 FX /Athlon 64 X2Dual-Core /Athlon

X2Dual-Core / Athlon 64 / Sempronprocessor

- Supports CPU up to 140W

-AMDLIVE!TM Ready

- SupportsAMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2GT/s) (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset -NVIDIA®nForce 740a SLI

Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 3)

- 4 xDDR2 DIMM slots

-SupportDDR21066/800/667/533non-ECC,un-bufferedmemory

(see CAUTION 4)

- Max. capacity of system memory: 8GB (see CAUTION 5)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 1 x PCI Express x1 slot

- 3 x PCI slots

- SupportsNVIDIA®SLITM (see CAUTION 6)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio with

Content Protection

-DAC with 110dB dynamic range (ALC890Audio Codec)

LAN -Gigabit LAN10/100/1000 Mb/s

-Giga PHY Realtek RTL8211B

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x eSATAII Port

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- 1 x IEEE 1394 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 7)

6ASRock K10N7SLI Motherboard

EnglishEnglish

English

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID 0,

RAID1, RAID0+1, JBOD and RAID5),NCQ,AHCI and “Hot

Plug” functions (see CAUTION 8)

- 1 x eSATAII 3.0Gb/s connector (shared with 1 SATAII

connector) (see CAUTION 9)

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 8 pin 12V power connector

-SLI/XFIREpower connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 10)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

- CPU,DRAM, Chipset Core, HTTVoltage Multi-adjustment

- Supports Smart BIOS

Support CD -Drivers, Utilities,AntiVirus Software (TrialVersion)

Unique Feature -ASRock OC Tuner (see CAUTION 11)

- Intelligent Energy Saver (see CAUTION 12)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 13)

-ASRock U-COP (see CAUTION 14)

- Boot FailureGuard (B.F.G.)

-ASRockAM2 Boost: ASRock PatentedTechnology to boost

memory performance up to 12.5% (see CAUTION 15)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

ASRock K10N7SLI Motherboard

EnglishEnglish

English

CAUTION!

1. If you install AM2 CPU on this motherbord, the system bus speed will be HT1.

0 (2000 MT/s). If you install AM2+ CPU on this motherbord, the system bus

speed will be HT3.0 (up to 5200 MT/s), and the HT Link frequency depends on

the ability of the AM2+ CPU you adopt. Please refer to the CPU support list

on our website for more information.

ASRock website http://www.asrock.com

2. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 31 for details.

3. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

4. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

6. This motherboard supports NVIDIA®SLITM technology. If you want to use

SLITM function, please follow the instructions on page 17 to reverse the direc-

tion of ASRock SLI/XFire Switch Card. For the information of the compatible

SLITM Mode PCI Express VGA cards, please refer to the “Supported

PCI Express VGA Card List for SLITM Mode” on page 10. For the proper

installation of PCI Express VGA card, please refer to the installation guide on

page 15.

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit / VistaTM

/ VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock K10N7SLI Motherboard

EnglishEnglish

English

7. For microphone input, this motherboard supports both stereo and mono modes.

For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,

and 8-channel modes. Please check the table on page 3 for proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 36 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

9. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 28 for

details about eSATAII and eSATAII installation procedures.

10. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

11. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

12. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

13. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

ASRock K10N7SLI Motherboard

EnglishEnglish

English

15. This motherboard supports ASRock AM2 Boost overclocking technology

for AM2 CPU. If you enable this function in the BIOS setup, the memory

performance will improve up to 12.5%, but the effect still depends on the

AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU

reference clock. However, we can not guarantee the system stability for all

CPU/DRAM configurations. If your system is unstable after AM2 Boost func-

tion is enabled, it may not be applicative to your system. You may choose to

disable this function for keeping the stability of your system.

1010

10 ASRock K10N7SLI Motherboard

EnglishEnglish

English

1.31.3

1.3 Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI

Supported PCI Express VGA Card List for SLISupported PCI Express VGA Card List for SLI

Supported PCI Express VGA Card List for SLITMTM

TMTM

TM ModeMode

ModeMode

Mode

(for Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit only)

Graphics Chip Model Name Chipset Name

Vendor

NVIDIA ASUS EN8800GTX

ASUS EN8600GT/2DHT

ASUS EN7950GX2 *

ASUS EN7900GT TOP

ASUS EN7800GT

ASUS EN7600GSSILENT

ASUS EN7600GT/2DHT

ASUS EN6800LE

ASUS Extreme N6800/TD

ALBATRON PC6600GT

GIGABYTE GV-NX66256DP2

LEADTEK PX7900GS TDH

LEADTEK PX7300GS TDH *

MSI 7300GT-TD256EH

* These two cards can only work under Windows®XP / XP 64-bit OS.

For the latest updates of the supported PCI Express VGA card list for SLITM Mode,

please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

GeForce 8800GTX

GeForce 8600GT

GeForce 7950GX2

GeForce 7900GT

GeForce 7800GT

GeForce 7600GT

GeForce 7600GS

GeForce 6800LE

GeForce 6800

GeForce 6600GT

GeForce 6600

GeForce 7900GS

GeForce 7300GS

GeForce 7300GT

Autres manuels pour K10N7SLI

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B760M-H2/M.2 Manuel utilisateur

ASROCK

ASROCK WRX80 CREATOR Manuel utilisateur

ASROCK

ASROCK G41M-VGS3 Manuel utilisateur

ASROCK

ASROCK Z87 Extreme4 Manuel utilisateur

ASROCK

ASROCK MB-370-D Manuel utilisateur

ASROCK

ASROCK A230GC - V1.0 Manuel utilisateur

ASROCK

ASROCK P67 PRO3 SE - ANNEXE 409 Manuel utilisateur

ASROCK

ASROCK H87 Pro4 Manuel utilisateur

ASROCK

ASROCK X99 Extreme6/ac Manuel utilisateur

ASROCK

ASROCK FATAL1TY P67 PROFESSIONAL Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK 880GMH USB3 R2.0 Manuel utilisateur

ASROCK

ASROCK R-4130 Manuel utilisateur

ASROCK

ASROCK M3A790GXH/USB3 Manuel utilisateur

ASROCK

ASROCK Z97 Extreme4 Manuel utilisateur

ASROCK

ASROCK ALIVENF6G-VSTA Manuel utilisateur

ASROCK

ASROCK CONROE1333-ESATA2 Manuel utilisateur

ASROCK

ASROCK G31M-GS Manuel utilisateur

ASROCK

ASROCK 880GMH-USB3 - 04-2010 Manuel utilisateur

ASROCK

ASROCK N68PV-GS Manuel utilisateur

ASROCK

ASROCK H510M-ITX/ac Manuel utilisateur

ASROCK

ASROCK A520M/ac Manuel utilisateur

ASROCK

ASROCK P4I45PE R3.0 Manuel utilisateur

ASROCK

ASROCK B660D4-P1 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
