ASROCK J3455B-ITX Manuel utilisateur

Version 1.0

Published August 2016

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

J3455B-ITX

J3355B-ITX

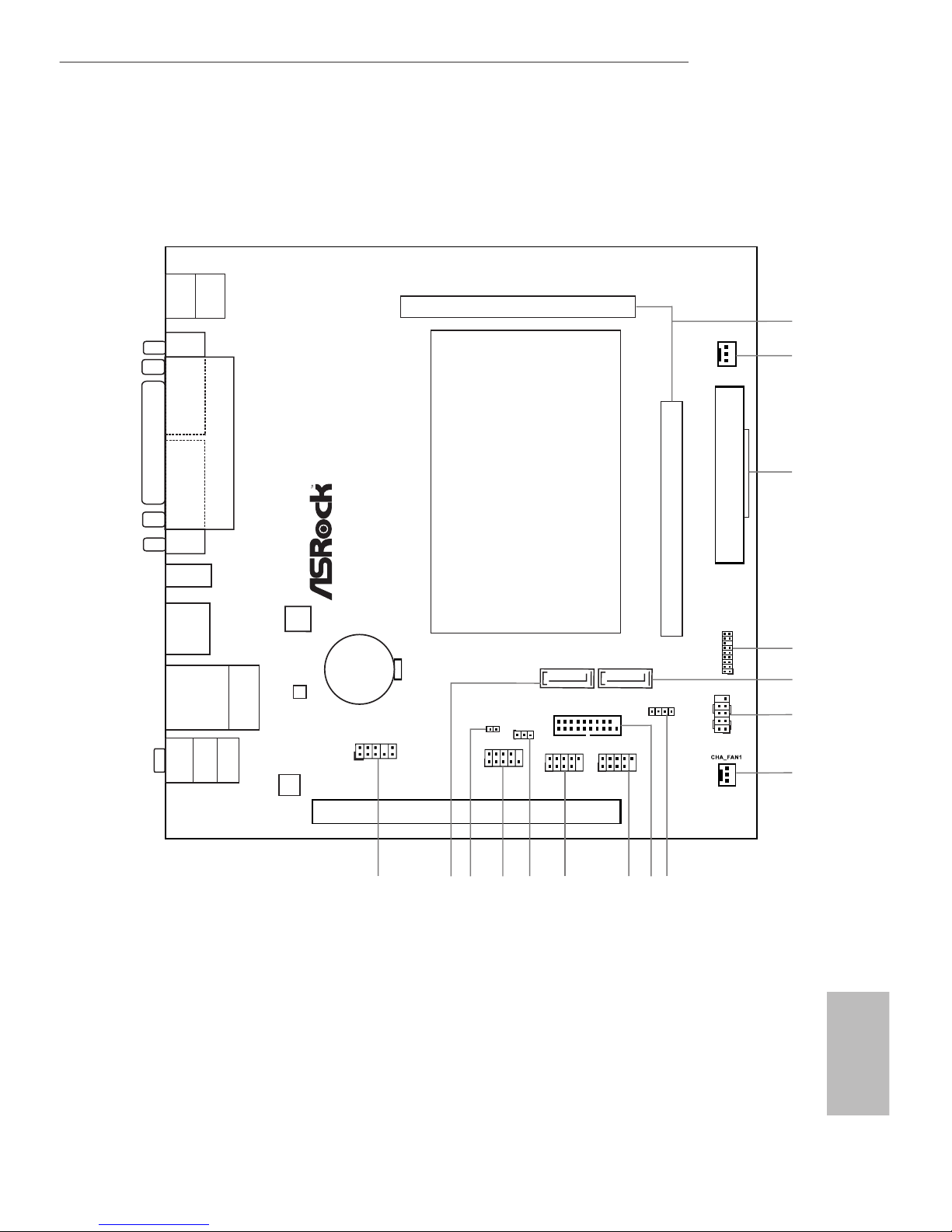

Motherboard Layout

PCIE1

ATXPWR1

AUDIO

CODEC

DDR3_B1

DDR3_A1

CPU_FAN1

PANEL1

HDL ED R ES ET

PLED PWRBTN

SPEAKER1

COM2

CMOS

Battery

RoHS

HD_AUDIO1

BIOS

ROM

Front USB 3.0

LAN

CLRMOS1

USB3_1_2

USB2_3

USB4_5

SATA3_1SATA3_2

CI1

RJ-45 LAN

USB 3.0

T: USB3

B: USB4

HDMI1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB 2.0

T: USB0

USB 3.0

B: USB1

PS2

Keyboard

PS2

Mouse

PARALLEL PORT

COM1 VGA1

TPMS1

English

No. Description

1 2 x 204-pin DDR3L SO-DIMM Slots (DDR3_A1, DDR3_B1)

2 CPU Fan Connector (CPU_FAN1)

3 ATX Power Connector (ATXPWR1)

4TPM Header (TPMS1)

5 SATA3 Connector (SATA3_1)

6 System Panel Header (PANEL1)

7 Chassis Fan Connector (CHA_FAN1)

8Chassis Speaker Header (SPEAKER1)

9 USB 3.0 Header (USB3_1_2)

10 USB 2.0 Header (USB4_5)

11 USB 2.0 Header (USB2_3)

12 Clear CMOS Jumper (CLRMOS1)

13 COM Port Header (COM2)

14 Chassis Intrusion Header (CI1)

15 SATA3 Connector (SATA3_2)

16 Front Panel Audio Header (HD_AUDIO1)

English

J3455B-ITX

J3355B-ITX

810

1 2 3 5

12 1113

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 8 USB 2.0 Port (USB0)

2Parallel Port 9 USB 3.0 Port (USB1)

3 LAN RJ-45 Port* 10 HDMI Port

4 Line In (Light Blue)** 11 D-Sub Port

5 Front Speaker (Lime)** 12 COM Port

6 Microphone (Pink)** 13 PS/2 Keyboard Port

7 USB 3.0 Port (USB3_34)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

**To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

ank you for purchasing ASRock J3455B-ITX/J3355B-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock J3455B-ITX/J3355B-ITX Motherboard (Mini-ITX Form Factor)

• ASRock J3455B-ITX/J3355B-ITX Quick Installation Guide

• ASRock J3455B-ITX/J3355B-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

English

J3455B-ITX

J3355B-ITX

Chapter 1 Introduction

ank you for purchasing ASRock J3455B-ITX/J3355B-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock J3455B-ITX/J3355B-ITX Motherboard (Mini-ITX Form Factor)

• ASRock J3455B-ITX/J3355B-ITX Quick Installation Guide

• ASRock J3455B-ITX/J3355B-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to this

motherboard, please visit our website for specic information about the model you are

using. You may nd the latest VGA cards and CPU support list on ASRock’s website as

well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• Solid Capacitor design

CPU • Intel® Quad-Core Processor J3455 (up to 2.3 GHz)

(for J3455B-ITX)

• Intel® Dual-Core Processor J3355 (up to 2.5 GHz)

(for J3355B-ITX)

Memory • Dual Channel DDR3/DDR3L Memory Technology

• 2 x DDR3/DDR3L SO-DIMM Slots

* 2GB DRAM is not supported.

• Supports DDR3/DDR3L 1866/1600/1066 non-ECC, un-

buered memory

• Max. capacity of system memory: 16GB

Expansion

Slot

• 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)

Graphics

• Integrated Intel® HD Graphics 500: 12 EUs inside (Up to

750MHz) (for J3455B-ITX)

• Integrated Intel® HD Graphics 500: 12 EUs inside (Up to

700MHz) (for J3355B-ITX)

• DirectX 12, Pixel Shader 5.0

• Dual graphics output: support D-Sub and HDMI ports by

independent display controllers

• Supports HDMI with max. resolution up to 4K x 2K

(3840x2160) @ 30Hz or 2560x1600 @ 60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate

Audio) with HDMI Port (Compliant HDMI monitor is

required)

• Supports HW Accelerated Decoders: H.264 @ level 5.2,

HEVC (H.265) 10b @ MP level 5.1 (GPU accelerated), JPEG,

VP8, VP9

• Supports HDCP with HDMI Port

• Supports Full HD 1080p Blu-ray (BD) playback with HDMI

Port

English

J3455B-ITX

J3355B-ITX

Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WA N

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x Parallel Port (ECP/EPP Support)

• 1 x Serial Port: COM1

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full

Spike Protection))

• 3 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (3-pin)

• 1 x Chassis Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x Front Panel Audio Connector

English

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

* USB3_1_2 is shared with USB2_3.

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

• Supports Plug and Play

• ACPI 5.0 compliant wake up events

• Supports jumperfree

• SMBIOS 2.7 support

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 10 64-bit

* For the updated Windows® 10 driver, please visit ASRock's

website for details: http://www.asrock.com

• Linux: Ubuntu 16.10 / Fedora 25

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK ALIVENF7G-GLAN Manuel utilisateur

ASROCK

ASROCK EPC621D8A Manuel utilisateur

ASROCK

ASROCK AOD790GX 128M - V1.1 Manuel utilisateur

ASROCK

ASROCK 2CORE1066-2.13G - V1.0 Manuel utilisateur

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0 - Manuel utilisateur

ASROCK

ASROCK P67 PRO3 - Manuel utilisateur

ASROCK

ASROCK IMB-1212 Manuel utilisateur

ASROCK

ASROCK B85M Pro4/ASM Manuel utilisateur

ASROCK

ASROCK A780LM-S Manuel utilisateur

ASROCK

ASROCK A320M-ITX Manuel utilisateur

ASROCK

ASROCK P43DE2 Manuel utilisateur

ASROCK

ASROCK Rack MT-C224 Manuel utilisateur

ASROCK

ASROCK FM2A88X Extreme4 Manuel utilisateur

ASROCK

ASROCK H55 PRO - V1.0 Manuel utilisateur

ASROCK

ASROCK Z77 Extreme4 Manuel utilisateur

ASROCK

ASROCK X79 Extreme3 Manuel utilisateur

ASROCK

ASROCK X79 Extreme11 Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 Manuel utilisateur

ASROCK

ASROCK IMB-380-D Manuel utilisateur

ASROCK

ASROCK Q77M vPro Manuel utilisateur

ASROCK

ASROCK IMB-1000D Manuel utilisateur

ASROCK

ASROCK B550M-HVS SE Manuel utilisateur

ASROCK

ASROCK K10N78D Manuel utilisateur

ASROCK

ASROCK Z490 AQUA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
