ASROCK H87M-ITX Manuel utilisateur

Version 1.0

Published April 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

H87M-ITX

English

Motherboard Layout

Intel

H87

PCIE1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

64Mb

BIOS

HDL ED R ESE T

PLED PWRBTN

PANEL1

HD_AUDIO1

USB 2.0

T: USB2

B: USB3

PS2

Keyboard

/Mouse

HDMI1

USB 3.0

T: USB1

B: USB2

eSATA1

Top:

RJ-45

USB 3.0

T: USB3

B: USB4

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

ATXPWR1

RoHS

USB 3.0

H87M-ITX

AUDIO

CODEC

USB3_5_6

TPMS1

1415

Super

I/O

ATX12V1

CPU_FAN1 CHA_FAN1

SATA_3_3

SATA_3_

SATA_3_1

SATA_3_

CMOS

Battery

Fast RAM

CLRCMOS1

CI1

USB_10_11

VGA1

DVI

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

3 Clear CMOS Jumper (CLRCMOS1)

4 Chassis Intrusion Header (CI1)

5 ATX Power Connector (ATXPWR1)

6 CPU Fan Connector (CPU_FAN1)

7 USB 3.0 Header (USB3_5_6)

8 USB 2.0 Header (USB10_11)

9 System Panel Header (PANEL1)

10 SATA3 Connector (SATA3_0)

11 SATA3 Connector (SATA3_1)

12 SATA3 Connector (SATA3_2)

13 SATA3 Connector (SATA3_3)

14 Chassis Fan Connector (CHA_FAN1)

15 TPM Header (TPMS1)

16 Front Panel Audio Header (HD_AUDIO1)

H87M-ITX

English

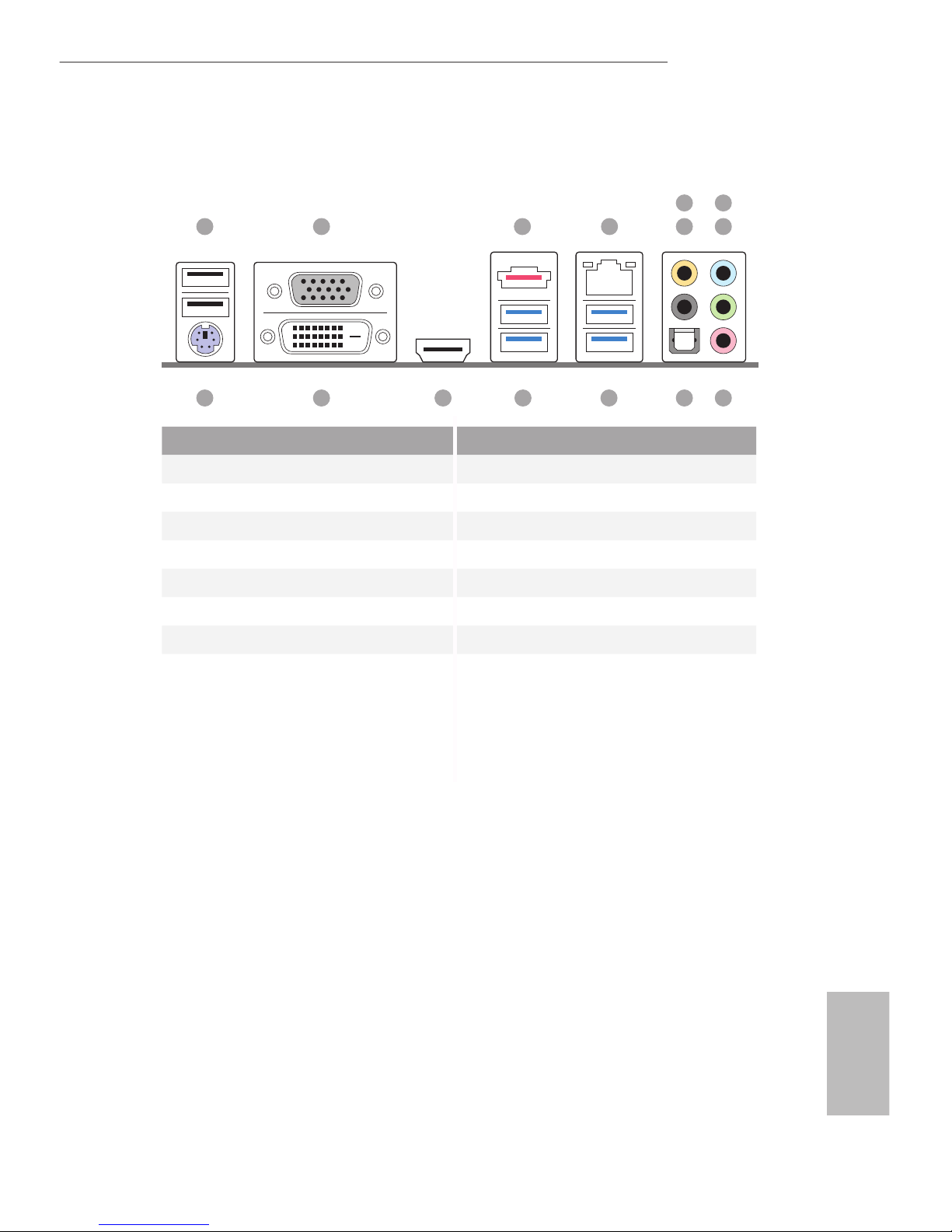

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB_23) 9 Microphone (Pink)

2 VGA Port 10 Optical SPDIF Out Port

3eSATA Connector*** 11 USB 3.0 Ports (USB_01)

4 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_12)

5 Central / Bass (Orange) 13 HDMI Port

6 Rear Speaker (Black) 14 DVI-D Port

7 Line In (Light Blue) 15 PS/2 Keyboard/Mouse Port

8 Front Speaker (Lime)**

1 2 3 4 6

9101112131415

English

Chapter 1 Introduction

ank you for purchasing ASRock H87M-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock H87M-ITX Motherboard (Mini-ITX Form Factor)

• ASRock H87M-ITX Quick Installation Guide

• ASRock H87M-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** e eSATA connector supports SATA with cables within 1 meters.

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

H87M-ITX

English

Chapter 1 Introduction

ank you for purchasing ASRock H87M-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock H87M-ITX Motherboard (Mini-ITX Form Factor)

• ASRock H87M-ITX Quick Installation Guide

• ASRock H87M-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• All Solid Capacitor design

A-Style • Home Cloud

CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

• 4 Power Phase Design

• Supports Intel®Turbo Boost 2.0 Technology

Chipset • Intel®H87

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

• Supports Intel®Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree VGA Output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitors

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

H87M-ITX

English

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

• Supports HDCP function with DVI-D and HDMI ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray audio support

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Qualcomm® Atheros® AR8171

• Supports Qualcomm® Atheros® Security Wake On Internet

Technology

• Supports Wake-On-LAN

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 1 x eSATA Connector

• 2 x USB 2.0 Ports

• 4 x USB 3.0 Ports

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

English

Storage • 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

12 and Intel Smart Response Technology), NCQ, AHCI and

“Hot Plug” functions

• 1 x eSATA connector, supports NCQ, AHCI and “Hot Plug”

functions

Connector • 1 x Chassis Intrusion header

• 1 x TPM header

• 1 x CPU Fan connector (4-pin)

• 1 x Chassis Fan connector (4-pin)

• 1 x 24 pin ATX power connector

• 1 x 4 pin 12V power connector

• 1 x Front panel audio connector

• 1 x USB 2.0 header (supports 2 USB 2.0 ports)

• 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with Multilingual GUI support

• ACPI 1.1 Compliance Wake Up Events

• SMBIOS 2.3.1 Support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-

ment

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Cy-

berLink MediaEspresso 6.5 Trial, Google Chrome Browser

and Toolbar, Start8, MeshCentral, Splashtop Streamer, Intel®

Extreme Tuning Utility (IXTU)

Hardware

Monitor

• CPU/Chassis Temperature Sensing

• CPU/Chassis Tachometer

• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

• CPU/Chassis Fan Multi-Speed Control

• CASE OPEN detection

• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant

Autres manuels pour H87M-ITX

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK Z370M Pro4 Manuel utilisateur

ASROCK

ASROCK AB350M PRO4/DASH Manuel utilisateur

ASROCK

ASROCK A790GMH128M Manuel utilisateur

ASROCK

ASROCK P4I65PE-M Manuel utilisateur

ASROCK

ASROCK Z590 Steel Legend Manuel utilisateur

ASROCK

ASROCK G41C-VS Manuel utilisateur

ASROCK

ASROCK 890GMH/USB3 Manuel utilisateur

ASROCK

ASROCK Z390 Extreme4 Manuel utilisateur

ASROCK

ASROCK 770iCafe Manuel utilisateur

ASROCK

ASROCK B650M PRO RS Manuel utilisateur

ASROCK

ASROCK OC FORMULA X299 Manuel utilisateur

ASROCK

ASROCK A780FULLDISPLAYPORT Manuel utilisateur

ASROCK

ASROCK B650M PG Riptide WiFi Manuel utilisateur

ASROCK

ASROCK G31M-S R2.0 QVL Manuel utilisateur

ASROCK

ASROCK H67M-ITX Manuel utilisateur

ASROCK

ASROCK X370 Pro4 Manuel utilisateur

ASROCK

ASROCK FP6D4-P1 Manuel utilisateur

ASROCK

ASROCK N73PV-GS Manuel utilisateur

ASROCK

ASROCK X99 WS-E/10G Manuel utilisateur

ASROCK

ASROCK Z75 Pro3 Manuel de l'opérateur

ASROCK

ASROCK IMB-A160-H Manuel utilisateur

ASROCK

ASROCK H610M Manuel utilisateur

ASROCK

ASROCK P4DUAL-880PRO Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
