English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published December 2012

2ASRock FM2A85X-ITX Motherboard

English

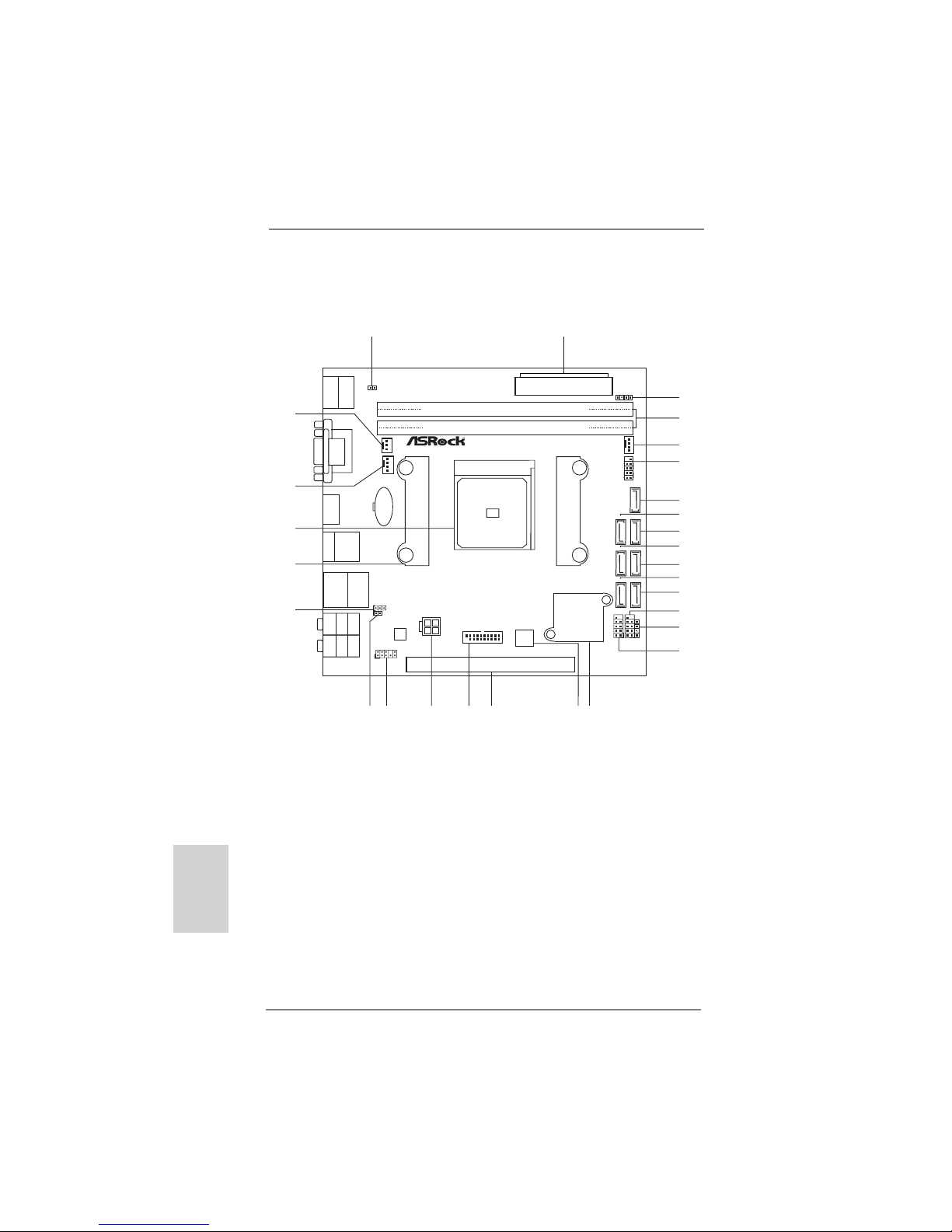

Motherboard Layout

1 Chassis Intrusion Header (CI1) 15 Consumer Infrared Module Header (CIR1)

2 ATX Power Connector (ATXPWR1) 16 USB 2.0 Header (USB_67)

3 Chassis Speaker Header (SPEAKER1) 17 Southbridge Controller

4 2 x 240-pin DDR3 DIMM Slots 18 SPI Flash Memory (64Mb)

(Dual Channel: DDR3_A1, DDR3_B1) 19 PCI Express 2.0 x16 Slot (PCIE1)

5 Chassis Fan Connector (CHA_FAN1) 20 USB 3.0 Header (USB3_0_1)

6 System Panel Header (PANEL1) 21 ATX 12V Power Connector (ATX12V1)

7 SATA3 Connector (SATA3_7) 22 Front Panel Audio Header (HD_AUDIO1)

8 SATA3 Connector (SATA3_6) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

9 SATA3 Connector (SATA3_5) 24 Clear CMOS Jumper (CLRCMOS1)

10 SATA3 Connector (SATA3_4) 25 CPU Heatsink Retention Module

11 SATA3 Connector (SATA3_3) 26 CPU Socket

12 SATA3 Connector (SATA3_2) 27 CPU Fan Connector (CPU_FAN1)

13 SATA3 Connector (SATA3_1) 28 CPU Fan Connector (CPU_FAN2)

14 USB 2.0 Header (USB_45)

ATXPWR1

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

SOCKET FM2

PCIE1

AMD

A85X

(Hudson-D4)

Chipset

CPU_FAN1

CPU_FAN2

XFast RAM

Front USB 3.0

USB 2.0

T: US B0

B: USB1

Ps2

Keyboard

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Top:

RJ-45

USB 3.0

T: USB2

B: USB3

USB 2.0

T: USB2

B: USB3

eSATA3_1

HD_AUDIO1

CLRCMOS1

64Mb

BIOS

RoHS

FM2A85X-ITX

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

CHA_FAN1

CIR1

USB_67

USB_45

AUDIO

CODEC

1HDMI_SPDIF1

CMOS

Battery

USB3_0_1

CI1

SATA3_2

SATA3_4

SATA3_1

SATA3_3

SATA3_6 SATA3_5

SATA3_7

ATX12V1

VGA1

DVI1

HDMI1

ASRock FM2A85X-ITX Motherboard

English

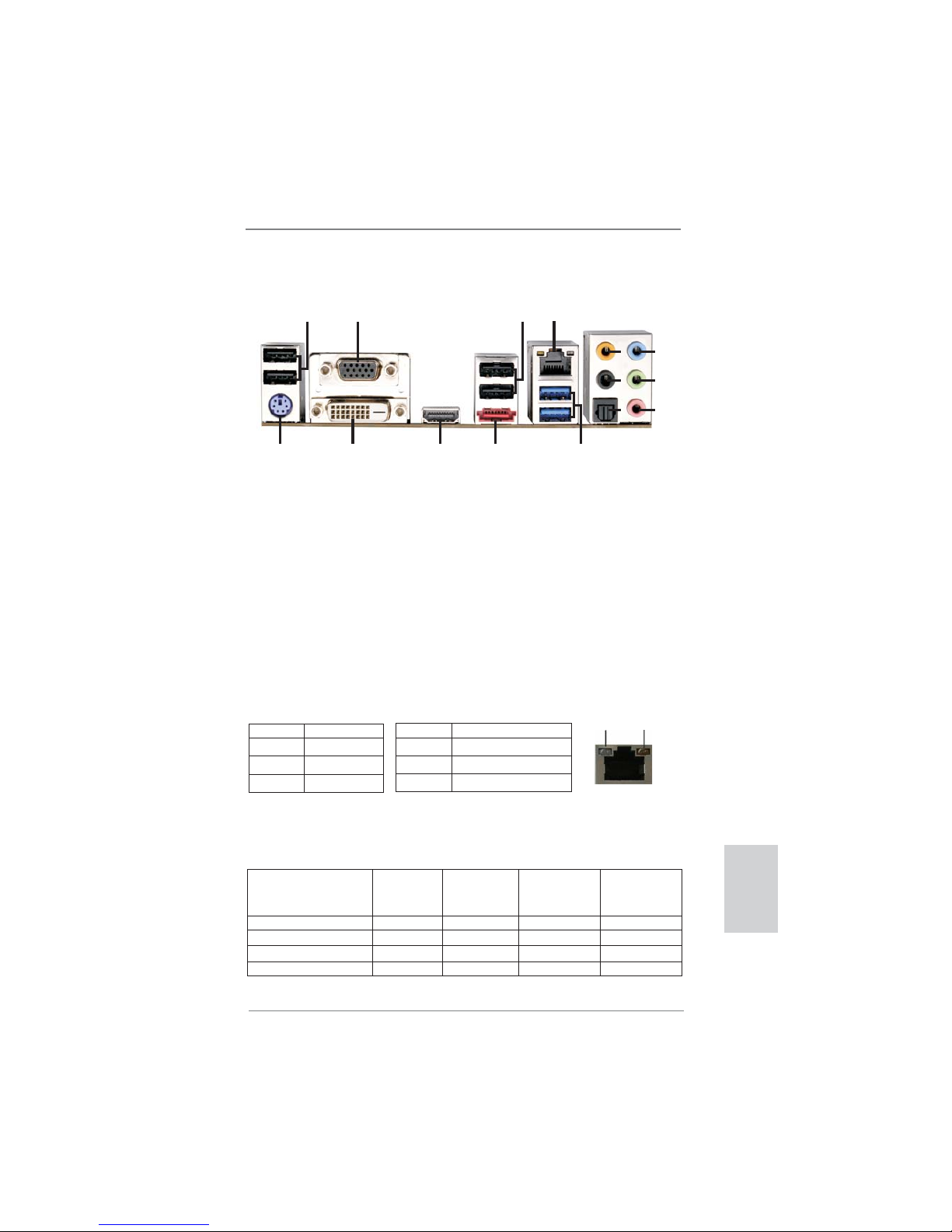

I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

* 1 USB 2.0 Ports (USB01) *** 9 Front Speaker (Lime)

2 D-Sub Port (VGA1) 10 Microphone (Pink)

* 3 USB 2.0 Ports (USB23) 11 USB 3.0 Ports (USB3_23)

** 4 LAN RJ-45 Port **** 12 eSATA3 Connector (eSATA3_1)

5 Central / Bass (Orange) 13 HDMI Port (HDMI1)

6 Rear Speaker (Black) 14 DVI-D Port (DVI1)

7 Optical SPDIF Out Port 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

LAN Port

ACT/LINK

LED

SPEED

LED

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01 or

USB23) instead of USB 3.0 ports.

*** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

124

4ASRock FM2A85X-ITX Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Pri-

mary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

ASRock FM2A85X-ITX Motherboard

English

1. Introduction

Thank you for purchasing ASRock FM2A85X-ITX motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A85X-ITX Motherboard (Mini-ITX Form Factor)

ASRock FM2A85X-ITX Quick Installation Guide

ASRock FM2A85X-ITX Support CD

4 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

ﬁguration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

6ASRock FM2A85X-ITX Motherboard

English

1.2 Speciﬁcations

Platform - Mini-ITX Form Factor

- 6 Layer PCB

- Premium Gold Capacitor design (100% Japan-made

high-quality Conductive Polymer Capacitors)

CPU - Support for Socket FM2 100W processors

- 4 + 2 Power Phase Design

- Dual-Stack MOSFET (DSM)

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A85X (Hudson-D4)

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Supports DDR3 2400+(OC)/2133(OC)/1866/1600/1333/

1066 non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports Intel®Extreme Memory Proﬁle (XMP) 1.3 / 1.2

- Supports AMD Memory Proﬁle (AMP)

Expansion Slot - 1 x PCI Express 2.0 x16 slot

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 7000 graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 2GB

- Three VGA Output options: D-Sub, DVI-D and HDMI

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jutter reduction on home/

online video

- Supports HDCP function with DVI-D and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI-D and HDMI ports

ASRock FM2A85X-ITX Motherboard

English

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone

SATA3 - 7 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5 and RAID 10), NCQ, AHCI and “Hot Plug”

functions

USB 3.0 - 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to

5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports),

supports USB 1.1/2.0/3.0 up to 5Gb/s

Connector - 7 x SATA3 6.0Gb/s connectors

- 1 x CIR header

- 1 x HDMI_SPDIF header

- 1 x Chassis Intrusion header

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 1 x Chassis Fan connector (4-pin)

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

8ASRock FM2A85X-ITX Motherboard

English

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, APU PCIE VDDP, SB, CPU and CPU NB/GFX

Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

ASRock FM2A85X-ITX Motherboard

English

CAUTION!

1. Whether 2400/2133/1866/1600MHz memory speed is support-

ed depends on the CPU you adopt. If you want to adopt DDR3

2400/2133/1866/1600 memory module on this motherboard,

please refer to the memory support list on our website for the

compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows®8 / 7 / VistaTM. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. xvYCC and Deep Color are only supported under Windows®8

64-bit / 8 / 7 64-bit / 7. Deep Color mode will be enabled only

if the display supports 12bpc in EDID. HBR is supported under

Windows®8 64-bit / 8 / 7 64-bit / 7 / VistaTM 64-bit / VistaTM.

10 ASRock FM2A85X-ITX Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a proﬁle and share it with your friends. Your friends then can

load the OC proﬁle to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve efﬁciency

when the CPU cores are idle without sacriﬁcing computing per-

formance. In XFast RAM, it fully utilizes the memory space that

cannot be used under Windows®OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efﬁcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at speciﬁc timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows®desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems ﬁrst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional ﬂoppy diskette or other compli-

cated ﬂash utility. Please be noted that the USB ﬂash drive or

hard drive must use FAT32/16/12 ﬁle system.

Autres manuels pour FM2A85X-ITX

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H470M-HVS R2.0 Manuel utilisateur

ASROCK

ASROCK P67 Extreme4 Gen3 Manuel utilisateur

ASROCK

ASROCK N61P-GS - V1.0 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z97 Manuel utilisateur

ASROCK

ASROCK Z68M/USB3 Manuel utilisateur

ASROCK

ASROCK X299 Killer SLI/ac Manuel utilisateur

ASROCK

ASROCK Z690D4U-2L2T Manuel utilisateur

ASROCK

ASROCK K8 COMBO-Z Manuel utilisateur

ASROCK

ASROCK H510TM-ITX Manuel utilisateur

ASROCK

ASROCK P43DE3L Manuel utilisateur

ASROCK

ASROCK Fatal1ty B450 Manuel utilisateur

ASROCK

ASROCK K8NF6P-VSTA Manuel utilisateur

ASROCK

ASROCK Z170 Extreme7+ Manuel d'utilisation et d'entretien

ASROCK

ASROCK H61M-VS R2.0 Manuel utilisateur

ASROCK

ASROCK DN2800MT Manuel utilisateur

ASROCK

ASROCK Z590 Steel Legend Manuel utilisateur

ASROCK

ASROCK Z930 EXTREME4 Manuel utilisateur

ASROCK

ASROCK H77 Pro4/MVP Manuel utilisateur

ASROCK

ASROCK Z68 Extreme4 Gen3 Manuel utilisateur

ASROCK

ASROCK H67M Manuel utilisateur

ASROCK

ASROCK H67M-ITX Manuel utilisateur

ASROCK

ASROCK B365M-HDV Manuel utilisateur

ASROCK

ASROCK H97 Pro4 Manuel utilisateur

ASROCK

ASROCK N3150B-ITX Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
