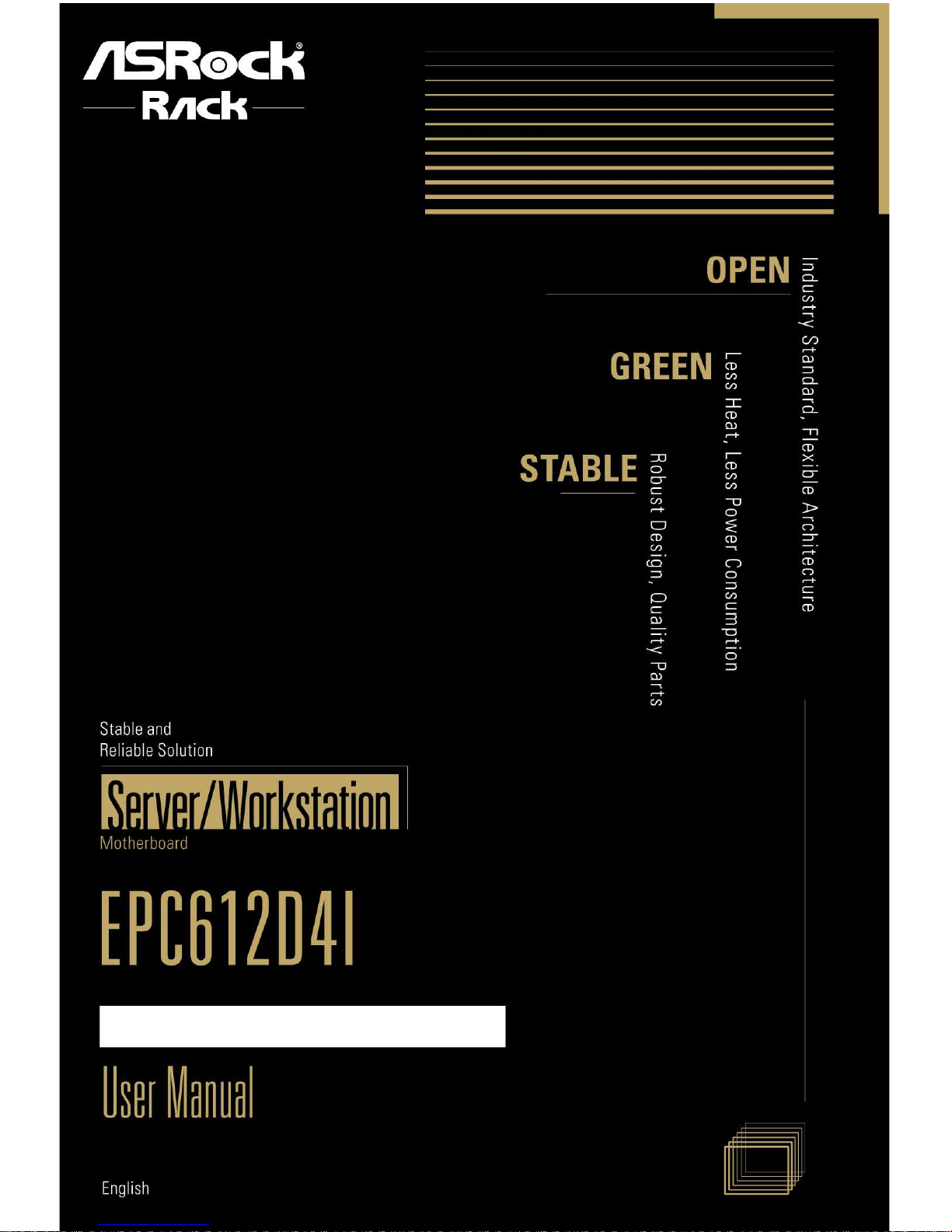

ASROCK EPC612D4I Manuel utilisateur

Version 1.0

Published May 2015

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Rack Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished

for informational use only and subject to change without notice, and should not

be constructed as a commitment by ASRock Rack. ASRock Rack assumes no

responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock Rack does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRock Rack has been advised of the possibility of such damages

arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Rack’s Website: www.ASRockRack.com

Contact Information

If you need to contact ASRock Rack or want to know more about ASRock Rack,

you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you

may contact your dealer for further information.

ASRock Rack Incorporation

6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Unique Features 5

1.4 Motherboard Layout 6

1.5 Onboard LED Indicators 8

1.6 I/O Panel 10

1.7 Block Diagram 12

Chapter 2 Installation 13

2.1 Screw Holes 13

2.2 Pre-installation Precautions 13

2.3 Installing the CPU 14

2.4 Installing the CPU Fan and Heatsink 17

2.5 Installation of Memory Modules (SODIMM) 18

2.6 Expansion Slot (PCI Express Slot) 20

2.7 Jumper Setup 21

2.8 Onboard Headers and Connectors 22

2.9 Unit Identication purpose LED/Switch 28

2.10 Driver Installation Guide 28

2.11 Dual LAN and Teaming Operation Guide 29

Chapter 3 UEFI Setup Utility 30

3.1 Introduction 30

3.1.1 UEFI Menu Bar 30

3.1.2 Navigation Keys 31

3.2 Main Screen 32

3.3 Advanced Screen 33

3.3.1 ACPI Conguration 34

3.3.2 Congure Super IO Settings 35

3.3.3 Serial Port Console Redirection 36

3.3.4 CSM Parameters 39

3.3.5 USB Conguration 40

3.3.6 System Conguration 41

3.3.7 Hard Disk S.M.A.R.T Settings 43

3.3.8 Voltage Conguration 44

3.3.9 H/W Monitor 45

3.3.10 WHEA Conguration 47

3.3.11 Instant Flash 49

3.4 IntelRCSetup 50

3.4.1 Processor Conguration 51

3.4.2 CPU Power Management Conguration 53

3.4.3 Memory Conguration 55

3.4.4 IIO Conguration 57

3.4.5 PCH Conguration 58

3.4.6 Server ME Conguration 60

3.5 Server Mgmt 61

3.5.1 System Event Log 62

3.5.2 BMC Network Conguration 63

3.6 Security 65

3.7 Boot Screen 66

3.8 Event Logs 68

3.9 Exit Screen 70

Chapter 4 Software Support 71

4.1 Install Operating System 71

4.2 Support CD Information 71

4.2.1 Running The Support CD 71

4.2.2 Drivers Menu 71

4.2.3 Utilities Menu 71

4.2.4 Contact Information 71

Chapter 5 Troubleshooting 72

5.1 Troubleshooting Procedures 72

5.2 Technical Support Procedures 74

5.3 Returning Merchandise for Service 74

Chapter 6: Net Framework Installation Guide 75

6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2) 75

EPC612D4I

English

Chapter 1 Introduction

ank you for purchasing ASRock Rack EPC612D4I motherboard, a reliable

motherboard produced under ASRock Rack’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock Rack’s

commitment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

1.1 Package Contents

•ASRock Rack EPC612D4I Motherboard

(Mini ITX Form Factor: 6.7-in x 6.7-in, 17.02 cm x 17.02 cm)

•Support CD

•User Manual

•4 x SATA3 Cables (50cm)

•1 x I/O Shield

If any items are missing or appear damaged, contact your authorized dealer.

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modications

of this manual occur, the updated version will be available on the ASRock Rack website

without further notice. You may nd the latest memory and CPU support lists on the

ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com

If you require technical support related to this motherboard, please visit our website for

specic information about the model you are using.

http://www.asrockrack.com/support/

English

1.2 Specications

EPC612D4I

MB Physical Status

Form Factor Mini ITX

Dimension 6.7'' x 6.7'' (17.02 cm x 17.02 cm)

Processor System

CPU Intel®Xeon processor E5-1600/2600 v3 series

Socket Single Socket LGA 2011 R3*

*Please use narrow type CPU Cooler

Chipset Intel® C612

System Memory

Capacity 4 DIMM slots

Type - Quad Channel memory technology

- Supports DDR4 2133*/1866/1600 ECC SO-DIMM *

*The 2133 supports one DIMM per channel.DIMM Size ECC SO-DIMM: 16GB, 8GB, 4GB

Voltage 0.9V – 1.5V

Expansion Slot

PCIe 3.0 x 16 1 slot

Storage

SATA

Controller

Intel® C612: 4 x SATA3 6Gb/s, support Intel RSTe 4.0 RAID 0, 1,

5, 10

Ethernet

Interface 1000 /100 /10 Mbps

LAN 2 x RJ45 by Intel® i210 + Intel® i217LM

1 x RJ45 Dedicated IPMI LAN port

- Supports Wake-On-LAN

- Supports Energy Ecient Ethernet 802.3az

- Supports Dual LAN with Teaming function*

- Supports PXE

- LAN1 supports NCSI

*Note: With Intel i217LM LAN chip on board, the LAN Teaming function

will be limited to below 3 modes: Intel® Active Management Technology (Intel®

AMT) Enabled – Adapter Fault Tolerance (AFT), Switch Fault Tolerance

(SFT), and Adaptive Load Balancing (ALB) teams.

Management

BMC Controller ASPEED AST2400

IPMI Dedicated

GLAN

- 1 x Realtek RTL8211E for dedicated management GLAN

Features - Watch Dog

- NMI

EPC612D4I

English

Graphics

Controller ASPEED AST2400

VRAM DDR3 16MB

Rear Panel I/O

VGA Port 1 x D-Sub

USB 3.0 Port 2

LAN Port RJ45: 2 + 1 (IPMI)

LAN Ports with LED (ACT/LINK LED and SPEED LED)

UID LED/

Button

Internal Connector

Auxiliary Panel

Header

1 (include chassis intrusion, location button & LED, front

LAN LED, and system fault LED)

TPM Header 1

IPMB Header 1

Fan Header 1 x CPU Fan, 4 x system Fans (4-pin)

ATX Power 1 (24-pin) + 1 (8-pin)

USB 3.0 Header 1 ( support 2 USB 3.0)

USB 2.0 Header 1 ( support 2 USB 2.0)

Type A USB 3.0

Port

BMC SMB

Header

System BIOS

BIOS Ty pe 128Mb AMI UEFI Legal BIOS

BIOS Features - Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash

Hardware Monitor

Temperature - CPU Temperature Sensing

- System Temperature Sensing

Fan - CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust

by CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control

Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

1.05V_PCH, +1.5V_PCH, +BAT, 3VSB, 5VSB

English

Support OS

OS Microso® Windows®

- Server 2008 R2 SP1 (64 bit)

- Server 2012 (64 bit)

- Server 2012 R2 (64 bit)

Linux®

- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)

- CentOS 5.10 / 6.5 (32 / 64 bit)

- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)

- FreeBSD 9.2 (32 / 64 bit)

- Fedora core 19 (64 bit)

- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)

Virtual

- VMWare® ESXi 5.5

Environment

Temperature Operation temperature: 10°C ~ 35°C / Non operation

temperature: -40°C ~ 70°C

is motherboard supports Wake from on Board LAN. To use this function, please make

sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager

> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is

enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard

LAN1&2 can wake up S5 under OS.

If you install Intel® LAN or Marvell SATA utility, this motherboard may fail Windows®

Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it will

pass the WHQL tests.
