ASROCK EP2C612D8C Manuel utilisateur

Version 1.0

Published May 2015

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Rack Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished

for informational use only and subject to change without notice, and should not

be constructed as a commitment by ASRock Rack. ASRock Rack assumes no

responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock Rack does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRock Rack has been advised of the possibility of such damages

arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Rack’s Website: www.ASRockRack.com

Contact Information

If you need to contact ASRock Rack or want to know more about ASRock Rack,

you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you

may contact your dealer for further information.

ASRock Rack Incorporation

6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Unique Features 5

1.4 Motherboard Layout 6

1.5 Onboard LED Indicators 9

1.6 I/O Panel 11

1.7 Block Diagram 13

Chapter 2 Installation 14

2.1 Screw Holes 14

2.2 Pre-installation Precautions 14

2.3 Installing the CPU 15

2.4 Installing the CPU Fan and Heatsink 18

2.5 Installation of Memory Modules (DIMM) 19

2.6 Expansion Slots (PCI Express Slots) 21

2.7 Jumper Setup 23

2.8 Onboard Headers and Connectors 25

2.9 Unit Identication purpose LED/Switch 31

2.10 Driver Installation Guide 31

2.11 Dual LAN and Teaming Operation Guide 32

Chapter 3 UEFI Setup Utility 33

3.1 Introduction 33

3.1.1 UEFI Menu Bar 33

3.1.2 Navigation Keys 34

3.2 Main Screen 35

3.3 Advanced Screen 36

3.3.1 ACPI Conguration 37

3.3.2 Congure Super IO Settings 38

3.3.3 Serial Port Console Redirection 39

3.3.4 CSM Parameters 42

3.3.5 USB Conguration 43

3.3.6 System Conguration 44

3.3.7 Hard Disk S.M.A.R.T Settings 45

3.3.8 H/W Monitor 46

3.3.9 Instant Flash 48

3.4 IntelRCSetup 49

3.4.1 Processor Conguration 50

3.4.2 CPU Power Management Conguration 52

3.4.3 Memory Conguration 54

3.4.4 IIO Conguration 56

3.4.5 PCH Conguration 57

3.4.6 Server ME Conguration 59

3.5 Server Mgmt 60

3.5.1 System Event Log 61

3.5.2 BMC Network Conguration 62

3.6 Security 64

3.7 Boot Screen 65

3.8 Event Logs 67

3.9 Exit Screen 69

Chapter 4 Software Support 70

4.1 Install Operating System 70

4.2 Support CD Information 70

4.2.1 Running The Support CD 70

4.2.2 Drivers Menu 70

4.2.3 Utilities Menu 70

4.2.4 Contact Information 70

Chapter 5 Troubleshooting 71

5.1 Troubleshooting Procedures 71

5.2 Technical Support Procedures 73

5.3 Returning Merchandise for Service 73

Chapter 6: Net Framework Installation Guide 74

6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2) 74

EP2C612D8C

English

Chapter 1 Introduction

ank you for purchasing ASRock Rack EP2C612D8C motherboard, a reliable

motherboard produced under ASRock Rack’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock Rack’s

commitment to quality and endurance.

In this manual, chapter 1 and 2 contains introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration

guide to BIOS setup and information of the Support CD.

1.1 Package Contents

•ASRock Rack EP2C612D8C Motherboard

(ATX Form Factor: 12.0-in x 10.0-in, 30.5 cm x 25.4 cm)

•Support CD

•User Manual

•4 x SATA3 Cables (50cm)

•2 x SATA3 Cables (60cm)

•1 x I/O Shield

If any items are missing or appear damaged, contact your authorized dealer.

Because the motherboard specications and the BIOS soware might be updated, the con-

tent of this manual will be subject to change without notice. In case any modications of

this manual occur, the updated version will be available on ASRock Rack website without

further notice. You may nd the latest memory and CPU support lists on ASRock Rack

website as well. ASRock Rack’s Website: www.ASRockRack.com

If you require technical support related to this motherboard, please visit our website for

specic information about the model you are using.

http://www.asrockrack.com/support/

English

1.2 Specications

EP2C612D8C

MB Physical Status

Form Factor ATX

Dimension 12'' x 10'' (30.5 cm x 25.4 cm)

Processor System

CPU Intel®Xeon processor E5-2600/4600 v3 series

Socket Dual Socket LGA 2011 R3

Chipset Intel® C612

System Memory

Capacity 8 x 288-pin DDR4 DIMM slots (Support NVDIMM)

Type - Quad Channel DDR4 memory technology

- Supports DDR4 2133/1866 ECC DIMM

Voltage 1.2V

Expansion Slot

PCIe 3.0 x 16 1 slot

PCIe 3.0 x 8 2 slots

Mezzanine Slot 1 slot (for Storage Mezzanine card)

Storage

SATA

Controller

C612: 10 x SATA3 6Gb/s, support Intel® RSTe 4.0 RAID 0, 1, 5,

Ethernet

Interface 1000 /100 /10 Mbps by Intel i210

LAN 2 x RJ45 GLAN by Intel® i210

1 x RJ45 Dedicated IPMI LAN port

- Supports Wake-On-LAN

- Supports Energy Ecient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE

- LAN1 supports NCSI

Management

BMC Controller ASPEED AST2400

IPMI Dedicated

GLAN

- 1 x Realtek RTL8211E for dedicated management GLAN

Features - Watch Dog

- NMI

Graphics

Controller ASPEED AST2400

VRAM DDR3 16MB

EP2C612D8C

English

Rear Panel I/O

VGA Port 1 x D-Sub

Serial Port 1 (COM1)

USB 3.0 Port 2

USB 2.0 Port 2

LAN Port RJ45: 2 + 1 (IPMI)

LAN Ports with LED (ACT/LINK LED and SPEED LED)

UID Button/

LED

Internal Connector

Auxiliary Panel

Header

1 (includes chassis intrusion, location button & LED, front

LAN LED, and system fault LED)

TPM Header 1

IPMB Header 1

Fan Header 2 x CPU Fan (4-pin), 5 x system Fan (4-pin) (4 front, 1 rear)

ATX Power 1 (24-pin) + 2 (8-pin)

USB 3.0 Header 1 ( support 2 USB 3.0)

USB 2.0 Header 1 ( support 2 USB 2.0)

Type A USB 3.0

Port

Speaker Header 1 (4-pin)

ermal Sensor

Header

ME Recovery

Jumper

PSU SMBus

Header

BMC SMBus

Header

SGPIO Header 2

System BIOS

BIOS Ty pe 64Mb AMI UEFI Legacy BIOS

BIOS Features - Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash

Hardware Monitor

Temperature - CPU Temperature Sensing

- System Temperature Sensing

Fan - CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control

Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

1.05V_PCH, +BAT, 3VSB, 5VSB

English

Support OS

OS Microso® Windows®

- Server 2008 R2 SP1 (64 bit)

- Server 2012 (64 bit)

- Server 2012 R2 (64 bit)

Linux®

- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)

- CentOS 5.10 / 6.5 (32 / 64 bit)

- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)

- FreeBSD 9.2 (32 / 64 bit)

- Fedora core 19 (64 bit)

- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)

Virtual

- VMWare® ESXi 5.5

Environment

Temperature Operation temperature: 10°C ~ 35°C / Non operation

temperature: -40°C ~ 70°C

is motherboard supports Wake from on Board LAN. To use this function, please make

sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager

> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is

enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard

LAN1&2 can wake up S5 under OS.

If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-

dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it

will pass the WHQL tests.

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H77 Pro4-M Manuel utilisateur

ASROCK

ASROCK 4CORE1600TWINS-P35 - V1.0 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z68 Professional Gen3 Manuel utilisateur

ASROCK

ASROCK H77M Manuel utilisateur

ASROCK

ASROCK A790GX 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK IMB-A1000 Manuel utilisateur

ASROCK

ASROCK N68-S3 FX Manuel utilisateur

ASROCK

ASROCK Z790 LiveMixer Manuel utilisateur

ASROCK

ASROCK FM2A75M-DGS Manuel utilisateur

ASROCK

ASROCK 775i65G R3.0 Manuel utilisateur

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 Manuel utilisateur

ASROCK

ASROCK K8N68PV-GLAN Manuel utilisateur

ASROCK

ASROCK 985GM-GS3 FX Manuel utilisateur

ASROCK

ASROCK X370 Pro4 Manuel utilisateur

ASROCK

ASROCK X79 Extreme9 Manuel utilisateur

ASROCK

ASROCK 880GM-LE FX Manuel utilisateur

ASROCK

ASROCK FM2A58M-HD+ R2.0 Manuel utilisateur

ASROCK

ASROCK H110M-DS/Hyper Manuel utilisateur

ASROCK

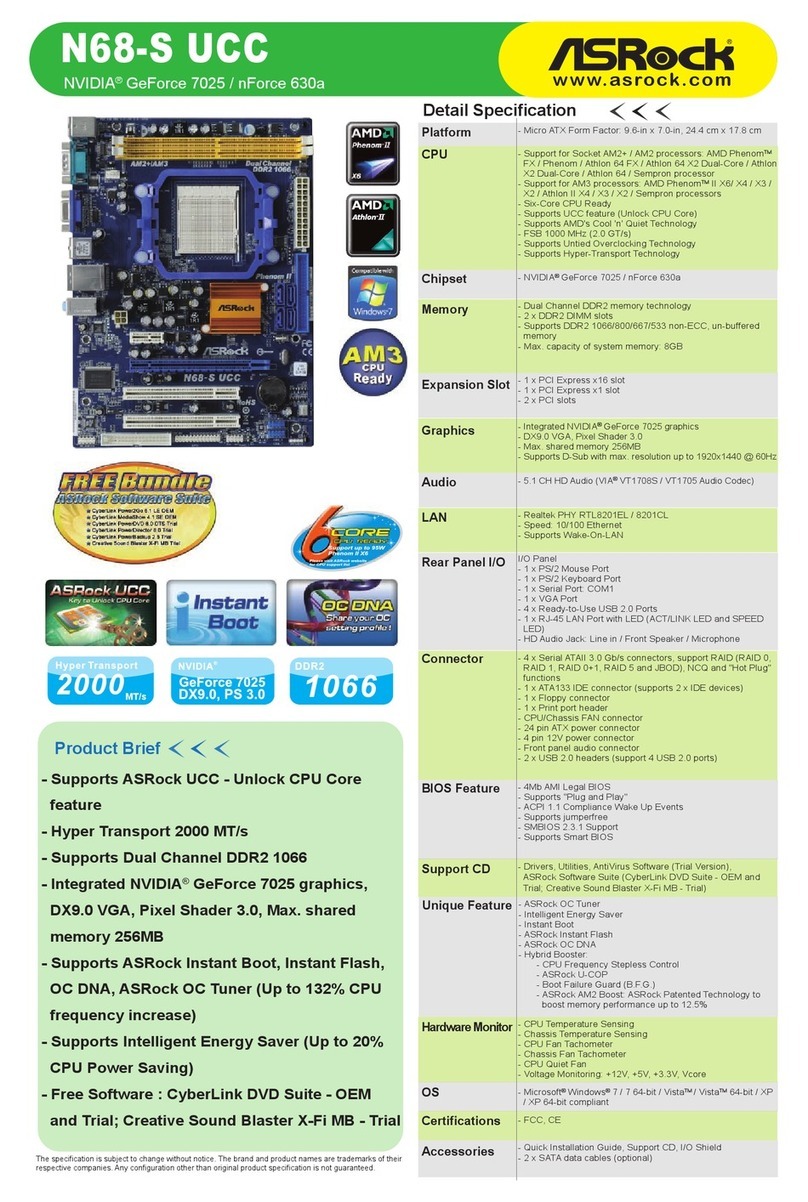

ASROCK N68-S UCC - Manuel utilisateur
