ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

PublishedNovember 2006

ASRock Website: http://www.asrock.com

2ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

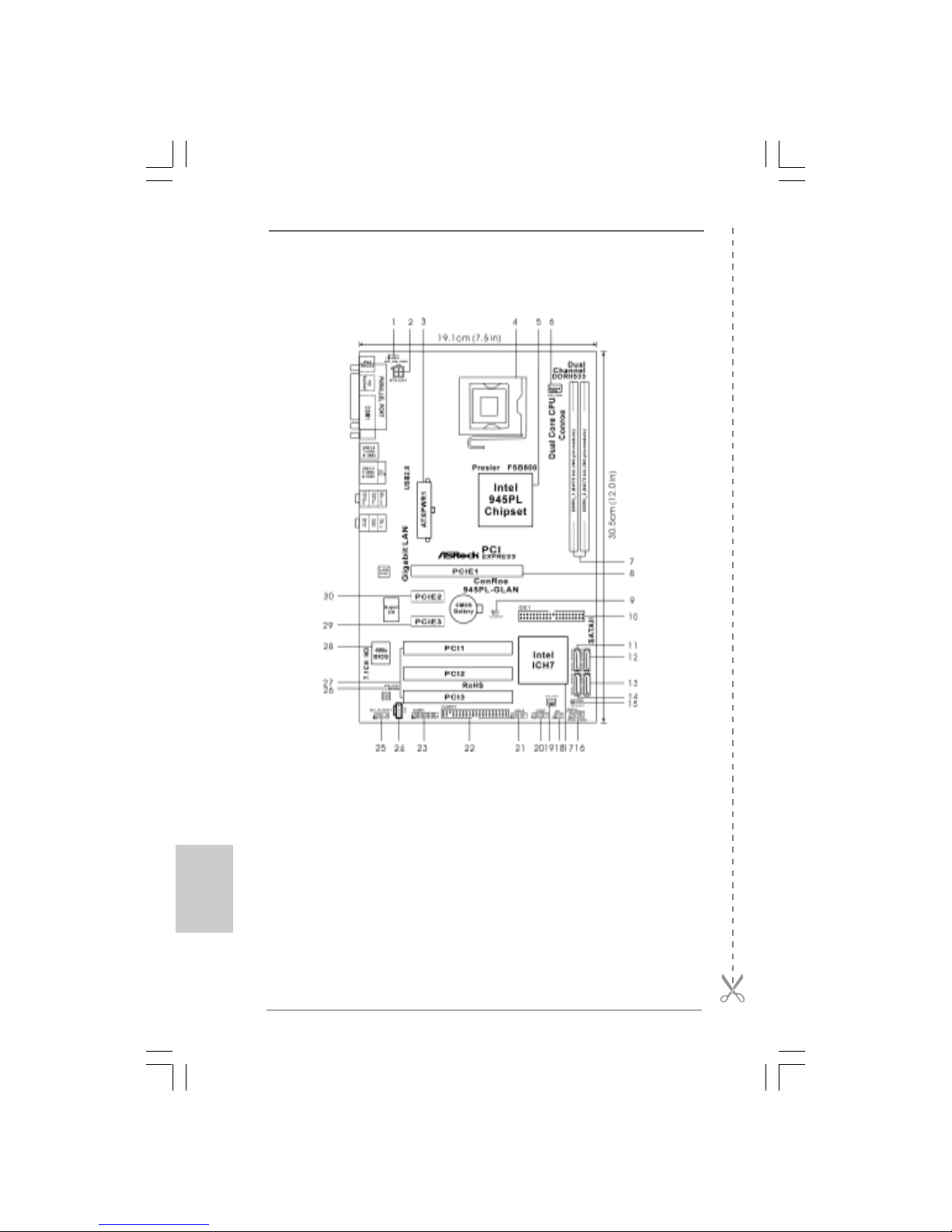

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 17 South Bridge Controller

3 ATX Power Connector (ATXPWR1) 18 Infrared Module Header (IR1)

4 775-Pin CPU Socket 19 Chassis Fan Connector (CHA_FAN1)

5 North Bridge Controller 20 USB 2.0 Header (USB67, Blue)

6 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB45, Blue)

7 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 23 Game Port Header (GAME1)

8 PCI Express x16 Slot (PCIE1) 24 Internal Audio Connector: CD1 (Black)

9 Clear CMOS Jumper (CLRCMOS1) 25 Front Panel Audio Header (HD_AUDIO1)

10 IDE1 Connector (IDE1, Blue) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

11 SATAII Connector (SATAII_3 (PORT2); Orange) 27 PCI Slots (PCI1- 3)

12 SATAII Connector (SATAII_4 (PORT3); Orange) 28 BIOS FWH Chip

13 SATAII Connector (SATAII_2 (PORT1); Red) 29 PCI Express x1 Slot (PCIE3)

14 SATAII Connector (SATAII_1 (PORT0); Red) 30 PCI Express x1 Slot (PCIE2)

15 Chassis Speaker Header (SPEAKER 1)

ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

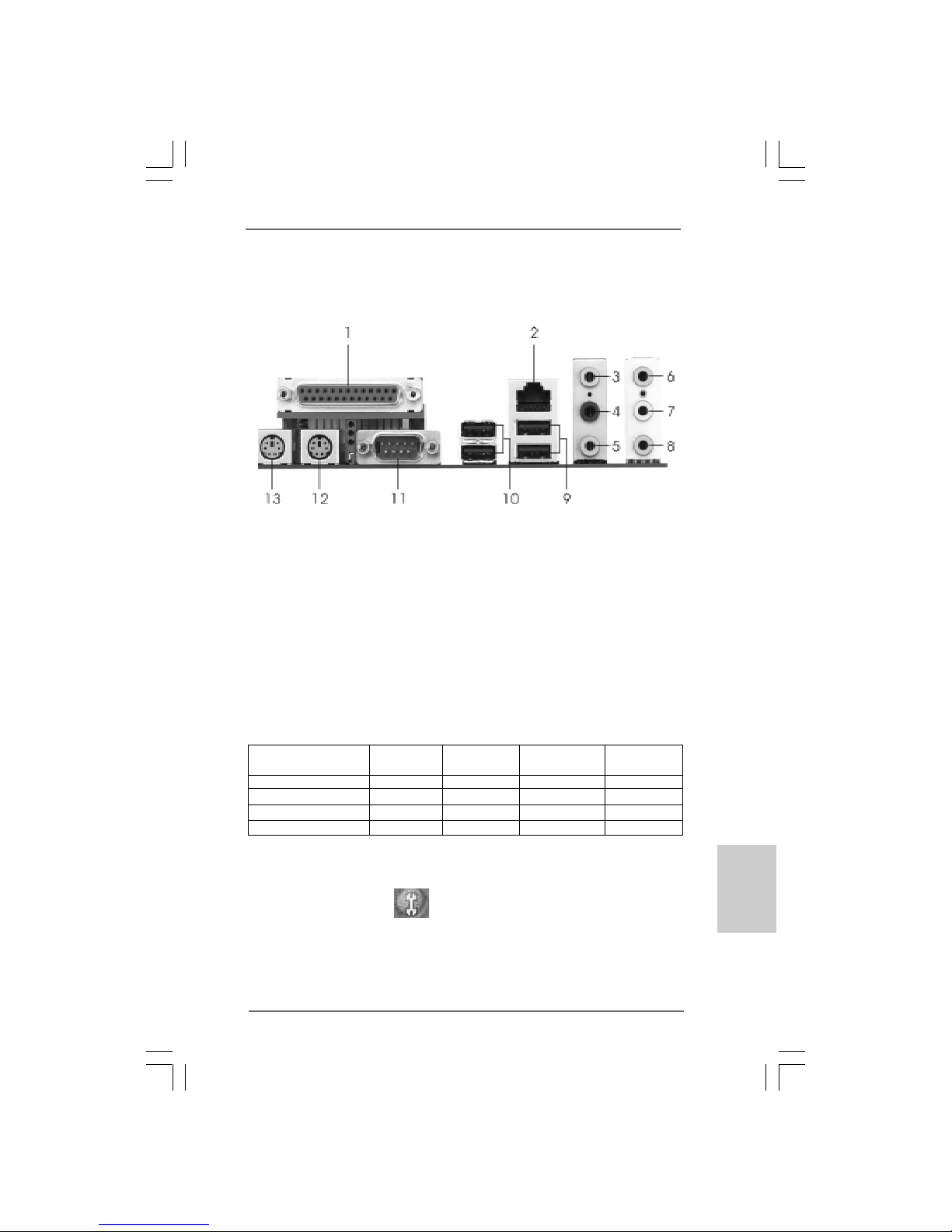

HD 8CH I/O PHD 8CH I/O P

HD 8CH I/O Panelanel

anelanel

anel

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

4ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock ConRoe945PL-GLAN motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest VGA cards and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock ConRoe945PL-GLAN Motherboard

(ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock ConRoe945PL-GLAN Quick Installation Guide

ASRock ConRoe945PL-GLAN Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Data Cables (Optional)

One SerialATA (SATA) HDD Power Cables (Optional)

OneHDMI_SPDIFCable (Optional)

One HD 8CH I/O Panel Shield

ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

CPU - LGA 775 for Intel®CoreTM 2Duo / Pentium®D/ Pentium®4 /

Celeron®D (see CAUTION 1)

- FSB 800/533 MHz

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®945PL

- Southbridge: Intel®ICH7

Memory -Dual Channel DDRII Memory Technology (see CAUTION 4)

- 2 xDDRIIDIMM slots

- SupportDDRII533

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 5)

- ASRock U-COP (see CAUTION 6)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 3 x PCI slots

- 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

Audio - RealtekALC888 7.1 channel CODEC with High Definition

Audio

LAN -Gigabit LAN 10/100/1000 Mb/s

- PCIE x 1 Realtek RTL8111B

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x COM Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 7)

6ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

Connector - 4 x SATAII 3.0Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 8)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM compliant

(see CAUTION 10)

Certifications - FCC, CE, WHQL

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

CAUTION!

1. This motherboard supports FSB800-CPU. If you plan to adopt CoreTM 2

Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX

processors.

2. About the setting of “Hyper ThreadingTechnology”, please check page 29

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 21 for details.

4. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

5. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

6. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 20 to adjust your SATAII hard disk

drive to SATAII mode. You can also connect SATA hard disk to SATAII

connector directly.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

10. Microsoft®Windows®VistaTM driver is not ready yet. We will update it to

our website in the future. Please visit our website for Microsoft®

Windows®VistaTM driver and related information.

ASRock website http://www.asrock.com

8ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium and Basic LogoPremium and Basic Logo

Premium and Basic LogoPremium and Basic Logo

Premium and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium and Basic logo, please follow the

below table for minimum hardware requirement. Please adopt the CPU,

memory, and VGA that we suggest.

CPU Celeron D 326

Memory 512MB Single Channel

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

ASRock ConRoe945PL-GLAN Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

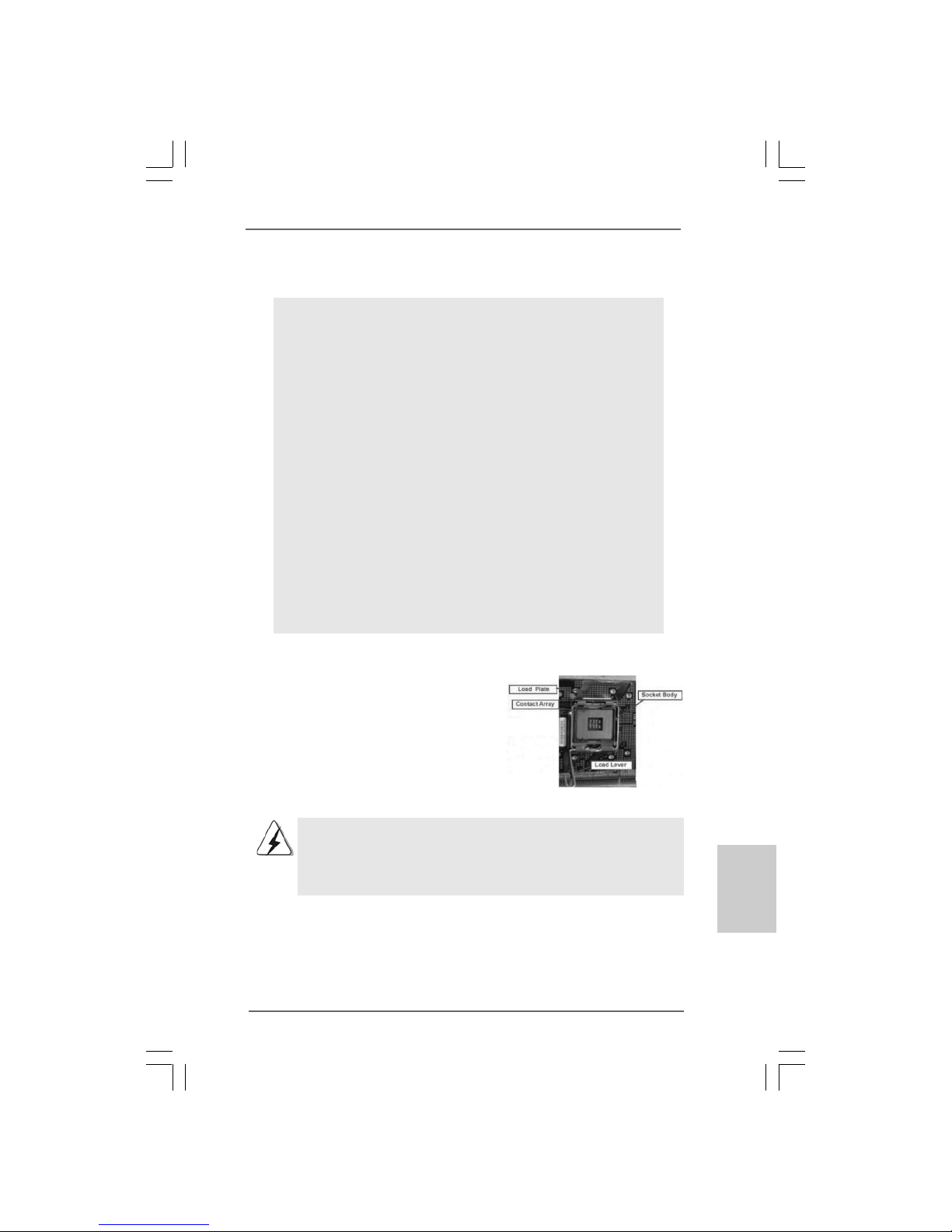

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

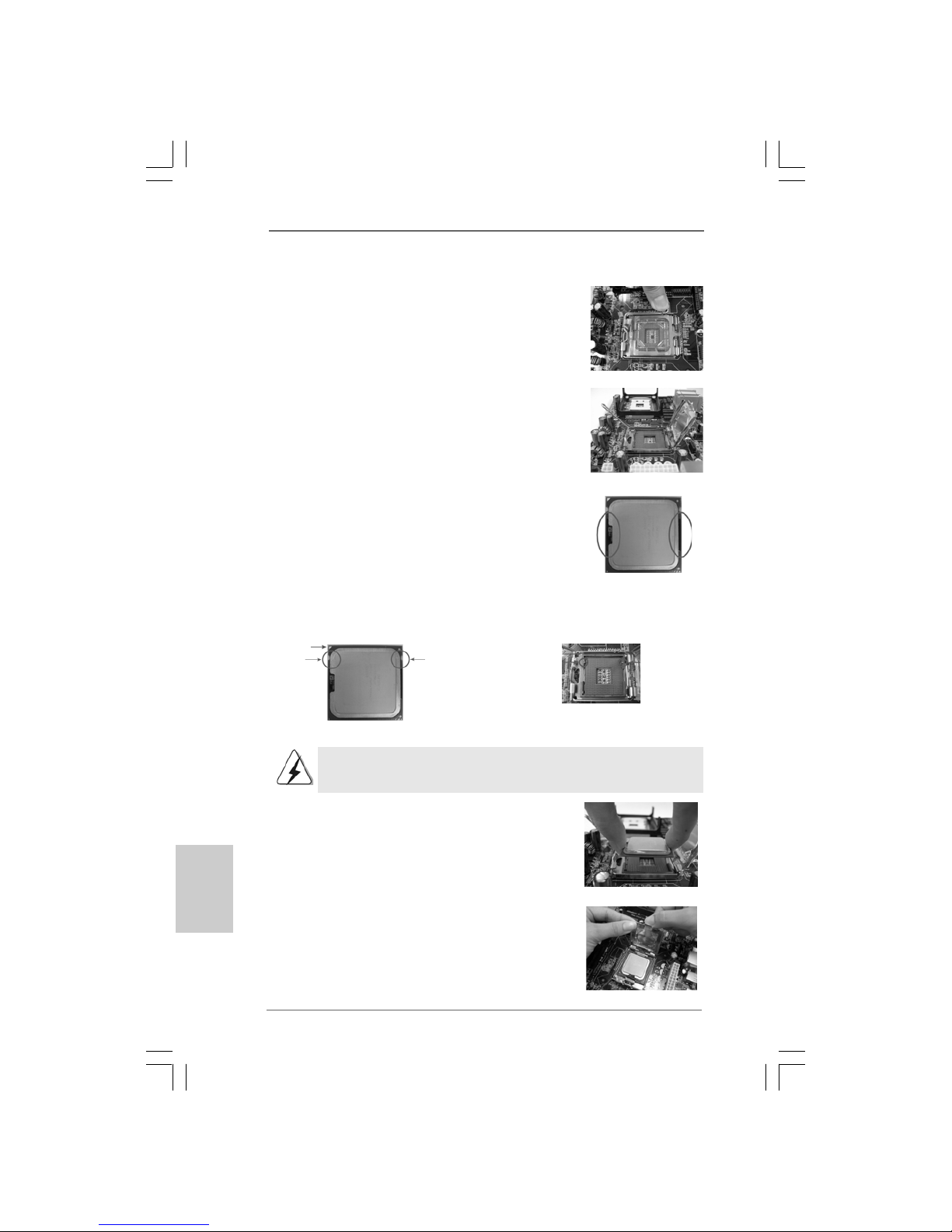

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Autres manuels pour CONROE945PL-GLAN

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK N68- S Manuel utilisateur

ASROCK

ASROCK Z77 Extreme4 Manuel utilisateur

ASROCK

ASROCK J3355M Manuel utilisateur

ASROCK

ASROCK IMB-171-D Instructions d'utilisation

ASROCK

ASROCK UTX-110 Manuel utilisateur

ASROCK

ASROCK Z75 Pro3 Manuel utilisateur

ASROCK

ASROCK A330ION Manuel utilisateur

ASROCK

ASROCK B85M-ITX Manuel utilisateur

ASROCK

ASROCK X99 Extreme4 Manuel utilisateur

ASROCK

ASROCK SBC-310 Manuel utilisateur

ASROCK

ASROCK S330 - V1.0 Manuel utilisateur

ASROCK

ASROCK MB-370-D Manuel utilisateur

ASROCK

ASROCK FM2A58 Pro+ Manuel utilisateur

ASROCK

ASROCK 4CoreDual-VSTA Manuel utilisateur

ASROCK

ASROCK B150M-HDV/D3 Manuel utilisateur

ASROCK

ASROCK Q2900M Manuel utilisateur

ASROCK

ASROCK H61M-DG4 Manuel utilisateur

ASROCK

ASROCK X370 PRO BTC+ Manuel utilisateur

ASROCK

ASROCK 960GM-VGS3 FX Manuel utilisateur

ASROCK

ASROCK G41MH/USB3 R2.0 Manuel utilisateur

ASROCK

ASROCK QC5000-ITX/PH Manuel utilisateur

ASROCK

ASROCK Z87 Extreme6 Manuel utilisateur

ASROCK

ASROCK H610TM-ITX Manuel utilisateur

ASROCK

ASROCK IMB-A160-H Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
