2ASRock A75M-ITX Motherboard

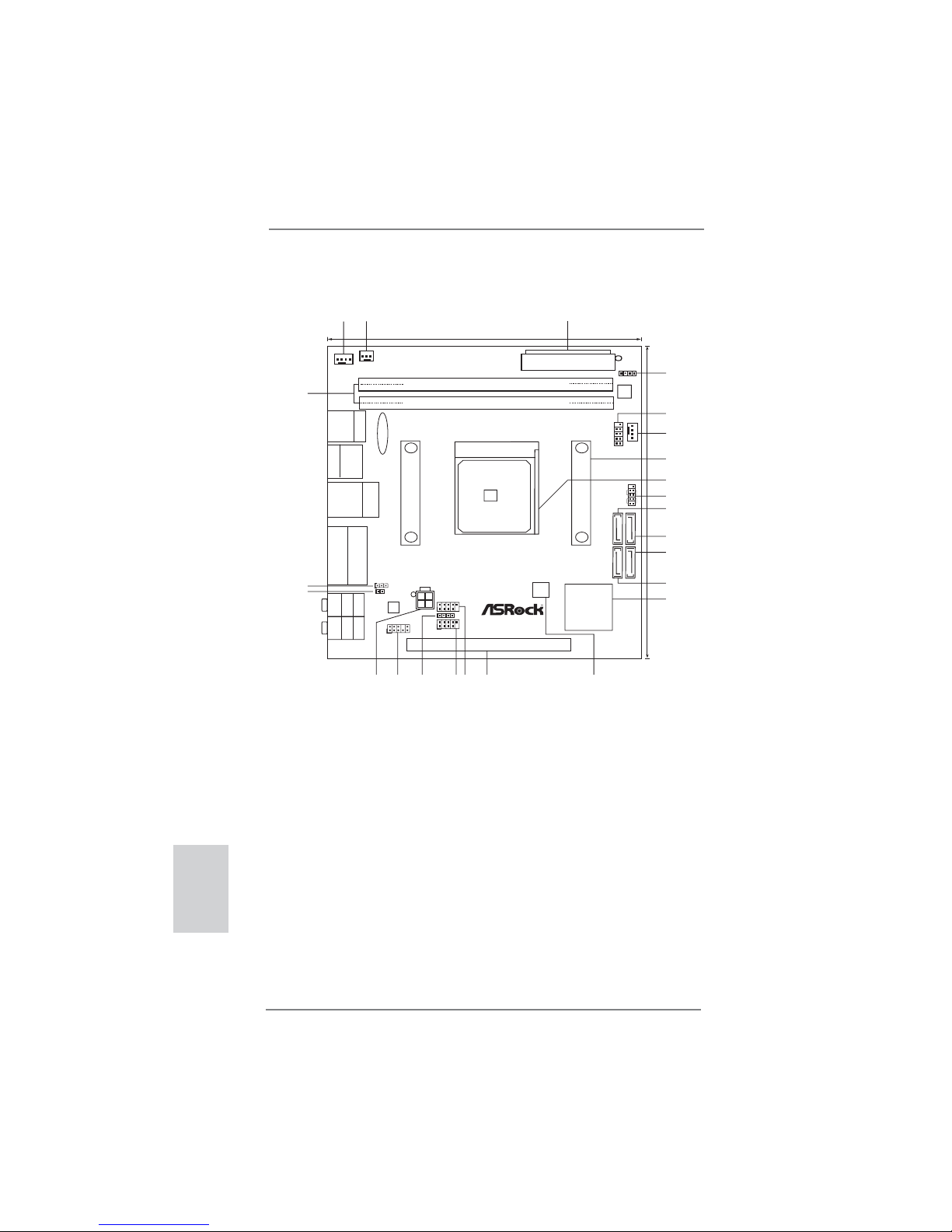

1 CPU Fan Connector (CPU_FAN1) 14 Southbridge Controller

2 CPU Fan Connector (CPU_FAN2) 15 SPI Flash Memory (32Mb)

3 ATX Power Connector (ATXPWR1) 16 PCI Express 2.0 x16 Slot (PCIE1; Blue)

4 Chassis Speaker Header (SPEAKER 1, White) 17 USB 2.0 Header (USB_89, Blue)

5 COM Port Header (COM1) 18 USB 2.0 Header (USB_67, Blue)

6 Chassis Fan Connector (CHA_FAN1) 19 Consumer Infrared Module Header (CIR1)

7 CPU Heatsink Retention Module 20 Front Panel Audio Header (HD_AUDIO1, White)

8 CPU Socket 21 ATX 12V Power Connector (ATX12V1)

9 System Panel Header (PANEL1, White) 22 HDMI_SPDIF Header (HDMI_SPDIF1, White)

10 SATA3 Connector (SATA3_4, White) 23 Clear CMOS Jumper (CLRCMOS1)

11 SATA3 Connector (SATA3_3, White) 24 2 x 240-pin DDR3 DIMM Slots

12 SATA3 Connector (SATA3_1, White) (Dual Channel: DDR3_A1, DDR3_B1; Blue)

13 SATA3 Connector (SATA3_2, White)

SOCKET FM1

AMD

A75 FCH

(Hudson-D3)

Chipset

FSB800

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

ATXPWR1

17.0cm (6.7-in)

A75M-ITX

32Mb

BIOS

CMOS

BATTERY

PCIE1

RoHS

Dual Graphics

DDR3 2400+

Fast USB

DX11

HDMI 1.4a

USB 3.0

SATA3 6Gb/s

ErP/EuP Ready

Designed in Taipei

ATX12V1

SATA3_2 SATA3_4

SATA3_1 SATA3_3

CPU_FAN1

CPU_FAN2

CHA_FAN1

SPEAKER1

COM1

AUDIO

CODEC

HD_AUDIO1

HDLED RESET

PLED PWRBTN

PANEL1

CLRCMOS1

HDMI_SPDIF1

USB_67

USB_89

CIR1

Gigabit LAN

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

RJ-45 LAN

USB 3.0

T: USB4

B: USB5

eSATA3_1

USB 2.0

T: USB2

B: USB3

USB 3.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

VGA1

HDMI1

1819

English

Motherboard Layout

ASRock A75M-ITX Motherboard

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

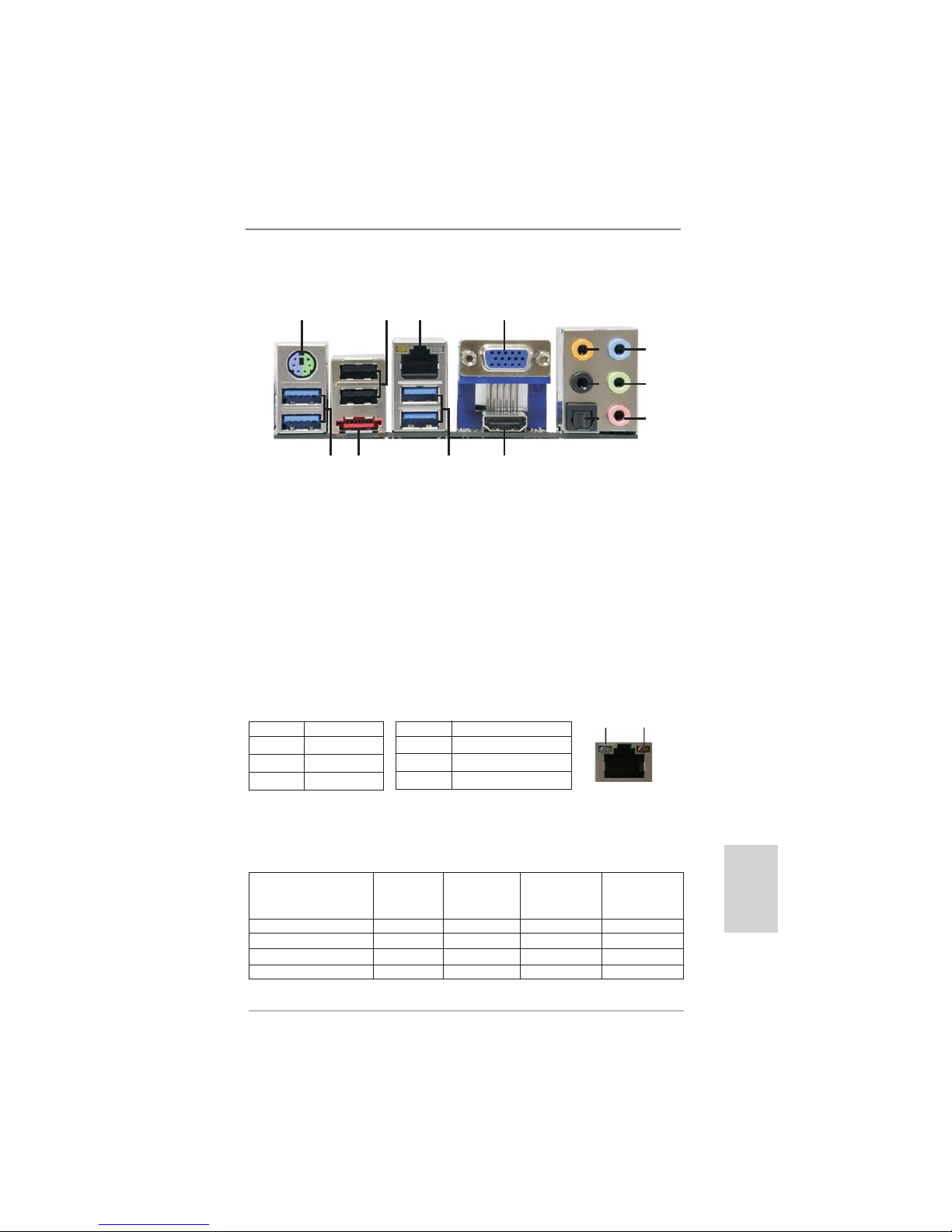

1 PS/2 Mouse/Keyboard Port (Green/Purple) 8 Line In (Light Blue)

* 2 USB 2.0 Ports (USB23) *** 9 Front Speaker (Lime)

** 3 LAN RJ-45 Port 10 Microphone (Pink)

4 D-Sub Port 11 HDMI Port

5 Central / Bass (Orange) 12 USB 3.0 Ports (USB45)

6 Rear Speaker (Black) **** 13 eSATA3 Connector

7 Optical SPDIF Out Port 14 USB 3.0 Ports (USB01)

LAN Port

ACT/LINK

LED

SPEED

LED

*** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23)

instead of USB 3.0 ports.

124

English

I/O Panel

4ASRock A75M-ITX Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Pri-

mary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

English

ASRock A75M-ITX Motherboard

English

1. Introduction

Thank you for purchasing ASRock A75M-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A75M-ITX Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock A75M-ITX Quick Installation Guide

ASRock A75M-ITX Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x 3.5mm Audio Cable (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

6ASRock A75M-ITX Motherboard

English

1.2 Specifications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Support for Socket FM1 100W processors

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3)

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/

1066/800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Dual VGA Output: support HDMI and D-Sub ports by

independent display controllers

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 5)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with HDMI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with HDMI port

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

ASRock A75M-ITX Motherboard

English

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 4 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 6)

SATA3 - 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

USB 3.0 - 4 x USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA3 6.0Gb/s connectors

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5

Trial, ASRock Software Suite (CyberLink DVD Suite - OEM

and Trial; ASRock MAGIX Multimedia Suite - OEM)

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 7)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 8)

- ASRock APP Charger (see CAUTION 9)

8ASRock A75M-ITX Motherboard

English

- ASRock SmartView (see CAUTION 10)

- ASRock XFast USB (see CAUTION 11)

- ASRock XFast LAN (see CAUTION 12)

- ASRock On/Off Play Technology (see CAUTION 13)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 14)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

ASRock A75M-ITX Motherboard

English

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®64-bit OS with 64-bit CPU, there is no such

limitation.

4. The maximum shared memory size is deﬁned by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

5. xvYCC and Deep Color are only supported under Windows®7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows®7 64-bit / 7 / VistaTM 64-bit /

VistaTM.

6. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

7. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control and IES. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the fan speed

and temperature for you to adjust. In IES (Intelligent Energy Saver), the

voltage regulator can reduce the number of output phases to improve

efficiency when the CPU cores are idle without sacrificing computing

performance. Please visit our website for the operation procedures of

ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

8. ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁrst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional ﬂoppy diskette or other complicated ﬂash utility. Please

be noted that the USB ﬂash drive or hard drive must use FAT32/16/12 ﬁle

system.

10 ASRock A75M-ITX Motherboard

English

9. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solu-

tion for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

10. SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your OS

version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your browser

version is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

11. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

12. ASRock XFast LAN provides a faster internet access, which includes be-

low beneﬁts. LAN Application Prioritization: You can conﬁgure your appli-

cation priority ideally and/or add new programs. Lower Latency in Game:

After setting online game priority higher, it can lower the latency in game.

Traffic Shaping: You can watch Youtube HD video and download files

simultaneously. Real-Time Analysis of Your Data: With the status window,

you can easily recognize which data streams you are currently transfer-

ring.

13. ASRock On/Off Play Technology allows users to enjoy the great audio ex-

perience from the portable audio devices, such like MP3 player or mobile

phone to your PC, even when the PC is turned off (or in ACPI S5 mode)!

This motherboard also provides a free 3.5mm audio cable (optional) that

ensures users the most convenient computing environment.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

Autres manuels pour A75M-ITX

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 990FX Extreme9 Manuel utilisateur

ASROCK

ASROCK B560M Manuel utilisateur

ASROCK

ASROCK Fatality X370 Manuel utilisateur

ASROCK

ASROCK N73PV-S - V 1-0 - 11-2008 Manuel utilisateur

ASROCK

ASROCK Z590 EXTREME Manuel utilisateur

ASROCK

ASROCK H610M-HVS Manuel utilisateur

ASROCK

ASROCK Z77M Manuel utilisateur

ASROCK

ASROCK Z97M OC Formula Manuel utilisateur

ASROCK

ASROCK G41MH USB3 Manuel utilisateur

ASROCK

ASROCK B150M-HDV/D3 Manuel utilisateur

ASROCK

ASROCK QC5000-ITX/WiFi Manuel utilisateur

ASROCK

ASROCK Taichi Razer Edition B550 Manuel utilisateur

ASROCK

ASROCK A55M-VS Manuel utilisateur

ASROCK

ASROCK H310M-G/M.2 Manuel utilisateur

ASROCK

ASROCK P43D1600TWINS Manuel utilisateur

ASROCK

ASROCK 970 Pro2 Manuel utilisateur

ASROCK

ASROCK Z87EXTREME11/ac Manuel utilisateur

ASROCK

ASROCK G41M-PS Manuel utilisateur

ASROCK

ASROCK AD425PV3 Manuel utilisateur

ASROCK

ASROCK IMB-781 Manuel utilisateur

ASROCK

ASROCK N68PV-GS Manuel utilisateur

ASROCK

ASROCK IMB-790 Manuel d'utilisation et d'entretien

ASROCK

ASROCK 760GM-GS3 Manuel utilisateur

ASROCK

ASROCK H310CM-HDV Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
