2ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

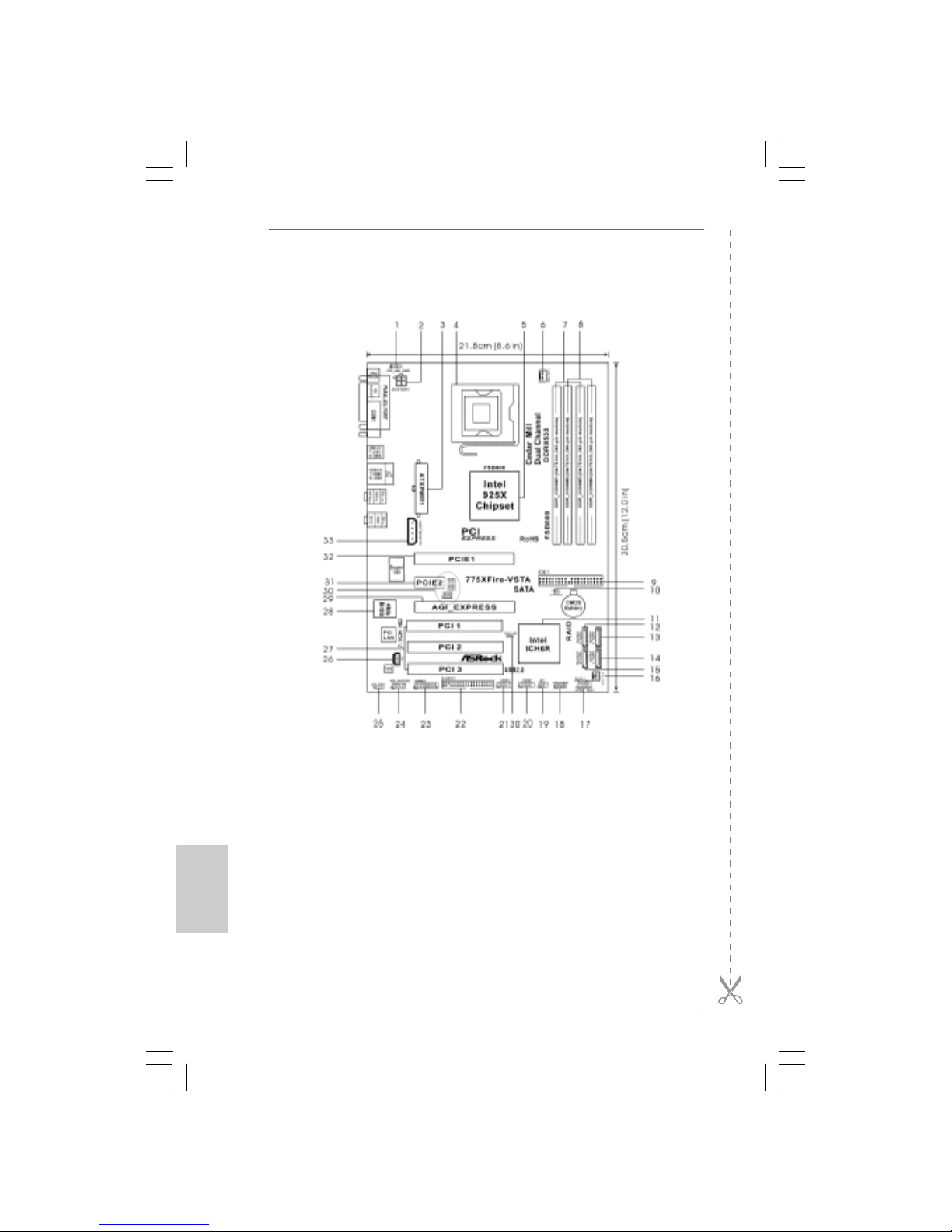

1 PS2_USB_PWR1 Jumper 17 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 18 Chassis Speaker Header (SPEAKER 1)

3 ATX Power Connector (ATXPWR1) 19 Infrared Module Connector (IR1)

4 775-Pin CPU Socket 20 USB 2.0 Header (USB67, Blue)

5 North Bridge Controller 21 USB 2.0 Header (USB45, Blue)

6 CPU Fan Connector (CPU_FAN1) 22 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDRII DIMM Slots 23 Game Port Header (GAME1)

(Dual Channel A: DDRII_1,DDRII_3; Yellow) 24 Front Panel Audio Header (HD_AUDIO1)

8 2 x 240-pin DDRII DIMM Slots 25 HDMI_SPDIF Header (HDMI_SPDIF1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 26 Internal Audio Connector: CD1 (Black)

9 IDE1 Connector (IDE1, Blue) 27 PCI Slots (PCI1- 3)

10 Clear CMOS Jumper (CLRCMOS1) 28 BIOS FWH Chip

11 South Bridge Controller 29 AGI Express Slot (PCI Express x4)

12 Serial ATA Connector 2 (SATA_2, black) 30 PCIEX1_EN1-5

13 Serial ATA Connector 3 (SATA_3, black) 31 PCI Express x1 Slot (PCIE2)

14 Serial ATA Connector 1 (SATA_1, blue) 32 PCI Express x16 Slot (PCIE1)

15 Serial ATA Connector 0 (SATA_0, blue) 33 SLI / XFIRE Power Connector

16 Chassis Fan Connector (CHA_FAN1)

ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

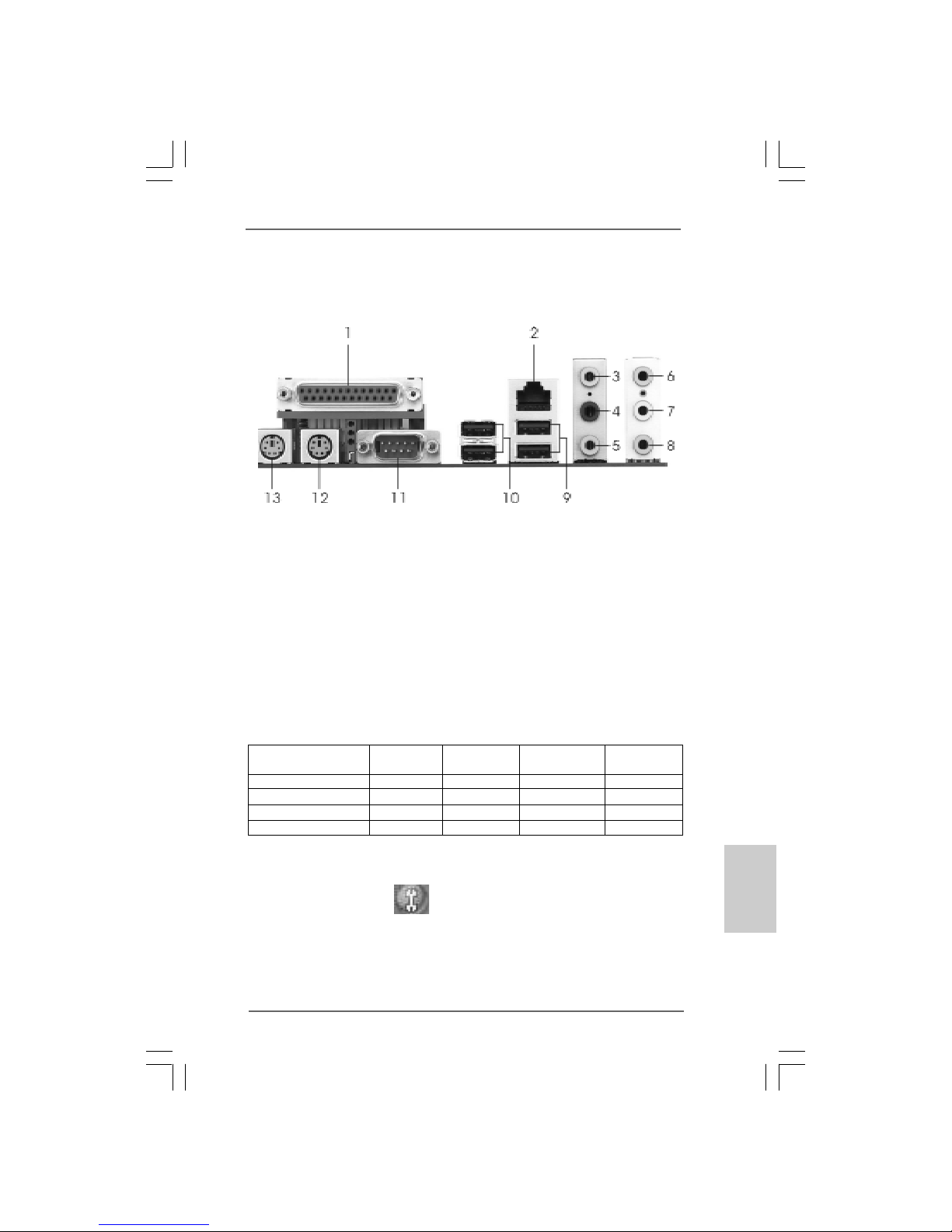

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

4ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775XFire-VSTA motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 775XFire-VSTA Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock 775XFire-VSTA Quick Installation Guide

ASRock 775XFire-VSTA Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneHDMI_SPDIFCable(Optional)

One HD 8CH I/O Panel Shield

ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU - LGA 775 for Intel®Pentium®4 / Celeron®D, supporting Cedar

Mill processors

- FSB 800/533 MHz

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports EM64T CPU

Chipset - Northbridge: Intel®925X chipset

- Southbridge: Intel®ICH6R

Memory - Dual Channel DDRII Memory Technology (see CAUTION 2)

- 4 xDDRIIDIMM slots

- SupportDDRII533

- Max. capacity: 4GB (see CAUTION 3)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 4)

- ASRock U-COP (see CAUTION 5)

- Boot Failure Guard (B.F.G.)

Expansion Slot - Supports ATITM CrossFireTM

- 3 x PCI slots

- 1 x PCI Express x16 slot

- 1 x AGI Express slot (PCI Express x4) (see CAUTION 6)

- 1 x PCI Express x1 slot

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN - Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central Bass/

Line in/Front Speaker/Microphone (see CAUTION 7)

6ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

Connector - 4 x Serial ATA 1.5Gb/s connectors, support RAID (RAID 0,

RAID1, and Intel Matrix Storage),NCQ,AHCI and “Hot Plug”

functions

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- SLI/XFIRE power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 8)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/

VistaTM 64-bit compliant (see CAUTION 9)

Certifications - FCC, CE, WHQL

ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 41

of “User Manual” in the Support CD.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

3. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®2000, Win-

dows®XP, Windows®XP 64-bit, Windows®VistaTM and Windows®VistaTM

64-bit.

4. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

5. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

6. If you install PCI Express VGA card to AGI Express slot (PCI Express x

4), PCIE2 slot (PCIE x1) function will be disabled. For the information of

the compatible PCI ExpressVGA cards, please refer to the “Supported PCI

Express VGA Card List forAGI Express Slot (PCI Express x4)” on page 9.

For the proper installation of PCI Express VGA card, please refer to the

installation guide on page 15.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

9. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

8ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium and Basic LogoPremium and Basic Logo

Premium and Basic LogoPremium and Basic Logo

Premium and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium and Basic logo, please follow the

below table for minimum hardware requirement.

CPU Celeron D 326

Memory 512MB Single Channel

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

1.41.4

1.4 Supported PCI Express VGA Card List for AGISupported PCI Express VGA Card List for AGI

Supported PCI Express VGA Card List for AGISupported PCI Express VGA Card List for AGI

Supported PCI Express VGA Card List for AGI

Express Slot (PCI Express x4)Express Slot (PCI Express x4)

Express Slot (PCI Express x4)

(for Windows®2000/XP/XP 64-bit/VistaTM/VistaTM 64-bit)

Graphics Chip Model Name Chipset Name

Vendor

NVIDIA

ATI

For the latest updates of the supported PCI Express VGA card list for AGI Express

slot (PCI Express x4), please visit our website for details.

ASRock website: http://www.asrock.com/support/index.htm

ASUS Extreme N6200GE/TD GeForce 6200

ASUS ExtremeN6200TC256/TD GeForce 6200

ASUS ExtremeN6800/TD GeForce 6800

ASUS Extreme N6800GT GeForce 6800GT

ASUS Extreme 7800GTX/ GeForce 7800GTX

2DHTV/256M

Albatron PC6600GT GeForce 6600GT

Gigabyte GV-NX66128D GeForce 6600

Inno3D GeFORCE 6600 LE GeForce 6600LE

Leadtek PX6200 TC/TDH GeForce 6200TC

MSIPCX 5750-TD128E GeForce PCX5750

Sparkle GeFORCE 6200TC GeForce 6200TC

ASUS ExtremeAX600XT/HTVD RADEON X600XT

ASUS ExtremeAX700PRO/TVD RADEON X700PRO

GecubeRadeon X850XT 256M RADEON X850XT

GecubeRX1300PG2-D3/256M RADEON X1300PRO

Gecube RX1600XTG3-D3/256M RADEON X1600XT

MSIRX1300GPRO-TD256E RADEON X1300 PRO

MSIRX1600GPRO-TD256E X1600PRO

1010

10 ASRock 775XFire-VSTA Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

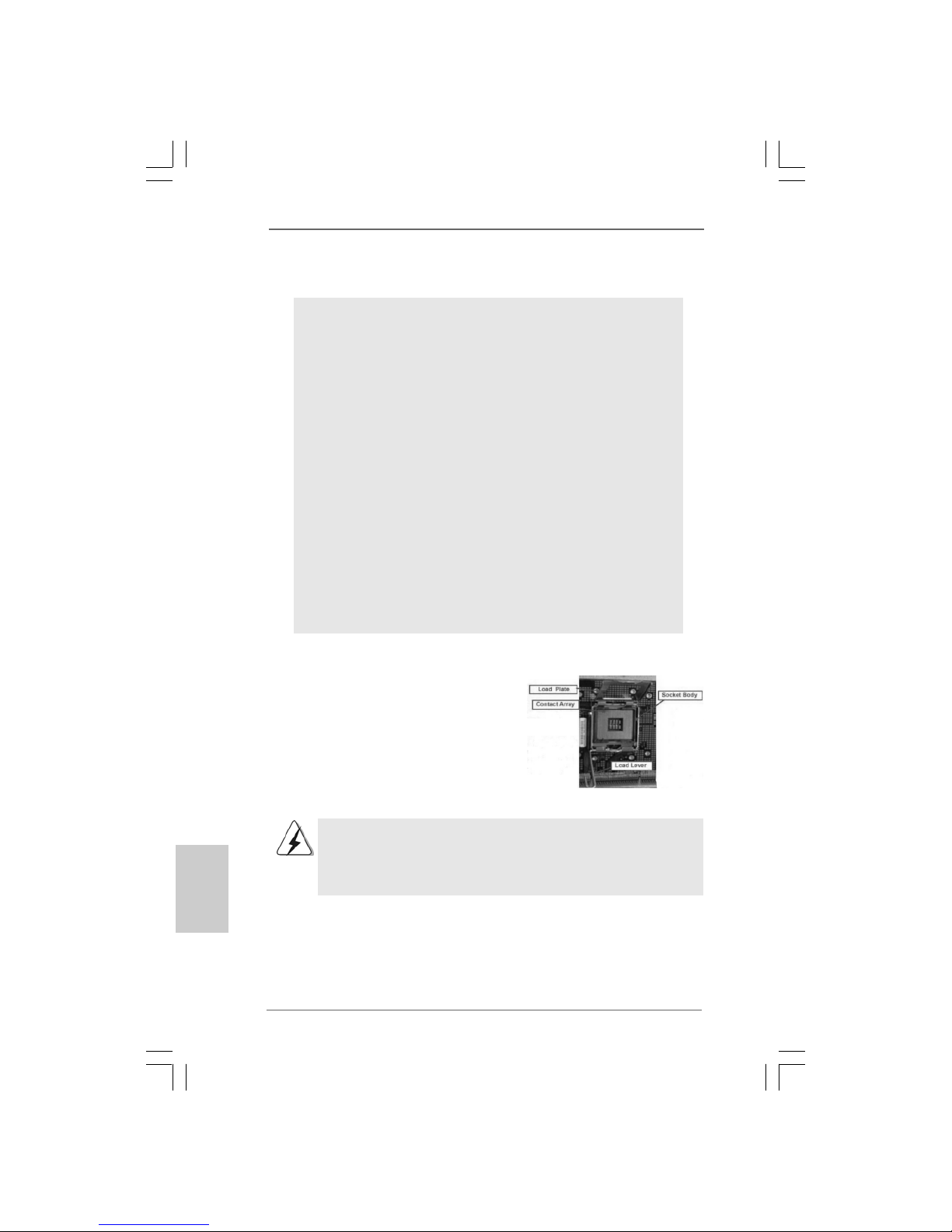

775-Pin Socket Overview

Autres manuels pour 775XFire-VSTA

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK N68-S UCC - Manuel utilisateur

ASROCK

ASROCK 775i65PE Manuel utilisateur

ASROCK

ASROCK 4Core1333-eSATA2 Manuel utilisateur

ASROCK

ASROCK P4S61 Manuel utilisateur

ASROCK

ASROCK B650 PG LIGHTNING Manuel utilisateur

ASROCK

ASROCK H61M - ANNEXE 392 Manuel utilisateur

ASROCK

ASROCK GE PRO-HT R3.0 Manuel utilisateur

ASROCK

ASROCK M3A785GM-LE/128M Manuel utilisateur

ASROCK

ASROCK H110TM-ITX Manuel utilisateur

ASROCK

ASROCK K7VM2 Manuel utilisateur

ASROCK

ASROCK A230GC - V1.0 Manuel utilisateur

ASROCK

ASROCK H110M-HDV R3.0 Manuel utilisateur

ASROCK

ASROCK M810LMR Manuel utilisateur

ASROCK

ASROCK Q2900M Manuel utilisateur

ASROCK

ASROCK H77M-ITX Manuel utilisateur

ASROCK

ASROCK C226 WS Manuel utilisateur

ASROCK

ASROCK B250M DASH Manuel utilisateur

ASROCK

ASROCK IMB-A1000 Manuel de service

ASROCK

ASROCK B75M-GL R2.0 Manuel utilisateur

ASROCK

ASROCK P45DE3 Manuel utilisateur

ASROCK

ASROCK B560 PRO4 Manuel utilisateur

ASROCK

ASROCK H77WS-DL Manuel utilisateur

ASROCK

ASROCK IMB-390-L Manuel de service

ASROCK

ASROCK E3C226D2I Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
