ASRock 775i65PE-M Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

PublishedNovember 2004

2ASRock 775i65PE-M Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

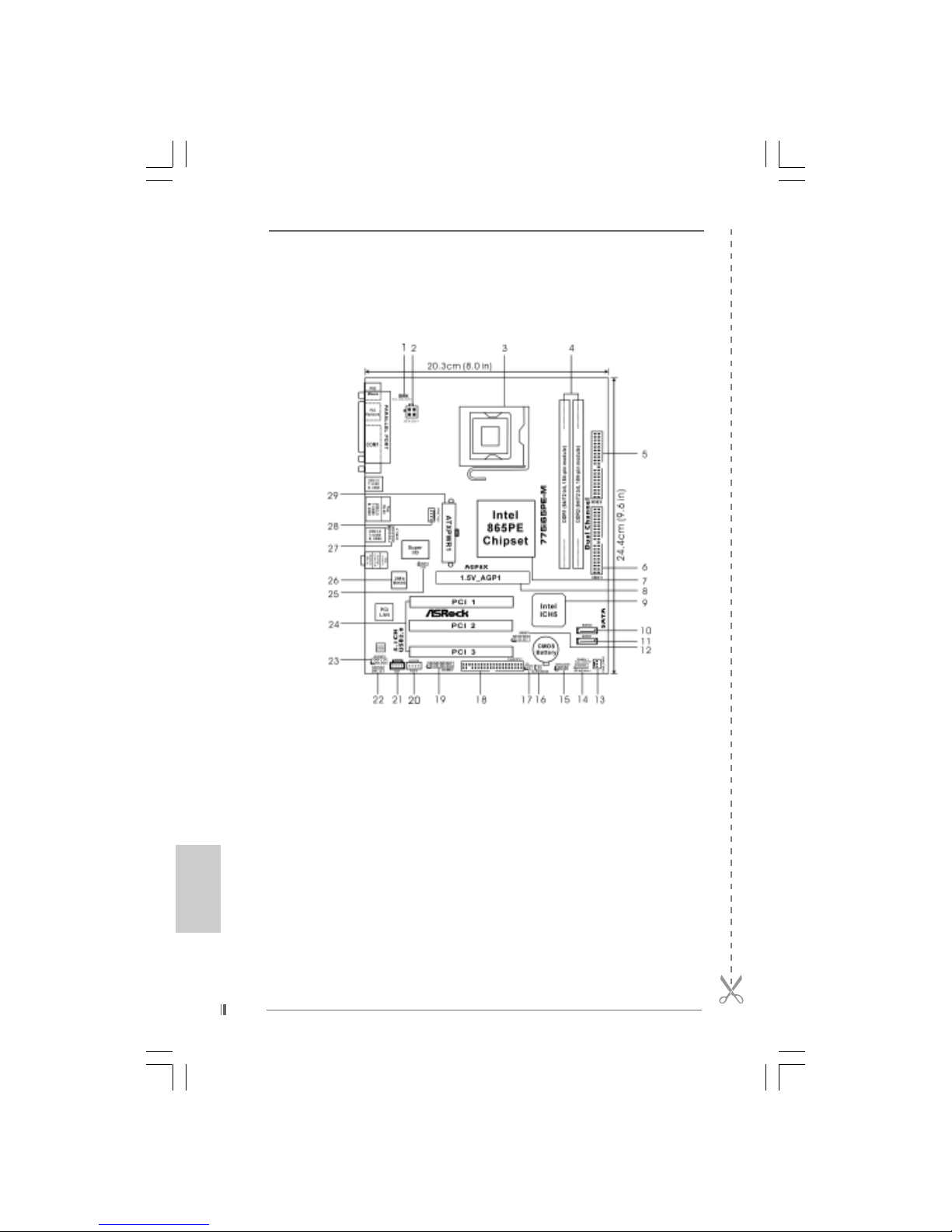

1 PS2_USB_PWR1 Jumper 16 Clear CMOS Jumper (CLRCMOS0)

2 ATX 12V Connector (ATX12V1) 17 Infrared Module Header (IR1)

3 775-Pin CPU Socket 18 Floppy Connector (FLOPPY1)

4 184-pin DDR DIMM Slots (DDR1- 2) 19 Game Port Connector (GAME1)

5 Secondary IDE Connector (IDE2, Black) 20 Internal Audio Connector: AUX1 (White)

6 Primary IDE Connector (IDE1, Blue) 21 Internal Audio Connector: CD1 (Black)

7 North Bridge Controller 22 JR1 / JL1 Jumpers

8 AGP Slot (1.5V_AGP1) 23 Front Panel Audio Header (AUDIO1)

9 South Bridge Controller 24 PCI Slots (PCI1- 3)

10 Secondary Serial ATA Connector (SATA2) 25 FSB Select Jumper (FSB_SEL1)

11 Primary Serial ATA Connector (SATA1) 26 BIOS FWH Chip

12 USB 2.0 Header (USB67, Blue) 27 Shared USB 2.0 Header (USB4_5, Blue)

13 Chassis Fan Connector (CHA_FAN1) 28 CPU Fan Connector (CPU_FAN1)

14 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

15 Chassis Speaker Header (SPEAKER 1)

ASRock 775i65PE-M Motherboard

EnglishEnglish

English

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

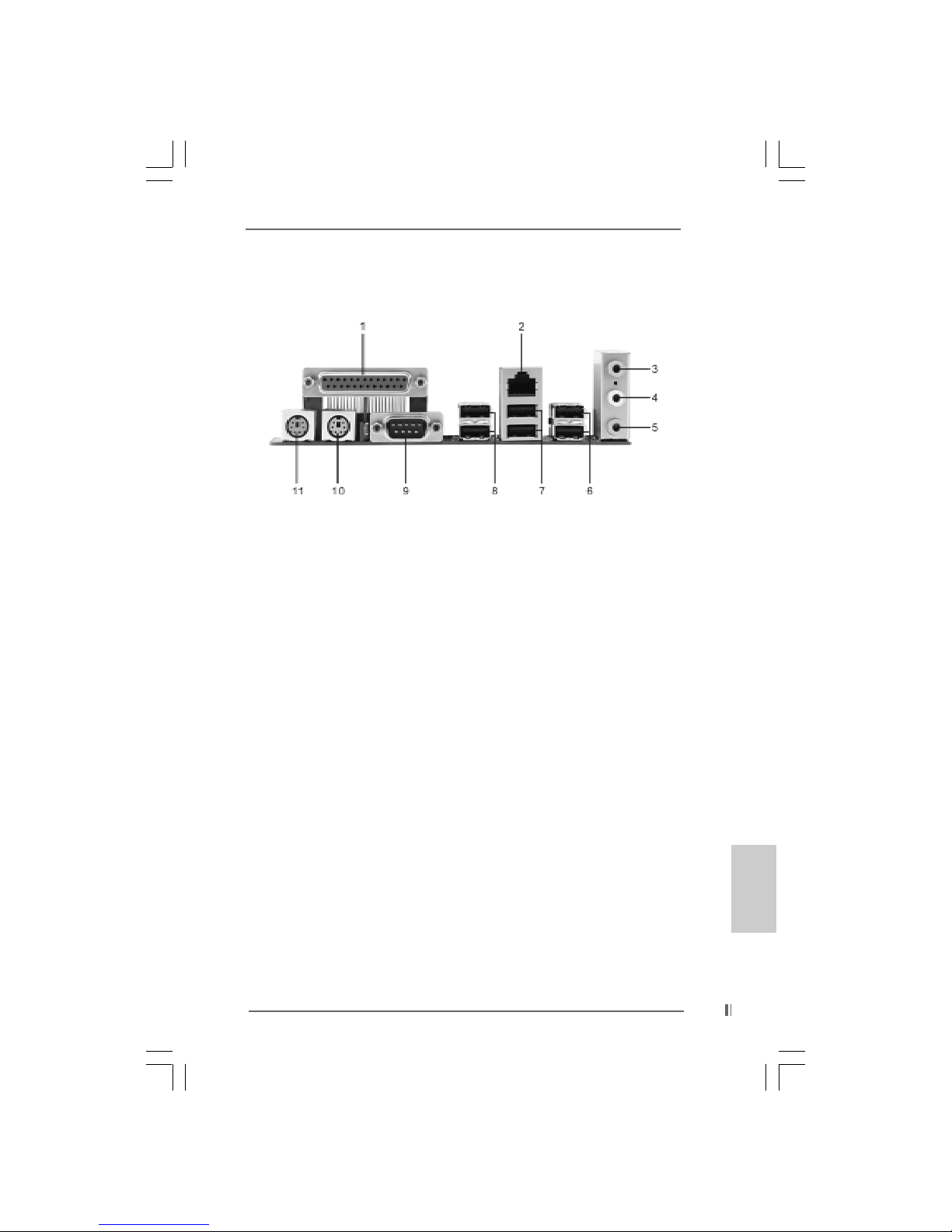

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

4ASRock 775i65PE-M Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775i65PE-M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest memory and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 775i65PE-M Motherboard

(Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)

ASRock 775i65PE-M Quick InstallationGuide

ASRock 775i65PE-M Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

ASRock 775i65PE-M Motherboard

EnglishEnglish

English

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: MicroATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

CPU: 775-Pin Socket

Supporting Intel®Pentium® 4 / Celeron®processor (in 775-land

LGA package)

Chipsets: North Bridge:

Intel®865PE chipset, FSB @ 800 / 533MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel®ICH5, supports SATA 1.5Gb/s

Memory: 2DDRDIMMslots:DDR1 andDDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB (see CAUTION 2)

Dual Channel Memory Technology support (see CAUTION 3)

IDE: IDE1:ATA100 / UltraDMAMode 5

IDE2:ATA100 / UltraDMAMode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate

(Not Support “RAID and “Hot Plug” functions)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 4),

CPU fan tachometer,

Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 3 PCI slots with PCI Specification 2.3

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 5)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus two headers to support 2 additional USB 2.0 ports

(see CAUTION 6)

ASRock I/O PlusTM:1 PS/2 mouse port,

1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ 45 port,

6ASRock 775i65PE-M Motherboard

EnglishEnglish

English

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI legal BIOS,

Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

Supports jumperfree,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 7)

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper ThreadingTechnology”, please check page 24

in the support CD.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

3. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 10 for proper installation.

4. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

5. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

6. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME.

7. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

ASRock 775i65PE-M Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

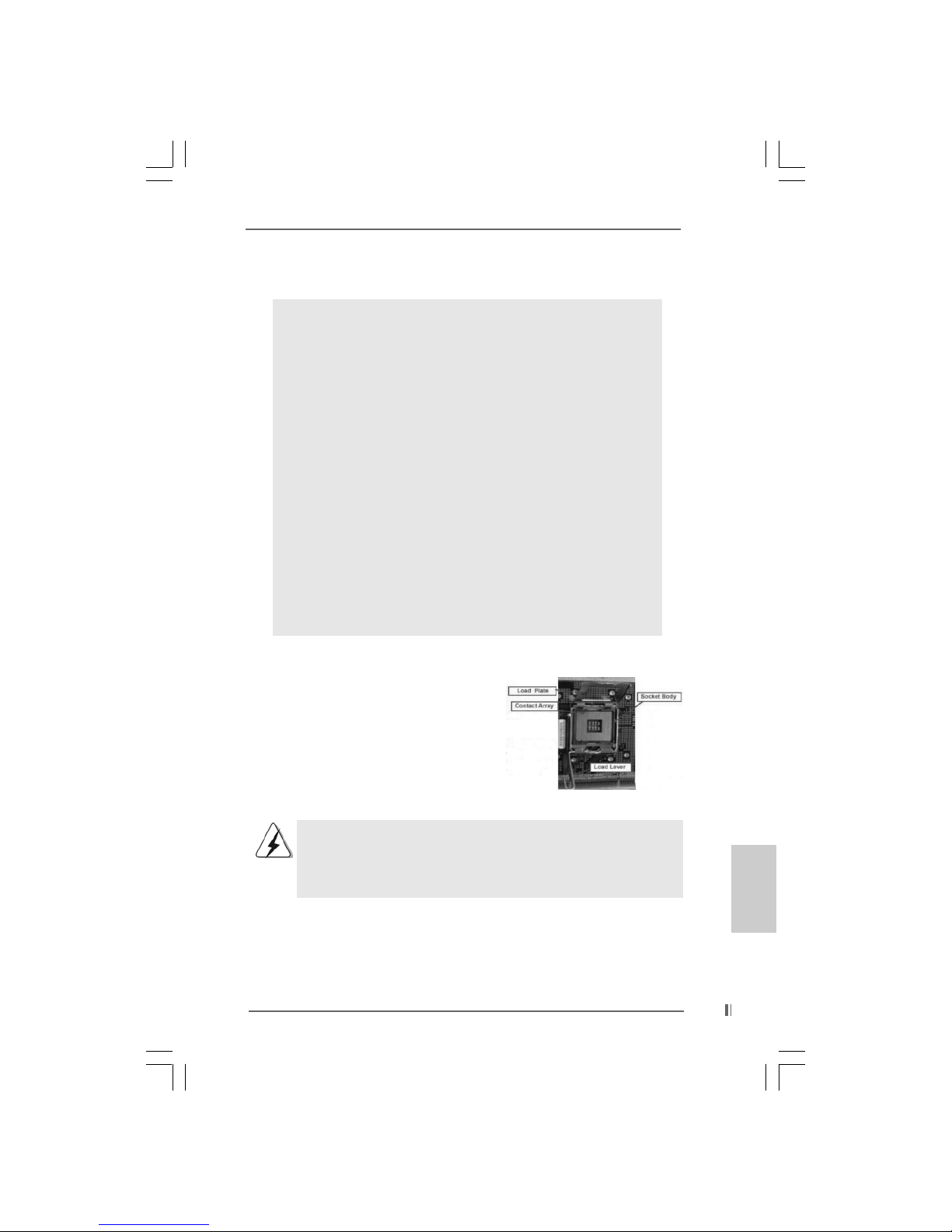

775-Pin Socket Overview

8ASRock 775i65PE-M Motherboard

EnglishEnglish

English

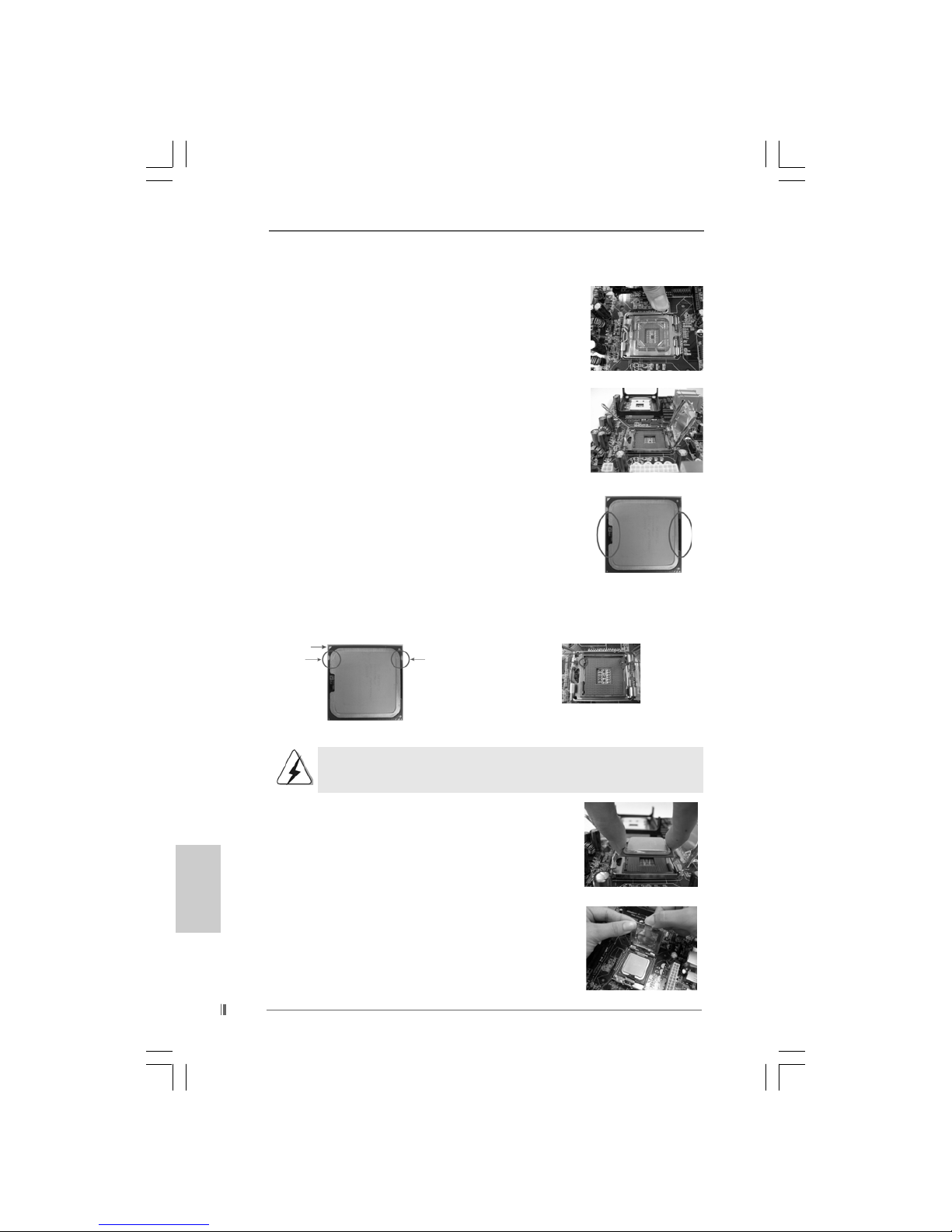

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

ASRock 775i65PE-M Motherboard

EnglishEnglish

English

It is recommended to use the cap tab to handle and avoid kicking off

the PnP cap.

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS.

Step 4-2. While pressing down lightly on load

plate, engage the load lever.

Step 4-3. Secure load lever with load plate tab

under retention tab of load lever.

2.22.2

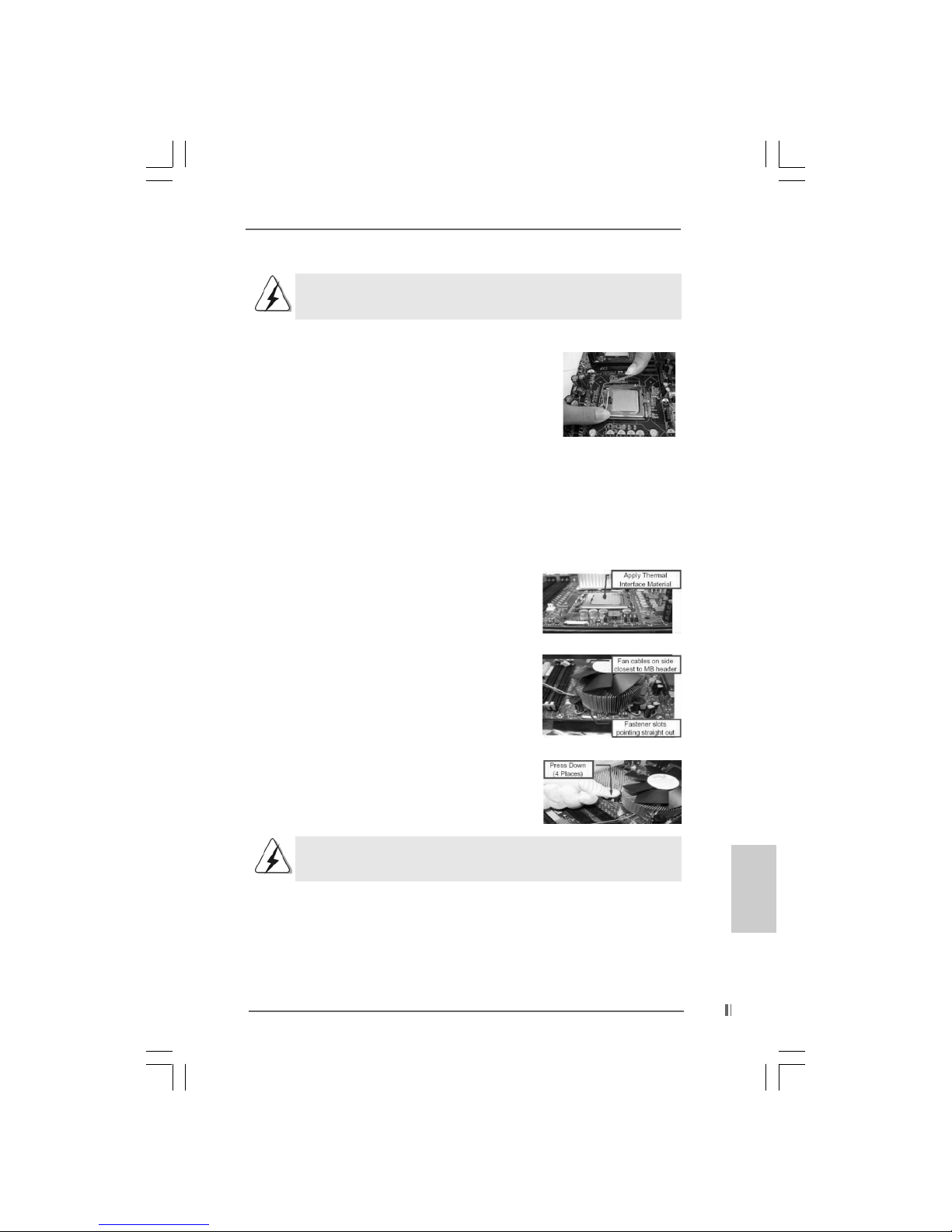

2.2 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU fan

and heatsink.

Below is an example to illustrate the installation of the heatsink for 775-LANDCPU.

Step 1. Apply thermal interface material onto center

of IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard

(CPU_FAN1, see page 2,No. 28).

Step 3. Align fasteners with the motherboard

throughholes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise,

the heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan

connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure

cable does not interfere with fan operation or

contact other components.

1010

10 ASRock 775i65PE-M Motherboard

EnglishEnglish

English

2.32.3

2.3 Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)Installation of Memory Modules (DIMM)

Installation of Memory Modules (DIMM)

775i65PE-M motherboard provides two 184-pinDDR (DoubleData Rate)DIMM slots.

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

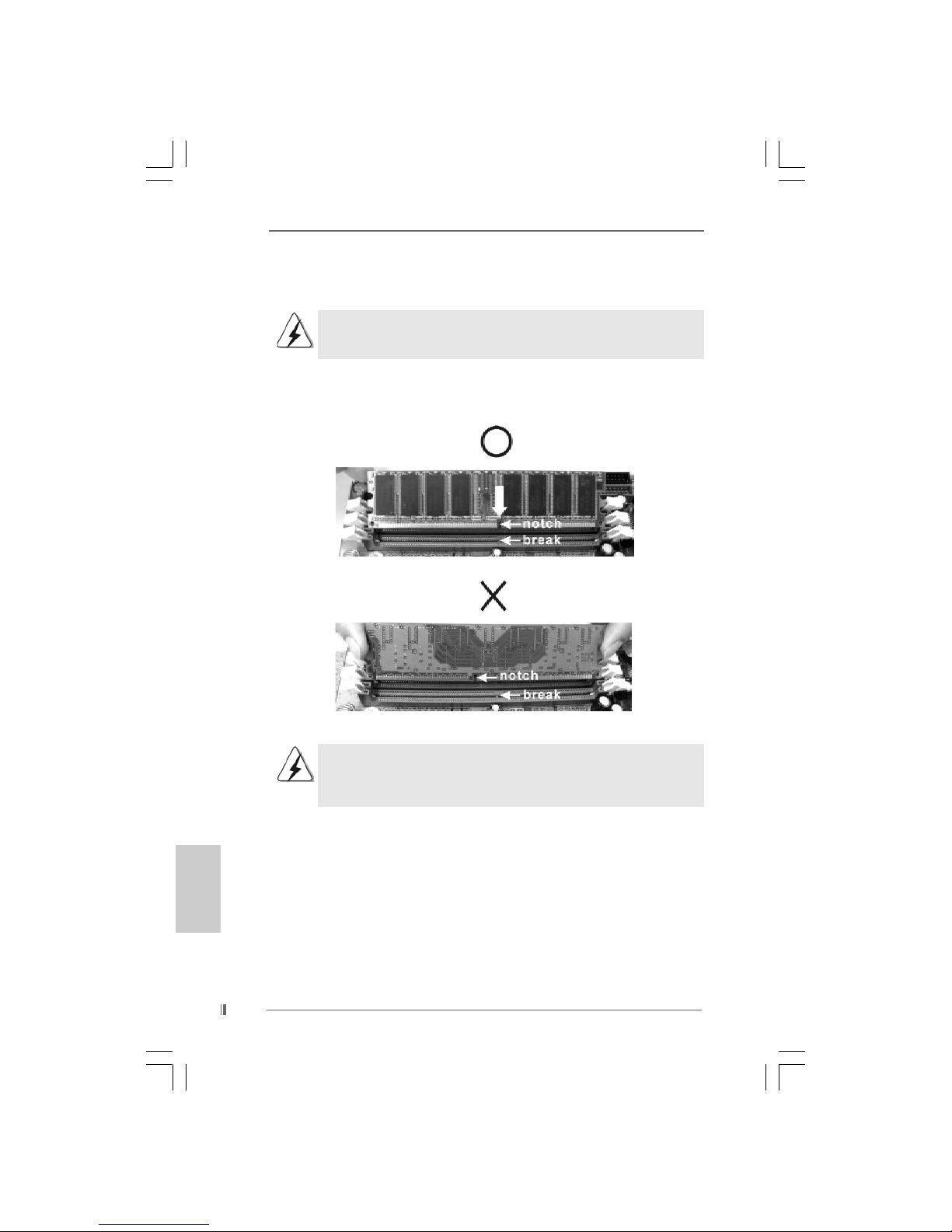

Step 1. Unlock aDIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on theDIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and theDIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully

snap back in place and theDIMM is properly seated.

Autres manuels pour 775I65PE-M

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK P4VX4 Manuel utilisateur

ASROCK

ASROCK K10N78HSLI-GLAN Manuel utilisateur

ASROCK

ASROCK Z690 Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK 4CORE1333-GLAN/M Manuel utilisateur

ASROCK

ASROCK SBC-220A Manuel utilisateur

ASROCK

ASROCK B450D4U-V1L Manuel utilisateur

ASROCK

ASROCK H61M-DGS Manuel utilisateur

ASROCK

ASROCK H81M-HDS Manuel utilisateur

ASROCK

ASROCK EP2C622D24LM Manuel utilisateur

ASROCK

ASROCK G41M-S3 Manuel utilisateur

ASROCK

ASROCK 870 EXTREME3 Manuel utilisateur

ASROCK

ASROCK SBC-230-WT Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN/M Manuel utilisateur

ASROCK

ASROCK 770DE3L - AMD RAID Manuel utilisateur

ASROCK

ASROCK Fatal1ty X470 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK ALIVENF6G-GLAN Manuel utilisateur

ASROCK

ASROCK P4I45E R3.0 Manuel utilisateur

ASROCK

ASROCK B75 Pro3-M/MVP Manuel utilisateur

ASROCK

ASROCK 939Dual-VSTA Manuel utilisateur

ASROCK

ASROCK B85 Pro4 Manuel utilisateur

ASROCK

ASROCK N68C-GS FX Manuel utilisateur

ASROCK

ASROCK 960GM/U3S3 FX Manuel utilisateur

ASROCK

ASROCK EP2C612D16SM Manuel utilisateur

ASROCK

ASROCK IMB-151 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
