ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

PublishedJanuary2008

2ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

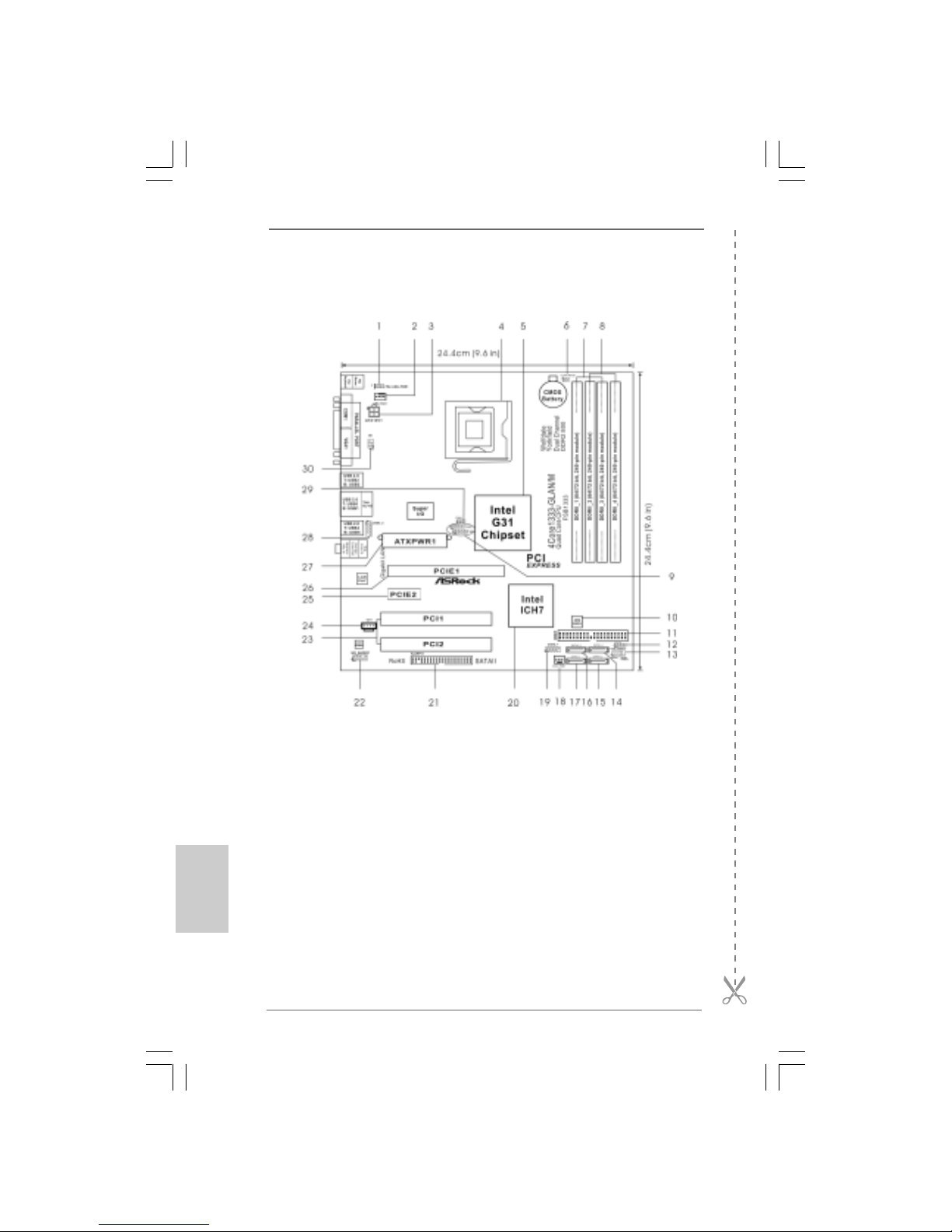

1 PS2_USB_PWR1 Jumper 16 Third SATAII Connector (SATAII_3)

2 CPU Fan Connector (CPU_FAN1) 17 Primary SATAII Connector (SATAII_1)

3 ATX 12V Connector (ATX12V1) 18 Chassis Fan Connector (CHA_FAN1)

4 775-Pin CPU Socket 19 USB 2.0 Header (USB6_7, Blue)

5 North Bridge Controller 20 South Bridge Controller

6 Clear CMOS Jumper (CLRCMOS1) 21 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDR2 DIMM Slots 22 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 PCI Slots (PCI1 - 2)

8 2 x 240-pin DDR2 DIMM Slots 24 Internal Audio Connector: CD1 (Black)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 PCI Express x1 Slot (PCIE2)

9 FSB2 / FSB3 Jumpers 26 PCI Express x16 Slot (PCIE1)

10 Flash Memory 27 ATX Power Connector (ATXPWR1)

11 IDE1 Connector (IDE1, Blue) 28 Shared USB 2.0 Header (USB4_5, Blue)

12 Chassis Speaker Header (SPEAKER 1) 29 FSB1 Jumper

13 System Panel Header (PANEL1) 30 DeskExpress Hot Plug Detection Header

14 Fourth SATAII Connector (SATAII_4) (IR1)

15 Secondary SATAII Connector (SATAII_2)

ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

ASRock 6CH I/O PlusASRock 6CH I/O Plus

ASRock 6CH I/O PlusTMTM

TMTM

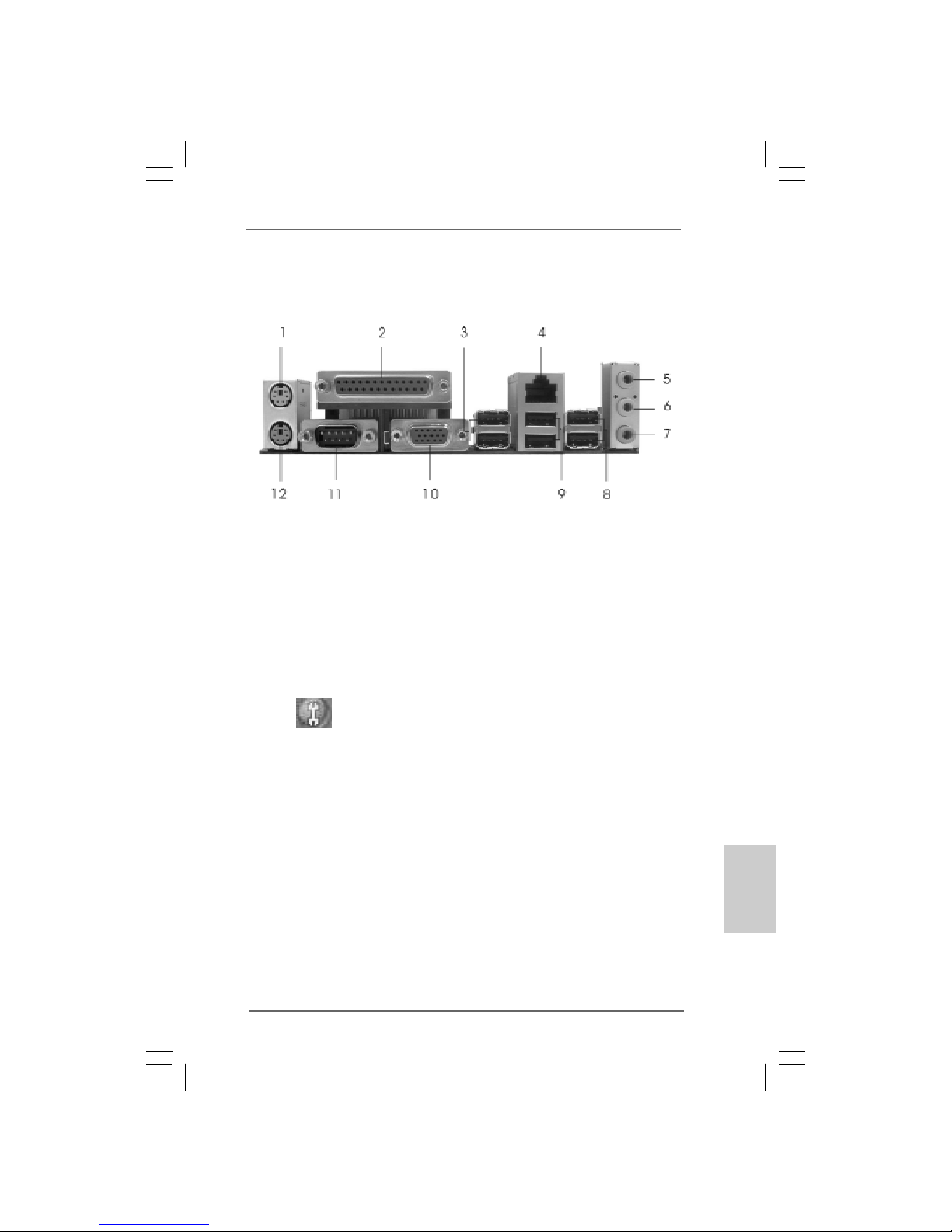

1 PS/2 Mouse Port (Green) 7 Microphone (Pink)

2 Parallel Port 8 Shared USB 2.0 Ports (USB45)

3 USB 2.0 Ports (USB23) 9 USB 2.0 Ports (USB01)

4 RJ-45 Port 10 VGA Port

5 Line In (Light Blue) 11 COM Port

6 Line Out (Lime) 12 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 4Core1333-GLAN/M motherboard, a reliable

motherboard produced underASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming toASRock’s commitment to qual-

ity and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock 4Core1333-GLAN/M Motherboard

(MicroATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

ASRock 4Core1333-GLAN/M Quick InstallationGuide

ASRock 4Core1333-GLAN/M Support CD

One 80-conductor UltraATA66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in FloppyDrive

One SerialATA(SATA)Data Cable (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One “ASRock 6CH I/O Plus” I/O Panel Shield

ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - MicroATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®, supporting Quad Core

Yorkfield andDual Core Wolfdale processors

- Compatible with all FSB1333/1066/800MHz CPUs

- Supports Hyper-ThreadingTechnology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset -Northbridge: Intel®G31

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDR2 MemoryTechnology (see CAUTION 3)

- 4 xDDR2DIMM slots (see CAUTION 4)

- SupportDDR2 800/667 (see CAUTION 5)

- Max. capacity: 4GB (see CAUTION 6)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 7)

-ASRock U-COP (see CAUTION 8)

- Boot FailureGuard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel®Graphics MediaAccelerator 3100

- Pixel Shader 2.0,DirectX 9.0

- Max. shared memory 384MB (see CAUTION 9)

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(ALC662Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111B/RTL8111C

- Supports Wake-On-LAN

Rear Panel I/O ASRock 6CH I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Line in / Front Speaker / Microphone

6ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

Connector - 4 x SerialATAII 3.0Gb/s connectors (No support for RAIDand

“Hot Plug” functions) (see CAUTION 10)

- 1 xATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 xDeskExpress Hot PlugDetection header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are

shared with USB45 ports on the I/O panel) (see CAUTION 11)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

29 of “User Manual“ in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 21 for details.

3. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 12 for proper

installation.

4. There are memory module installation limitations on this motherboard,

please read “Installation of Memory Modules (DIMM)” on page 12 for

details.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDR2 667, DDR2 800

1066 DDR2 667, DDR2 800

800 DDR2 667, DDR2 800

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

7. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

9. The maximum shared memory size is defined by the chipset vendor

and is subject to change. Please check Intel®website for the latest

information.

10. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 20 to adjust your SATAII hard

disk drive to SATAII mode. You can also connect SATAhard disk to SATAII

connector directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

8ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table forable for

able forable for

able for

WindowsWindows

Windows®®

®®

® VistaVista

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron 420

Memory 512MB x 2 Dual Channel (Premium)

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

VGA DX9.0 with WDDM Driver

* If you plan to use onboard VGA to submit Windows®VistaTM logo, please keep the

default setting of “DVMT Mode Select” option under BIOS.

* If you plan to use external graphics card on this motherboard, please refer to

Premium Discrete requirement at http://www.asrock.com

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM

Premium 2007 logo.

ASRock 4Core1333-GLAN/M Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity,NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

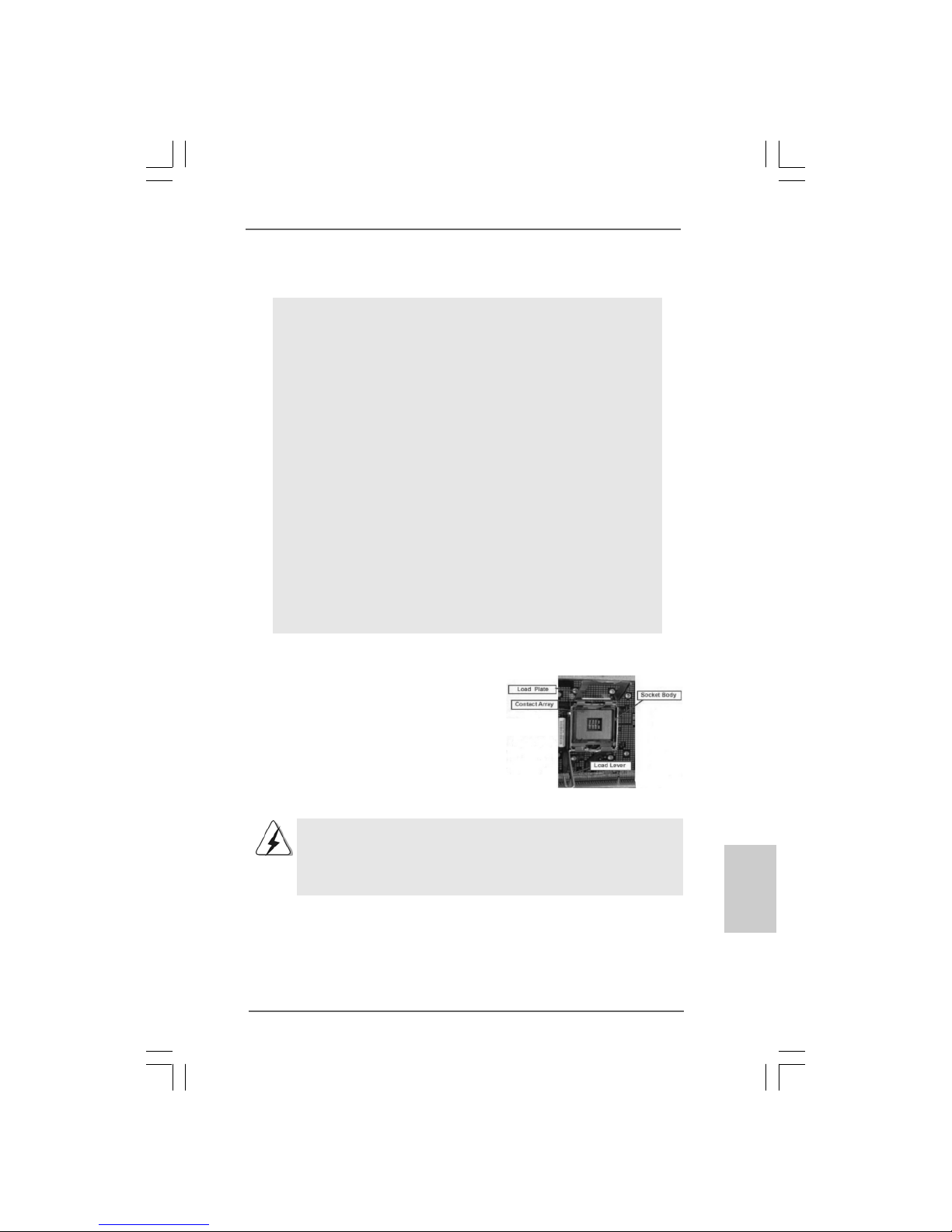

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock 4Core1333-GLAN/M Motherboard

EnglishEnglish

English

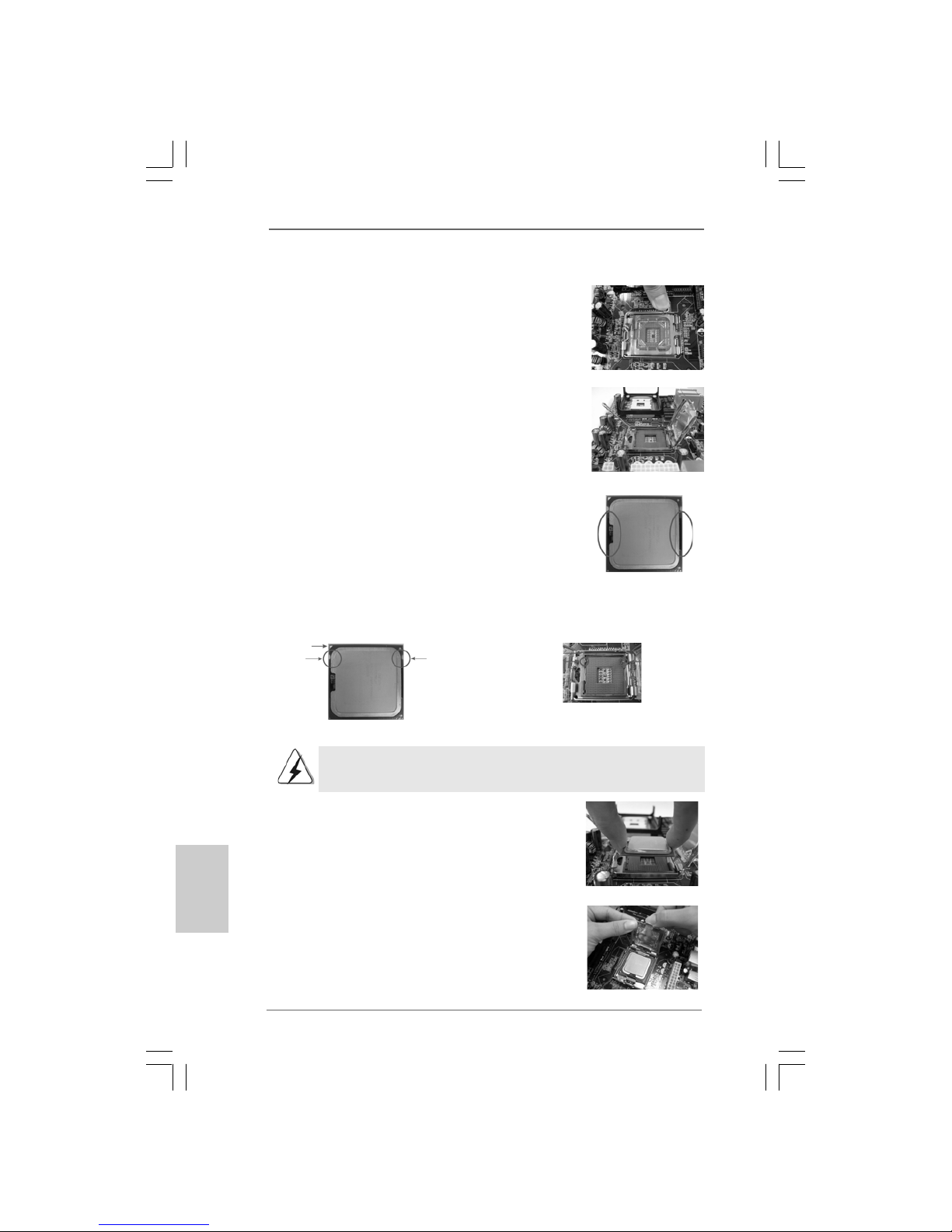

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK IMB-785 Manuel de service

ASROCK

ASROCK H61 Pro BTC Manuel utilisateur

ASROCK

ASROCK FM2A78M-ITX+ Manuel utilisateur

ASROCK

ASROCK B550 Phantom Gaming-ITX/ax Manuel utilisateur

ASROCK

ASROCK H61MV-ITX Manuel utilisateur

ASROCK

ASROCK M3N78D FX Manuel utilisateur

ASROCK

ASROCK 960GM-VGS3 FX Manuel utilisateur

ASROCK

ASROCK H570M Manuel utilisateur

ASROCK

ASROCK FM2A55M-DGS R2.0 Manuel utilisateur

ASROCK

ASROCK AD425PV Manuel utilisateur

ASROCK

ASROCK FM2A88X Pro Manuel utilisateur

ASROCK

ASROCK X99 Extreme6 Manuel utilisateur

ASROCK

ASROCK Z68 Extreme7 Gen3 Manuel utilisateur

ASROCK

ASROCK K7VT2 Manuel utilisateur

ASROCK

ASROCK P67 PROFESSIONAL Manuel utilisateur

ASROCK

ASROCK Z87E-ITX Manuel utilisateur

ASROCK

ASROCK A780FULLHD - V1.0 Manuel utilisateur

ASROCK

ASROCK A320M-ITX Manuel utilisateur

ASROCK

ASROCK Velocita X570 PG Manuel utilisateur

ASROCK

ASROCK X58 EXTREME6 - Manuel utilisateur

ASROCK

ASROCK G41M-VS2 Manuel utilisateur

ASROCK

ASROCK 775XFire-VSTA Manuel utilisateur

ASROCK

ASROCK 890GX Pro3 Manuel utilisateur

ASROCK

ASROCK K10N78D Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
