ASROCK 775Dual-880Pro Manuel utilisateur

ASRock 775Dual-880Pro Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Published January 2006

EnglishEnglish

English

ASRock 775Dual-880Pro Motherboard

Motherboard LMotherboard L

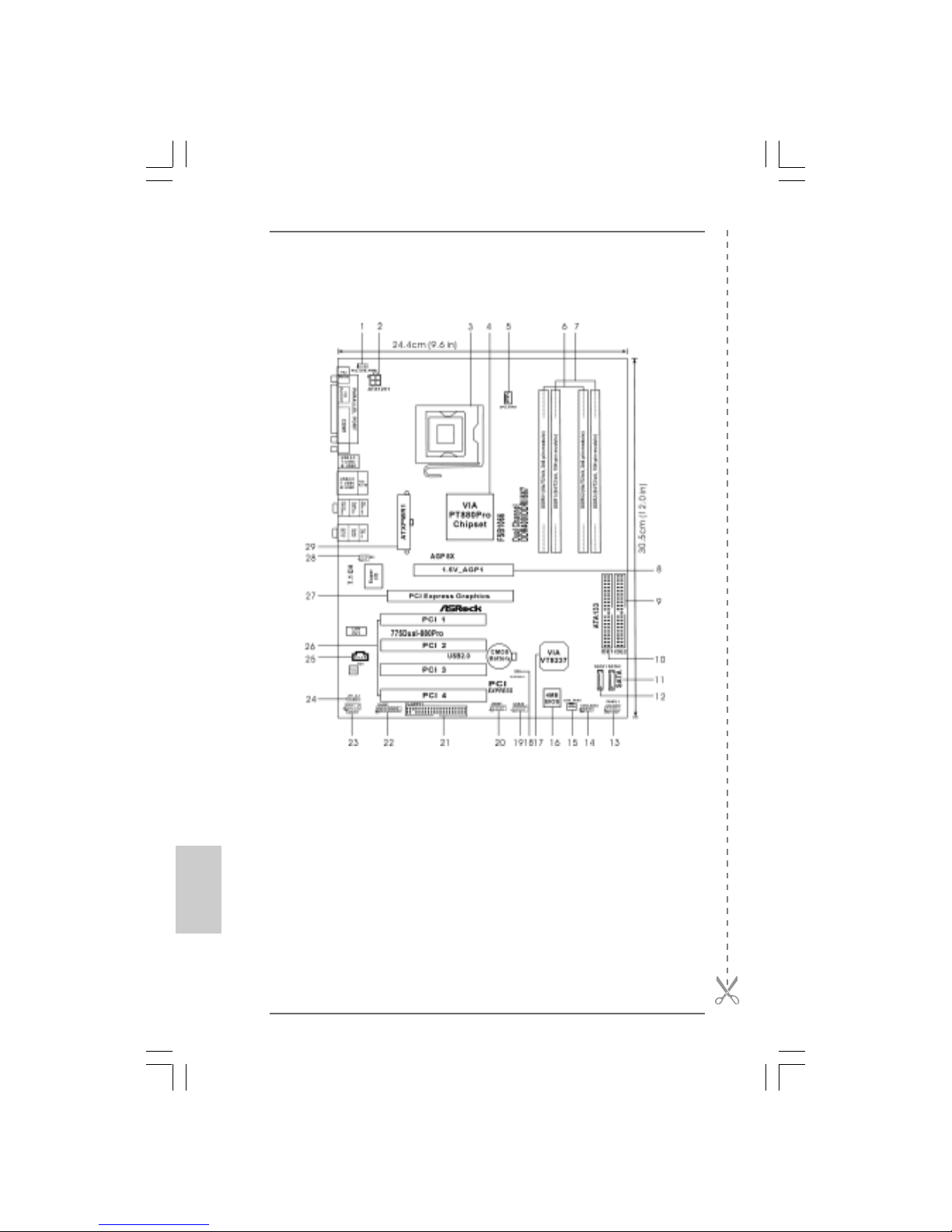

Motherboard Layoutayout

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 16 FlashMemory

3 775-Pin CPU Socket 17 South Bridge Controller

4 North Bridge Controller 18 Clear CMOS Jumper (CLRCMOS1)

5 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB45, Blue)

6 2 x 240-pin DDRII DIMM Slots 20 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDRII1, DDRII2; Yellow) 21 Floppy Connector (FLOPPY1)

7 2 x 184-pin DDR DIMM Slots 22 Game Connector (GAME1)

(Dual Channel B: DDR1, DDR2; Blue) 23 Front Panel Audio Header (AUDIO1)

8 AGP Slot (1.5V_AGP1) 24 JR1 / JL1 Jumpers

9 Secondary IDE Connector (IDE2, Black) 25 Internal Audio Connector: CD1 (Black)

10 Primary IDE Connector (IDE1, Blue) 26 4 x PCI Slots (PCI1- 4)

11 Secondary Serial ATA Connector (SATA2) 27 PCI Express Graphics Slot

12 Primary Serial ATA Connector (SATA1) 28 Infrared Module Header (IR1)

13 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER 1)

ASRock 775Dual-880Pro Motherboard

EnglishEnglish

English

ASRock 8CH I/OASRock 8CH I/O

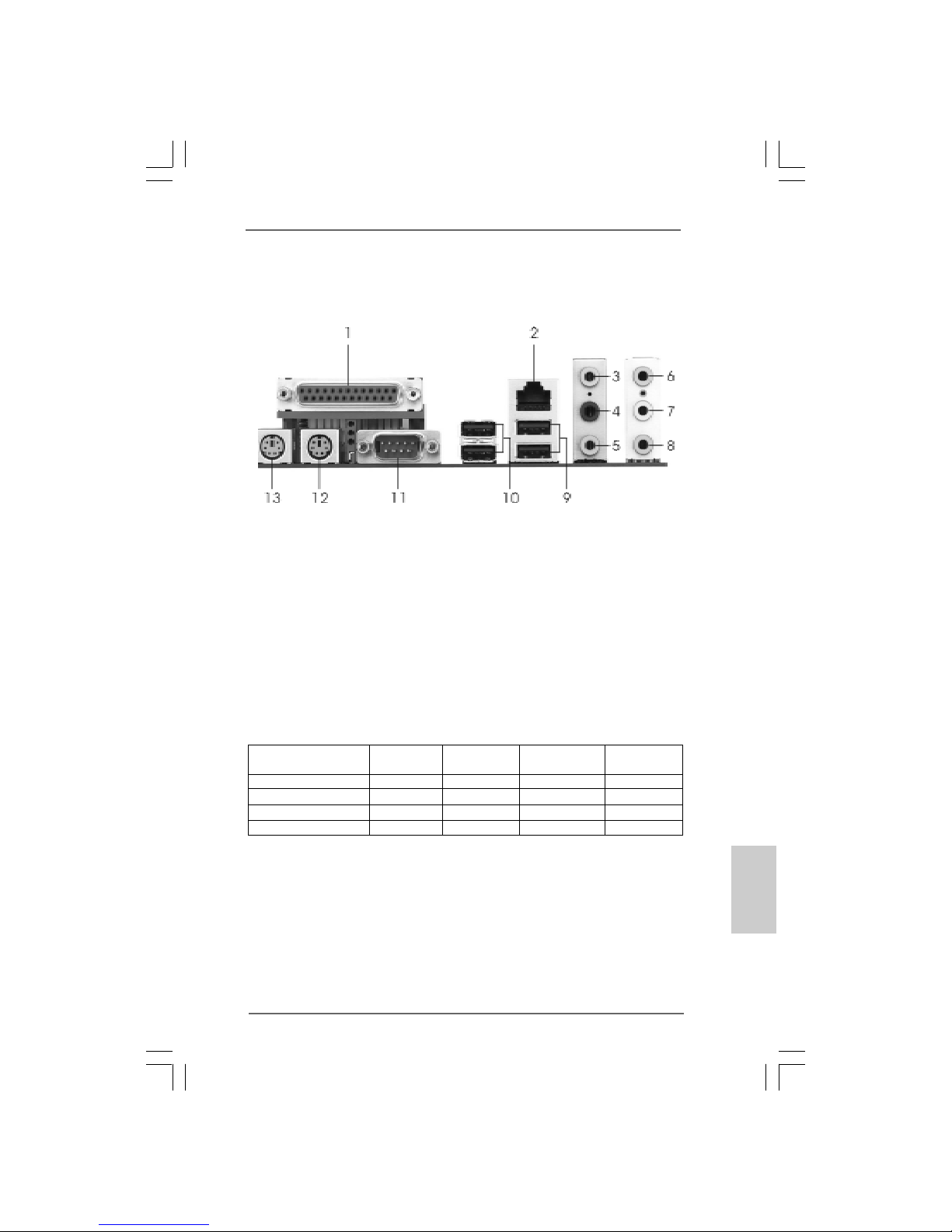

ASRock 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

ASRock 775Dual-880Pro Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775Dual-880Pro motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest memory and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 775Dual-880Pro Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock 775Dual-880Pro Quick InstallationGuide

ASRock 775Dual-880Pro Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock 8CH I/O

EnglishEnglish

English

ASRock 775Dual-880Pro Motherboard

EnglishEnglish

English

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

CPU: 775-Pin Socket

supporting Intel®Pentium® 4 / Celeron®processor (in 775-land

LGA package)

Chipsets: North Bridge:

VIA PT880Pro, FSB @ 1066/800/533 MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

VIA VT8237, supports USB 2.0, ATA 133, SATA 1.5Gb/s

Memory: 2DDRDIMM Slots:DDR1andDDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB

2DDRIIDIMMSlots:DDRII1andDDRII2

supports PCII5300 (DDRII667) / PCII4300 (DDRII533) /

PCII3200 (DDRII400), Max. 2GB (see CAUTION 2)

Dual Channel Memory Technology support (see CAUTION 3)

IDE: IDE1:ATA133 / UltraDMAMode 6

IDE2:ATA133 / UltraDMAMode 6

Supports up to 4 IDE devices

Serial ATA: 2 SATA connectors

Support up to 1.5Gb/s data transfer rate

Floppy Port: Supports up to 2 floppy disk drives

Audio: 7.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing

Chassis temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 4)

CPU fan tachometer

Chassis fan tachometer

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 4 slots with PCI Specification 2.3

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 5)

PCI Express Graphics slot:

1 PCI Express Graphics slot, supports PCI Express x 16

Graphics Card (see CAUTION 6)

ASRock 775Dual-880Pro Motherboard

EnglishEnglish

English

USB 2.0: 8 USB 2.0 ports:

include 4 ready-to-use USB 2.0 ports on the rear panel,

plus two on-board headers supporting 4 extra USB 2.0 ports

(see CAUTION 7)

ASRock 8CH I/O: 1 PS/2 Mouse Port, 1 PS/2 Keyboard Port

1 Serial Port: COM1

1 Parallel Port (ECP/EPP Support)

4 Ready-to-Use USB 2.0 Ports

1 RJ-45 Port

Audio Jack: Rear Speaker / Side Speaker / Central/Bass /

Line In / Front Speaker / Microphone

(see CAUTION 8)

BIOS: AMIBIOS

Supports “Plug and Play”

ACPI 1.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3.1 support

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 9)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 31

of “User Manual” in the Support CD.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

1066 DDR266, DDR333, DDR400,

DDRII400, DDRII533, DDRII667

800 DDR266, DDR333, DDR400

DDRII400, DDRII533, DDRII667

533 DDR266, DDR333, DDR400

DDRII400, DDRII533, DDRII667

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

4. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

5. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage! For the information of the compatible

AGP VGA cards, please refer to the “Supported AGP VGA Card List for

ASRock 775Dual-880Pro Motherboard

AGP Slot” on page 8 and 9. For the proper installation of PCI Express VGA

card, please refer to the installation guide on page 16.

6. For the information of the compatible PCI Express VGA cards, please

refer to the “Supported PCI Express VGA Card List for PCI Express

Graphics Slot” on page10. For the proper installation of PCI Express VGA

card, please refer to the installation guide on page 16.

7. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows® 98 /

ME.

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

9. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

EnglishEnglish

English

ASRock 775Dual-880Pro Motherboard

EnglishEnglish

English

1.31.3

1.3 Supported AGP VGA Card List for AGP SlotSupported AGP VGA Card List for AGP Slot

Supported AGP VGA Card List for AGP SlotSupported AGP VGA Card List for AGP Slot

Supported AGP VGA Card List for AGP Slot

(for Windows 2000/Windows XP)

I. AGP 4X

Graphics Chip ModelName

Vendor

n-VIDIA Inno3D GeForce 2 MX 400

ASUS V8170

ASUS V9180 Magic/T

ProLink GeForce 4 MX440

II. AGP 8X

Graphics Chip ModelName

Vendor

n-VIDIA ALBATRONGeForce4 MX-480 Series

ASUSV9280TD

ASUS V9480

AOPENAeolus FX5200-DV128

CHAINTECH A-FX20-N

LEADTEK WINFASTA340TDH

ASUSV9520-X

LEADTEK WinFast A340PRO/TD

ASUS V9560/TD

ALBATRONGeForce FX5600 Series

LEADTEK WinFastA360TD

Inno3D GeForce FX5600

AWIN FX5700-LE

GIGABYTEGV-N57L256D

ProLink GeForceFX 5700LE

ASUS V9570/TD

MISFX5700-TD128

PixelViewMGVA-NVGA35BA

CHAINTECH SA5900X

ASUSV9950ULTRA

GIGABYTEGV-N66128DP

LEADTEK WinFast A6600GT/TDH

ALBATRONGeForce 6600GT

Leadtek WinFast A6600 GT TDH

ASUS N6200

LEADTEK WinFast A400TDH

ASUS V9999LE

ASUSV9999ULTRA/2DT

ASRock 775Dual-880Pro Motherboard

EnglishEnglish

English

ATI GigaCube GigaCube-R9200 128M

POWERCOLOR Radeon 9200SE

Connect3D Radeon 9250

POWERCOLOR Radeon 9250

GECUBE Radeon 9250/128M

POWERCOLOR R95V-C3L

Club3D Radeon 9550SE

ASUS A9600SE

SapphireATLANTIS Radeon 9600SE

GECUBE GC-R9600L (SE)

FIC Radeon 9600 PRO

ASUSA9600XT/TVD

SapphireATLANTIS Radeon 9600XT

PowerColorXR97-C3L

PowerColor R98-SC3

Club3D Radeon 9800

ASUSA9800XT

ASUSX800

GEXCUBEGC-RX700PGA-C3

For the latest updates of the supportedAGP VGA card list for AGP slot, please

visit ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

ASRock 775Dual-880Pro Motherboard

1010

EnglishEnglish

English

1.41.4

1.4 Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCISupported PCI Express VGA Card List for PCI

Supported PCI Express VGA Card List for PCI

Express Graphics SlotExpress Graphics Slot

Express Graphics Slot

(for Windows 2000/Windows XP)

For the latest updates of the supported PCI Express VGA card list for PCI

Express Graphics slot, please visit ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

Graphics Chip ModelName

Vendor

n-VIDIA ASUS EN5750

MSIPCX 5750-TD128

ASUS Extreme N5900

SPARKLEGeFORCE 6200TC

LEADTEK PX6200 TC/TDH

ASUS EN6200GE

GIGABYTEGV-NX62128D

ASUS EN6200

ALBATRONPC6600GT

ASUS EN6600

GIGABYTEGV-NX66128D

ASUS EN6800GT

ASUS EN6800

ATI POWERCOLOR X300 SE

ASUSEAX600XT/HTVD

ABITX600XT

ASUSEAX700PRO/TVD

ASUSEAX800XL

MSIX800XT

GECUBEX850XT-VIVO

Autres manuels pour 775Dual-880Pro

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK X99M Extreme4 Manuel utilisateur

ASROCK

ASROCK K7VT4A PRO Manuel utilisateur

ASROCK

ASROCK SP2C741D16HM3 Manuel utilisateur

ASROCK

ASROCK EP2C612D16T-4L Manuel utilisateur

ASROCK

ASROCK A320M-HD Manuel utilisateur

ASROCK

ASROCK Z77 Pro4 Manuel utilisateur

ASROCK

ASROCK J4205-ITX Manuel utilisateur

ASROCK

ASROCK H570M Manuel utilisateur

ASROCK

ASROCK GE PRO-HT Manuel utilisateur

ASROCK

ASROCK B75M-ITX Manuel utilisateur

ASROCK

ASROCK 760GM-GS3 Manuel utilisateur

ASROCK

ASROCK B75M Manuel utilisateur

ASROCK

ASROCK A790GMH128M-832 - Manuel utilisateur

ASROCK

ASROCK Z790 PG SONIC Manuel utilisateur

ASROCK

ASROCK P5B-DE Manuel utilisateur

ASROCK

ASROCK B460M-HDV Manuel utilisateur

ASROCK

ASROCK Z77 Extreme11 Manuel utilisateur

ASROCK

ASROCK H61ICAFE Manuel utilisateur

ASROCK

ASROCK P4VM900-SATA2 - V1.0 Manuel utilisateur

ASROCK

ASROCK 870iCafe Manuel utilisateur

ASROCK

ASROCK 4Core1600-DVI Manuel utilisateur

ASROCK

ASROCK G41M-S3 Manuel utilisateur

ASROCK

ASROCK 760GM-GS3 - V1.0 Manuel utilisateur

ASROCK

ASROCK P67 PRO3 - Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
