GE Pro-HT

GE Pro-M2

User Manual

Version 3.0

Published July 2003

This Manual: http://www.manuallib.com/file/2630978

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

ASRock Website: http://www.asrock.com

This Manual: http://www.manuallib.com/file/2630978

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout (GE Pro-HT) .................................. 7

1.4 Motherboard Layout (GE Pro-M2) .................................. 8

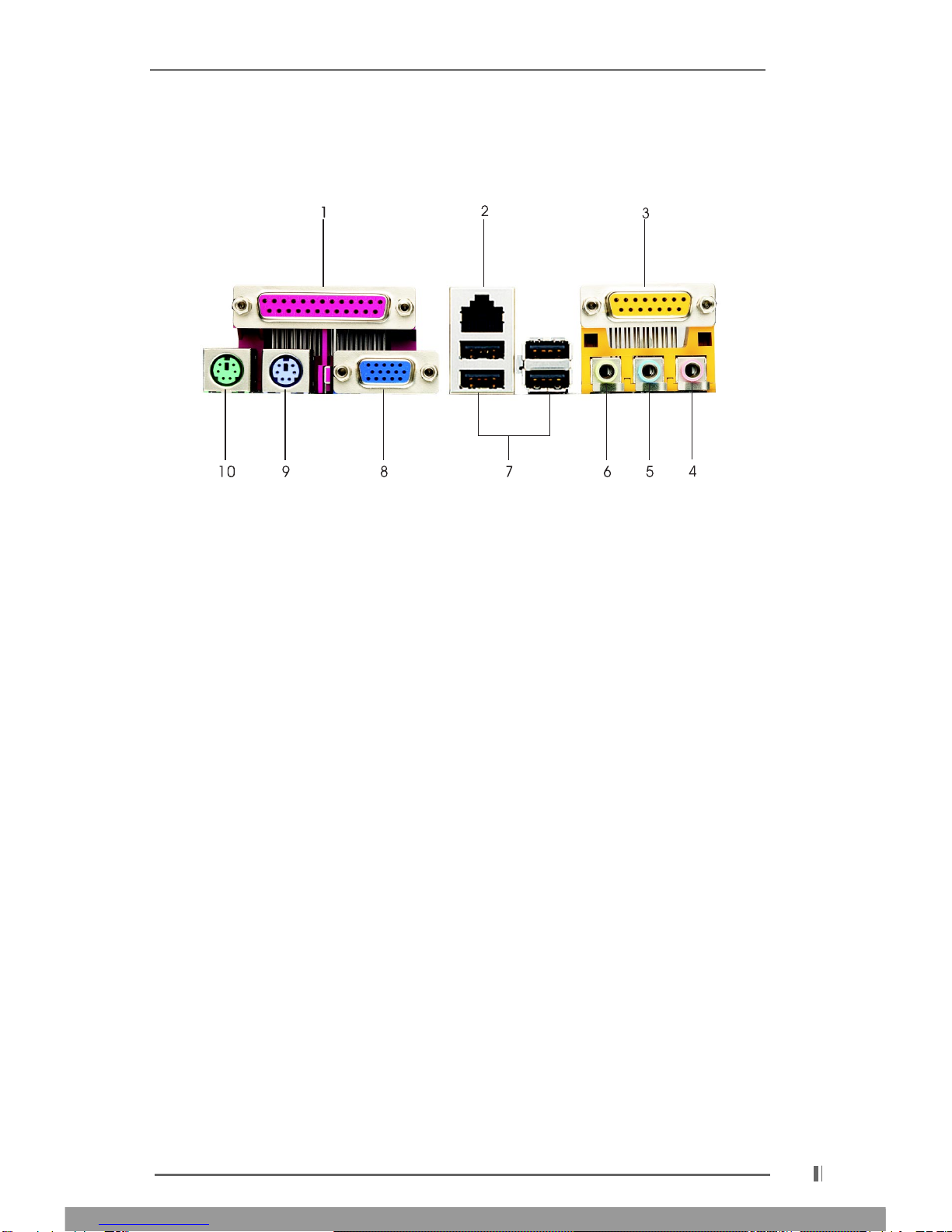

1.5 ASRock I/OTM (GE Pro-HT / GE Pro-M2) .......................... 9

2 Installation ...................................................... 10

2.1 Screw Holes ................................................................... 10

2.2 Pre-installation Precautions ............................................ 10

2.3 CPU Installation ............................................................... 11

2.4 Installation of Heatsink and CPU fan .............................. 11

2.5 Installation of Memory Modules (DIMM) .......................... 12

2.6 Expansion Slots .............................................................. 12

2.7 Jumpers Setup ................................................................ 13

2.8 Connectors ..................................................................... 14

3 BIOS Setup ...................................................... 16

3.1 BIOS Setup Utility ............................................................ 16

3.1.1 BIOS Menu Bar ..................................................... 16

3.1.2 Legend Bar ........................................................... 16

3.2 Main Menu ....................................................................... 17

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 19

4 Software Support ........................................... 20

4.1 Installing Operating System ............................................ 20

4.2 Support CD Information ................................................... 20

4.2.1 Running Support CD ............................................. 20

4.2.2 Drivers Menu ........................................................ 20

4.2.3 Utilities Menu ......................................................... 20

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 20

4.2.5 Contact Information............................................... 20

Appendix ........................................................... 21

1. Advanced Menu ............................................................. 21

2. Security Menu ................................................................. 25

3. Power Menu ................................................................... 26

4. Boot Menu ....................................................................... 27

5. Exit Menu ......................................................................... 28

This Manual: http://www.manuallib.com/file/2630978

Chapter 1 Introduction

Thank you for purchasing ASRock GE Pro-HT / GE Pro-M2 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and Support CD information.

For advanced users’ reference, the Appendix appearing on page 21 offers more

advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock GE Pro-HT or GE Pro-M2 motherboard

(Micro ATX form factor: 9.6" x 7.5", 24.4 x 19.1 cm)

ASRock GE Pro-HT / GE Pro-M2 Quick Installation Guide

ASRock Intel-SiS Support CD

1 cable for IDE devices (1 x ATA 66 / 100 / 133)

1 cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1 COM port bracket

1 ASRock MR card (Optional)

This Manual: http://www.manuallib.com/file/2630978

1.2 Specifications

Platform: Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm)

CPU: Socket 478 for Intel®Pentium®4 / Celeron®processor

Chipsets: North Bridge (GE Pro-HT):

SiS 651 chipset, FSB @ 533/400MHz,

supports Hyper-Threading Technology (see CAUTION 1);

North Bridge (GE Pro-M2):

SiS 533/333 chipset, FSB @ 533/400MHz;

South Bridge: SiS 962L chipset, supports USB 2.0, ATA 133

VGA: SiS Real 256E, 4MB-64MB VRAM (share memory)

Memory: 2DDRDIMM slots:DDRDIMM1 andDDRDIMM2

support PC1600 (DDR200) / PC2100 (DDR266) /

PC2700 (DDR333), Max. 2GB;

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life (ASRock U-COP)

(see CAUTION 2);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 universal AGP slot, AGP 2.0 compliant,

supports 3.3V / 1.5V, 4X / 2X / 1X AGP card

AMR slot: 1 slot, supports ASRock MR card (Optional)

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for 2 additional

USB 2.0 ports upgrade (see CAUTION 3)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 VGA port; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out/ Line In/ Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree; SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

This Manual: http://www.manuallib.com/file/2630978

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 21.

2. While CPU overheat is detected, the system will automatically shutdown.

Please check if the CPU fan on the motherboard functions properly before

you resume the system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you install the PC

system.

3. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP. It may not work properly under Microsoft®Windows®98/ME/2000.

Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although GE Pro-HT / GE Pro-M2 offers stepless control, it is not

recommended to perform over clocking. When the CPU frequency of

GE Pro-HT / GE Pro-M2 is set to perform over clocking, other clocks, such

as PCI clock, AGP clock and Memory clock will also be overclocked

proportionally. Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or damage the CPU

and the motherboard.

This Manual: http://www.manuallib.com/file/2630978

1.3 Motherboard Layout (GE Pro-HT)

1 PS2_USB_PWR1 Jumper 16 Clear CMOS (CLRCMOS1, solder points)

2 CPU Heatsink Retention Module 17 External Speaker Connector (SPEAKER1)

3 CPU Socket 18 Infrared Module Connector (IR1)

4 CPU Fan Connector (CPU_FAN1) 19 AMR Slot (AMR1)

5 North Bridge Controller 20 Serial Port Connector (COM1)

6 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 Flash Memory

7 Primary IDE Connector (IDE1, Blue) 22 AUDIO CODEC

8 Secondary IDE Connector (IDE2, Black) 23 Front Panel Audio Connector (AUDIO1)

9 Accelerated Graphics Port (AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 JL1 Jumper

11 PCI Slots (PCI 1- 2) 26 Internal Audio Connector: CD1 (Black)

12 USB 2.0 Header (USB45, Blue) 27 Internal Audio Connector: AUX1 (White)

13 Chassis Fan Connector (CHA_FAN1) 28 LAN PHY

14 System Panel Connector (PANEL1) 29 ATX Power Connector (ATXPWR1)

15 Floppy Connector (FLOPPY1)

GE PRO-HT

DDR DIMM1 (64/72 bit, 184-pin module)

DDR DIMM2 (64/72 bit, 184-pin module)

IDE2

IDE1

FLOPPY1

AMR1

COM1

USB45

IR1

SPEAKER1

CHA_FAN1

SiS

962L

CMOS

Battery

PCI 2

PCI 1

Super

I/O

2MB

BIOS

AUDIO1

JR1

JL1

AUDIO

CODEC

PS2_USB_PWR1

SiS

651

Chipset

mPGA478B

ATXPWR1

Mic

GAME AUDIO1

LAN

(optional)

USB 2.0

Ports

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

VGA

Line

Line in

USB 2.0

Ports

AGP1

CPU_FAN1

19.1cm (7.5 in)

24.4cm (9.6 in)

AUX1 CD1

214

5.1CH

PANEL1

HDLED RESET

PLED PWRBTN

LAN

PHY

CLRCMOS1

3 5

151617

1920

This Manual: http://www.manuallib.com/file/2630978

1.4 Motherboard Layout (GE Pro-M2)

1 PS2_USB_PWR1 Jumper 16 Clear CMOS (CLRCMOS1, solder points)

2 CPU Heatsink Retention Module 17 External Speaker Connector (SPEAKER1)

3 CPU Socket 18 Infrared Module Connector (IR1)

4 CPU Fan Connector (CPU_FAN1) 19 AMR Slot (AMR1)

5 North Bridge Controller 20 Serial Port Connector (COM1)

6 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 Flash Memory

7 Primary IDE Connector (IDE1, Blue) 22 AUDIO CODEC

8 Secondary IDE Connector (IDE2, Black) 23 Front Panel Audio Connector (AUDIO1)

9 Accelerated Graphics Port (AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 JL1 Jumper

11 PCI Slots (PCI 1- 2) 26 Internal Audio Connector: CD1 (Black)

12 USB 2.0 Header (USB45, Blue) 27 Internal Audio Connector: AUX1 (White)

13 Chassis Fan Connector (CHA_FAN1) 28 LAN PHY

14 System Panel Connector (PANEL1) 29 ATX Power Connector (ATXPWR1)

15 Floppy Connector (FLOPPY1)

GE PRO-M2

DDR DIMM1 (64/72 bit, 184-pin module)

DDR DIMM2 (64/72 bit, 184-pin module)

IDE1

FLOPPY1

AMR1

COM1

USB45

IR1

SPEAKER1

CHA_FAN1

SiS

962L

CMOS

Battery

PCI 2

PCI 1

Super

I/O

2MB

BIOS

AUDIO1

JR1

JL1

AUDIO

CODEC

PS2_USB_PWR1

SiS

533/333

Chipset

mPGA478B

ATXPWR1

Mic

GAME AUDIO1

LAN

(optional)

USB 2.0

Ports

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

VGA

Line

Line in

USB 2.0

Ports

AGP1

CPU_FAN1

19.1cm (7.5 in)

24.4cm (9.6 in)

AUX1 CD1

214

PANEL1

HDLED RESET

PLED PWRBTN

LAN

PHY

CLRCMOS1

3 5

151617

1920

IDE2

5.1CH

This Manual: http://www.manuallib.com/file/2630978

1.5 ASRock I/OTM (GE Pro-HT / GE Pro-M2)

1 Parallel Port 6 Line Out (Lime)

2 RJ-45 Port 7 USB 2.0 Ports

3 Game Port 8 VGA Port

4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)

5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)

This Manual: http://www.manuallib.com/file/2630978

Autres manuels pour GE PRO-HT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK G41M-VS2 Manuel utilisateur

ASROCK

ASROCK 990FX EXTREME3 Manuel utilisateur

ASROCK

ASROCK P45XE Manuel utilisateur

ASROCK

ASROCK K7NF2-RAID Manuel utilisateur

ASROCK

ASROCK B150M Pro4/Hyper Manuel utilisateur

ASROCK

ASROCK H81M-HDS Manuel utilisateur

ASROCK

ASROCK J5005-ITX Manuel utilisateur

ASROCK

ASROCK B550 PG Velocita Manuel utilisateur

ASROCK

ASROCK 4U8G Series Manuel utilisateur

ASROCK

ASROCK FM2A78M-ITX+ Manuel utilisateur

ASROCK

ASROCK X299 Extreme4 Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN Manuel utilisateur

ASROCK

ASROCK Q170M vPro+ Manuel utilisateur

ASROCK

ASROCK 4CORE1600TWINS-P35D - V1.0 Manuel utilisateur

ASROCK

ASROCK G41M-GS3 Manuel utilisateur

ASROCK

ASROCK B550 Phantom Gaming 4/ac Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK A320M-HDVP Manuel utilisateur

ASROCK

ASROCK ALIVENF6P-VSTA Manuel utilisateur

ASROCK

ASROCK 970 Pro3 R2.0 Manuel utilisateur

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK A88M-G/3.1 Manuel utilisateur

ASROCK

ASROCK H81M BTC Manuel utilisateur

ASROCK

ASROCK H510M-HDV/M.2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
