ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published June 2007

2ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

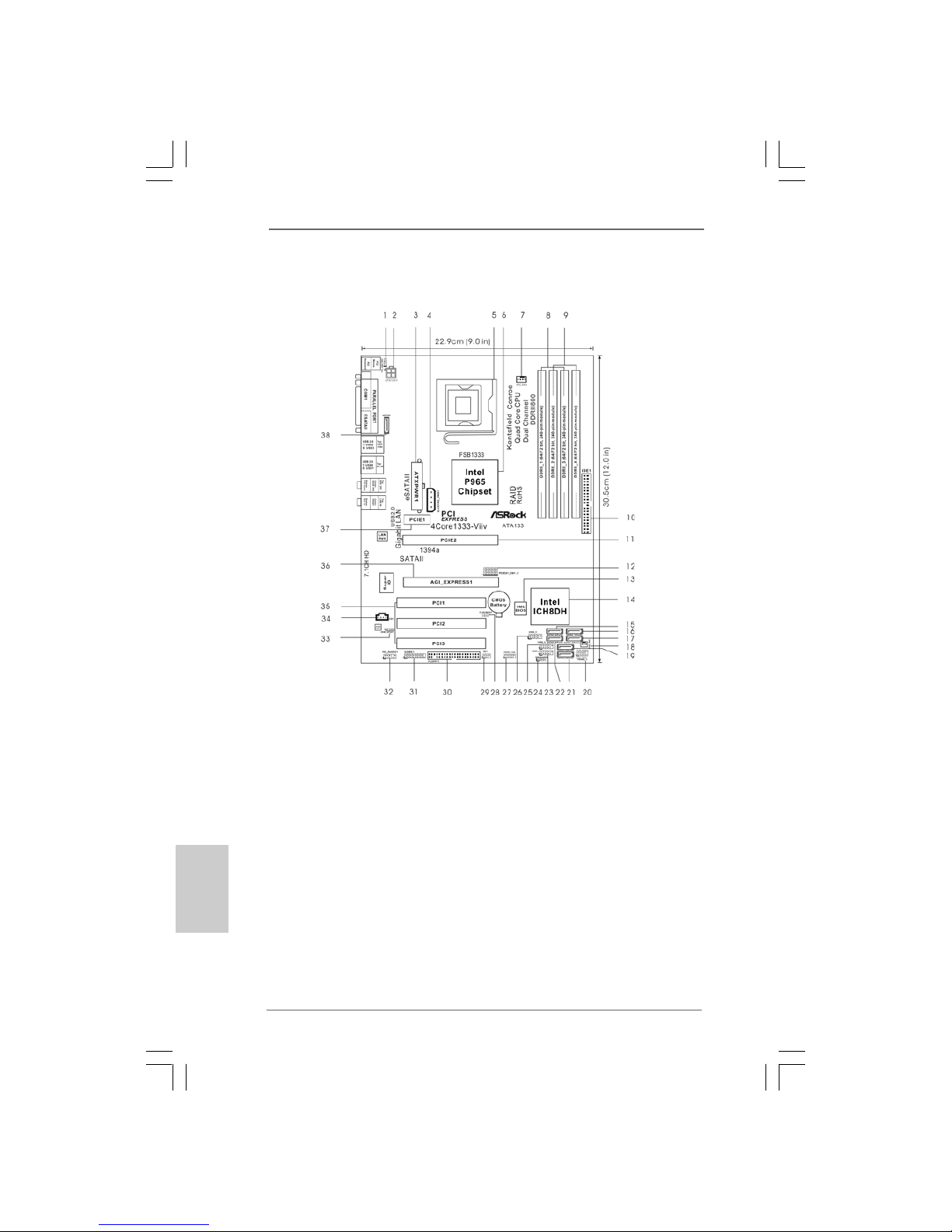

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 20 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 21 SATAII Connector (SATAII_4 (PORT3))

3 ATX Power Connector (ATXPWR1) 22 SATAII Connector (SATAII_6 (PORT5))

4 SLI / XFIRE Power Connector 23 USB 2.0 Header (USB6_7, Blue)

5 775-Pin CPU Socket 24 Chassis Speaker Header (SPEAKER 1)

6 North Bridge Controller 25 USB 2.0 Header (USB8_9, Blue)

7 CPU Fan Connector (CPU_FAN1) 26 USB 2.0 Header (USB4_5, Blue)

8 2 x 240-pin DDRII DIMM Slots 27 Front Panel IEEE 1394 Header (FRONT_1394)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 28 Clear CMOS Jumper (CLRCMOS1)

9 2 x 240-pin DDRII DIMM Slots 29 DeskExpress Hot Plug Detection Header

(Dual Channel B: DDRII_2, DDRII_4; Orange) (IR1)

10 IDE1 Connector (IDE1, Blue) 30 Floppy Connector (FLOPPY1)

11 PCI Express x16 Slot (PCIE2) 31 Game Port Header (GAME1)

12 PCIEX1_EN1 - 5 32 Front Panel Audio Header (HD_AUDIO1)

13 Flash Memory 33 HDMI_SPDIF Header (HDMI_SPDIF1)

14 South Bridge Controller 34 Internal Audio Connector: CD1 (Black)

15 SATAII Connector (SATAII_5 (PORT4)) 35 PCI Slots (PCI1 - 3)

16 SATAII Connector (SATAII_1(PORT0)) 36 AGI Express Slot (PCI Express x4)

17 SATAII Connector (SATAII_2 (PORT1)) 37 PCI Express x1 Slot (PCIE1)

18 Chassis Fan Connector (CHA_FAN1) 38 eSATAII Connector (eSATAII)

19 SATAII Connector (SATAII_3 (PORT2))

ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

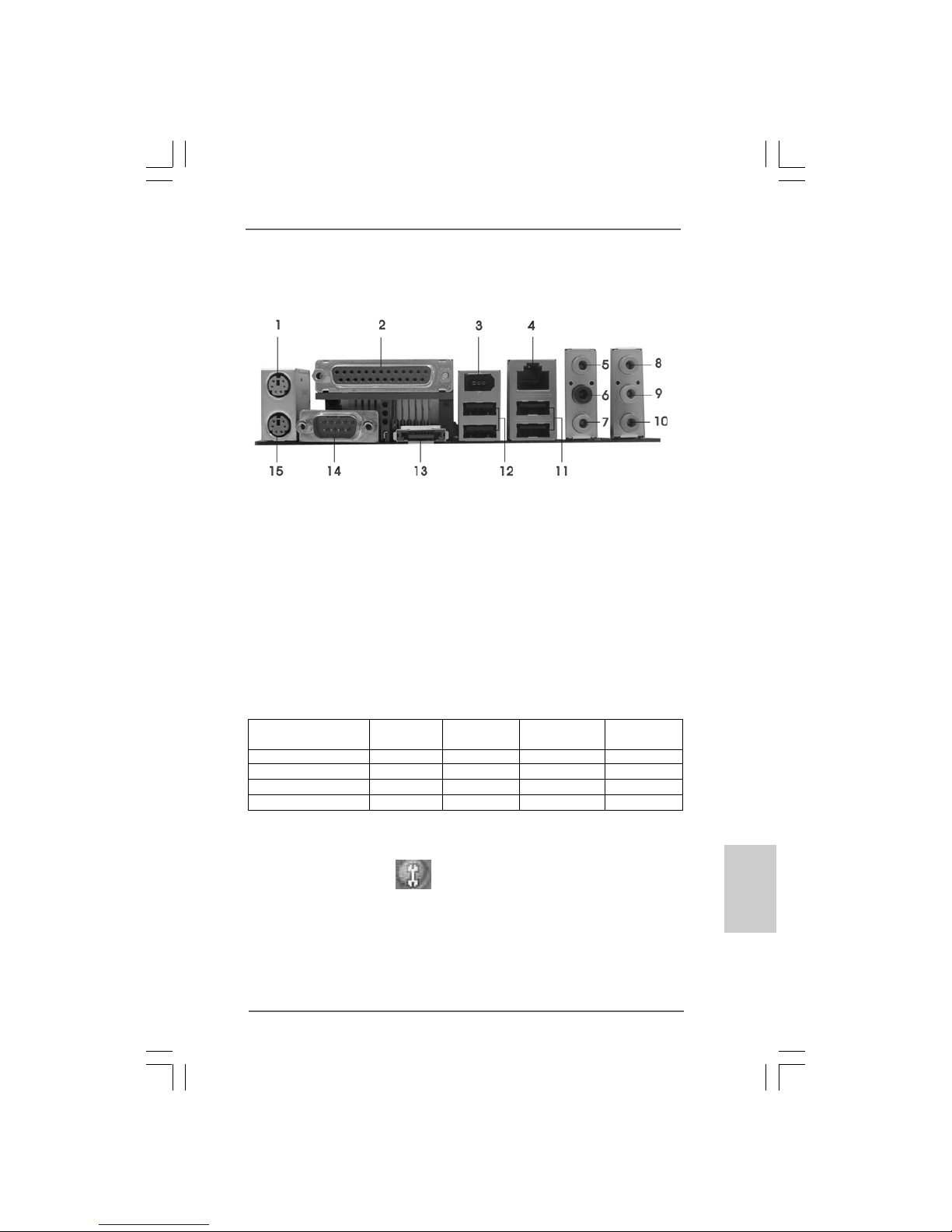

ASRASR

ASRock 1394_eSock 1394_eS

ock 1394_eSock 1394_eS

ock 1394_eSAA

ATT

TAII I/O PlusAII I/O Plus

AII I/O PlusAII I/O Plus

AII I/O Plus

1 PS/2 Mouse Port (Green) *9 Front Speaker (Lime)

2 Parallel Port 10 Microphone (Pink)

3 IEEE 1394 Port 11 USB 2.0 Ports (USB23)

4 RJ-45 Port 12 USB 2.0 Ports (USB01)

5 Side Speaker (Gray) 13 eSATAIIPort

6 Rear Speaker (Black) 14 COM Port

7 Central/ Bass (Orange) 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

4ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

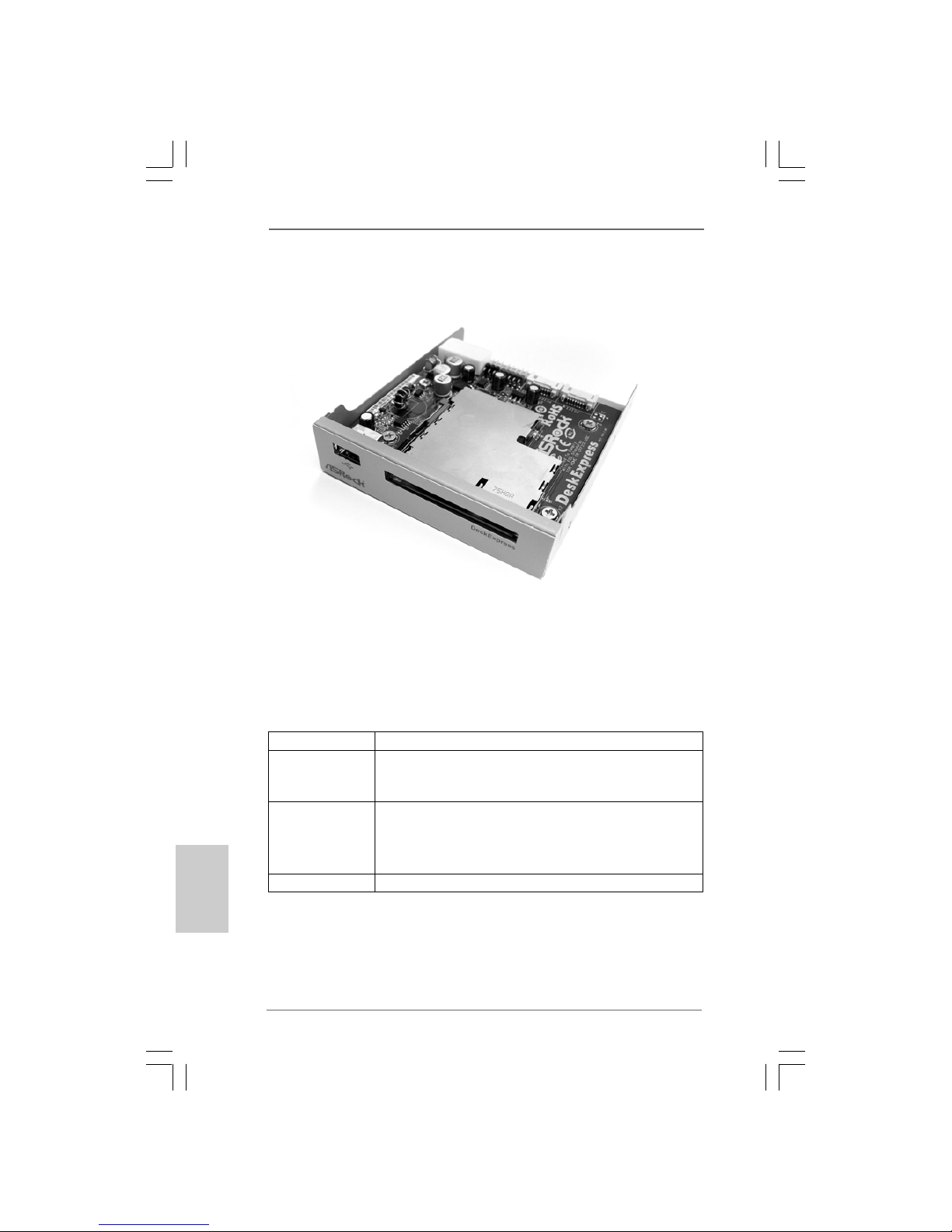

ASRock DeskExpress SpecificationsASRock DeskExpress Specifications

ASRock DeskExpress Specifications

ASRock DeskExpress, providing one front USB 2.0 port and one Express card slot to

support all kinds of Express cards, such as eSATAII card, USB 2.0 card, LAN card

and flash disc, offers you a device to expand the availability conveniently in addition

to the PCI Express interface on this motherboard. Please refer to below table for

ASRock DeskExpress specifications. For installation procedures of ASRock

DeskExpress, please refer to page 18 for details.

Interface - Express card / USB 2.0

Slot - 1 x 54 mm Express card slot

(compatible with ExpressCard/54 and ExpressCard/34)

- 1 x USB 2.0 port

Connector - 1 x Hot Plug Detection header (JHP1; black)

- 1 x USB 2.0 header (USB1; blue)

- 1 x 4 pin power connector (PWR1; white)

- 2 x PCIE ports (PCIE1; yellow / PCIE2; white)

Case Dimension - 115 mm x 99 mm x 25 mm, fit in 3.5-in bay

ASRock 4Core1333-Viiv Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 4Core1333-Viiv motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 4Core1333-Viiv Motherboard

(ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm)

ASRock 4Core1333-Viiv Quick Installation Guide

ASRock 4Core1333-Viiv Support CD

Motherboard Accessories

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Two Serial ATA (SATA) Data Cables (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneHDMI_SPDIFCable(Optional)

One “ASRock 1394_eSATAII I/O Plus” I/O Panel Shield

ASRock DeskExpress Accessories (Optional)

One ASRock DeskExpress

OneASRock PCIE_DE Card

Two Serial ATA (SATA) Data Cables

One DeskExpress Hot PlugDetection Cable

One USB HeaderData Cable

Four Screws

EnglishEnglish

English

6ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

CPU - LGA 775 for Intel®CoreTM 2 Quad / CoreTM 2 Extreme /

CoreTM 2Duo / Pentium®XE / Pentium®D/ Pentium®Dual Core /

Pentium®4 / Celeron®/ Celeron® D, supporting Quad Core

Kentsfield processors

- Compatible with all FSB1333/1066/800/533MHz CPUs

(see CAUTION 1)

- Intel®ViivTM Ready (see CAUTION 2)

- Supports Hyper-Threading Technology (see CAUTION 3)

- Supports Untied Overclocking Technology (see CAUTION 4)

- Supports EM64T CPU

Chipset - Northbridge: Intel®P965

- Southbridge: Intel®ICH8DH

Memory - Dual Channel DDRII Memory Technology (see CAUTION 5)

- 4 xDDRIIDIMM slots

- Support DDRII800/667/533 (see CAUTION 6)

- Max. capacity: 8GB (see CAUTION 7)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 8)

- ASRock U-COP (see CAUTION 9)

- Boot Failure Guard (B.F.G.)

Expansion Slot - Supports ATITM CrossFireTM

- 1 x PCI Express x16 slot

- 1 x AGI Express slot (PCI Express x4)

- 1 x PCI Express x1 slot

- 3 x PCI slots

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN -Gigabit LAN10/100/1000 Mb/s

-Giga PHY Intel®82566DC

- Supports Wake-On-LAN

Rear Panel I/O ASRock 1394_eSATAII I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATAII Port

- 1 x RJ-45 Port

- 1 x IEEE 1394 Port

ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 10)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1, RAID 10, RAID5 and Intel Matrix Storage), NCQ,

AHCI and “Hot Plug” functions (see CAUTION 11)

- 1 x eSATAII 3.0Gb/s connector (shared with 1 SATAII

connector), support NCQ, AHCI and “Hot Plug” function

(see CAUTION 12)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1 x Game header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- SLI/XFIRE power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 13)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit

/ VistaTM / VistaTM 64-bit compliant (see CAUTION 14)

Certifications - FCC, CE, WHQL

8ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. FSB1333-CPU will operate in overclocking mode.

2. Intel®ViivTM technology is only supported under 32-bit OS of Windows®XP

Media Center and Windows®VistaTM Home Premium and Ultimate Edition.

For the minimum hardware requirements of Intel®ViivTM technology, please

refer to page 10 for details.

3. About the setting of “Hyper ThreadingTechnology”, please check page 55

of “User Manual” in the support CD.

4. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 45 for details.

5. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

6. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII667

1066 DDRII533, DDRII667, DDRII800

800 DDRII533, DDRII667, DDRII800

533 DDRII533

7. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

8. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

9. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

10. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

11. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII HardDisk SetupGuide” on page 37 to adjust your SATAII hard disk

drive to SATAII mode. You can also connect SATA hard disk to SATAII

connector directly.

12. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 34 for

details about eSATAII and eSATAII installation procedures.

13. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

14. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron D 326

Memory 1GB system memory (Premium)

512MB Single Channel (Basic)

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

1010

10 ASRock 4Core1333-Viiv Motherboard

EnglishEnglish

English

1.41.4

1.4 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table forable for

able forable for

able for

IntelIntel

Intel®®

®®

®ViivViiv

ViivViiv

ViivTMTM

TMTM

TM TT

Technologyechnology

echnologyechnology

echnology

If you want to use Intel®ViivTM technology on this motherboard, please

follow below table for minimum hardware requirements.

CPU Intel®Dual Core CPU *

HDD SATAII HDDwith NCQ function

Suggested OS Windows®XP 32-bit Media Center or Windows®VistaTM 32-bit

Home Premium and Ultimate Edition

* Currently, Intel®ViivTM technology requires Intel®Dual Core CPU or above except

Intel® Pentium®Dual Core E2XXX CPU. For further information of CPU support list,

please refer to Intel®website for updates.

Autres manuels pour 4Core1333-Viiv

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 990FX Extreme6 Manuel utilisateur

ASROCK

ASROCK P55 PRO/USB3 - Manuel utilisateur

ASROCK

ASROCK 990FX EXTREME3 Manuel utilisateur

ASROCK

ASROCK CONROE1333-1394 Manuel utilisateur

ASROCK

ASROCK K7VM2 Manuel utilisateur

ASROCK

ASROCK G41M-VGS3 Guide d'installation

ASROCK

ASROCK IMB-790 Manuel d'utilisation et d'entretien

ASROCK

ASROCK Z390 Extreme4 Manuel utilisateur

ASROCK

ASROCK K8NF6G-VSTA Manuel utilisateur

ASROCK

ASROCK X79 Extreme3 Manuel utilisateur

ASROCK

ASROCK X399M Taichi Manuel utilisateur

ASROCK

ASROCK FM2A55M-VG3 Manuel utilisateur

ASROCK

ASROCK 980DE3 Manuel utilisateur

ASROCK

ASROCK T48EM1 Manuel utilisateur

ASROCK

ASROCK K7S41GX2 Manuel utilisateur

ASROCK

ASROCK E3V5 Performance Gaming Manuel utilisateur

ASROCK

ASROCK A55M-HVS Manuel utilisateur

ASROCK

ASROCK H610M-HDV Manuel utilisateur

ASROCK

ASROCK P67 PRO3 SE - ANNEXE 409 Manuel utilisateur

ASROCK

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Manuel utilisateur

ASROCK

ASROCK H110M-PIO Manuel utilisateur

ASROCK

ASROCK IMB-X1712 Manuel de service

ASROCK

ASROCK 970DE3/U3S3 Manuel utilisateur

ASROCK

ASROCK K8UPGRADE-760GX Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
