2ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

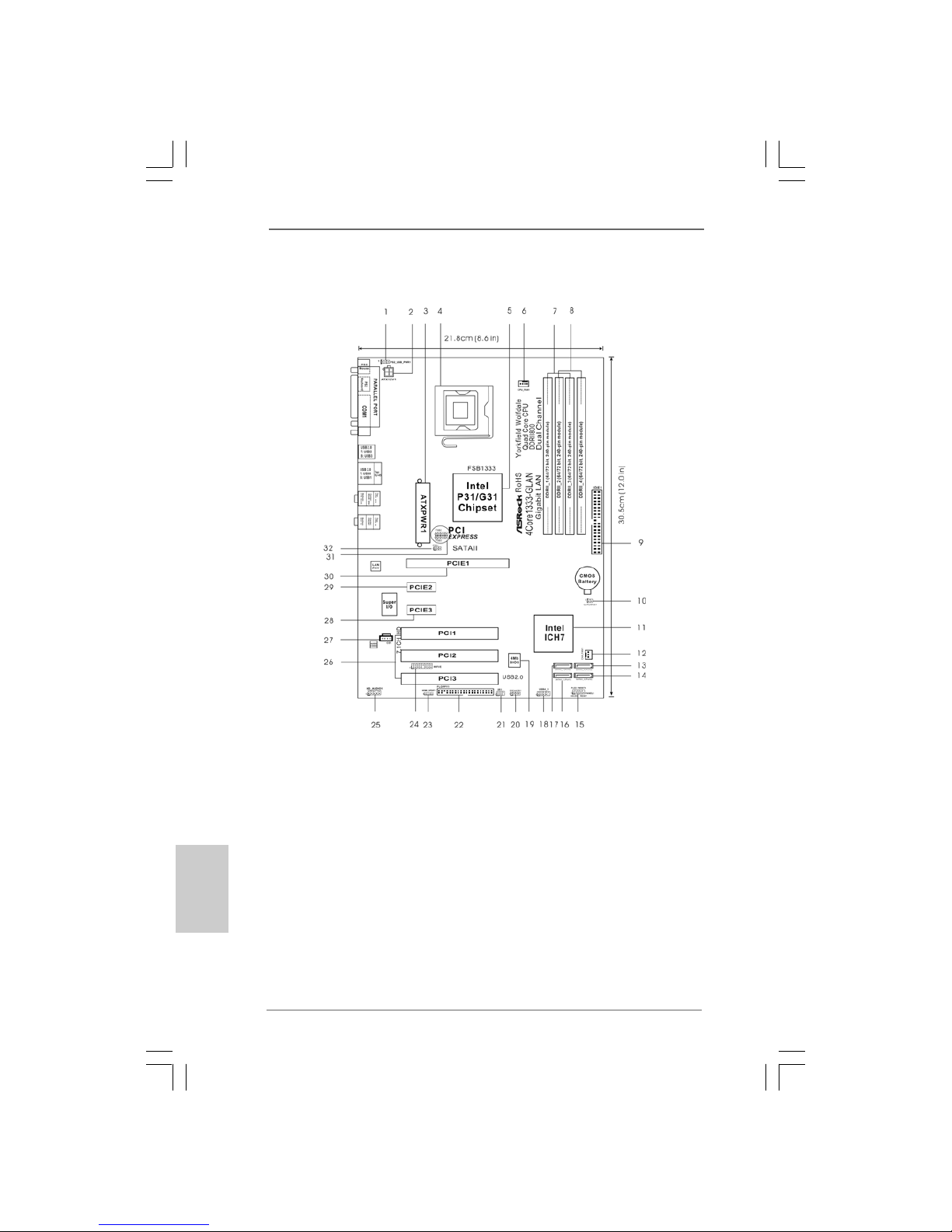

1 PS2_USB_PWR1 Jumper 17 SATAII Connector (SATAII_1 (Port0))

2 ATX 12V Connector (ATX12V1) 18 USB 2.0 Header (USB4_5, Blue)

3 ATX Power Connector (ATXPWR1) 19 Flash Memory

4 775-Pin CPU Socket 20 Chassis Speaker Header (SPEAKER 1)

5 North Bridge Controller 21 DeskExpress Hot Plug Detection Header

6 CPU Fan Connector (CPU_FAN1) (IR1)

7 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 HDMI_SPDIF Header (HDMI_SPDIF1)

8 2 x 240-pin DDRII DIMM Slots 24 WiFi/E Header (WiFi/E)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Front Panel Audio Header (HD_AUDIO1)

9 IDE1 Connector (IDE1, Blue) 26 PCI Slots (PCI1 - 3)

10 Clear CMOS Jumper (CLRCMOS1) 27 Internal Audio Connector: CD1 (Black)

11 South Bridge Controller 28 PCI Express x1 Slot (PCIE3)

12 Chassis Fan Connector (CHA_FAN1) 29 PCI Express x1 Slot (PCIE2)

13 SATAII Connector (SATAII_4 (Port3)) 30 PCI Express x16 Slot (PCIE1)

14 SATAII Connector (SATAII_3 (Port2)) 31 FSB2 / FSB3 Jumpers

15 System Panel Header (PANEL1) 32 FSB1 Jumper

16 SATAII Connector (SATAII_2 (Port1))

ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

HD 8CH I/O PHD 8CH I/O P

HD 8CH I/O Panelanel

anelanel

anel

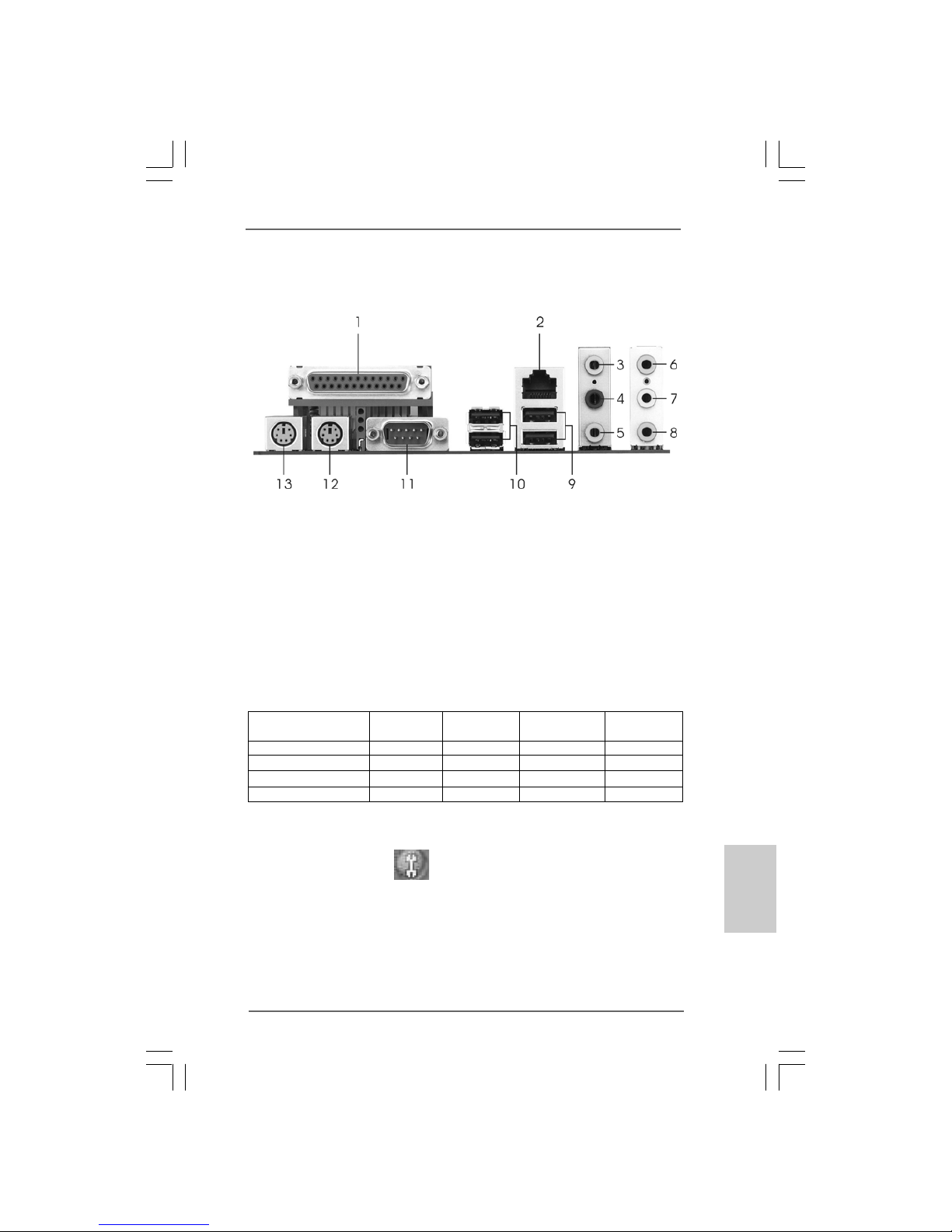

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDAAudio 2nd output” to use front panel audio.

4ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

ThankyouforpurchasingASRock4Core1333-GLANmotherboard,areliablemotherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists onASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock4Core1333-GLAN Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock 4Core1333-GLAN Quick InstallationGuide

ASRock4Core1333-GLAN Support CD

One 80-conductor UltraATA66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in FloppyDrive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDDPower Cable (Optional)

OneHDMI_SPDIFCable(Optional)

One HD8CH I/O Panel Shield

ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®, supporting Quad Core

Yorkfield andDual Core Wolfdale processors

- Compatible with all FSB1333/1066/800MHz CPUs

- Supports Hyper-ThreadingTechnology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P31/G31

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDRII Memory Technology (see CAUTION 3)

- 4 xDDRIIDIMM slots (see CAUTION 4)

- SupportDDRII800/667 (see CAUTION 5)

- Max. capacity: 4GB (see CAUTION 6)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 7)

-ASRock U-COP (see CAUTION 8)

- Boot FailureGuard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888Audio Codec)

LAN - PCIE x1 Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111B/RTL8111C

- Supports Wake-On-LAN

Rear Panel I/O HD8CHI/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 9)

6ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

Connector - 4 x SerialATAII 3.0Gb/s connectors (No support for RAIDand

“Hot Plug” functions) (see CAUTION 10)

- 1 xATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 xDeskExpress Hot PlugDetection header

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 1 x USB 2.0 header (supports 2 USB 2.0 ports)

(see CAUTION 11)

- 1 x WiFi/E header (see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

30 of “User Manual“ in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 22 for details.

3. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 12 for proper

installation.

4. There are memory module installation limitations on this motherboard,

please read “Installation of Memory Modules (DIMM)” on page 12 for

details.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII667, DDRII800

1066 DDRII667, DDRII800

800 DDRII667, DDRII800

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

7. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

9. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-

channel, 6-channel, and 8-channel modes. Please check the table on

page 11 for proper connection.

10. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 21 to adjust your SATAII hard

disk drive to SATAII mode. You can also connect SATA hard disk to SATAII

connector directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

8ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron 420

Memory 1GB system memory (Premium)

512MB Single Channel (Basic)

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

12. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g /

WiFi-802.11n module, an easy-to-use wireless local area network

(WLAN) adapter. It allows you to create a wireless environment and

enjoy the convenience of wireless network connectivity. Please visit our

website for the availability of ASRock WiFi-802.11g / WiFi-802.11n

module.

ASRock website http://www.asrock.com

ASRock 4Core1333-GLAN Motherboard

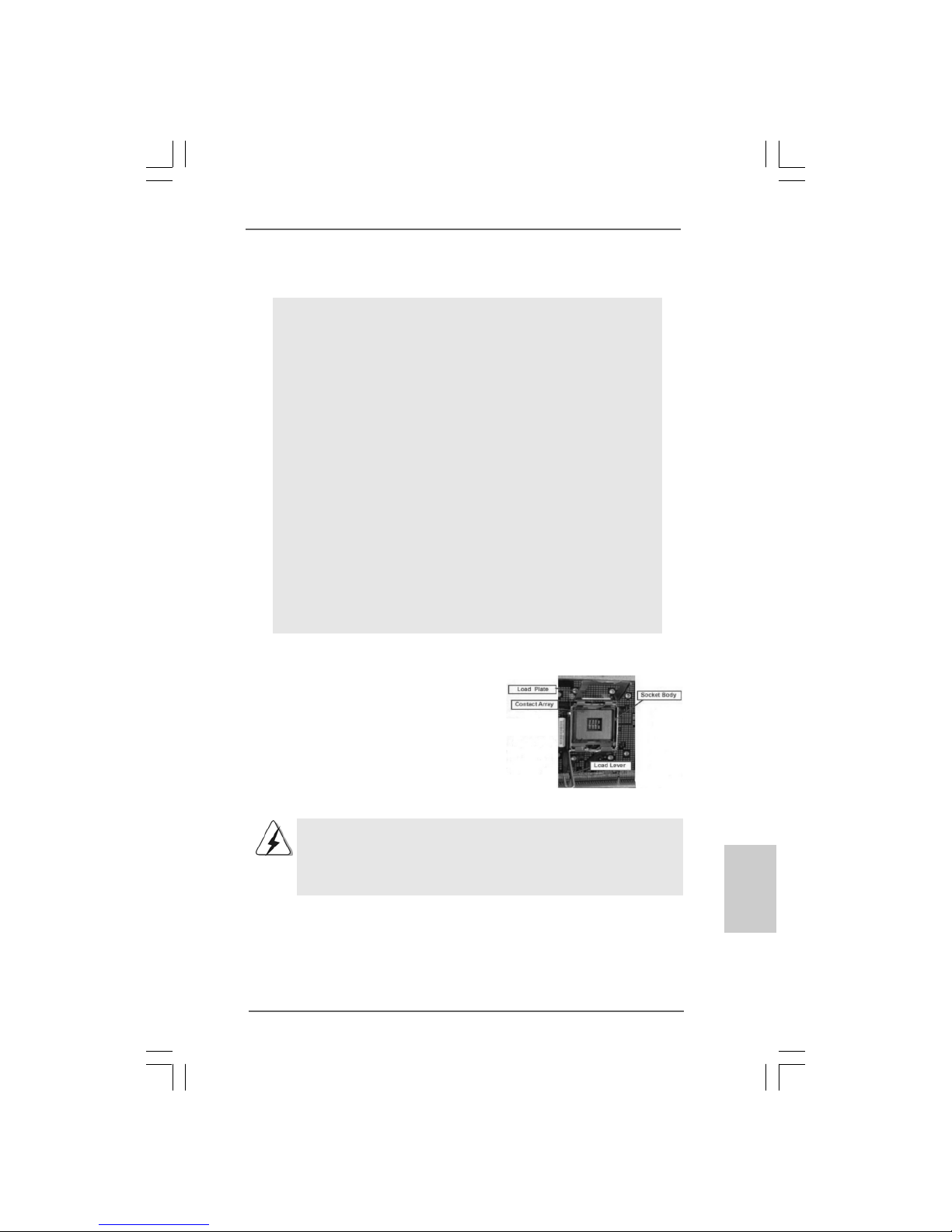

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock 4Core1333-GLAN Motherboard

EnglishEnglish

English

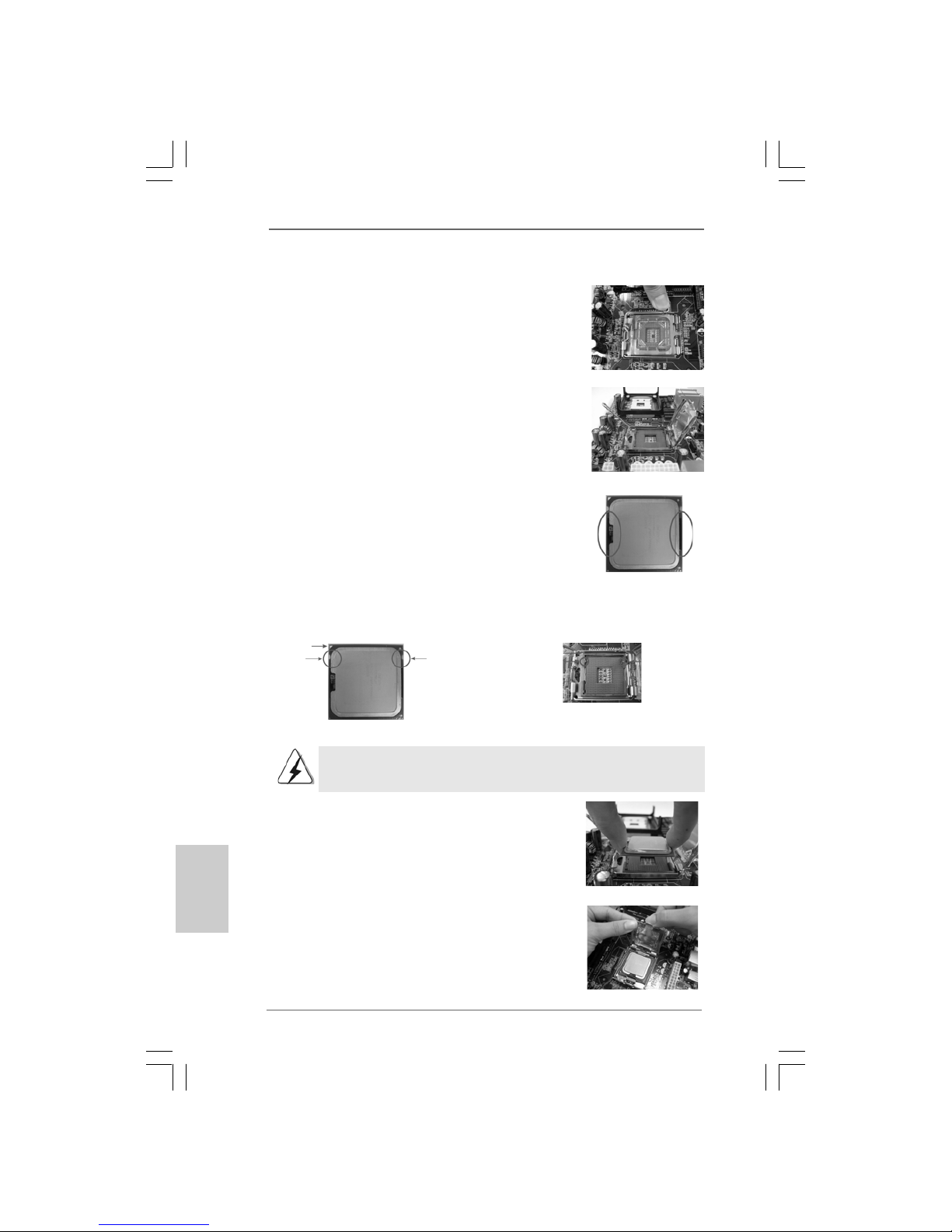

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H77WS-DL Manuel utilisateur

ASROCK

ASROCK N68C-SE Manuel utilisateur

ASROCK

ASROCK X300M-STX Manuel utilisateur

ASROCK

ASROCK Z87M Pro4 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z370 Gaming K6 Series Manuel utilisateur

ASROCK

ASROCK 939S56-M Manuel utilisateur

ASROCK

ASROCK 4CORE1600-D800 Manuel utilisateur

ASROCK

ASROCK 880GXHU3/128M Manuel utilisateur

ASROCK

ASROCK AB350 Gaming-ITX/ac Manuel utilisateur

ASROCK

ASROCK 4Core1333-eSATA2 Manuel utilisateur

ASROCK

ASROCK Z68 Pro3 Manuel utilisateur

ASROCK

ASROCK H310M-HDVP Manuel utilisateur

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Manuel utilisateur

ASROCK

ASROCK Fatal1ty H87 Performance Series Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK IMB-390-L Manuel de service

ASROCK

ASROCK B550D4ID-2L2T Manuel utilisateur

ASROCK

ASROCK G41M-GS3 Manuel utilisateur

ASROCK

ASROCK A300M-STX Manuel utilisateur

ASROCK

ASROCK Fatal1ty 990FX Killer Series Manuel utilisateur

ASROCK

ASROCK FM2A75 Pro4 Manuel utilisateur

ASROCK

ASROCK X99 Extreme11 Manuel utilisateur

ASROCK

ASROCK PHANTOM GAMING Z790M PC LIGHTNING/D4 Manuel utilisateur

ASROCK

ASROCK H61M-PS Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
