Ask Proxima M8 Manuel utilisateur

Contents

English

Unpacking ....................................................................................................................................... 2

Using the User Documentation on the CD-ROM .......................................................................... 2

Register with ASK Proxima........................................................................................................... 2

General Guide................................................................................................................................. 3

Remote Controller General Guide ................................................................................................ 5

Preparing the Remote Controller .................................................................................................. 5

Replacing the Remote Controller Battery ..................................................................................... 6

Getting Ready ................................................................................................................................. 7

Setting Up the Projector................................................................................................................ 7

Screen Size and Distance ............................................................................................................ 7

Adjusting the Projector Elevation Angle........................................................................................ 8

Rear Projection (From the Back of the Screen)............................................................................ 8

Connecting a Computer to the Projector ...................................................................................... 9

Connecting to a Standard Video Device....................................................................................... 9

Turning On the Projector ............................................................................................................ 10

Turning Off the Projector ............................................................................................................ 12

Projector Basics ........................................................................................................................... 13

Selecting the Input Source.......................................................................................................... 13

Adjusting the Projected Image.................................................................................................... 13

Keystone Correction (KEYSTONE) ............................................................................................ 14

Using the Setup Menu.................................................................................................................. 15

Troubleshooting ........................................................................................................................... 16

Indicators .................................................................................................................................... 16

Projector Troubleshooting........................................................................................................... 20

Service and Support..................................................................................................................... 22

User’s Guide

• This manual covers only basic operations, including how to set up the projector, and basic

projector operations. For more detailed information, see the Reference Guide on the CD-ROM

that comes with the projector.

Warning z

Please read the safety instructions booklet before setting up the projector.

XJS30_S35_Kihon_E.book Page 1 Monday, April 23, 2007 5:23 PM

Unpacking

As you unpack the projector, check to make sure that all of the items listed below are present

The CD-ROM that comes with the projector has a PDF file “Reference Guide” that contains

detailed explanations about projector operations.

In order to read the Reference Guide, you need to have Adobe®Reader®installed on your

computer. If you don't, go to www.adobe.com to download and install it.

It's quick, easy, and secure.

Activate your warranty to ensure eligibility for service and support. Get special offers and

notifications about free product updates.

Go to www.askproxima.com/register

Using the User Documentation on the CD-ROM

PROJECTOR Remote Controller Battery (CR2025)

(Loaded in remote controller.)

AC Power Cord Video Cable Mini D-Sub Cable

• Soft Cases (projector and cords)

• CD-ROM with Reference Guide

• Printed User's Guide

• Safety booklet

• Warranty booklet

• Registration card

XJS30_S35_Kihon_E_PL.fm Page 2 Monday, April 23, 2007 5:39 PM

General Guide

English

General Guide

[Front/Top/Left Side]

[Key and Indicator Panel]

*The projector’s enter key does not have anything printed on it. When you see [ENTER] in

this manual, it means you should press the projector’s enter key or the [ENTER] key of the

remote controller.

Warning

zNever look into the lens while the projector is turned on.

Never allow the intake and exhaust vents to become blocked, and make

sure there is at least 30 cm (11.8 inches) clearance around the projector.

Blocked vents can cause heat to build up, creating the risk of fire and

malfunction.

zNever touch the areas around the exhaust vents. These areas can

become very hot, and create the risk of burn injury.

Intake vents

Elevation

adjustment foot

release button

Remote control

signal receiver Exhaust vents

Key and Indicator Panel

Lens cover Projection lens

TEMP indicator

LAMP indicator

POWER/STANDBY

indicator

[](Power)key

[INPUT] key

[AUTO] key

[FOCUS] key

[Enter] key*

[MENU] key

[ESC] key

Cursor keys

[ZOOM] key

XJS30_S35_Kihon_E.book Page 3 Monday, April 23, 2007 5:23 PM

General Guide

[Bottom]

[Back, Terminals]

zThe anti-theft lock hole is provided for connection of an anti-theft chain.

Warning z

In the unlikely event of a lamp rupture, particles may be ejected from the

projector. Keep out of the area under and around the projector when it is

turned on. See the safety instructions booklet for more details.

Elevation adjustment foot

Left, right

adjustment feet (2)

Lamp cover

Elevation

adjustment foot

release button

Anti-theft lock hole

Intake vents

Remote control

signal receiver

VIDEO input terminal

RGB input terminal

Power connector

XJS30_S35_Kihon_E.book Page 4 Monday, April 23, 2007 5:23 PM

General Guide

English

The remote control unit comes loaded with a test battery. Before using it for the first time,

remove the battery insulation sheet from the back of the remote controller.

zTo avoid running down the battery, store the remote control unit so its buttons are not

pressed inadvertently.

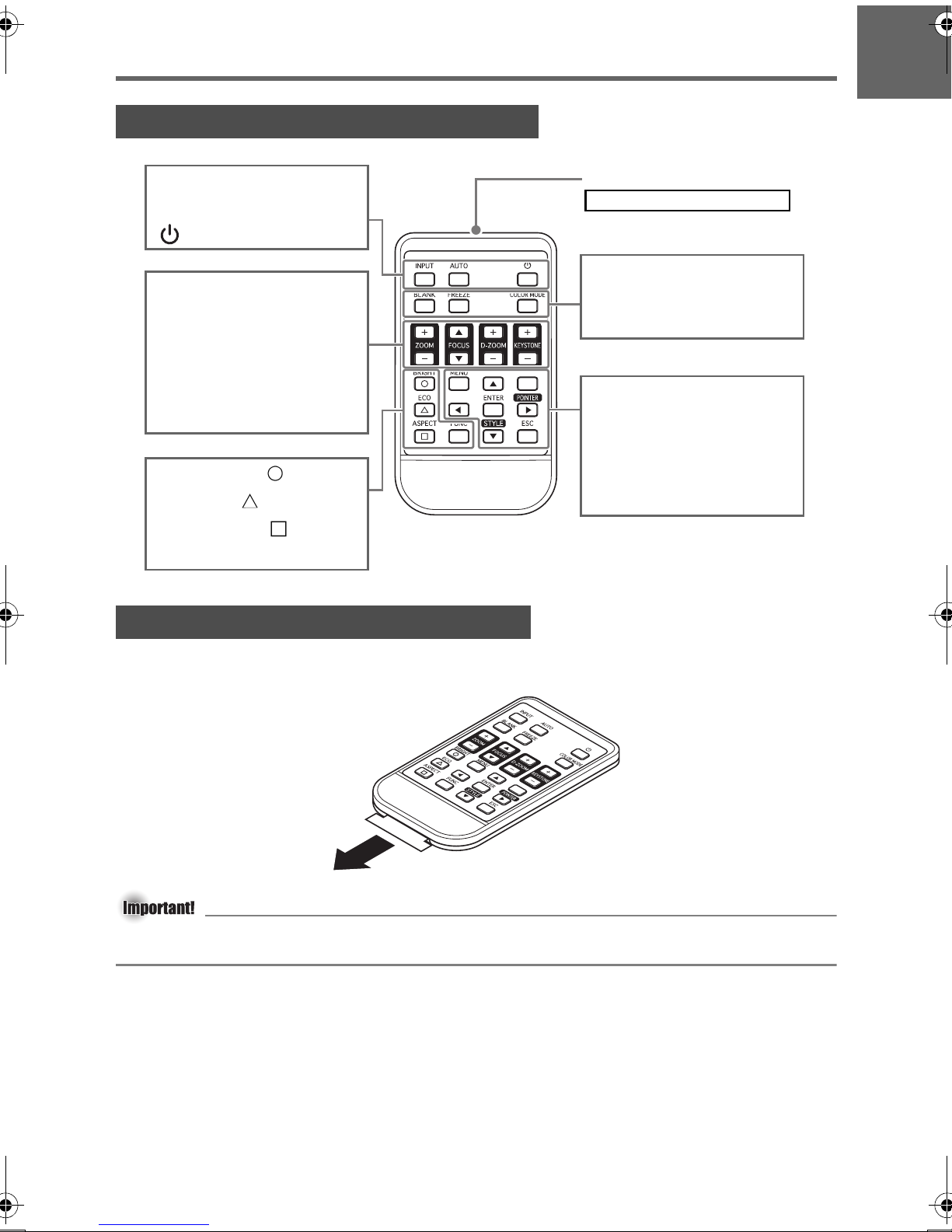

Remote Controller General Guide

Preparing the Remote Controller

[INPUT] key

[AUTO] key

[ ] (Power) key

Remote control signal emitter

[ZOOM +] [ZOOM –] keys

[FOCUS ]

[FOCUS ] keys

[D-ZOOM +]

[D-ZOOM –] keys

[KEYSTONE +]

[KEYSTONE –] keys

[BRIGHT] key ([ ] key)

[ECO] key ([ ] key)

[ASPECT] key ([ ] key)

[FUNC] key

[MENU] key

Cursor keys

[POINTER] key

[ENTER] key ([STYLE] key)

[ESC] key

[BLANK] key

[FREEZE] key

[COLOR MODE] key

CLASS 1 LED PRODUCT

XJS30_S35_Kihon_E.book Page 5 Monday, April 23, 2007 5:23 PM

General Guide

Before you can use the remote controller for the first time, you need to load the battery that

comes with it.

Replacing the Remote Controller Battery

Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Caution

Misuse of a battery can cause it to leak and stain the area around it, or to

explode, creating the risk of fire and personal injury. Make sure that you

always observe the following precautions.

zTake care that the battery is oriented correctly when you load it.

zUse only battery type that is specified for use with the remote controller.

1. Hook your fingernail on the groove of

the battery holder on the back of the

remote controller. While holding down

the release on the side (), pull out

the holder ().

2. Place the battery (CR2025) onto the

battery holder.

zMake sure that the plus (+) side of the

battery is facing upwards (so you can

see it). Take care that you do not

install the battery upside down.

3. Replace the battery holder back into the remote controller.

XJS30_S35_Kihon_E.book Page 6 Monday, April 23, 2007 5:23 PM

Getting Ready

English

Getting Ready

Locate the projector on a desk, table, or stand that is firm and level. Make sure to allow

sufficient space around the sides and back of the projector for proper ventilation.

zThe following illustrations show how the projector should be oriented for optimum projection

relative to the screen.

zYou can place the projector on a surface that is angled up to 30 degrees upwards or

downwards during use. Never locate the projector on a surface that is angled more than

30 degrees, or angled at all to the left or right. Such conditions can cause the lamp to

explode or can shorten lamp life, and also creates the risk of malfunction.

zThe projector’s auto keystone correction range is 0 to +30 degrees. If the surface you are

projecting onto is angled downwards from horizontal, use manual keystone correction (page

14) to correct the image.

zNote that the distances provided above are for reference only.

Interactive screen size and distance calculator

www.askproxima.com/calculator

Setting Up the Projector

Screen Size and Distance

Diagonal Screen Size Approximate Projection Distance

Inches cm Minimum

Distance (m) Maximum

Distance (m) Minimum

Distance (feet) Maximum

Distance (feet)

40 102 1.1 1.5 3.61 4.92

60 152 1.7 2.4 5.58 7.87

80 203 2.3 3.2 7.55 10.5

100 254 2.8 3.9 9.19 12.8

150 381 4.3 6.0 14.11 19.7

200 508 5.7 7.9 18.70 25.9

Viewed from Above Viewed from the Side

The center of the

projector’s lens

should be aligned

with the horizontal

center of the screen.

Make sure the

projector is at a

right angle to the

screen.

Screen Screen

XJS30_S35_Kihon_E.book Page 7 Monday, April 23, 2007 5:23 PM

Getting Ready

You can change the elevation angle of the projector in a range of 0 to 12 degrees. You can

also make fine adjustments to the left and right side elevation angle when necessary.

To change the projector elevation angle

1. Lift up the front of the projector and press the

release button.

zThis causes the elevation adjustment foot to drop

from the bottom of the projector.

zBe sure to press the release button before trying to

lower the elevation adjustment foot. Pulling on the

foot without pressing the release lever can damage

the foot.

2. While holding down the release button, raise and

lower the front of the projector until the elevation adjustment foot is approximately the

length you need.

3. Release the release button to lock the elevation adjustment foot in its current position.

4. Use the left and right adjustment feet to further fine adjust the elevation angle.

zThe left and right adjustment feet are for fine adjustment only. Do not try to rotate them

too far. Doing so can cause an adjustment foot to detach. Tightening an adjustment foot

too strongly can cause it to become stuck.

zTo retract the elevation adjustment foot, hold down the release button and slide the

elevation adjustment foot back into the projector. Never try to forcibly change the elevation

adjustment foot position without pressing the release button.

In the case of rear projection, left/right orientation is opposite that of front projection, so you

need to configure the setup menu accordingly. For more detailed operation information, see the

Reference Guide on the CD-ROM that comes with the projector.

Adjusting the Projector Elevation Angle

Rear Projection (From the Back of the Screen)

Rotate to adjust horizontal alignment.

XJS30_S35_Kihon_E.book Page 8 Monday, April 23, 2007 5:23 PM

Getting Ready

English

You can use the projector to project an image of video output from a computer.

zAlways turn off the projector and the computer before connecting them.

You can use the projector to project an image from a video deck, TV, video camera, or other

video device.

zAlways turn off the projector and the video device before connecting them.

zYou can use the bundled video cable to connect to a pin jack (RCA) type VIDEO output

terminal. When connecting a video camera or other video device with a special video output

terminal, use the special cable that comes with the video device. For details, see the

documentation that comes with the video device.

zThe RGB input terminal can be connected to the component video terminal of video

equipment using an optionally available adapter. For more information, see “Connecting to a

Component Video Output Device” in the Reference Guide on the

CD-ROM that comes with the projector.

Connecting a Computer to the Projector

Connecting to a Standard Video Device

RGB input terminal

Projector

Computer

Bundled mini D-Sub cable

To monitor terminal

(analog RGB output terminal)

Video device

Bundled video cable

VIDEO input terminal

To VIDEO output terminal

Projector

XJS30_S35_Kihon_E.book Page 9 Monday, April 23, 2007 5:23 PM

Getting Ready

Before performing any of the operations in this section, make sure you first set up the projector

and connect to an output device.

AC Power Cord Precautions

zUse the AC power cord that comes with the projector.

zMake sure that you use a power source with the same voltage as that specified for the

projector.

zDo not share the outlet supplying power to the projector with other devices. If you are using

an extension cord, make sure that the ampere rating of the extension cord is compatible with

the power consumption value of this projector.

zNever use the power cord while it is still bundled together.

zNever place objects on top of the power cord and do not step on it.

zNever pull on the power cord. When unplugging it, grasp the plug.

zUse a conveniently located power outlet that you can reach easily when you need to unplug

the projector.

To turn on the projector

1. Use the bundled AC power cord to plug

the projector into a power outlet.

zPlugging into a power outlet causes the

three indicators on the top of the projector

to light amber. After a short while, two of

the indicators will go out and only the

POWER/STANDBY indicator will remain lit

amber, which indicates the standby state.

zNote that the projector will not turn on if

you press the [ ] (power) key while all

three indicators are lit amber. Wait until the

projector is in the standby state before

trying to turn it on.

zThis product is also designed for IT power distribution system with phase-to-phase voltage

230V.

2. Turn on the computer or video device that is connected to the projector.

3. If the projector’s lens cover is closed, open it.

zDo not try to force the lens cover open past horizontal. Doing so creates the risk of

malfunction.

4. Press the [ ] (power) key.

zThis causes the POWER/STANDBY indicator to flash green, which indicates that the

projector is warming up.

zAfter warm up is complete, POWER/STANDBY indicator stops flashing and remains lit

green, and the projector starts projecting an image from the device connected to it.

zA “Language” window will be projected the first time you turn on the projector. Use the

procedure under “Specifying the Display Message Language” on the page 11 to configure

the language settings.

Turning On the Projector

Power supply connector

Bundled AC power

cord

The shape of the

plug depends on your

geographical area.

XJS30_S35_Kihon_E.book Page 10 Monday, April 23, 2007 5:23 PM

Autres manuels pour M8

Table des matières

Autres manuels Ask Proxima Projecteur

Ask Proxima

Ask Proxima C1 Compact Manuel utilisateur

Ask Proxima

Ask Proxima C310 Manuel utilisateur

Ask Proxima

Ask Proxima C445+ Manuel utilisateur

Ask Proxima

Ask Proxima M1 Manuel utilisateur

Ask Proxima

Ask Proxima C5 Compact Mode d’emploi

Ask Proxima

Ask Proxima A1100 Manuel utilisateur

Ask Proxima

Ask Proxima C110 Manuel utilisateur

Ask Proxima

Ask Proxima Impression 860 Manuel utilisateur

Ask Proxima

Ask Proxima C130 Manuel utilisateur

Ask Proxima

Ask Proxima M20 Manuel utilisateur

Ask Proxima

Ask Proxima Impression A9 Manuel utilisateur

Ask Proxima

Ask Proxima M8 Manuel utilisateur

Ask Proxima

Ask Proxima M9 Manuel utilisateur

Ask Proxima

Ask Proxima M5 Manuel utilisateur

Ask Proxima

Ask Proxima A3100 - Manuel utilisateur

Ask Proxima

Ask Proxima Impression 1280 Manuel utilisateur

Ask Proxima

Ask Proxima Ultralight DS1 Mode d’emploi

Ask Proxima

Ask Proxima E3000 series Manuel utilisateur

Ask Proxima

Ask Proxima Impression 970 Manuel utilisateur

Ask Proxima

Ask Proxima DLP Projector Manuel utilisateur

Ask Proxima

Ask Proxima C1 Compact Manuel utilisateur

Ask Proxima

Ask Proxima E3855-A Manuel utilisateur

Ask Proxima

Ask Proxima D-ILA Pro AV SX1 Manuel utilisateur

Ask Proxima

Ask Proxima M1 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
