FriendlyNET®GX5

Gigabit Ethernet Switches

New! The FriendlyNET GX5 family includes the smart GX5-2400W (top) and GX5-424W (bottom)

PRODUCT LINE GUIDE

“Most of the news in LAN product introductions these days is coming from

smaller companies, rather than the big names. Whatever the case, it

seems like there have been more new products from network up-and-

comers like…Asante Technologies than from others.

Asante recently debuted a new model of its most powerful workgroup

switch, which now has four ports of Gigabit Ethernet instead of two, in

addition to the 24 ports of 10/100M bit/sec Ethernet. It’s called the

FriendlyNET GX5-424W 24+4 WebManaged Gigabit Ethernet switch.”

Asanté Improves Workgroup Switch, November 6, 2003

FriendlyNET GX5 Gigabit Ethernet Switches 2

For your GHz computer with multi-GB of storage, Asanté offers a

complete family of Gigabit Ethernet switches. The FriendlyNET GX5

Series is the simplest, easiest way to move massive amounts of

information between computers and peripherals on your local area

network. With 8 popular configurations to choose from, Asanté has

the exactly the right Gig switch for your needs.

Every GX5 Series switch provides exceptional value for simple,

unmanaged Gigabit Ethernet switches that can run at the highest

throughput (full wire-speed). The strong metal chassis is

optimized for both compact size and to help dissipate heat—

providing many years of reliable service.

Asanté’s new GX5-2400W and GX5-424W switches are the smart

choices for workgroups with more than 16 users and peripherals.

Out of the box, these switches are ready-to-run in almost any

environment—with no setup required. To access each switch’s

advanced features, just open a web browser to enable trunking,

mirroring, virtual LANs (VLANs) and quality of service (QoS).

Model Gigabit Ports 1000BaseT Ports GBIC 10/100 Ports Height/Mount Advanced Features

GX5-2400W 24 24 Yes

Desk/Rack

Trunking, mirroring, VLAN,

QoS, web configuration

GX5-424W 2 2 2 (SFP) 24 1U

Desk/Rack

Trunking, mirroring, VLAN,

QoS, web configuration

Model Gigabit Ports 1000BaseT Ports GBIC 10/100 Ports Height Mounting

GX5-2400 24 24 2 (shared) 1U Rack or Desktop

GX5-1600 16 16 1U Rack or Desktop

GX5-800 8 8 1U Rack or Desktop

GX5-800P 8 8 Sub-1U Desktop

GX5-500 5 5 Sub-1U Desktop

GX5-208 2 2 8 1U Rack or Desktop

“This switch [FriendlyNET GX5-1300] is clearly designed to be a ‘drop in and

forget it’ solution for infrastructures that do not require flow or access control.

There is nothing to configure once you rackmount the unit.”

May 2003

FriendlyNET GX5 Gigabit Ethernet Switches 3

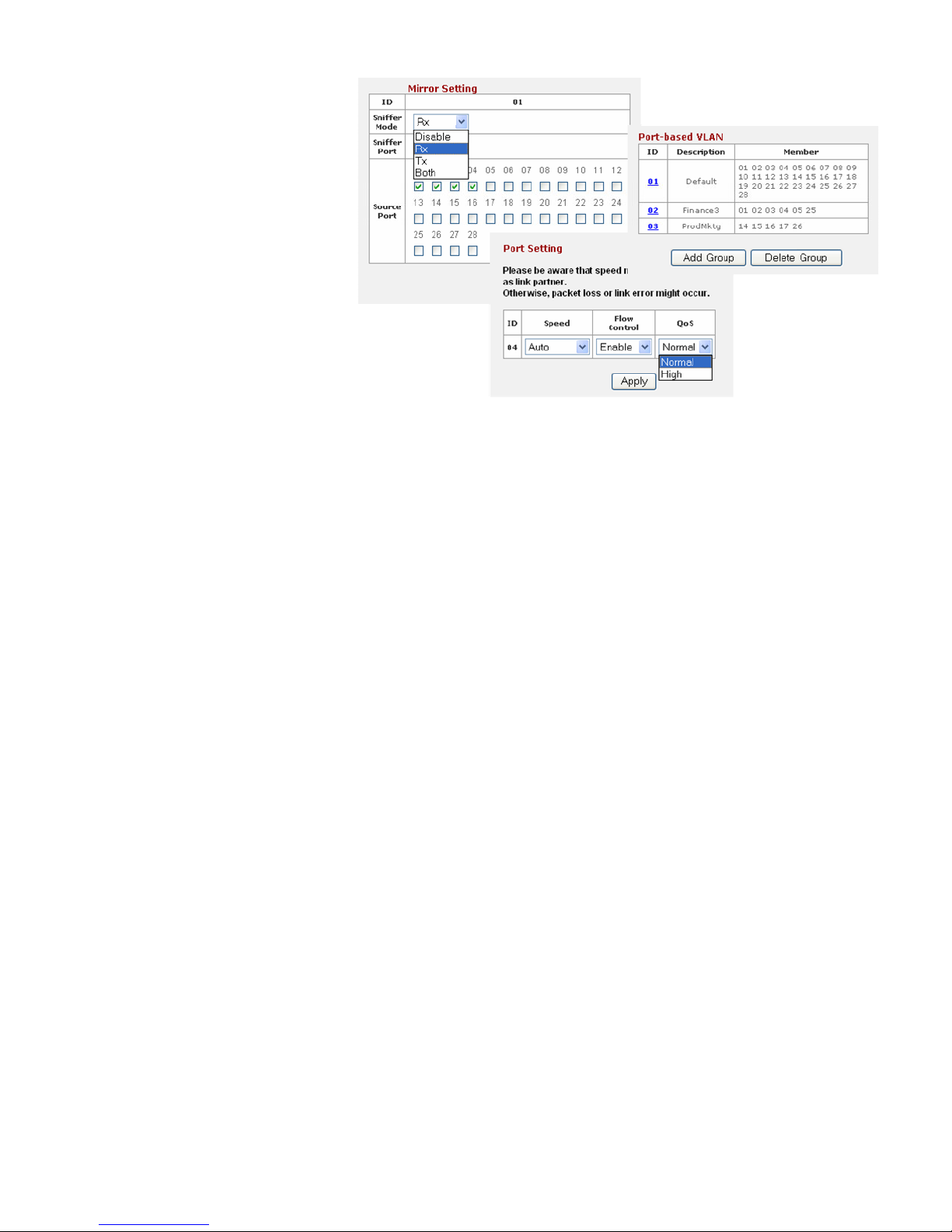

•Configure with Web Browser. All features are accessible from

an easy-to-use interface. No cryptic command line commands

or third-party network management applications required

•Mirroring. With a network analyzer (sold separately), look at

traffic on other ports; it’s ideal for troubleshooting

•Virtual LANs (VLANs). Improve overall network performance,

manageability and security by limiting organizing computers

and peripherals into logical workgroups. Data is delivered only

to the intended recipients while broadcast frames are sent

only to members of the VLAN (limiting broadcast domain)

•Quality of Service (QoS). Efficiently control network resources

by classifying traffic and prioritizing flows

All GX5 switches can connect to 10/100 Fast Ethernet devices

through some of the Gigabit (1000BaseT) ports. If you have several

10/100 devices, choose a switch (GX5-424W, GX5-208) with

dedicated 10/100 ports for a more economical solution.

Mounting your network equipment into a rack? Choose a

rackmountable GX5 switch (rackmount kit included) and all of your

equipment can be neatly stacked and mounted. If you’re not using a

rack, the switches can also be placed on a desktop.

To add Gigabit Ethernet over fiber, look for switches that include

GBIC ports, like the GX5-2400 and GX5-424W. Plug in an Asanté

or industry-standard module for 1000BaseSX or 1000BaseLX for

longer distance connections with maximum reliability. The GX5-

424W features small form factor pluggable (SFP) GBIC modules.

FriendlyNET GX5 Gigabit Ethernet Switches 4

The Right Gigabit Switch for Your Network

Two of our most popular switches include the FriendlyNET GX5-800P (top) and GX5-800

(bottom). Both feature compact metal cases and no fan—for quiet operation.

Choosing the right Gigabit Ethernet switch is easy. Asanté has a

complete family of switches in the widest range of configurations.

The FriendlyNET GX5 family is engineered to give you the most

number of Gigabit Ethernet ports for your budget. With our plug-

and-go design, you’ll spend less time configuring and setting up

your network than alternative designs that require network

management—and a staff of certified network professionals to

manage them for you.

FriendlyNET GX5-2400W

New! Introducing Asanté’s most powerful Gigabit Ethernet switch.

Quickly upgrade your legacy 10/100 Fast Ethernet network by adding

the GX5-2400W. Plug in any 10, 100 or 1000BaseT cable and

you’ll be running in minutes. The switch automatically configures

itself for maximum speed, duplex and wiring.

Highlights:

•Wire-speed performance with 48 Gbps switch fabric

•Web configurable for advanced features: trunking, mirroring,

virtual LANs (VLANs) and quality of service (QoS)

•Installs easily into 1U of rack space (kit included)

FriendlyNET GX5-2400

With 24 Gigabit ports, this switch certainly packs the most Gig in

just 1 rack unit (U) of space. As you upgrade your network from 24-

port 10/100 switches to Gigabit Ethernet, the GX5-2400 is the

perfect choice for delivering Gigabit to the desktop.

Highlights:

•Ports 23 and 24 are dual media. They support both

1000BaseT and GBIC (for optional fiber)

•Auto Failover if both 1000BaseT and GBIC ports are

redundantly connected

•Supports Jumbo Frames for maximum data throughput

•Innovative 24-20-24 Gbps segmented switch fabric. A 10 Gig

internal interconnect links two 12-port Gig switch controllers

FriendlyNET GX5 Gigabit Ethernet Switches 5

FriendlyNET GX5-1600

Asanté’s highest-density, Gigabit switch with non-blocking, wire-

speed switch fabric. Rated at an impressive 32 Gbps (16 x 2 Gbps,

full duplex), this switch provides outstanding performance in a

compact, rackmountable chassis.

Highlights:

•Non-blocking, wire-speed switch fabric

•All 16 ports support 10/100/1000BaseT

•Similar to Asanté’s IntraCore 35160 Series—without

management or advanced features

FriendlyNET GX5-800 and GX5-800P

Asanté’s most popular Gigabit switch is now available in 2

configurations: desktop or rackmountable. With the best

price/performance and the lowest cost/port, it’s a favorite choice for

smaller workgroups that are just upgrading to Gigabit Ethernet.

Highlights:

•Industrial-grade design with compact metal chassis

•Choice of internal auto-ranging power supply (GX5-800) or

external switching power supply (GX5-800P)

•Desktop or rackmountable with included kit (GX5-800 only)

•Convection cooled for silent operation (no fan)

•Non-blocking, wire-speed switch fabric

FriendlyNET GX5-500

For entry-level workgroups, this is a great choice for starting or

expanding your Gigabit Ethernet network. With Auto-Uplink™ on

every port, you can easily connect legacy 10/100 computers with

newer Gigabit-equipped workstations and servers using standard

Cat 5 (or better) cables.

Highlights:

•Ultra-compact metal chassis easily fits into small spaces

•Quiet, convection cooling (no fan)

•External modular power supply

•Non-blocking, wire-speed switch fabric

FriendlyNET GX5-424W

New! Does your 10/100 workgroup need better performance? With

24 ports of 10/100 plus 4 ports Gigabit Ethernet, this switch can

cost-effectively remove roadblocks in your data throughput.

Highlights:

•24 ports of 10/100BaseTX

•2 ports of 10/100/1000BaseT

•2 ports of SFP Mini-GBICs. Add optional fiber modules for

greater range and reliability

•High-performance switch fabric minimizes blocking between

10/100 and Gigabit ports

FriendlyNET GX5 Gigabit Ethernet Switches 6

FriendlyNET GX5-208

Overall Rating: 8.5 (Silver Award)

Gamershell.com

“Two words come to mind when reviewing this product. The

first word is Solid. The build quality is superb; the switch

has a professional, serious look. The product is something

you’d be proud showing off in your next LAN party and the

diagnostic lights only add to the functionality of this unit.

“The other word is Quality. Working with the Asanté

reminds me how a company should work. The product works

as you expect it to work with the right drivers in place; a

manual that tells you exactly what to do; it doesn’t have

driver glitches or hardware failures, it simply does the job.

“Having the Auto Uplink feature on each port is also a plus,

considering you can hook up even larger networks together.

“Performance is much up to par with most Gigabit switches

out there, with a slight advantage over the competition. The

strongpoint of this product is the delivery perfection; I did

not notice any problems, drawbacks, driver issues, it simply

works out of the box with no complications. This is an

important factor when it comes to networking.”

FriendlyNET GX5-208

Here’s the perfect introduction to Gigabit Ethernet. As you upgrade

from your legacy 10/100 Fast Ethernet devices, this handy

workgroup switch provides dual 1000BaseT Gigabit ports for direct

connection to servers or a Gigabit backbone.

Highlights:

•Auto-Uplink simplifies network cabling and configuration

•Dual Gigabit is an economical solution for expanding a

single 1000BaseT network drop in an office—without pulling

more wires

•Includes rackmount kit

•Industrial-grade design with compact metal chassis and

internal auto-ranging power supply

FriendlyNET GX5 Gigabit Ethernet Switches 7

SPECIFICATIONS

Model GX5-2400W GX5-2400 GX5-1600 GX5-424W

Target Deployment: Workgroup or

backbone

Workgroup or

backbone

Workgroup or

backbone

Workgroup

Special Features: VLAN, QoS,

Mirroring

Jumbo frames and

dual GBICs

High-density, non-

blocking design

VLAN, QoS,

Mirroring

Ports

Fast Ethernet: -- -- -- 24

Gigabit Ethernet: 24 24 16 4

10/100/1000BaseT 24 22 16 2

1000BaseT only -- 2 -- --

GBIC -- 2 -- 2 (SFP)

Auto-Failover: -- Ports 23 and 24

(1000T/GBIC)

-- --

Configuration:

Web -- -- Web

Network Monitoring: Web, LED LED panel LED panel Web, LED

Expansion (MDI/MDIX): Auto-Uplink Auto-Uplink Auto-Uplink Auto-Uplink

Performance

Efficiency:

Non-blocking Segmented Non-blocking Segmented

Switch Fabric: 48 Gbps 24+20+20 Gbps 32 Gbps 12.8 Gbps

Switch Design: Integrated

with web GUI

Dual 12-port with

10 Gbps

interconnect

Integrated Quad Gig,

24p 10/100

Switch Architecture: Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Flow Control: IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

-- IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

Jumbo Frames: -- Up to 9 KB --

Forwarding (MAC) Table: 8 K addresses 32 K addresses 8 K addresses 4000 addresses

Physical

Case:

Full-size, metal Full-size, metal Full-size, metal Full-size, metal

Color:

Asanté Titanium

Silver

Asanté CoolGray Asanté CoolGray Asanté Titanium

Silver

Height:

1 U

1.75"/ 4.5 cm

1 U

1.75"/ 4.5 cm

1 U

1.75"/ 4.5 cm

1 U

1.75"/ 4.5 cm

Mounting:

Rack or desk Rack or desk Rack or desk Rack or desk

Rackmount Kit: Included Included Included Included

Width x Length: 17.25 x 10.06"

43.8 x 25.6 cm

17.25 x 10.06"

43.8 x 25.6 cm

17.25 x 8.26"

43.8 x 21.0 cm

17.25 x 10.06"

43.8 x 25.6 cm

Power Supply: Internal

100-240 VAC

50/60 Hz

Internal

100-240 VAC

50/60 Hz

Internal

100-240 VAC

50/60 Hz

Internal

100-240 VAC

50/60 Hz

* For international part numbers, please refer to the Asanté price list.

With many Mac models now supporting gigabit speeds, it makes sense to

look towards a switch that can support slower speeds, such as 10/100

Mbps, but to leave room for also attaching higher-speed devices. The GX5-

424W has 24 10/100 ports, and a total of 4 gigabit ports…This device

supports advanced features, such as web configuration (no proprietary

software or cable required) Virtual LAN (VLAN) support, and Quality of

Service (QoS) to help prioritize and manage network traffic flow. Some of

these features are found in higher-end units, but are included in the GX5-

424W.

January 2004

FriendlyNET GX5 Gigabit Ethernet Switches 8

Model GX5-208 GX5-500 GX5-800P GX5-800

Target Deployment: Legacy workgroup Workgroup Workgroup Workgroup

Special Features: Dual Gigabit ports

with 10/100

Compact design,

plug cables into

rear

Compact design,

external power

supply

Rackmountable,

rugged internal

power supply

Ports

Fast Ethernet: 8 -- -- --

Gigabit Ethernet: 2 5 8 8

10/100/1000BaseT 2 5 8 8

GBIC -- -- -- --

Auto-Failover -- -- -- --

Configuration:

Plug-and-go with

IEEE Auto

Negotiation (sets

10/100/1000 Mbps

speed and half/full

duplex)

Plug-and-go with

IEEE Auto

Negotiation (sets

10/100/1000 Mbps

speed and half/full

duplex)

Plug-and-go with

IEEE Auto

Negotiation (sets

10/100/1000 Mbps

speed and half/full

duplex)

Plug-and-go with

IEEE Auto

Negotiation (sets

10/100/1000 Mbps

speed and half/full

duplex)

Network Monitoring: LED panel LED panel LED panel LED panel

Expansion (MDI/MDIX): Auto-Uplink Auto-Uplink Auto-Uplink Auto-Uplink

Performance

Efficiency:

Non-blocking Non-blocking Non-blocking Non-blocking

Switch Fabric: 5.6 Gbps 10 Gbps 16 Gbps 16 Gbps

Switch Design: Integrated Integrated Integrated Integrated

Switch Architecture: Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Store and forward

with integrated

broadcast storm

filtering

Flow Control: IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

IEEE 802.3x flow

control (full duplex)

and back pressure

(half-duplex)

Jumbo Frames: No No No No

Cooling Fan: Yes No No No

Forwarding (MAC) Table: 6 K addresses 8 K addresses 8 K addresses 8 K addresses

Physical

Case:

Mid-size, metal Compact, metal Compact, metal Compact, metal

Color:

Asanté CoolGray Asanté CoolGray Asanté CoolGray Asanté CoolGray

Height:

1 U

1.75"/ 4.5 cm

0.6 U

1.15"/ 2.9 cm

0.9 U

1.5"/ 3.8 cm

1 U

1.75"/ 4.5 cm

Mounting:

Rack or desk Desk Desk Rack or desk

Rackmount Kit: Included -- -- Included

Width x Length: 13 x 8"

28 x 18 cm

6.7 x 3.9"

17 x 10 cm

7.5 x 4.8"

19 x 12 cm

13 x 8"

28 x 18 cm

Power Supply: Internal

100-240 VAC

50/60 Hz

External External Internal

100-240 VAC

50/60 Hz

* For international part numbers, please refer to the Asanté price list.

Networks Today, May 2003

“The Asanté FriendlyNET GX5-208 Gigabit Switch offers a low

price-per-port, high-performance switch that finds a happy place

for the networking staff, the accounting staff, and the end-users

to meet.”

•Performance relatively close to an Enterprise class switch

•Cost per port much lower than an Enterprise class switch

•Auto-Uplink abilities on all ports

•Good set of diagnostic lights to tell you port speed, and

duplex

FriendlyNET GX5 Gigabit Ethernet Switches 9

Standards Compliance

Network: IEEE 802.3ab Gigabit Ethernet over 4 pairs of UTP Category 5 (1000BaseT)

IEEE 802.3u Fast Ethernet over 2 pairs of UTP Category 5 (100BaseTX)

IEEE 802.3 Ethernet (10BaseT)

Expansion: Auto-Uplink (MDI/MDIX) on all RJ-45 ports. Uplink to additional switches using standard or crossover cables

Environmental Range

Operating Temperature: 32º to 104º F (0º to 40º C)

Relative Humidity: 10% to 95% non-condensing

Emissions: FCC Class A and CE

Support

Product Warranty: Two-year product warranty covers defects in manufacturing and workmanship

Technical Support: Two years of free telephone support plus 24-hour support via web

Asanté Technologies, Inc. · 821 Fox Lane, San Jose, CA 95131 USA · Phone 408.435.8388 · Website www.asante.com

be trademarks or registered trademarks of their respective owners. Specifications subject to change without prior notice. 011603 • GX5 Switches_PLG

Stephen C. Holtzman, Chief Technical Officer

D-ZIGN S.A.B. Inc.

Saint-Laurent, Quebec, Canada

“As a medium-sized advertisement agency, we move files

around that can range in size from 100K to 1.5 Gig. The

average printer size file to our Xerox DC12 and Splash G640

printer is about 500 MB. We have been at 100BaseT until we

received our new GX5-2400! Not only can we produce

faster, but this switch moves files beautifully and fast. A

simple and elegant purchase that has made our agency

smooth as silk!”

Autres manuels pour GX5

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Asante Changer

Asante

Asante IntraCore 35160 Series Manuel utilisateur

Asante

Asante IntraCore 3624PWR Manuel utilisateur

Asante

Asante IntraCore 36000 Series Manuel utilisateur

Asante

Asante FriendlyNET Wireless USB Adapter Manuel utilisateur

Asante

Asante IntraSwitch 6200 Series Manuel

Asante

Asante FriendlyNet FH100TX16 Manuel utilisateur

Asante

Asante IntraCore IC3624PWR Manuel utilisateur

Asante

Asante FriendlyNET 7000 Series Manuel utilisateur

Asante

Asante FriendlyNET 4024P Manuel utilisateur

Asante

Asante IntraCore 65120 Series Manuel utilisateur

Asante

Asante FriendlyNET Wireless USB Adapter Manuel utilisateur

Asante

Asante FriendlyNet FH10T8 Manuel utilisateur

Asante

Asante FriendlyNET GX6-2400W Manuel utilisateur

Asante

Asante IntraCore IC36240 Series Manuel utilisateur

Asante

Asante FriendlyNET GXS-424W Manuel utilisateur

Asante

Asante FriendlyNET GX5-2400W Manuel utilisateur

Asante

Asante IntraCore 35516 Series Manuel utilisateur

Asante

Asante FriendlyNET GX4 Manuel utilisateur

Asante

Asante 10T Hub/8 Manuel utilisateur

Asante

Asante IntraCore IC3624 Manuel utilisateur

Asante

Asante FRIENDLYNET FS4116R Manuel utilisateur

Asante

Asante IntraSwitch 5324 Manuel

Asante

Asante IntraSwitch 5324 Manuel utilisateur

Asante

Asante GX6-500/800 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
