IntraCore™35160 Series

Layer 2 Gigabit Switches

Setup Guide

2Setup Guide

Quick Start Guide

Follow the steps below to install the IntraCore switch:

1. Open the box and check the contents. SeeChapter 1.2 Package Contents

foracompletelistoftheitemsincludedwiththeIntraCoreswitch.

2. Install the switch in an equipment or wall rack, or prepare it for desktop

placement.

3. Connect the power supply.

4. Connect network devices to the switch.

5. Refer to the User’s Manual on the accompanying CD-ROM for configu-

ration and management capabilities.

For more information on installing the switch, please refer toChapter 2

Installation and Setup.

Asanté IntraCore 35160 Series Layer 2 Gigabit Switches

Table of Contents

Quick Start Guide 2

1. Introduction 5

1.1 Features 6

1.2 Package Contents 6

1.3 LEDs 7

1.4 Front and Back Panel Descriptions 9

1.5 Management and Configuration 10

2. Installation and Setup 13

2.1 Safety Overview 13

2.2 Recommended Installation Tools 14

2.3 Power Requirements 14

2.4 Environmental Requirements 14

2.5 Cooling and Airflow 15

2.6 Installation Overview 15

2.7 Chassis Installation/Placement 15

2.8 Installing GBIC Interfaces 17

2.9 Installing Optional Emergency Power 18

Supply

2.10 Connecting Power 19

2.11 Connecting to the Network 19

Appendix A Troubleshooting 23

Appendix B Safety and Regulatory Compliance 25

Appendix C Specifications 27

Appendix D Serial Port Pin Outs 29

Appendix E Warranty and Support 31

4Setup Guide

Asanté IntraCore 35160 Series Layer 2 Gigabit Switches

1Introduction

Thank you for purchasing the Asanté IntraCore 35160 Series Giga-

bit switch. These switches are a family of multi-media and multi-

protocol switches capable of supporting Layer 2 switching and

Layer 3 and Layer 4 protocols. They are designed to offer industry-

leading performance at a very competitive cost of ownership.

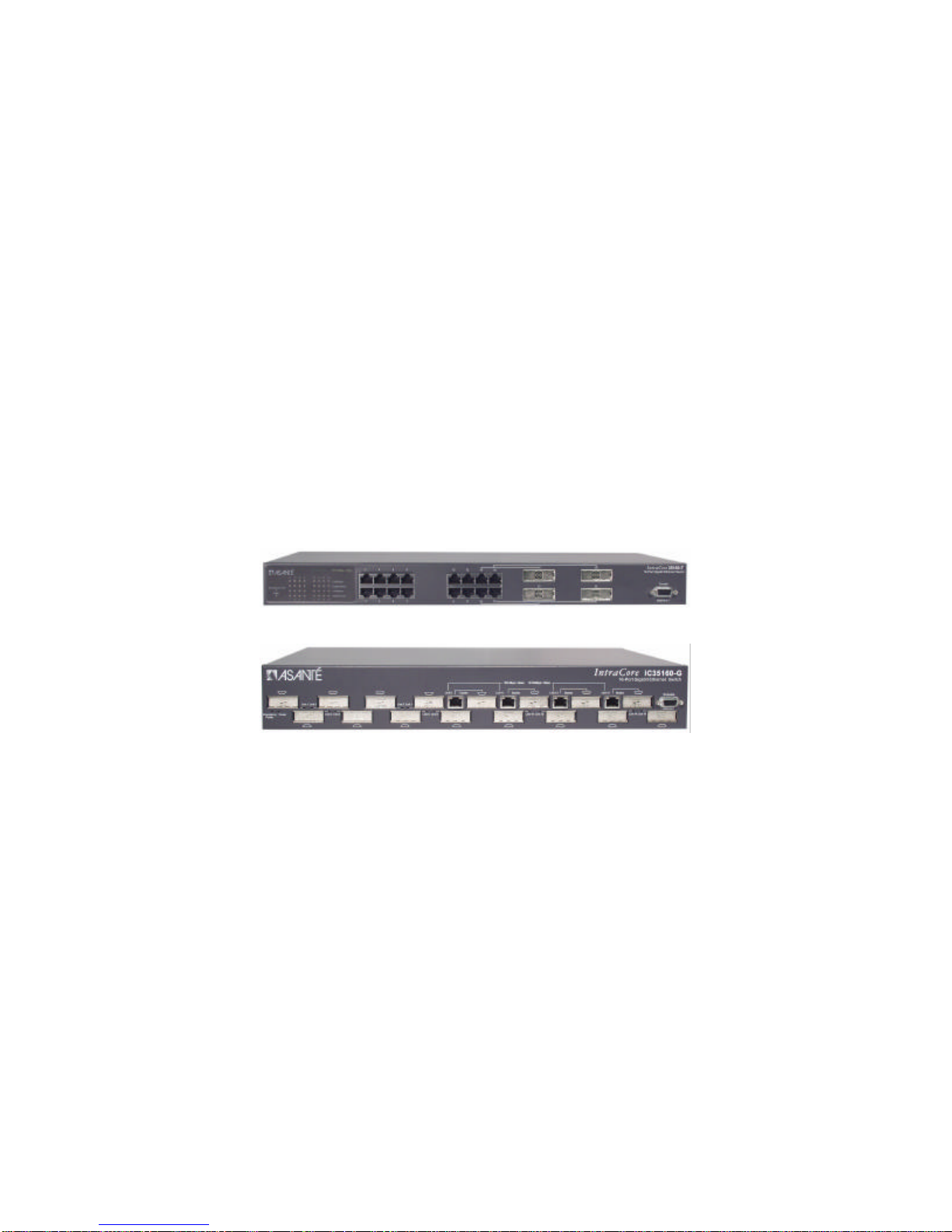

Each IntraCore 35160 switch is a 16-port solution for Gigabit

Ethernet switching using shared-memory architecture to achieve

Gigabit switching on all ports. The highly integrated system includes

MACs, Address Look-up Content Addressable Memory (CAM),

Switch Engine, Primary Buffer Memory, and programmable Quality

of Service (QoS).

Two models in the 35160 series cover different customer applica-

tions.

The IntraCore 35160-T is a 16-port switch that has 12 10/100/

1000BaseT ports and 4 dual function Gigabit ports that support ei-

ther 1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.

The IntraCore 35160-G is a 16-port switch that has 12 GBIC style

Gigabit Ethernet ports and 4 dual function Gigabit ports that support

either 1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.

The following types of GBIC modules are supported on the 35160

switches:

•1000SX multi-mode fiber for 500m applications

•1000LX single-mode fiber for 2km applications

•1000LHsingle-mode fiber for 20km applications

•1000LZ single-mode fiber for ultra distance (120km) appli-

cations

•1000BaseT Copper Gigabit for low-cost 100m applications

The system can operate as a stand-alone network or be used in

combination with other IntraCore series switches in the backbone.

6Setup Guide

1.1 Features

The IntraCore 35160 is a multi-media, multi-protocolswitch de-

signed to be a high-performance, compact Layer 2 switch that is

field upgradeable to Layer 4 Type of Service. It utilizes the Switch-

Core-CXE2010 packet processor to support its many features. The

following is a partial list of the switch’s features (please refer to the

User’s Manual on the CD-ROM for a complete list of features):

•SNMP v.1 and RMON (4 groups), telnet, console menu-

driven management

•MIBs: MIB ll (RFC 1213), RMON (RFC 1757), 802.1Q/p

(RFC 2674), Bridge (RFC1493), Asanté Private MIB

•IEEE 802.1q VLAN

•IEEE 802.1p 8-level Class of Service

•IEEE 802.3x Flow Control

•IEEE 802.1D Spanning Tree

•IGMP V1, V2 snooping

•Support for up to 256 multicast groups

•Large address table of up to 8000 MAC addresses

•MAC address ageing

•MAC/IP address table display

•Provides Jumbo Packet support up to 16384 Bytes in size

•Port security, including station move detection and Dupli-

cate IP detection; 1 trusted address per port

•Port Mirroring/monitoring on Ingress only (upgrade to In-

gress/Egress)

•Local and Global port management

1.2 Package Contents

The following items are included in your package:

•Switch

•AC power cord

•Rack mount brackets with screws

•Rubber feet

Asanté IntraCore 35160 Series Layer 2 Gigabit Switches

•User’s Manual (on CD-ROM)

•Getting Started Guide (this document)

•IntraCore 35160 CD-ROM

Contact your dealer immediately if any of these items is missing.

1.3 LEDs

The system’s front panel LED display allows the manager to moni-

tor the status of the switch. Refer to the following sections for LED

information specific to the switch’s model.

1.3.1 IC35160-T

The IC35160-T has one power LED indicator, one (optional) emer-

gency power LED, and two LED indicators for each of the 16 ports.

See the table below for a complete LED description.

LED Color Description

Power Green

Off

Power is on.

Power is off, or main power has failed.

Emergency

Power (optional) Green

Off

Primary power has failed and optional power supply

is powering the switch.

Optional power supply is in standby mode and pri-

mary power is working.

Link/Speed Green

Yellow

Off

A valid 1000Mbps link has been established.

A valid 10/100Mbps link has been established.

No link has been established.

Duplex/Activity Blinking Green

Blinking Yellow

Off

Activity is detected in full-duplexmode.

Activity is detected in half-duplexmode.

No traffic has been detected, or no link has been

established.

8Setup Guide

1.3.2 IC35160-G

The IntraCore 35160-G has one power LED, one (optional) emer-

gency power LED, two LED indicators for 10/100/1000BaseT

status, and one LED for GBIC status. See the table below for a

complete LED description.

LED Color Description

Power Green

Off

Power is on.

Power is off, or main power supply has failed.

Emergency Power

(optional) Green

Off

Primary power has failed and optional power supply

is powering the switch.

Optional power supply is in standby mode and

primary power is working.

BaseT

10/100/1000

Link/Speed

Green

Yellow

Off

A valid 1000Mbps link has been established.

A valid 10/100Mbps link has been established.

No link has been established.

BaseT

10/100/1000

Duplex/Activity

Blinking Green

Blinking Yellow

Off

Activity is detected in full-duplexmode.

Activity is detected in half-duplexmode.

No traffic has been detected, or no link has been

established.

GBIC

Link Green

Off

A valid 1000Mbps link has been established.

No link has been established.

Asanté IntraCore 35160 Series Layer 2 Gigabit Switches

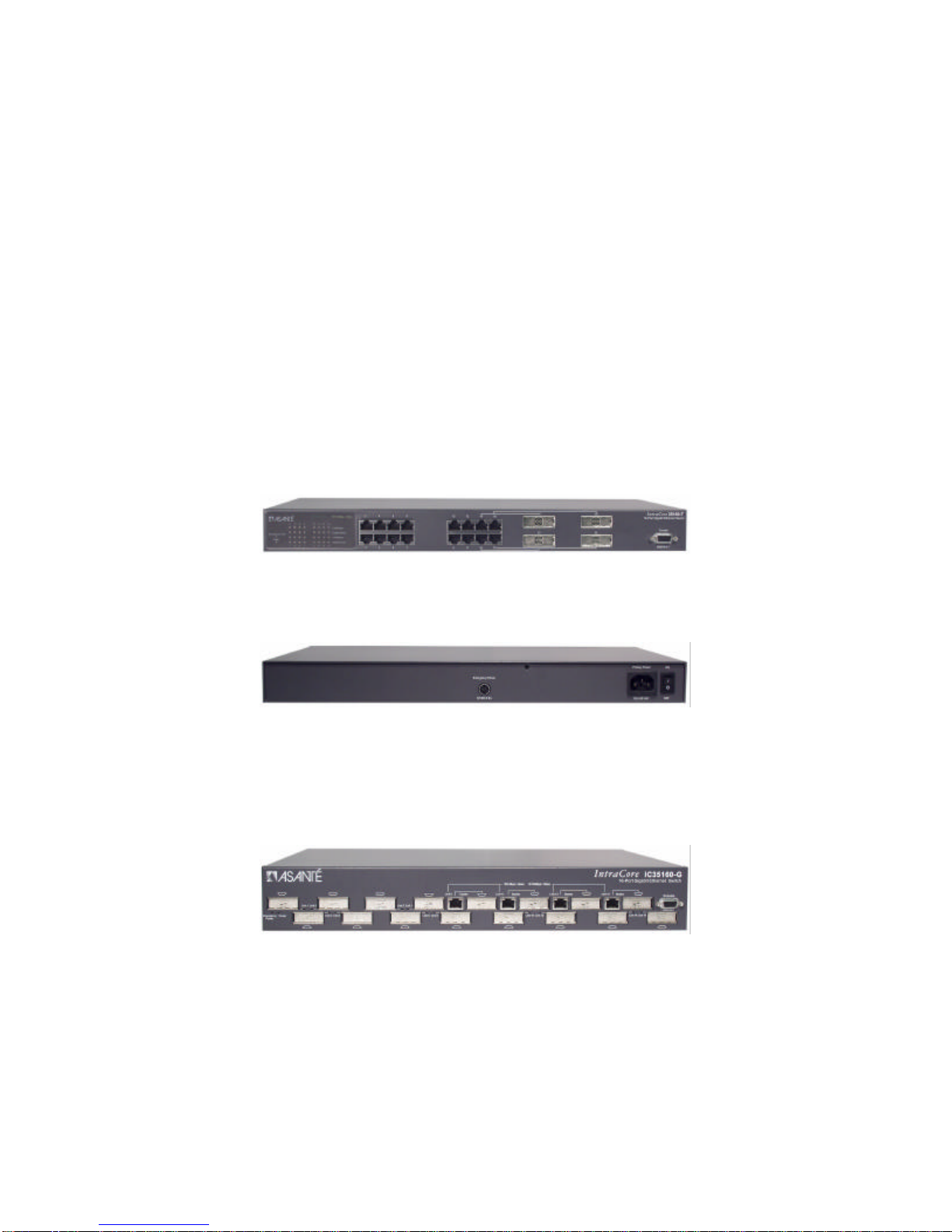

1.4 Front and Back Panel Descriptions

Refer to the following sections for detailed descriptions of the front

and back panels of the IntraCore 35160 series switches.

1.4.1 IC35160-T

The front panel of the IC35160-T contains the following: power and

port LEDs; 12 10/100/1000BaseT ports; 4 dual-function Gigabit

ports that support either 1000BaseT or GBIC style Gigabit Ethernet

ports; and a console port.

The back panel, shown below, contains a 12VDC jack for (optional)

emergency power; the primary power bay cover plate; the primary

power outlet; and the on/off switch.

1.4.2 IC35160-G

The front panel of the 35160-G contains the following: power and

port LEDs; 12 GBIC ports; 4 dual-function Gigabit ports that support

either 1000BaseT or GBIC style Gigabit Ethernet ports; and a con-

sole port.

10 Setup Guide

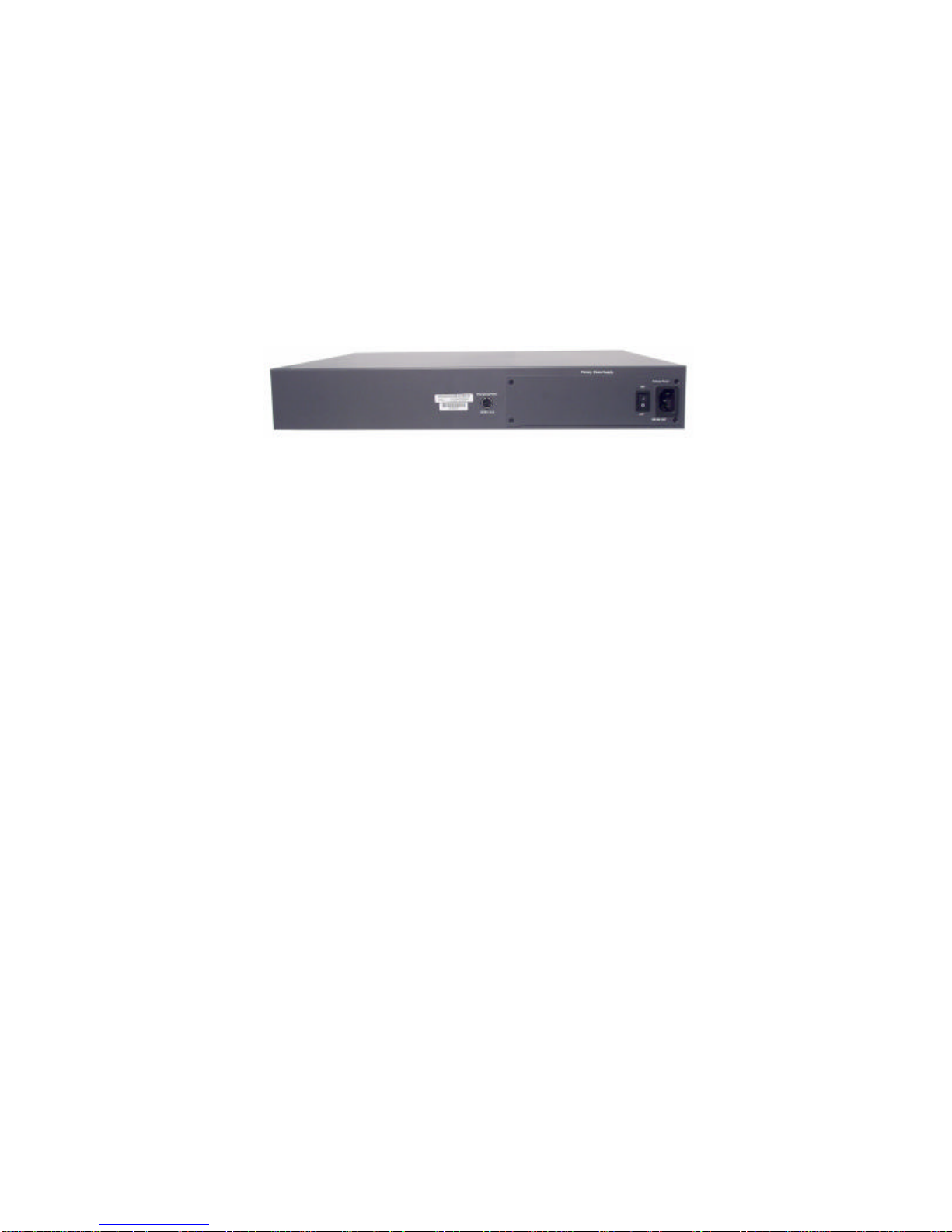

The back panel, shown below, contains: A 12VDC jack for (optional)

emergency power; the primary power bay cover plate; the on/off

switch; and the primary power outlet.

1.5 Management and Configuration

A network administrator can manage the switch with three different

methods: web, console/telnet, or SNMP software. They may prefer

using a web browser to enable configuring the switch from any local

or remote computer, via the network, or they may wish to use a

console for out-of-band management. The switch’s default IP ad-

dress is192.168.0.1 and the default password isAsante (the pass-

word is case sensitive and must appear exactly as it is shown here).

SNMP is an advanced management application, and is mostly auto-

matic, giving the information without having to go through an inter-

face step-by-step (Note: The switch is shipped with BootP support.

See Appendix F BootP Configurationof the User’s Manual for more

information on setting up BootP.)

1.5.1 Console Interface

Users can access the switch in a more traditional way by connect-

ing a PC or terminal to the console port or by telnet across the net-

work. The menus are organized in a manner similar to the web-

based interface. A detailed description can be found inChapter 3

Configuration of the User’s Manual (CD-ROM.)

Note: By default, the HTTP server is disabled. In order to manage

the switch through the web interface, the HTTP server function must

be enabled via the console interface.
