Artila Matrix-310 Instructions d'installation

Matrix-310

Programmable Industrial IoT Gateway

Hardware Guide

Version: 1.0

2023 January

Matrix-310 ardware Guide

ARTILA

Trademarks

The Artila logo is a registered trademark of Artila Inc. All other trademarks or

registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not

represent a commitment on the part of Artila.

Artila provides this document as is, without warranty of any kind, either expressed

or implied, including, but not limited to its particular purpose. Artila reserves the

right to make improvements and/or changes to this manual, or to the products

and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable.

owever, Artila assumes no responsibility for its use, or for any infringements on

the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors.

Changes are periodically made to the information herein to correct such errors,

and these changes are incorporated into new editions of the publication.

FCC AND IC INFOR ATION:

This Class A digital apparatus complies with Part 15 of the FCC rules and with

Canadian ICES-003

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference. Including interference that may

cause undesired operation of the device.

Matrix-310 ardware Guide

ARTILA

Document Amendment History

Revision

Date Remark

V 1.0 2023 Jan. Initial

Matrix-310 ardware Guide

ARTILA

Table of Contents

1. Introduction .................................................................................................... 5

1.1 Features .................................................................................................. 5

1.2 Specifications ( ardware)........................................................................ 6

1.3 Specifications (Software) ......................................................................... 8

1.4 Packing List ............................................................................................. 8

1.5 Optional Accessory.................................................................................. 8

2. Layout ............................................................................................................. 9

2.1 Connector & LED Indicator ...................................................................... 9

2.2 Mounting ................................................................................................. 9

2.3 Dimension ............................................................................................... 10

3. Pin Assignment and Definitions .................................................................... 11

3.1 Power Connector ..................................................................................... 11

3.2 LED Indicators ......................................................................................... 11

3.3 Ethernet LAN Port ................................................................................... 12

3.4 Console Port............................................................................................ 12

3.5 Serial Port ............................................................................................... 13

3.6 Relay Out ................................................................................................ 14

3.7 Digital Input ............................................................................................. 15

3.8 ID Setting ................................................................................................ 16

3.9 Reset Button............................................................................................ 17

3.10 SD card Socket ....................................................................................... 17

Matrix-310 ardware Guide

ARTILA

1. Introduction

Matrix-310 from Artila provides multi-communication via an Arduino-based, C/C++

programmable industrial IoT gateway. With the integrated ESP32 Xtensa Dual-Core

32-bit LX6 Microprocessor, Artila’s IoT gateway provides up to 240 M z of

frequency, as well as Wi-Fi (802.11b/g/n, 2.4G z single band) and dual-mode

Bluetooth.

It features dual available / reliable networks, dual Serial ports and digital In/Out

connectivity for transmission of acquired data to the cloud makes it ideal for real-time

monitoring and predictive maintenance also optimization and deployment of factory

applications, such as industrial automation, environment monitoring and smart city

infrastructure.

The gateway provides software via an Arduino IDE. Ideal for real-time monitoring and

predictive maintenance functions, which are commonly performed in Industrial IoT

environments, the Matrix-310 provides Dual Serial ports and digital In/Out

connectivity for data transmission to the cloud. Users can install the ESP32 Arduino

core through board manager of the Arduino IDE.

1.1 Features

 Rugged Design for arsh Industrial Environment

 Arduino-Based Programmable Industrial IoT Gateway

 Espressif ESP32 Xtensa® Dual-Core 32-bit LX6 Microprocessor, 240 M z

 Onboard 520KB SRAM, 4MB Flash

 Suitable for Accessing Modbus Device

 Easy Software Development (IDE/C-language/Arduino/Micro Python)

 One LAN Port, 10/100Mbps Ethernet

 Two Serial Ports: 1xRS-485 & 1xRS-232

 Wireless: IEEE 802.11b/g/n, 2.4G z Single

 2x Digital Inputs and 1xRelay out

 ID Setting by Rotary Switch

 One Micro-SD Socket Internally

 Wide-Range Temperature Operating

 DIN-Rail Mounting, Optional Wall-Mounting

 Protective Earthing Design with Chassis Ground Screw

Matrix-310 ardware Guide

ARTILA

1.2 Specifications (Hardware)

SOC (ESP32-WROO -32U)

• MCU: ESP32-D0WD-V3, Xtensa® dual-core 32-bit LX6 microprocessor

• Frequency: Up to 240M z

• SDRAM: 520KB for data and instructions

• Flash: 448KB for booting and core functions

• Wi-Fi (ESP32): IEEE 802.11b/g/n, 2.4G z single band

FCC ID: 2AC7Z-ESP32WROOM32U

Network Interface

• Type: 1 x 10/100Mbps Ethernet (SPI interface)

• Connector Type: RJ45

TTY (Serial) Ports

• COM1: Isolated RS-485 (1500Vrms isolation)

• COM2: RS-232

• Direction Control (RS-485): Auto, by software

• RS-485 Signal: Data+, Data-

• RS-232 Signal: TX, RX

• Connector: Terminal block

• LED Indicator: YES

TTY (Serial) Port Parameters

• Baud Rate: Up to 921.6Kbps

• Parity: None, Even, Odd, Mark, Space

• Data Bits: 5, 6, 7, 8

• Stop Bits: 1, 1.5, 2

Relay Output

• 1 x Digital Output Channels (Signal Relay)

• Contact Rating: 12[email protected] / 3[email protected]

• Max. switching Voltage: 125VAC/60VDC

• Max. switching Current: 2A

• Signals: NC, NO, COM

Matrix-310 ardware Guide

ARTILA

Digital Input

• 2 x Digital Input Channels

• Isolation Protection: 5000Vrms (Photo Coupler)

• Logical igh: 5~24VDC

• Logical Low: 0~1.5VDC

Power Requirement

• Input Voltage: +9~+40VDC

• Connector: Terminal block

• Typical Power Consumption: 12VDC@150mA

Console

• 1 x Micro-USB console port

• Flashing applications to the chip & Debug

SD Slot

• 1 x microSD socket inside (SPI Interface)

• SD 2.0 compliant, supports SD C

ID Setting

• 1 x 8-position rotary switch

• Device ID setting or Application mode selection

General

• Watchdog (WDT): Yes (ESP32)

• Real-time Clock (RTC): Yes (ESP32)

• Dimensions (W x x D): 30 x 140 x 95mm (1.18 x 5.51 x 3.74in)

• Net Weight: 424.5g (0.93lb)

• Operating Temperature: 0~70°C (32~158°F)

• Regulation: CE Class A, FCC Class A

• Installation: DIN-Rail mounting or Wall mounting

Matrix-310 ardware Guide

ARTILA

1.3 Specifications (Software)

Easy to Use C/C++ Platform (Arduino ESP32)

• Matrix-310 is C/C++ programmable, Arduino (ESP32) compatible industrial IoT

platform

• Installed Arduino core (ESP32) through board manager of Arduino IDE

Free Application Development Tools

• Free Xtensa® C/C++ toolchain

• Free Arduino official IDE

• Free Microsoft Arduino plugin for VS code

1.4 Packing List

 atrix-310: Programmable Industrial IoT Gateway

1.5 Optional Accessory

 PWR-12V-1A: 100~240VAC to 12VDC@1A Power Adaptor

Matrix-310 ardware Guide

ARTILA

2. Layout

2.1 Connector & LED Indicator

2.2 ounting

Matrix-310 ardware Guide

ARTILA

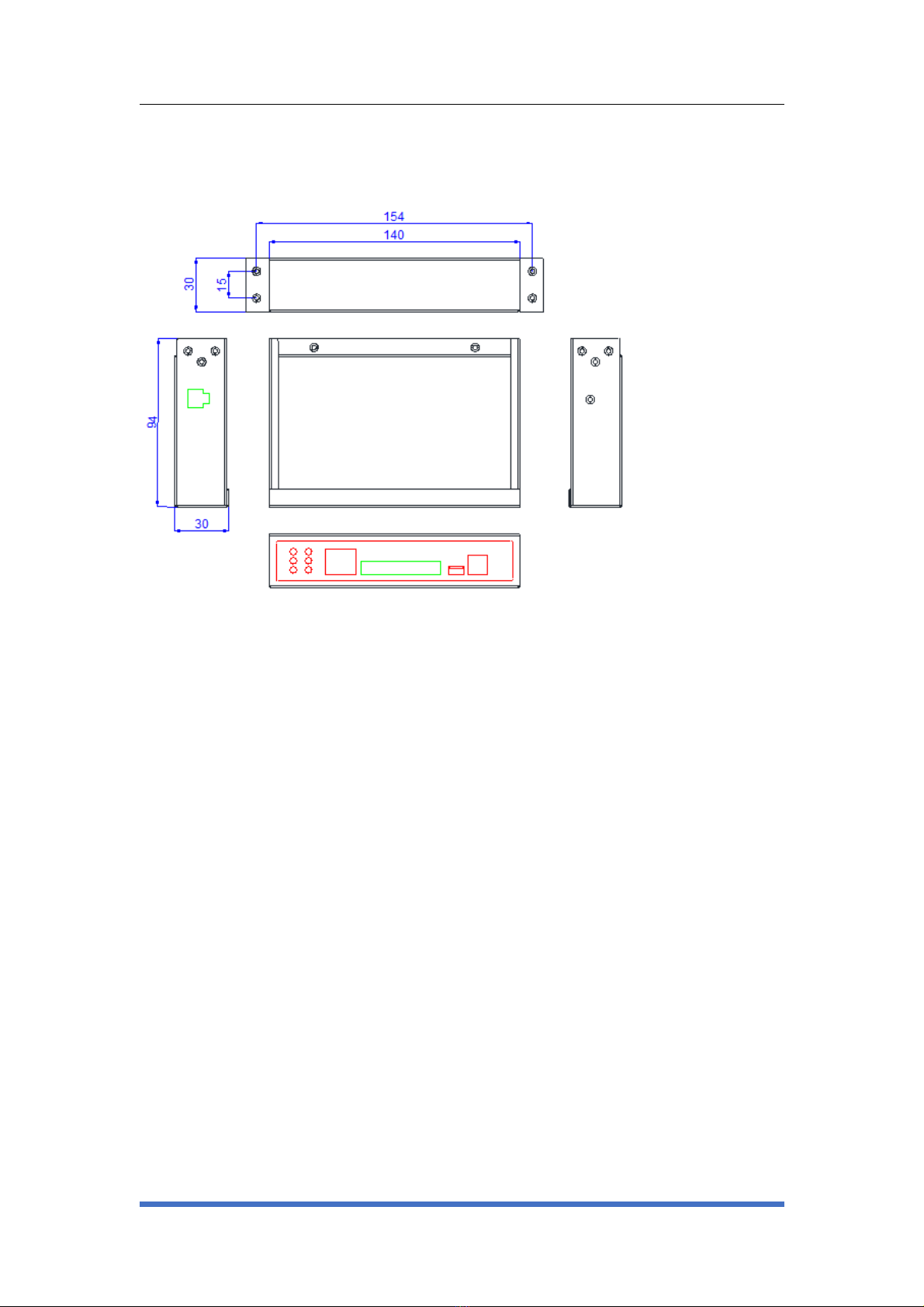

2.3 Dimension

Dimensions (W x x D): 30 x 140 x 95mm (1.18 x 5.51 x 3.74in)

Unit: mm
