ARTHUR HOLM AH22DRM Manuel utilisateur



DynamicReceptionMonitor

User Guide

AH22DRM

HDCP compliant motorised adjustable reception monitor

Danish craftmanship

Mediterranean soul

Technology Serving Desing

TABLE OF CONTENTS

EC REGULATIONS AND SECURITY 6

SAFETY INSTRUCTIONS 6

SYSTEM DESCRIPTION 8

CONTROLS 10

OSD MENU 11

INPUT CONNECTORS 14

INPUT RESOLUTIONS 14

INFORMATION ON DISPOSAL 15

WARRANTY TERMS AND CONDITIONS 16

WELCOME

Thank you for purchasing an ARTHUR HOLM product.

Our product range has been designed for a seamless integration and for

a maximum reliability.

Please, read this installation and operating instructions carefully and keep

them in a safe place for future reference.

We remain at your entire disposal if you have any suggestions that would

help us improve our products.

Henrik Holm

General Manager

[email protected]

ABOUT US

The Company

Arthur Holm has its origins in the Danish furniture designer Jorgen Alex

Jensen, who was active during the sixties and the seventies. His design

inspiration and his concept of ergonomics have been continued by his

family, who is the design force behind Arthur Holm product range. The

result of combining Scandinavian design tradition with Mediterranean

creativity, exibility and emotion is a wide product range built on more

than 25 years of craftsmanship.

Arthur Holm offers a professional product range where tomorrow’s

technology is shaped into valued materials with design exibility and

customisation, specially created to enhance communication in reception,

collaboration, conference and meeting areas.

The art of customisation

Arthur Holm offers a range of ingenious products whose designs are based

on quality materials and the latest technology. Products which endow

meeting and conference rooms with silent, ergonomic, innovative and

aesthetic solutions that integrate into the furniture, hang from the walls as

works of art or are used as interactive points of information.

The world of Arthur Holm

Arthur Holm offers a selection of unique, elegant, versatile, exible and

ergonomic products that are being used in meeting and conference

rooms, reception areas, huddle rooms, control rooms, auditoriums and

public zones of leading companies throughout the world.

The numbers speak for themselves! We currently own 33 product patents,

have presence in over 45 countries with products and solutions inmore

than 25,000 installations.

It will be our pleasure to work with you, designing your unique and

personalised environment. Our broadcast electronic engineers will

provide the latest technology while our design team will offer you the most

exclusive appearance.

Our team puts its heart, passion and pride in all our designs.

SAFETY INSTRUCTIONS

Plugs

• Do not dismantle any part of the monitor power connector.

• Disconnect the power plug from the AC outlet when the monitor is not

going to be used for an indenite period of time.

Power and extensions cords

• Use the appropriate power cord with the correct plug type.

• Do not overload wall outlets or power cords.

• Make sure the total ampere passed through a extension cord does not

exceed the maximum allowed by the cable used.

• Do not place anything on the power cord.

• Do not locate this product where a person may walk or trip over the

cord.

EC REGULATIONS AND SECURITY

ATTENTION: Do not disassemble or modify the device in any way.

This symbol warns of the presence of dangerous un-insulated

voltages inside some of the components, of sufcient magnitude

to expose people to risk of electronic shock.

This symbol draws attention to important use and maintenance

instructions in the manual that accompanies the unit.

This symbol indicates that the equipment conforms to the norms

established by the European Community.

Wiring connected to hazardous voltage requires installation by

qualied personnel or the use of ready-made exible cables.

For your security, your equipment must be connected to an

electrical outlet with grounding connection protection.

Since the plug is used to disconnect the device, the operating

electrical outlet must be in an easily accessible place.

Environment

• Install the equipment on an elevated, at surface.

• Install the equipment in a ventilated area.

• Avoid exposing the equipment to:

∙Rain or water

∙Excessive heat, cold or humidity

∙Area exposed to direct sunlight

∙Dirty areas

∙Equipment generating strong magnetic elds

• Avoid placing open containers of liquid, near the equipment.

• Keep a minimum distance of 30 mm in order to have good ventilation.

• Never place above the device any sources of ames such as lighted

candles, etc.

• If you are using the device in extreme weather conditions and/or

tropical climates, the equipment should be installed in a room which

ensures a reasonable level of temperature and humidity.

SAFETY INSTRUCTIONS

SYSTEM DESCRIPTION

Applications

The professional Arthur Holm DynamicReceptionMonitor is designed

using the latest professional technologies to ensure a perfect

workplace. It offers a non-obstructive design in which all technical

interfaces and cables are internal, so the front desk is free of cables

and obstructive components, creating a cleaner work environment.

The DynamicReceptionMonitor has been designed to be integrated in

tables or desks. The base of the monitor is installed on the surface and

its connectivity is placed below the table, making the installation clean

and minimalistic.

The elegant monitor housing is made of milled aluminium and stainless

steel and it includes an antiglare protection glass with black marking.

The stainless steel arm of the monitor offers a motorised adjustable

height for a perfect t.

Features

• Ergonomic.

• Motorised adjustable height.

• Adjustable viewing angle (horizontally and vertically).

• 140 degrees rotation.

• Exquisite materials.

• 24/7 Design.

• Three times longer lifespan than a standard monitor.

• Maintenance free.

• HDCP Compliant.

• Energy saving.

• Easy to install.

• Passive cooling.

SYSTEM DESCRIPTION

Box Contents

Before the installation of your monitor, please check the contents of the

shipping box, it must contain the following items:

• Monitor

• Power cord

• User guide

• Power supply 100-240Vac, 50-60Hz. Output 12V

Important Note: This device can only work with the power supply

included in the shipping box. This power supply can not be replaced by

any other rather than the original one.

Connections

Power connection:

1. Plug the power cable from the power supply into an AC socket of

100-240 Vac, 50-60Hz.

2. Plug the 12Vdc cable into the socket on the unit.

Signal connection:

1. Use the HDMI cable with HDMI female connector to connect a

HDMI input signal.

Use high quality HDMI cables with 2 m of maximum length.

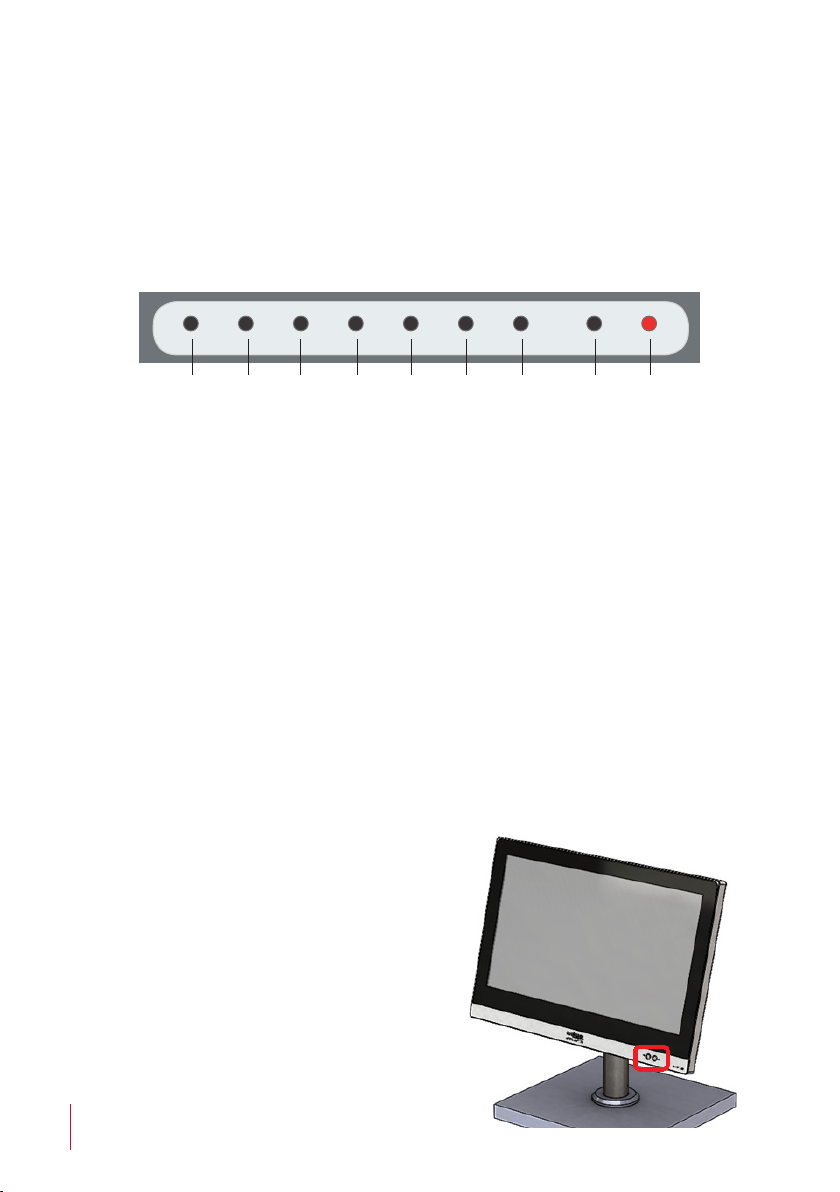

MENU SELECT DOWN UP LEFT RIGHT SOURCE LED POWER

CONTROLS

OSD monitor control

The OSD buttons, to control or set-up the monitor, are located on the

lower body housing of the system:

MENU Activates the OSD menu on screen. Exits the OSD menu

when is active

SELECT Selects the OSD menu function

DOWN Cursor control down on the OSD menu

UP Cursor control up on the OSD menu

LEFT Cursor control left on the OSD menu

RIGHT Cursor control right on the OSD menu

SOURCE Signal input selection (No function in this model)

LED Indicates operation status

POWER Monitor power ON/OFF

The up and down height adjustment

control buttons are located in front

of the screen. Press these buttons

to raise the screen up or down, and

release the buttons when the screen

is on the desired position.
