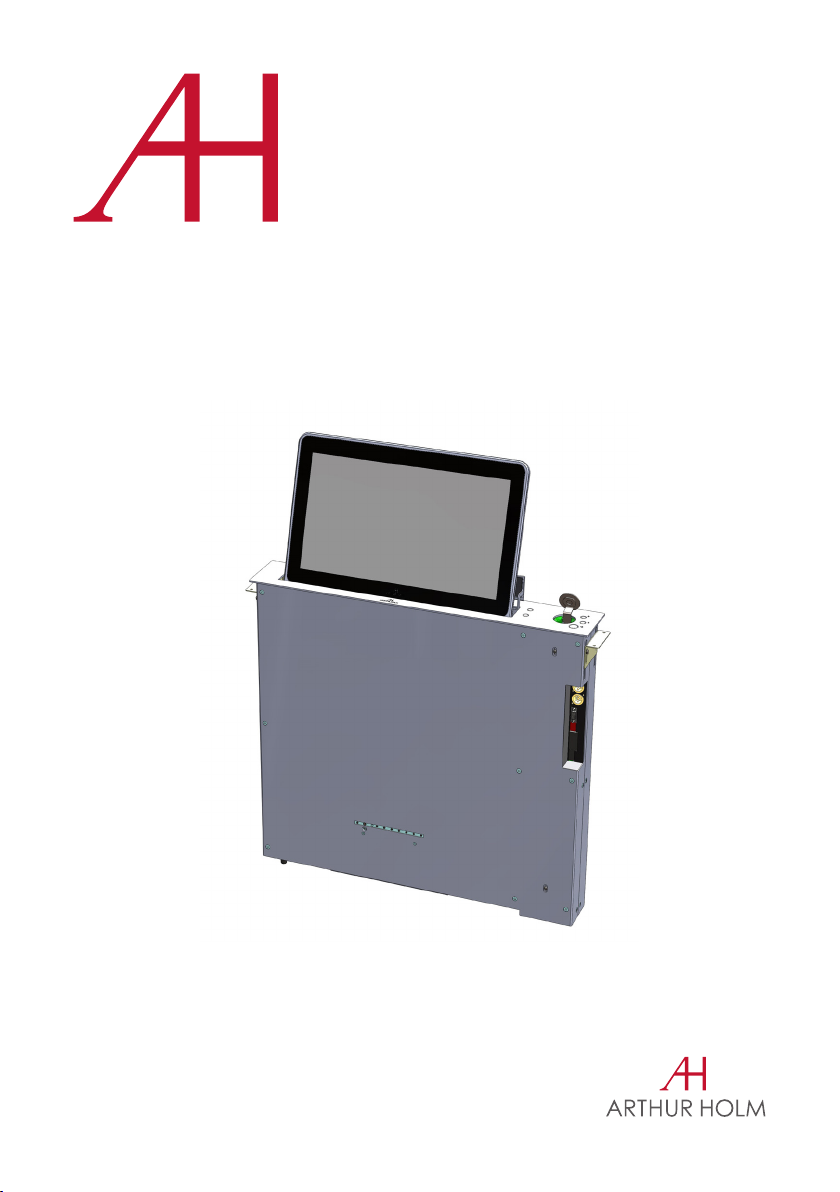

ARTHUR HOLM AH17D X2HDGA Manuel utilisateur
User manual
AH17D X2HDGA TALK
AH22D X216GA TALK
Retractable monitors for furniture integration with
integrated DynamicTalk
Table of contents
EC REGULATIONS & SECURITY 6
SAFETY INSTRUCTIONS 7
APPLICATIONS 8
BOX CONTENTS 8
FEATURES 9
CONTROLS 10
OSD MENU 14
INPUT CONNECTORS 17
DYNAMICTALK HANDLING 21
WARNING 22
MONITOR AHnet PROTOCOL 23
DYNAMICTALK AHnet PROTOCOL 26
INPUT SIGNALS 29
PRODUCT WARRANTY 31
Welcome
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed to create the perfect meeting room,
where the screens are a part of the interior design as well as essential
communication tools.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
6
EC Regulations and Security
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated voltages
inside some of the components, of sufficient magnitude to expose people
to risk of electronic shock.
This symbol draws attention to important use and maintenance instructions
in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
7
Safety instructions
PLUGS
– Do not dismantle any part of the monitor power connector
– Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indefinite period of time
POWER AND EXTENSIONS CORDS
– Use the appropriate power cord with the correct plug type
– Do not overload wall outlets or power cords
– Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used
– Do not place anything on the power cord
– Do not locate this product where a person may walk or trip over the cord
Wiring connected to hazardous voltage requires installation by qualified
personnel or the use of ready-made flexible cables.
For your security, your equipment must be connected to an electrical
outlet with grounding connection protection.
The operating electrical outlet must be in an easily accessed place.
ENVIRONMENT
– Install the equipment on an elevated, flat surface
– Install the equipment in a ventilated area
– Avoid exposing the equipment to:
Rain or water
Excessive heat, cold or humidity
Areas exposed to direct sunlight
Dirty areas
Equipment generating strong magnetic fields
– Avoid placing open containers of liquid, near the equipment
– Keep a minimum distance of 30mm in order to have good ventilation
– Never place any sources of flames, such as lighted candles, etc. above the device
– If you are using the device in extreme weather conditions and/or tropical
climates, the equipment should be installed in a room which ensures a
reasonable level of temperature and humidity
- To prevent damage the equipment must be firmly anchored to the surface,
as shown in the installation instructions
8
System Description
APPLICATIONS
The DynamicX2Talk system is a professional TFT display with DynamicTalk and
an electrical lift system for installation into a horizontal furniture surface. The
DynamicTalk system is a universal motorized microphone lift system remotely
controllable through RS422 or GPI with Dynamic LED Ring for “Ready to Talk”
and “Talk” indicators.
In the starting position (retracted) the screen's monitor is placed inside the
table leaving the desk free of any obtrusive element. When in this position, the
power will automatically be disconnected in order to save energy and preserve
panel life. By pressing the rear button located on the table cover plate, the TFT
panel raises up into the working position (raised and tilted). The TFT power is
then restored.
This TFT-LCD product range is specially designed for desk integration in:
Conference rooms Meeting rooms Board rooms
Auditoriums Information desks Training rooms
BOX CONTENTS
Before the installation of your retractable monitor, please check the contents
of the shipping box, it must contain the following items:
- Monitor unit
- Two power cords (one for the monitor and one for DynamicTalk)
- Two power supplies 100-240Vac, 50-60Hz. Output 12V (one for the monitor
and one for DynamicTalk)
- Remote control (1 per 5 monitors)
- User Manual
9
System Description
FEATURES
- TFT Active Matrix display
AH17D X2HDGA TALK FULL HD 17"
AH22D X216GA TALK FULL HD 22"
– Retractable monitor with electrical engine for furniture integration
and tilting screen 20° (factory adjusted) with integrated universal XLR3
microphone lift system
- Monitor Up/Down function operated by two buttons on the cover plate
- Microphone Up/Down function controlled by push button on cover plate
- Up/Down for external contact close (GPI) or RS-422 control
- Low power consumption
- Low radiation
- Quick response time
- Data inputs DVI-I & DVI-D. HDCP compliant
- Upper cover plate in brushed stainless steel with outgoing hatch. Monitor
housing made of solid mechanized aluminium in anodized finish, and front glass
- Electrical powered lift system with variable speed
- Addressable RS422 monitor control by AHnet protocol, RJ45 connector
CAT5
- Dynamic LED Ring for “Ready to Talk” and “Talk” indicators
- Push button on cover plate to externally use (GPO)
- Push button to "Mute" function in PA mode, or to use as GPO in conference
mode
- Integrated DynamicTalk for microphones with a maximum length of 500mm,
including foam. The microphone foam should be taken into consideration on
the total microphone length
10
Controls
OSD MONITOR CONTROL
The OSD buttons, to control or configure the monitor, are located at the
lower body housing of the system
POWER Monitor power on/off
LED Indicates operation status
SOURCE Signal input selection
RIGHT Cursor control right on OSD menu
LEFT Cursor control left on OSD menu
UP Cursor control up on OSD menu
DOWN Cursor control down on OSD menu
SEL Selects the OSD menu function. When the OSD menu is not
active, auto adjusts the function for ARGB (analogue) input
signal
MENU Activates the OSD menu. Exits OSD menu when is active
POWER LED SOURCE RIGHT LEFT UP DOWN SELECT MENU
