Ariston RHC60IX Manuel utilisateur

Description: ARISTON WALL CANOPY

Model Numbers: RHC60IX, RHC90IX

RWC

Issue: F

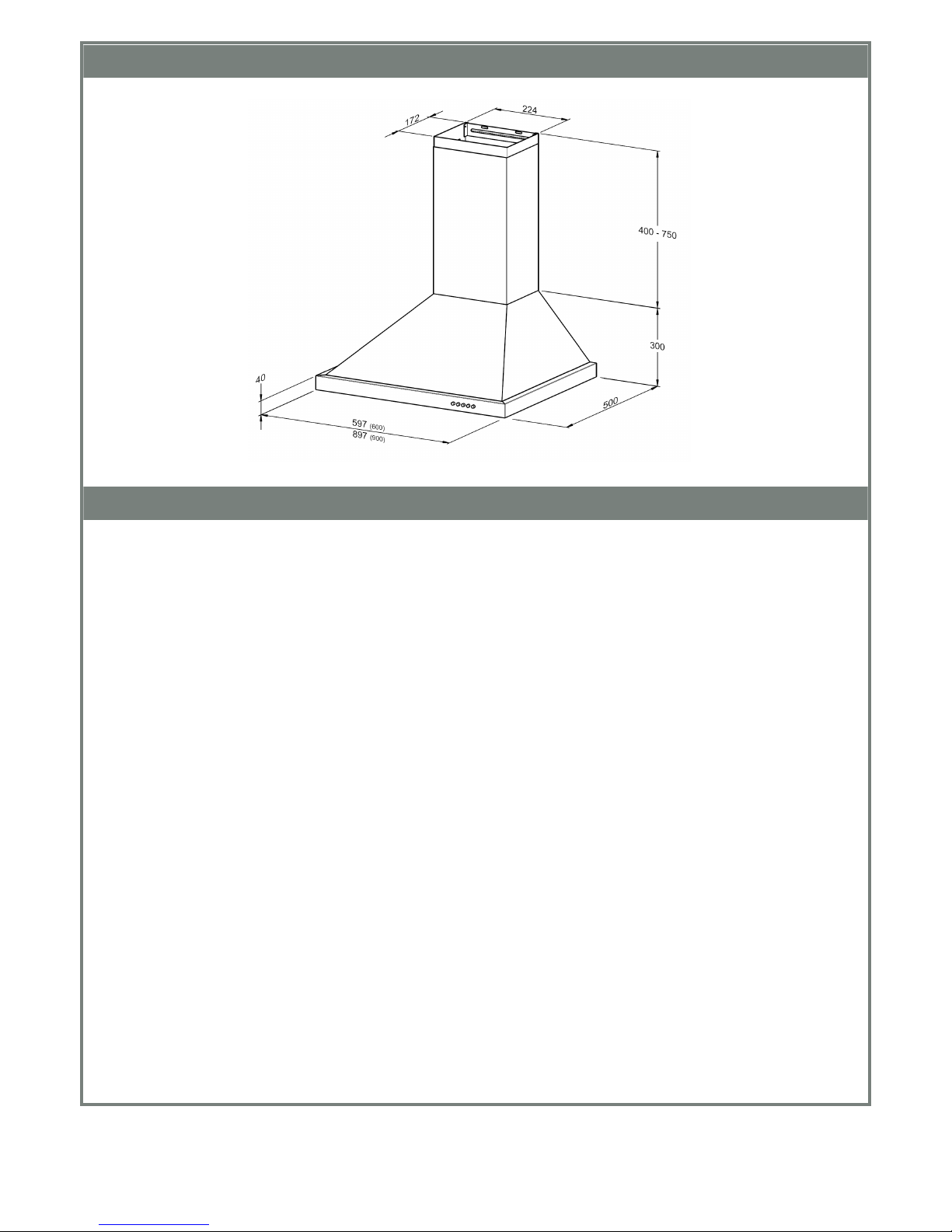

All dimensions in mm

Model may vary slightly from images pictured

Overview

view

Pre-installation

Thank you for purchasing a quality Ariston rangehood. Ariston has a high standard of quality control and

every rangehood is tested and approved before it leaves the factory.

Important:

oPlease read the entire instructions before installing the rangehood.

oAlways switch power off prior to installation.

oStainless steel is very easily damaged during installation if abraded or knocked by tools. Protect the

rangehood with the cardboard box or plastic bag during installation.

oAll electrical work must be done in accordance with local and national electrical codes as applicable.

oFor safety, this product must be earthed.

oA power outlet should be within 1500mm of the power cord exit from the rangehood.

oThe power socket must be accessible and enable the end user to isolate the rangehood from the power for

the purpose of internal cleaning or maintenance.

o150mm round ducting adapter is supplied. All other ducting accessories are not supplied. All ducting must

comply with local requirements and building codes.

oIf re-circulating, ensure that the side outlet grilles are not obstructed. Even a partial obstruction will

restrict the efficiency of the rangehood.

oSee Ducting options next page.

Contents of packaging:

1 x rangehood

1 x 150mm ducting adaptor

1 x packet of fasteners and wall plugs

2 x chimney pieces (upper and lower)

2 x chimney bracket

1 x fixing plate

Typical equipment required:

oelectric drill

oscrewdriver

otape measure

ospirit level

oduct tape (if ducting)

ojig saw (if ducting)

oladder (if ducting)

Pre-Installation - continued

Ducting Options

The method of ducting should be carefully considered before installing the rangehood. The guide below

recommends the ducting components to use for all common ducting configurations - through the top of the home

(for the roof and soffit) and through the rear of the home. 150mm round ducting should be used in conjunction

with this model rangehood. Alternatively this rangehood can be operated in recirculation mode (see Recirculation

mode pg 6).

The highlighted area in the table below gives the recommended Uniduct item numbers for different

mounting and outlet options.

Duct mounting option

Rear

Top (roof)

Top (soffit/eave)

Uniduct item numbers

150mm

diameter round outlet

1688

1634 and

1635

1634 and

1688

Figure 2.

Extra lengths and/or bends may be required, depending on the length required and whether there is any

structural material in the run e.g. rafters.

Please note that this chart is designed as a guide.

Pre-Installation - continued

Installation position

AMinimum height from the hob surface to the underside face of the rangehood

600mm electric hob

650mm gas hob

Notes: If the instructions for the gas hob specify a greater distance, this has to be taken into account.

Any installation above 750mm will compromise performance.

B Vertical height from bottom of Rangehood to Fixing Plate mounting screws

323mm.

C Distance between mounting screw holes on Fixing Plate

100mm.

C C

Installation

Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable

fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables,

pipes etc.

1. Pre drill pilot holes in the positions given (pg 4 - Installation position). Fix the fixing plate using the screws

supplied or appropriate wall fixings, check with a spirit level to ensure bracket is level. Tighten screws.

2. Mark the position of the decorative chimney at the ceiling and wall. Cut the cornice moulding away if

required, to enable the chimney to sit flush against the wall and ceiling.

3. Only if ducting - Mark and cut out the hole in the ceiling / wall to fit the ducting (160mm dia max).

Warning: Chimney depth is 172mm. Ensure no part of the hole is greater than 170mm from the wall.

4. Use the upper chimney bracket as a template to mark the fixing screw positions. Using the screws

supplied, fix the chimney bracket to the wall, checking that it is central about the canopy.

Wall stud

Fixing screw

Rear wall

Fixing plate

Installation - continued

5. Connect and secure the ducting (use duct tape if required).

6. Remove the protective plastic covering from all parts including the filters. Fit the canopy hood on the

fixing bracket. Mark and drill the two holes required for the safety screws. Secure the canopy in place

with the safety screws provided. The safety screws stop the canopy from accidently being knocked off

the fixing plate.

7. Insert the upper chimney piece into the lower chimney piece. Assemble the lower chimney bracket onto

the lower chimney using screws provided and ensure the bracket holds both chimney pieces. Do not fully

tighten the screws as some adjustment is required in step 9.

8. Connect to the power supply and switch on the power to the canopy hood. Check the function of the

canopy hood. Connect and secure the ducting (use duct tape if required).

9. Place the two chimney pieces onto the canopy top and secure the lower part to the canopy sides. Extend

the upper chimney to the ceiling and secure in place with two screws supplied.

Recirculation mode

1. This unit can be installed to operate in recirculation mode where ducting is not a chosen/desired or practical

option. There are recirculation grilles fitted on each side of the upper chimney which allow the cleansed air

to return to the kitchen. Ensure that the side outlet grilles are not obstructed. Even a partial obstruction

will restrict the efficiency of the rangehood.

2. Replace aluminium filters with charcoal filters (see pg 7 for part numbers).

Upper chimney

Lower chimney bracket

Lower chimney

Operating instructions

Controls

Light

The light can be operated independently from the fan and is controlled in accordance with the graphics printed

above.

Fan

The fan is operated by turning the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 /

Speed 3) depending on the cooking requirements and is controlled in accordance with the graphics printed above.

Cleaning and maintenance

General Maintenance

Switch off the canopy before cleaning or maintenance. To prevent surface damage never use abrasive

or oil based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In

areas of high humidity and coastal environments cleaning should be carried out frequently.

Warning: a build up of oil may occur if the wall canopy is not cleaned regularly.

Filter Maintenance

To maintain efficiency, the filters should be removed regularly (approximately monthly), and washed using hot

soapy water or the dishwasher. Note - some discolouration of the frame may occur if washed in the

dishwasher.

Rangehoods fitted with charcoal filters are designed to remove grease and odours from cooking vapours prior to

the cleansed air re-entering the kitchen (when the rangehood is in recirculation mode). Charcoal filters should be

replaced every two to four months depending on use.

Note: Fully saturated charcoal filters can become a barrier to air movement therefore limiting rangehood

performance. In the event of fire, grease laden filters could be flammable and therefore regular replacement is

recommended. In ducted installations, conventional aluminium filters are recommended.

Replacement of Halogen Lamps

To replace a lamp, first disconnect the rangehood from the power supply. Use a small blade screwdriver to prise

off the lamp cover. Care must be taken to avoid the lamp lens falling on to the hob top. The halogen bulb is a

push fit into the lamp body. Insert the replacement lamp into the lamp holder and replace the lens and lamp

cover.

Replacement parts

oCharcoal filter 2536 (2 pack - 600 Model)

2537 (3 pack - 900 Model)

oLight bulb 12V 20W 104467

oChimney extensions 10 ft: 2188 Stainless Steel, 2180 White

12 ft: 2189 Stainless Steel, 2181 White

Lights On/Off

Power On/Off

Speed 1 Speed 2 Speed 3

Product approvals and ratings

Product approval number

VO71158

Product rating

280W (1.15A) Max at 240V 50Hz

Electric approval AS/NZS

60335.2.31:2004

EMC AS/NZS

CISPR14:2001

Performance tested

IEC61591

Important safety information

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

Young children should be supervised to ensure that they do not play with the appliance.

There shall be adequate ventilation of the room when the rangehood is used at the same time as

appliances burning gas or other fuels.

You must read the details concerning the method and frequency of cleaning.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Do not flambé under the rangehood.

Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from

appliances burning gas or other fuels.

The minimum distance between the hob surface and the lowest part of the rangehood is 600mm.

This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the

instructions for the gas hob specify a greater distance, this has to be taken into account.

Attention should be given to ensure that any applicable regulations concerning the discharge of

exhaust air is fulfilled.

If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

Notes:

oPlease remember to fill out the details on the warranty certificate (do not post).

oRemove any plastic coating from the product.

oEnsure safety screws are fitted.

ECN: 07034
