Ariston ARU52X Manuel utilisateur
USER MANUAL
520 & 750 // UNDERMOUNT HOOD
ARU52X |ARU75X
www.aristonbrand.com
IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This
manual contains important information to ensure optimal performance and keep you safe. Please retain
your proof of purchase, as this will be required in the event that you require warranty service. Remember
to retain this manual for future reference.
pg 2
HELLO
CONGRATULATIONS ON THE SELECTION OF THIS ARISTON APPLIANCE.
ARISTON APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR
AUSTRALIAN AND NEW ZEALAND KITCHENS.
Please read through this user manual carefully as it contains information
that will ensure that your appliance is installed correctly, important operating
& care instructions and also some advice of what you need to do if this
appliance is not performing as intended.
www.aristonbrand.com |
pg 3
HELLO 2
CONTENTS 3
WARNING & SAFETY INFORMATION 4
INSTALLATION & DUCTING 5
OPERATING INSTRUCTIONS 7
MAINTAINING YOUR RANGEHOOD 8
PRODUCT SPECIFICATION 9
PROOF OF PURCHASE 10
NOTES 11
CONTACT DETAILS 12
CONTENTS
|www.aristonbrand.com
www.aristonbrand.com |
pg 4
WARNING &
SAFETY
INFORMATION
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Young children should be supervised
to ensure that they do not play with the
appliance.
There shall be adequate ventilation of
the room when the rangehood is used
at the same time as appliances burning
gas or other fuels.
You must read the details concerning
the method and frequency of cleaning.
There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged
into an existing flue which is used for
exhausting fumes from appliances
burning gas or other fuels.
The minimum distance between the
hob surface and the lowest part of the
rangehood is 600mm. This distance
shall be at least 650mm, if the
rangehood is installed over a gas hob.
If the instructions for the gas hob
specify a greater distance, this has to
be taken into account.
Attention should be given to ensure that
any applicable regulations concerning
the discharge of exhaust air is fulfilled.
If the supply cord of this equipment is
damaged, it must only be replaced by
the manufacturer or its service agent or
a similarly qualified person in order to
avoid a hazard.
This appliance has been designed for
indoor domestic use only.
Do not remove or inspect the filters
whilst the hood is in operation.
INSTALLATION &
DUCTING
IMPORTANT // Before handling the rangehood during installation, it is recommended
that you remove the filter to prevent damage.

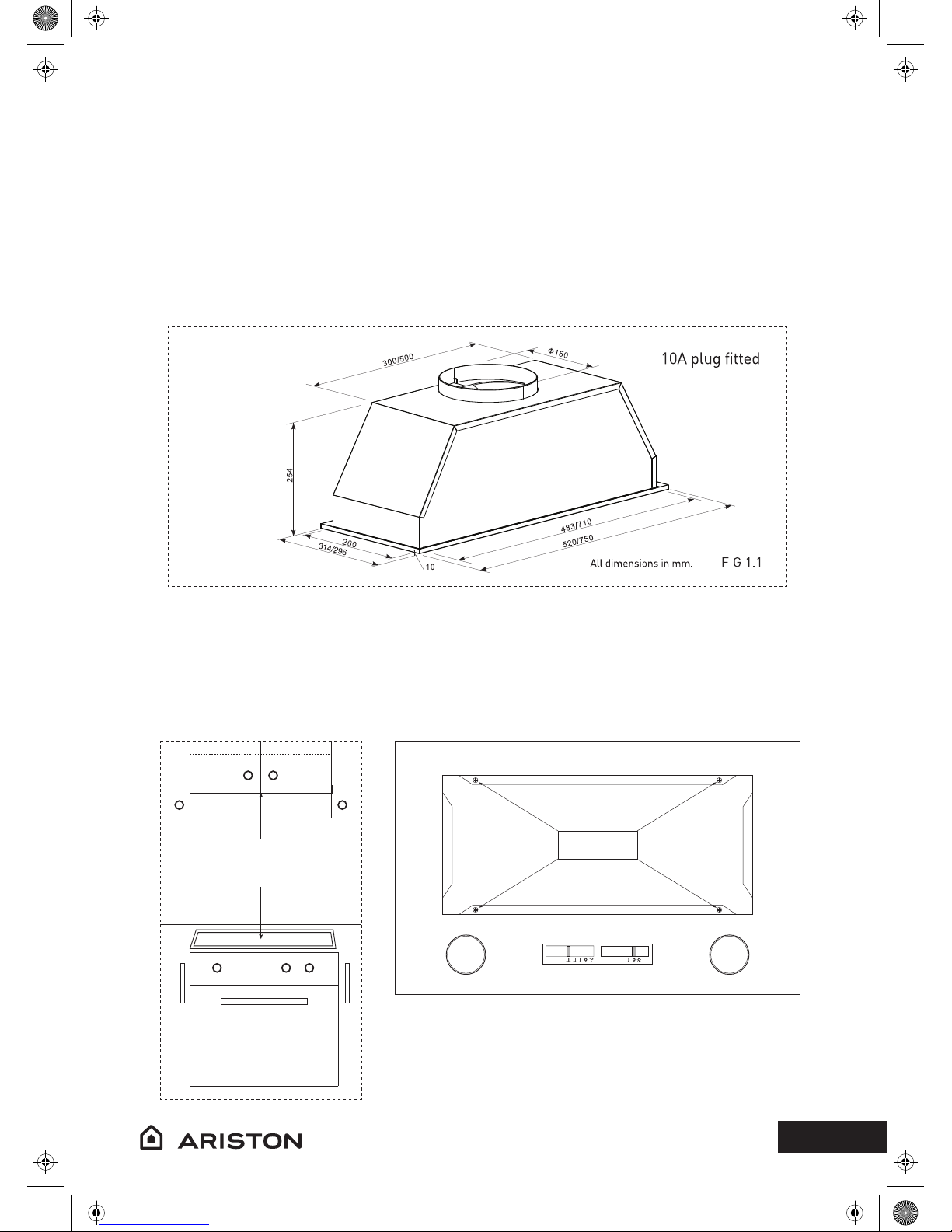

Fig 1.2 illustrates the minimum height from the hob surface to the underside of the
rangehood. Electric hob – 600mm, Gas hob - 650mm.
NOTICE // If the instructions for the gas hob
specify a greater distance, this has to be
observed. Any installation above 750mm will
compromise performance.
4 Fascia Screws
|www.aristonbrand.com pg 5
FIG 1.2
Minimum Height
Electric Hob 600mm
Gas Hob 650mm
www.aristonbrand.com |
pg 6
INSTALLATION &
DUCTING
NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL
LAWS IN FORCE.
INSTALLATION
1. Remove the filter and light globes. (If installed)
2. Remove the stainless steel fascia (4 screws) – take care not to damage the fascia.
3. Determine the most efficient path for the ductwork, minimise bends and keep the
length of the ductwork to a minimum.
4. It is important to run and finish (install roof / wall caps) prior to installation of
the hood.
5. Cut out the cabinetry as per the installation diagram. Ensure that access has been
allowed for the power cable.
6. Hold the hood up to the underside of the cabinet (2 people required); Screw the
hood to the cabinetry.
7. Attach the ducting adaptor to the ducting.
8. Re-install the stainless steel fascia.
9. Re-install filter.
10. Plug in the power to the unit, turn on and test.
WARNING // Do not penetrate any screws into the rangehood as this may result in
electrical hazards. Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.

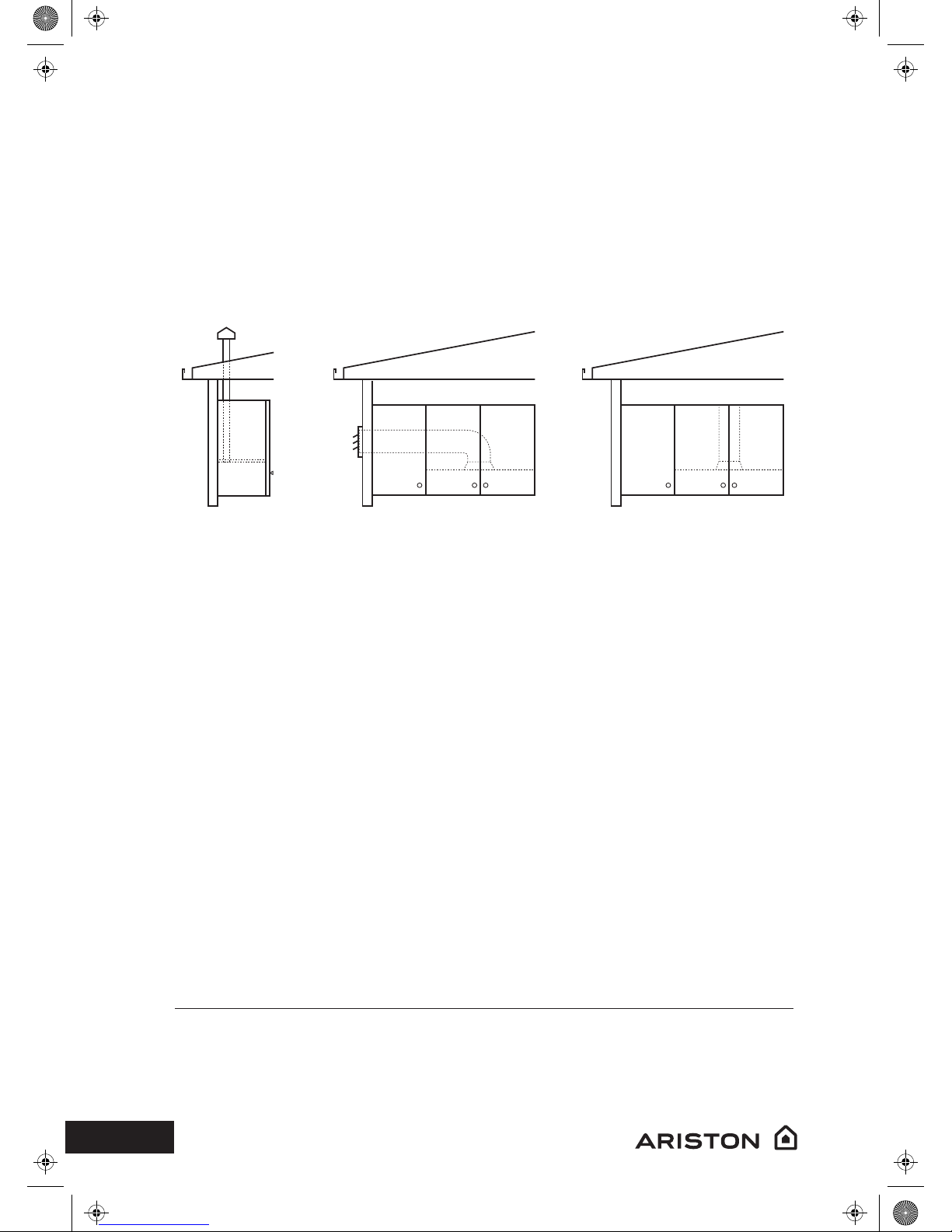

RE-CIRCULATING
(Carbon filter required)
TOP DUCTING SIDE DUCTING
DUCTED OPTION
|www.aristonbrand.com pg 7
OPERATING
INSTRUCTIONS

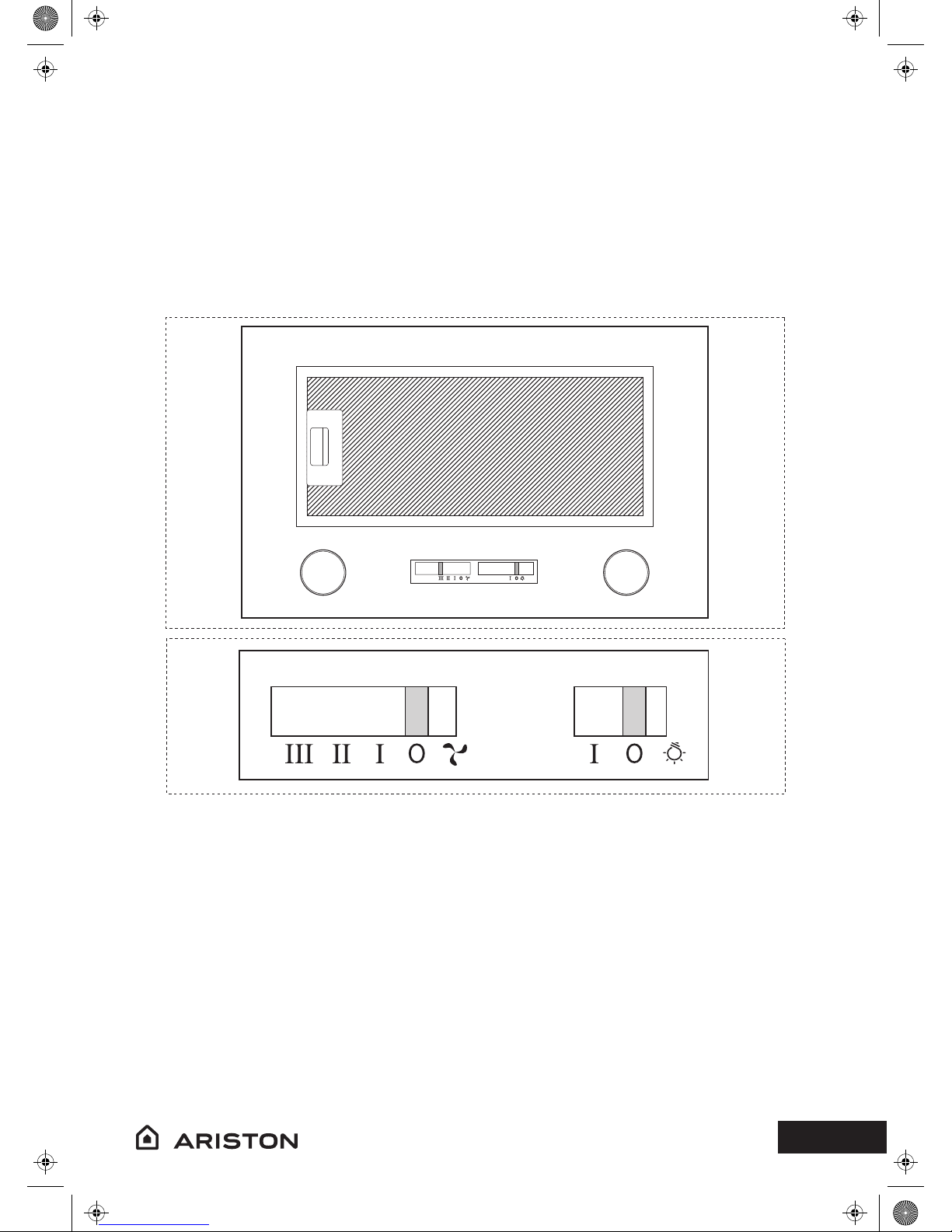

FAN SPEED
OFF/LOW/MEDIUM/HIGH switch - located on the left hand side of the control panel.
This unit features 3 speed settings; single line indicate low speed, double lines indicate
the medium speed & triple lines indicate high speed.
To turn the unit off, set the speed switch to the 0 position (off).
LIGHT
On/Off switch - located on the right hand side of the control panel as indicated in the
diagram above.
www.aristonbrand.com |
pg 8
GENERAL MAINTENANCE
Ensure that the power to the unit is switched off prior to cleaning the unit. Surface should
only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal
environments and humid areas more frequent cleaning is required to maintain the finish.
FILTERS
These filters should be cleaned frequently, dependant on use (minimum monthly).
Aluminium filers are dishwasher safe or can be cleaned with hot soapy water. Ensure that
filters are thoroughly dry before re-installing. Slight discolouration may occur when
cleaned in the dishwasher.
LAMPS
Your range hood is fitted with GU10 halogen lamps. Before replacing, ensure that lamps
are completely cool and the power to the unit has been switched off. Replacement lamps
can be purchased from your nearest service centre.
To remove the lamp, twist the lamp in an anti-clockwise direction. Be careful when
installing the new lamp not to make contact with the skin as this may damage the lamp
and shorten its life.
MAINTAINING
YOUR
RANGEHOOD
|www.aristonbrand.com pg 9
PRODUCT
SPECIFICATION
www.aristonbrand.com
5364
Australia: 1300 815 589
For service please call:
New Zealand: 09 306 1020
ISS:
MODEL: SERIAL:
230V ~ 50Hz
Motor:Total:
Lights
2307008
ARU75X
100W180W
2 x 40W
5364
Australia: 1300 815 589
For service please call:
New Zealand: 09 306 1020
MODEL: SERIAL:
230V ~ 50Hz
Motor:Total:
Lights
www.aristonbrand.com
ARU52X
100W180W
2 x 40W
ISS: 2307007
www.aristonbrand.com |
pg 10
PROOF OF
PURCHASE
ATTACH YOUR PROOF OF PURCHASE
FOR FUTURE REFERENCE
