Quick Installation Guide
Version 1.2
If you need technical support with the product, please contact us via our web-
site or email:
https://www.arbor-technology.com/
E-mail:info@arbor.com.tw
♦ Technical Support
ETX-620E
Wide Range Operating Temperature
ETX®CPU Module
Video
18-bit LVDS, 24-bit TTL
LCD, Analog RGB
CPU
AMD Geode™LX800
LAN
Realtek
8100CL PCI
10/100 Base-T Ethernet
Form Factor
ETX®CPU Module
Audio
Realtek ALC203 AC97
CODEC, MIC-in/ Line-in/
Line-out
Chipset
AMD Geode™ CS5536
I/O
PCI/ ISA/ SATA/ USB
IDE/ COM/ LPT (FDD)
85
85
Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright©2019 All Rights Reserved. 4041536301120P
- 2 -

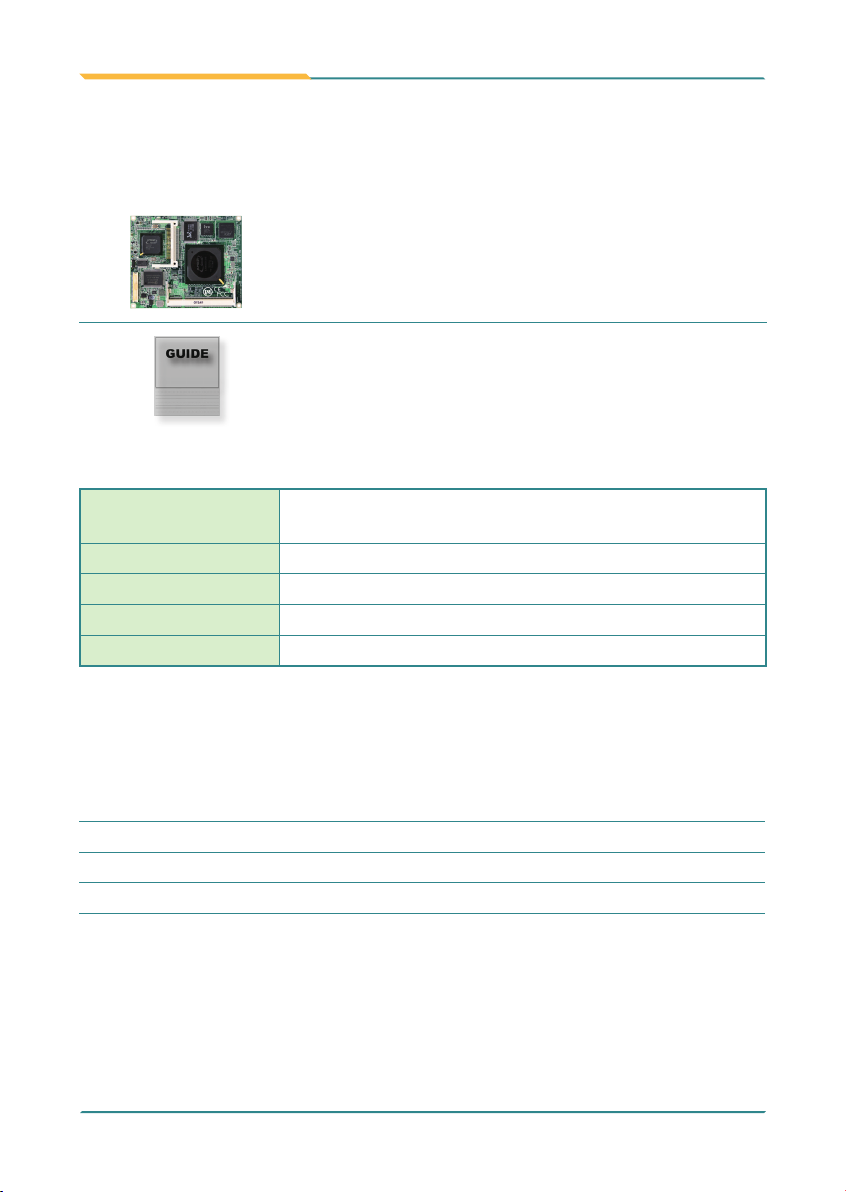

Ordering Information
Before you begin installing your single board, please make sure that the
following materials have been shipped:
Packing List
1 x ETX-620E AMD Geode™ ETX®CPU Module
1 x Quick Installation Guide
Driver Installation
To install the drivers, please visit our website at www.arbor-technology.com and
download the driver pack from the product page.
Driver Path
CHIPSET \CHIPSET\AMD\LX
VGA \GRAPHICS\AMD\LX
AUDIO \AUDIO\AMD\LX
LAN \Ethernet\REALTEK\8100C\9x.2K.XP
ETX-620E AMD Geode™LX800 ETX®CPU module with
CompactFlash Type II Socket
HS-5363-W1 Heaskink (116 x 100 x 20mm)
HS-5363-F1 Heat spreader (114 x 96 x 9.2mm)
PBE-1000 R2.1
ETX
®
evaluation board in ATX form factor
CBK-05-1000-00
Cable kit for PBE-1000 R2.1
- 3 -
Form Factor AMD Geode™ ETX®CPU Module
Chipset AMD Geode™ CS5536
System Memory 1 x 200-pin SO-DIMM up to 1GB DDR SDRAM
VGA Controller 2D Graphics Controller integrated in AMD Geode™
LX800
Display
LCD: 24-bit TTL up to 1600 x 1200 (@60Hz)
18-bit LVDS up to 1600 x 1200 (@60Hz)
Analog RGB:
1920 x 1440 (@85Hz)
Ethernet Realtek RTL8100CL 10/100 Base-T Ethernet
BIOS Phoenix-Award BIOS
Audio ALC203 AC’97 Codec, MIC-in/Line-in/Line-out
Storage 1 x Ultra ATA, supports 2 IDE devices
1 x CompactFlash Type II socket
Serial Port 2 x COM ports
Parallel Port/ FDD SPP/EPP/ECP mode shared with Floppy
KBMS
Standard PS/2 Keyboard and Mouse via PBE-1000
Universal Serial Bus 4 x USB 2.0 ports
Operation Temp. -40oC ~ 85oC (-40oF ~ 185oF)
Watchdog Timer 1~255 levels Reset
Dimension (L x W) 114 x 95 mm (4.5” x 3.7”)
Specifications
- 4 -
Board dimensions
2.50
95.00
90.00
63.79
19.34
108.00
114.00
68.88
4- ø2.6
3.00
1.60
8.15
6.15
2.80
Unit: mm
111.60
Unit: mm
2.40
11.70
53.30
7.50
- 5 -
CFD1
SODIMM1
LCD1
Connectors Location
- 6 -
LCD1: TTL LCD Connector
Pin Description Pin Description
2 VDD5 1 VDD5
4 GND 3 GND
6 VDD3 5 VDD3
8 GND 7 N.C.
10 LPD1 9 LPD0
12 LPD3 11 LPD2
14 LPD5 13 LPD4
16 LPD7 15 LPD6
18 LPD9 17 LPD8
20 LPD11 19 LPD10
22 LPD13 21 LPD12
24 LPD15 23 LPD14
26 LPD17 25 LPD16
28 LPD19 27 LPD18
30 LPD21 29 LPD20
32 LPD23 31 LPD22
34 GND 33 GND
36 FP_VS 35 DOTCLK
38 FP_HS 37 DE
40 ENVDD 39 BLON
2 1
3940
CFD1: Compact Flash Type II Socket
Note:
1. After hot-swapping CF II, you must restart
your system for device detecting.
2. CF II and ATA channel are alternative.
3. CF II Socket supports up to 4GB.
- 7 -
B1 GND
B3 SD14
B5 SD13
B7 SD12
B9 SD11
B11 SD10
B13 SD9
B15 SD8
B17 MEMW#
B19 MEMR#
B21 LA17
B23 LA18
B25 LA19
B27 LA20
B29 LA21
B31 LA22
B33 LA23
B35 GND
B37 SBHE#
B39 SA0
B41 SA1
B43 SA2
B45 SA3
B47 SA4
B49 SA5
B51 VCC
B53 SA6
B55 SA7
B57 SA8
B59 SA9
B61 SA10
B63 SA11
B65 SA12
B67 GND
B69 SA13
B71 SA14
B73 SA15
B75 SA16
B77 SA18
B79 SA19
B81 IOCHRDY
B83 VCC
B85 SD0
B87 SD2
B89 SD3
B91 DREQ2
B93 SD5
B95 SD6
B97 IOCHK#
B99 GND
GND B2
SD15 B4
MASTER# B6
DREQ7 B8
DACK#7 B10
DREQ6 B12
DACK#6 B14
DREQ5 B16
DACK#5 B18
DREQ0 B20
DACK#0 B22
IRQ14 B24
IRQ15 B26
IRQ12 B28
IRQ11 B30
IRQ10 B32
IO16# B34
GND B36
M16# B38
OSC B40
BALE B42
TC B44
DACK#2 B46
IRQ3 B48
IRQ4 B50
VCC B52
IRQ5 B54
IRQ6 B56
IRQ7 B58
SYSCLK B60
REFCH# B62
DREQ1 B64
DACK#1 B66
GND B68
DREQ3 B70
DACK#3 B72
IOR# B74
IOW# B76
SA17 B78
SMEMR# B80
AEN B82
VCC B84
SMEMW# B86
SD1 B88
NOWS# B90
SD4 B92
IRQ9 B94
SD7 B96
RSTDRV B98
GND B100
ETX1 Connector
A1 GND
A3 PCICLK3
A5 GND
A7 PCICLK1
A9 REQ#3
A11 GNT#2
A13 REQ#2
A15 REQ#1
A17 GNT#0
A19 VCC
A21 SERIRQ
A23 AD0
A25 AD1
A27 AD4
A29 AD6
A31 CBE#0
A33 AD8
A35 GND
A37 AD10
A39 AD11
A41 AD12
A43 AD13
A45 AD14
A47 AD15
A49 CBE#1
A51 VCC
A53 PAR
A55 PERR#
A57 PME#
A59 LOCK#
A61 TRDY#
A63 IRDY#
A65 FRAME#
A67 GND
A69 AD16
A71 AD17
A73 AD19
A75 AD20
A77 AD22
A79 AD23
A81 AD24
A83 VCC
A85 AD25
A87 AD28
A89 AD27
A91 AD30
A93 PCIRST#
A95 INTR#C
A97 INTR#A
A99 GND
GND A2
PCICLK4 A4
GND A6
PCICLK2 A8
GNT#3 A10
VCC3 A12
GNT#1 A14
VCC3 A16
N.C A18
VCC A20
REQ#0 A22
VCC3 A24
AD2 A26
AD3 A28
AD5 A30
AD7 A32
AD9 A34
GND A36
AUXAL A38
MIC A40
AUXAR A42
ASVCC A44
SNDL A46
ASGND A48
SNDR A50
VCC A52
SERR# A54
N.C A56
USB2- A58
DEVSEL# A60
USB3- A62
STOP# A64
USB2+ A66
GND A68
CBE#2 A70
USB3+ A72
AD18 A74
USB0- A76
AD21 A78
USB1- A80
CBE#3 A82
VCC A84
AD26 A86
USB0+ A88
AD29 A90
USB1+ A92
AD31 A94
INTR#D A96
INTR#B A98
GND A100
ETX2 Connector
- 8 -
C1 GND
C3 R
C5 HSY
C7 VSY
C9 N.C
C11 N.C
C13 N.C
C15 GND
C17 N.C
C19 N.C
C21 GND
C23 TX1D3-
C25 TX1D3+
C27 GND
C29 TX1D2-
C31 TX1D2+
C33 GND
C35 TX1D0-
C37 TX1D0+
C39 VCC
C41 N.C
C43 N.C
C45 BIASON
C47 COMP
C49 SYNC
C51 N.C
C53 VCC
C55 STB#
C57 N.C
C59 IRRX
C61 IRTX
C63 RXD2
C65 GND
C67 RTS#2
C69 DTR#2
C71 DCD#2
C73 DSR#2
C75 CTS#2
C77 TXD#2
C79 RI#2
C81 VCC
C83 RXD1
C85 RTS#1
C87 DTR#1
C89 DCD#1
C91 DSR#1
C93 CTS#1
C95 TXD#1
C97 RI#1
C99 GND
GND C2
BC4
GC6
DDCK C8
DDDA C10
N.C C12
N.C C14
GND C16
N.C C18
N.C C20
GND C22
N.C C24
N.C C26
GND C28
TX1CLK+ C30
TX1CLK- C32
GND C34
TX1D1+ C36
TX1D1- C38
VCC C40
N.C C42
BLON# C44
ENVDD C46
YC48
CC50
N.C C52
GND C54
AFD# C56
PD7 C58
ERR# C60
PD6 C62
INIT# C64
GND C66
PD5 C68
SLIN# C70
PD4 C72
PD3 C74
PD2 C76
PD1 C78
PD0 C80
VCC C82
ACK# C84
BUSY# C86
PE C88
SLCT# C90
MSCLK C92
MSDAT C94
KBCLK C96
KBDAT C98
GND C100
ETX3 Connector ETX4 Connector
D1 GND
D3 5V_SB
D5 PS_ON
D7 PWERBTN#
D9 N.C
D11 RSMRST#
D13 N.C
D15 N.C
D17 VCC
D19 OVCR#
D21 N.C
D23 SMBCLK
D25 N.C
D27 N.C
D29 N.C
D31 N.C
D33 GND
D35 PDIAG_S
D37 N.C
D39 N.C
D41 N.C
D43 N.C
D45 N.C
D47 N.C
D49 VCC
D51 N.C
D53 N.C
D55 N.C
D57 N.C
D59 N.C
D61 N.C
D63 N.C
D65 GND
D67 N.C
D69 N.C
D71 N.C
D73 N.C
D75 N.C
D77 N.C
D79 N.C
D81 VCC
D83 N.C
D85 N.C
D87 N.C
D89 GPE2#
D91 RXD-
D93 RXD+
D95 TXD-
D97 TXD+
D99 GND
GND D2
PWGIN D4
SPEAKER D6
BATT D8
LILED D10
ACTLED D12
SPEEDLED D14
I2CLK D16
VCC D18
N.C D20
I2DAT D22
SMBDAT D24
SMBALRT# D26
SATALED# D28
PIDE_CS3# D30
PIDE_CS1# D32
GND D34
PIDE_A2 D36
PIDE_A0 D38
PIDE_A1 D40
N.C D42
PIDE_INTRQ D44
PIDE_ACK# D46
PIDE_RDY D48
VCC D50
PIDE_IOR# D52
PIDE_IOW# D54
PIDE_DRQ D56
PIDE_D15 D58
PIDE_D0 D60
PIDE_D14 D62
PIDE_D1 D64
GND D66
PIDE_D13 D68
PIDE_D2 D70
PIDE_D12 D72
PIDE_D3 D74
PIDE_D11 D76
PIDE_D4 D78
PIDE_D10 D80
VCC D82
PIDE_D5 D84
PIDE_D9 D86
PIDE_D6 D88
CBLID_P# D90
PIDE_D8 D92
N.C D94
PIDE_D7 D96
HDRST# D98
GND D100
