ARAG BRAVO 300S Manuel utilisateur

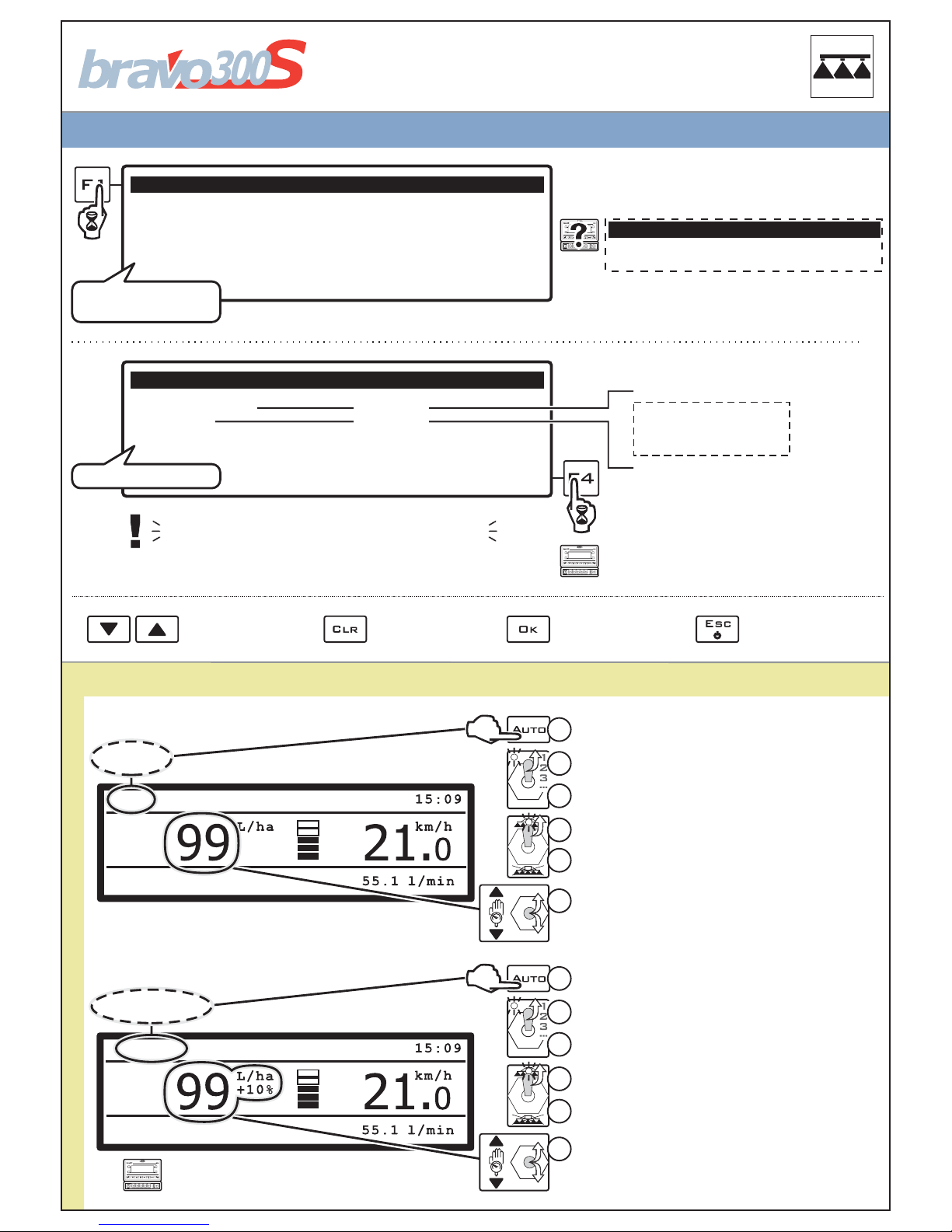

PREPARING THE TREATMENT

Quick reference guide

USE

Used to scroll data

or edit values Sets data to zero Confirms access

or change to data

Quits function

or changes to data

ONLY enabled jobs are displayed

Job selection

02) 90 l/ha * ISO015 Green

>06) 240 l/ha ISO04 Red Reset all data?

>No

Yes

Job selection

Active job

Selected job

Tank Filling

Tank capacity

Advanced Setup/

Tank/

Capacity: 3000 l

Liquid in tank:

after filling enter the level of liquid

contained in the tank

If the filling flow meter is connected,

the display will also show the filling status.

ATTENTION! Maximum level reached

Stop the filling pump:

you have reached the maximum tank capacity

Selected setting

Tank

Filling up : 3000 l

> Level : 1540 l

Filled quantity : 0 l

Main ON Log OFF

21.0 bar 425 rpm 725 l

1Manual treatment control

Turn on the section valves required

Drive to the start of the field

Set the main switch to ON

Run the treatment

Use the control valve switch

to adjust the desired quantity

Enable manual operation

Man.

2Automatic treatment control

Enable automatic operation

Turn on the section valves required

Drive to the start of the field

Set the main switch to ON

Run the treatment

Use the control valve switch

to temporarily modify the metering

Main ON Log OFF

21.0 bar 425 rpm 725 l

90 l/ha

90l/ha

The computer keeps

the set distribution value constant

User setting

Main ON Log OFF

21.0 bar 425 rpm 725 l

90 l/ha

OPERATING ALARMS

Data recorder status

Speed

RPM / Covered area

Flow rate

SELECTING THE WHEEL TYPE (CONSTANT)

via Palladio, 5/A - 42048 RUBIERA (RE) - Italy - tel. 0522 622011 - Fax 0522 628944 - www.aragnet.com Cod. D20156.GB-m01

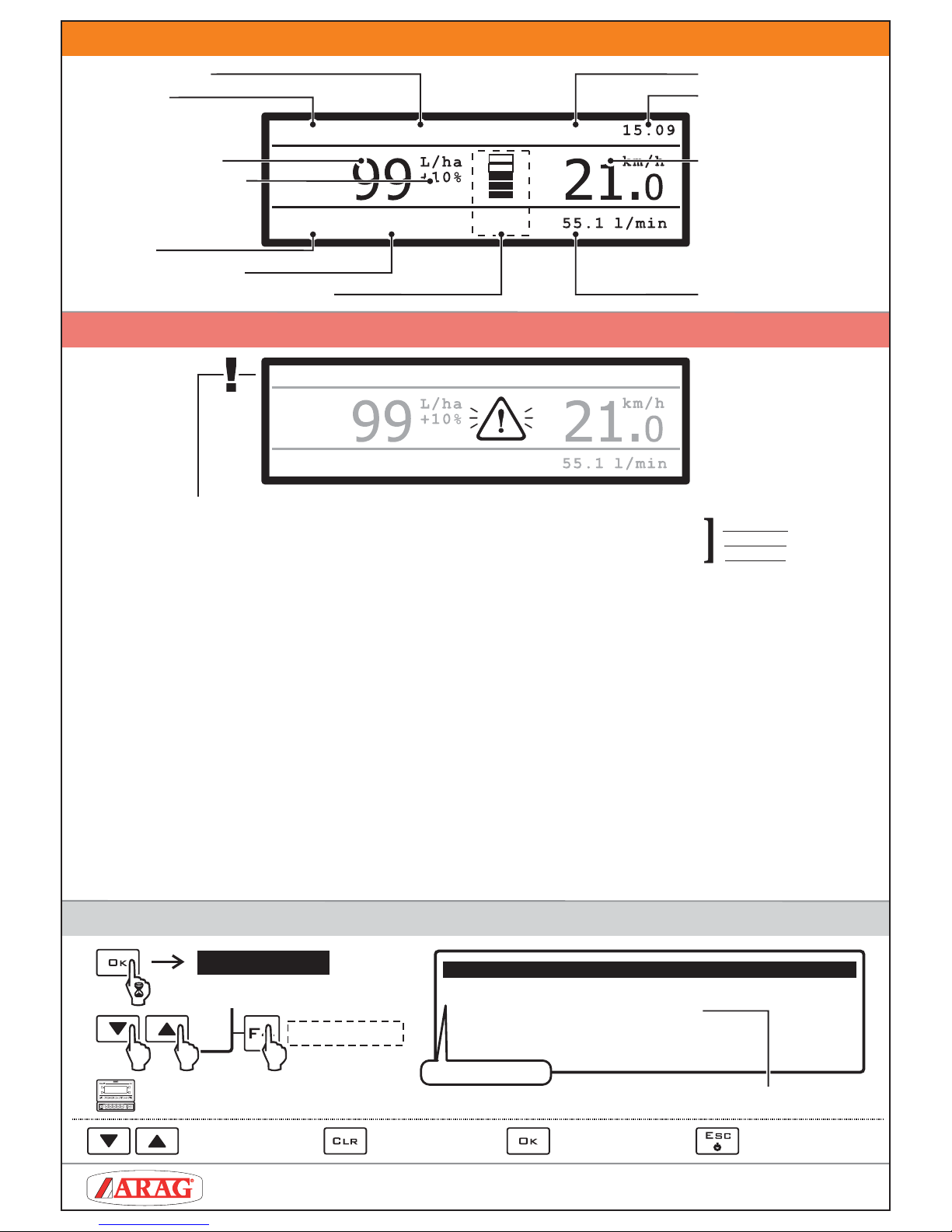

KEY TO ITEMS ON DISPLAY

Speed

> Source : Wheel sensor

Selected wheel type : 1

Wheels setting : ...

Selected setting

Select the wheel type (3 types available)

Clock

Disable spraying command!

- Main switch ON at computer startup

Go fast! Insufficient pressure

- Pressure does not reach minimum value for nozzle in use

Go slow! High pressure

- Pressure exceeds maximum level permitted for nozzle in use

Start pump! No flowrate

- Main switch ON, machine stationary

but zero capacity

Go! The machine is stopped

- Main switch ON and machine stationary

Go slow! Insufficent flowrate

- Capacity does not reach value required for distribution

Go fast! High flowrate

- Capacity exceeds value required for distribution

Reduce rotation speed!

- RPM exceeds maximum value permitted

Increase rotation speed!

- RPM does not reach minimum value

Stop immediately! Pump fault

- Pump oil level too low or mixed with water

Flowmeter out of range

- Capacity exceeds limits permitted by flow meter

ONLY with

automatic

operation

Output variation rate

Spraying status

Target rate

Measured output

Fluid in tank (text and graphic)

Pressure

21.0 bar 425 rpm 725 l

Go! The machine is stopped

SD card not found!

- Memory board not inserted correctly

SD card write protected!

- Memory board locked

SD card full!

- No space available on memory board

SETUP.BIN: File not found!

- PC configuration has not been saved

Signal out of range! Check transducer

- Faulty pressure values detected

Check nozzles! Highly worn

- Difference between values read by pressure sensor

and flow meter exceeds maximum value permitted

The menu can be accessed both ways

Used to scroll data

or edit values Sets data to zero Confirms access

or change to data

Quits function

or changes to data
