Aquatica Digital AR5 Manuel utilisateur

INSTRUCTION MANUAL

Product #20091

2 | A R 5 I N S T R U CT I O N M A N U A L Table of contents

Thank you for purchasing your Aquatica AR5 housing. Before you start

to use your new housing, please read these instructions carefully. Keep

this manual in a safe place for future reference.

This instruction manual assumes that the camera user is already

familiar with the CANON EOS-R5 camera. If not, please read your camera

instruction manual before attempting to use the housing.

The AQUATICA Pro Digital Housing is the result of a long and

continuing relationship with the most demanding underwater

photographers in the world. Each housings is handcrafted, quality

checked and pressure tested to a 300 feet equivalent by a small group of

specially trained individuals, each of whom takes the utmost pride and

satisfaction in offering the best underwater camera housing in the

world.

The Aquatica Pro Digital Housing was designed for optimum technical

and optical performance and to provide easy and efficient underwater

access to essentials functions and controls of the Canon EOS-R5.

Please visit the Aquatica Digital website for further information.

AQUATICA PRODUCT NUMBERS

20091-NK

Aquatica housing for CANON EOS-R5

Including dual Nikonos bulkheads

20091-OPT

Aquatica housing for CANON EOS-R5

Including dual optical bulkheads

20091-KM

Aquatica housing for CANON EOS-R5

Including single Ikelite bulkheads

20091-KTTL

Aquatica housing for CANON EOS-R5

Including Ikelite TTL Connector

*** Ikelite DL5 external converter required #46074. Purchased

separately from Ikelite

NOTE: Shown housing illustrations may differ from your actual housing depending

on the ordered version. General pictures are mostly showing without any

lighting attachments.

Table of contents 3 | A R 5 I N S T R U C T I O N M A N U A L

Table of contents

Table of contents ............................................................................. 3

Safety precautions ........................................................................... 4

Product specifications ...................................................................... 5

Package contents............................................................................. 6

Housing schematics ......................................................................... 7

Housing components ................................................................................7

Housing preparation...................................................................... 10

Camera Installation ....................................................................... 11

Port Mounting For EF Lens ............................................................. 13

Port Mounting For RF Lens ............................................................. 15

Port Removal................................................................................. 17

Housing Closing ............................................................................. 18

Housing Opening ........................................................................... 21

Accessories .................................................................................... 22

Surveyor sensor ......................................................................................22

Vacuum pump.........................................................................................24

Flash triggering .......................................................................................28

Aqua View finder ....................................................................................30

Care and maintenance ................................................................... 32

Housing components ..............................................................................32

Sacrificial anodes ....................................................................................32

O-rings ....................................................................................................33

Storage and transportation............................................................ 34

Warranty....................................................................................... 35

4 | A R 5 I N S T R U CT I O N M A N U A L Safety precautions

Safety precautions

Please carefully read and follow the following precautions and recommendations:

Improper transportation, handling or use of this housing might cause a flood

or a malfunction. Follow all recommendations stated in the next sections of

this manual.

Never remove, change a port or open the housing in a location where sand or

similar foreign material might come in contact with an O-ring. Be wary of

strong winds as they could potentially be carrying sand or other harmful

particulate matter.

Always perform a simple preventive seal test without the camera inside after

doing maintenance on the housing.

Non-authorized use of third party accessories, as well as modifications and/or

alterations not specifically authorized by Aquatica may affect performance,

cause poor functioning of the controls or impair the sealing integrity of the

housing.

Always handle the ports carefully. Protect them when not in use to avoid

scratching the acrylic or glass surface of ports and windows.

Always confirm that the ports remain properly attached before rinsing the

housing. When rinsing without a wired strobe, confirm that the bulkhead

strobes connectors are sealed with their plug.

Never jump into the water with the housing. Have the system handed to you

after you have made your entry or have it lowered to you on a rope.

Never handle the housing by grabbing the port, or if using one, the Aqua View

finder.

Make sure that boat staff are familiar with these procedures and advise them

to manipulate the housing by using the grips provided with the housing.

Product specifications 5 | A R 5 I N S T R U C T I O N M A N U A L

Product specifications

Construction

Housing body

6061-T6 Aluminium

Surface treatment

Anodized + powder coated

Windows

Optical acrylic

Grip handles

Black PVC

Physical

Dimensions WxHxD

(w/o grips)

9.50” x 7.10” x 5.96”

(241mm x 180mm x 151mm)

Width (w/ grips)

13.7” (348mm)

Weight (w/o camera)

6.5 lb (2.94kg)

Buoyancy

Slightly negative

Depth rating

100 msw - 330 fsw

Features

Locking saddle

Safe locking of the saddle inside the

housing using our proven locking

system. Saddle is easily released by

pressing the locking tab.

Aqua View finder

compatibility

Aqua View finder 45°

Aqua View finder 180°

Moisture/vacuum

alarm

Supplied with the Surveyor moisture

and vacuum sensor alarm.

Flash capability1

Compatible with the following

depending on flash option:

Optical triggering

Nikonos-style bulkhead

Ikelite-style bulkhead

1Note that all of the AR5 flash triggering options are not TTL compatible.

6 | A R 5 I N S T R U CT I O N M A N U A L Package contents

Package contents

AR5 housing

Handle grips (2) with screws (2)

AR5 instruction manual

Lens chart

Spare housing seal O-ring

CR 2450 coin cell battery (for Surveyor)

Aquatica O-ring lubricant container

Set of Allen keys

Optical flash trigger

(for 20091-OPT and 20091-OPT-VC kits)

CR 2450 coin cell batteries (2)

Vacuum pump

(for 20091-NK-VC, 20091-OPT-VC, 20091-KM-VC and 20091-

KTTL-VC kits)

Housing schematics 7 | A R 5 I N S T R U C T I O N M A N U A L

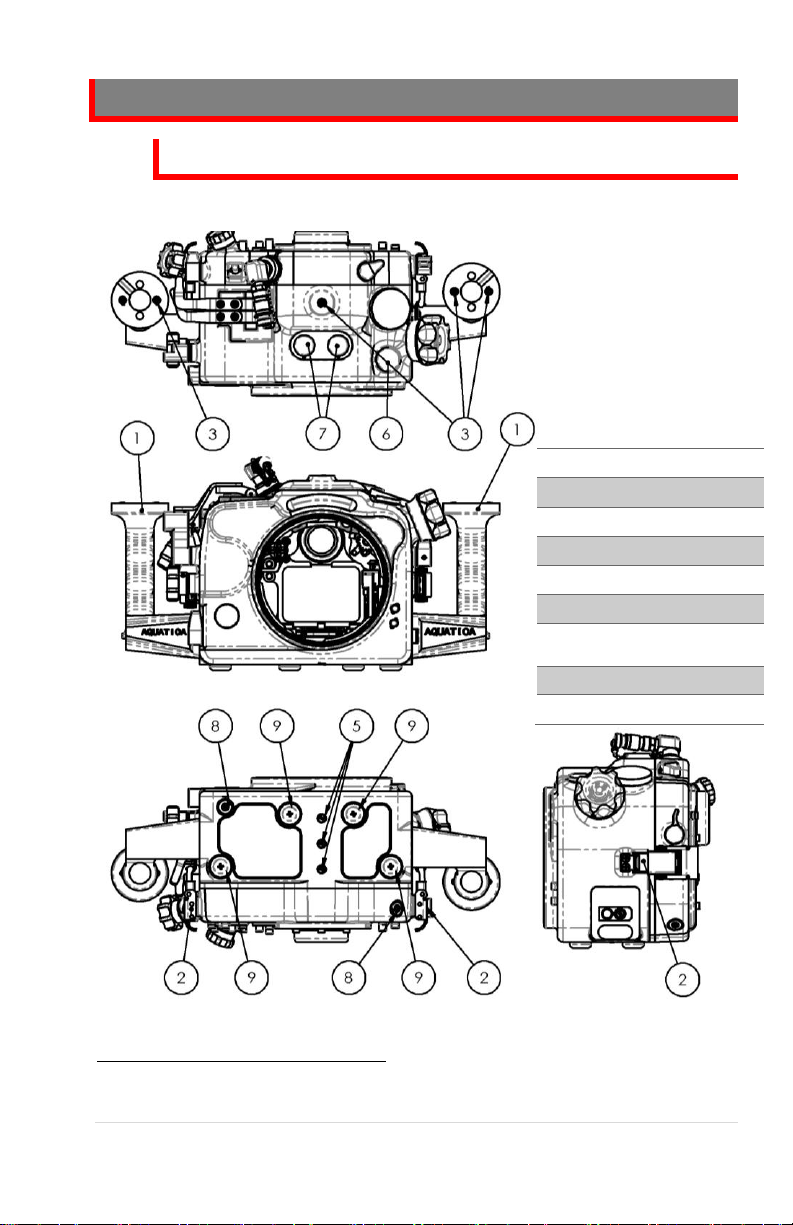

Housing schematics

Housing components

2All mounts are using ¼-20 UNC threads.

3Bulkheads Plugs shown.

Handle grips (2)

Closing latches (2)

Ball mounts2(2)

Top ball mount

Tripod mount

16mm ports (2)

Flash bulkheads3

(2)

Zinc anodes (2)

Rubber pads (4)

8 | A R 5 I N S T R U CT I O N M A N U A L Housing schematics

Housing Function

(See table on next page)

ON-OFF Lever

Quick Control Dial 2

Zoom-Focus Wheel

Movie Shooting Button

M-FN mode Button

AF-ON start Button

Quick Control Dial 1

Mode Button

Main Dial

Shutter Release Lever

Port Release Lever

RF Lens Release Button

EF Lens Release Button

Rate Button

Menu Button

Playback button

Magnify/Reduce Button

Multicontrol Left

AE Lock Button

Multicontrol up

AF Point Select Button

Multicontrol Right

Info Button

Set Button

Quick Control Button

Alarm LED window

Multicontrol Down

Multicontrol Center

Housing preparation

Follow these steps to prepare your AR5 housing for use:

STEP 1: Assemble your handle grips onto your housing using the provided screws (x2) and

Allen key.

STEP 2: If you are adding any shoes, brackets or ball mounts onto your housing, mount

them using the intended ¼-20 UNC threaded holes. You can use the threaded

holes on the handle grips (#1,#3), the top one (#3) or the bottom ones (#4) for

your tripod.
