AGH5

INSTRUCTION MANUAL

Product #35000

2 | A G H 5 I N S T R UC T I O N M A N U A L

Thank you for purchasing your Aquatica AGH5 housing. Before you start to use

your new housing, please read these instructions carefully. Keep this manual

in a safe place for future reference.

This instruction manual assumes that the camera user is already familiar with

the Panasonic GH5 camera. If not, please read your camera instruction

manual before attempting to use the housing.

Please visit the Aquatica Digital website for further information.

AQUATICA PRODUCT NUMBERS

35000-NK

Aquatica housing for Panasonic GH5

Including a single Nikonos connector

35000-OPT

Aquatica housing for Panasonic GH5

Including dual optical connectors

35000-IKE

Aquatica housing for Panasonic GH5

Including a single Ikelite connector

35000-NK-VC

Aquatica housing for Panasonic GH5

Including a single Nikonos connector + Surveyor kit

35000-OPT-VC

Aquatica housing for Panasonic GH5

Including dual optical connectors + Surveyor kit

35000-IKE-VC

Aquatica housing for Panasonic GH5

Including a single Ikelite connector + Surveyor kit

NOTE: Shown housing illustrations may differ from your actual housing.

3 | A G H 5 I N S T R UC T I O N M A N U A L

Table of contents

Table of contents ......................................................................................... 3

Safety precautions........................................................................................ 4

Product specifications.................................................................................... 5

Package contents ......................................................................................... 6

Housing schematics ....................................................................................... 7

Housing preparation ...................................................................................... 9

Camera preparation and installation.................................................................. 11

Port mounting ............................................................................................ 14

Port removal.............................................................................................. 15

Housing closing ........................................................................................... 16

Housing opening.......................................................................................... 18

Accessories ............................................................................................... 19

Care and maintenance .................................................................................. 28

Storage and transportation ............................................................................. 30

Warranty .................................................................................................. 31

4 | A G H 5 I N S T R UC T I O N M A N U A L

Safety precautions

Please carefully read and follow the following precautions and recommendations:

Improper transportation, handling or use of this housing might cause a flood or a

malfunction. Follow all recommendations stated in the next sections of this

manual.

Never remove, change a port or open the housing in a location where sand or

similar foreign material might come in contact with an O-ring. Be wary of strong

winds as they could potentially be carrying sand or other harmful particulate

matter.

Always perform a simple preventive seal test without the camera inside after doing

maintenance on the housing.

Non-authorized use of third party accessories, as well as modifications and/or

alterations not specifically authorized by Aquatica may affect performance, cause

poor functioning of the controls or impair the sealing integrity of the housing.

Always handle the ports carefully. Protect them when not in use to avoid scratching

the acrylic or glass surface of ports and windows.

Always confirm that the ports remain properly attached before rinsing the housing.

When rinsing without a wired strobe, confirm that the bulkhead strobes connectors

are sealed with their plug.

Never jump into the water with the housing. Have the system handed to you after

you have made your entry or have it lowered to you on a rope.

Never handle the housing by grabbing the port, or if using one, the Aqua View

finder.

Make sure that boat staff are familiar with these procedures and advise them to

manipulate the housing by using the grips provided with the housing.

5 | A G H 5 I N S T R UC T I O N M A N U A L

Product specifications

Construction

Housing body

6061-T6 Aluminium

Surface treatment

Anodized + powder coated

Windows

Optical acrylic

Grip handles

Black PVC

Physical

Dimensions WxHxD

(w/o grips)

7.65”x6.40”x4.49”

194mm x 163 mm x 144 mm

Width (w/ grips)

13.55” (344mm)

Weight (w/o camera)

5.4 lb (2.45 Kg)

Buoyancy

Slightly negative

Depth rating

100 msw - 330 fsw

Features

Ergonomic control

placement

Easy access to following controls:

Shutter

Front & rear dials

REC

ISO & WB

Focus mode lever

Zoom-focus wheel

Fn2 & Fn5

Self-aligning

controls

Housing levers align to the right position

regardless of camera levers position for

the following controls:

On/off lever

Focus mode lever

Quick snap saddle

Saddle safely locks in when pushed into

the housing. Saddle is easily released

with one hand.

Aqua View finder

compatibility

Aqua View finder 45°

Aqua View finder 180°

Moisture/vacuum

alarm

Supplied with the Surveyor moisture and

vacuum sensor alarm.

Flash capability1

Compatible with the following depending

on flash option:

Optical triggering

Nikonos-style bulkhead

Ikelite-style bulkhead

1

Note that all of the AGH5 flash triggering options are not TTL compatible.

6 | A G H 5 I N S T R UC T I O N M A N U A L

Package contents

AGH5 housing

Handle grips (2) with screws (2)

AGH5 instruction manual

Lens chart

Spare housing seal O-ring

CR 2032 coin cell battery (for Surveyor)

Aquatica O-ring lubricant container

Set of Allen keys

Slim flash trigger

(for 35000-OPT and 35000-OPT-VC kits)

CR 2016 coin cell batteries (2)

Vacuum pump

(for 35000-NK-VC, 35000-OPT-VC and 35000-IKE-VC kits)

7 | A G H 5 I N S T R UC T I O N M A N U A L

Housing schematics

Housing components

2

For HDMI bulkhead

3

Options: Optical (shown in figure), Nikonos, or Ikelite (page24)

4

Accepts ½” Vacuum pump bulkhead (page 21)

5

Options: Aqua View finder 45° or 180° (page26)

1

Handle ball mounts(4)

2

Top 16 mm port2

3

Flash port3

4

Top ball mount

5

½” port4

6

Bottom 16 mm port

7

Zinc anodes(2)

8

Tripod mount

9

Eyepiece5

10

Closing latch

11

Surveyor LED

8 | A G H 5 I N S T R UC T I O N M A N U A L

Housing controls

1

Port release

2

Lens release

3

White balance lever

4

ISO lever

5

Exposure compensation button

6

Fn1 button

7

Mode dial

8

Mode lock button

9

On/Off switch

10

Drive mode dial

11

Zoom/Focus dial

12

Fn5 button

13

Playback button

14

Disp. button

15

Fn2 Q.MENU button

16

Fn3 Autofocus mode button

17

Menu/Set –Cursor buttons

18

Delete/Cancel button

19

Focus mode lever

20

AF/AE Lock lever

21

Rear dial

22

Shutter lever

23

Front dial

24

Record lever

9 | A G H 5 I N S T R UC T I O N M A N U A L

Housing preparation

Follow these steps to prepare your AGH5 housing for use:

STEP 1: Assemble your handle grips (2) onto

your housing (1) using the provided

screws (3) and Allen keys.

STEP 2: If you are adding any shoes,

brackets or ball mounts onto your

housing, mount them using the

intended ¼-20 UNC threaded holes.

You can use the threaded holes on

the handle grips, the top one, or the

bottom ones for your tripod. Refer

to Housing components page 7.

STEP 3: Mount your strobes and their arms onto the housing. For details about optical

flash triggering and wired bulkheads, refer to the Flash triggering section, page

24. Follow your strobe manufacturer manual and its recommendations.

STEP 4: Before use, remove the main O-ring seal from its groove on the rear half of the

housing and carefully verify that the O-ring and its groove are free from scratches

or foreign matter. Lubricate the O-ring with a light coat of silicone grease.

10 | A G H 5 I N S T R UC T I O N M A N U A L

WARNING: For proper handling of O-rings, follow the detailed instructions outlined in the O-

rings section (page 28).

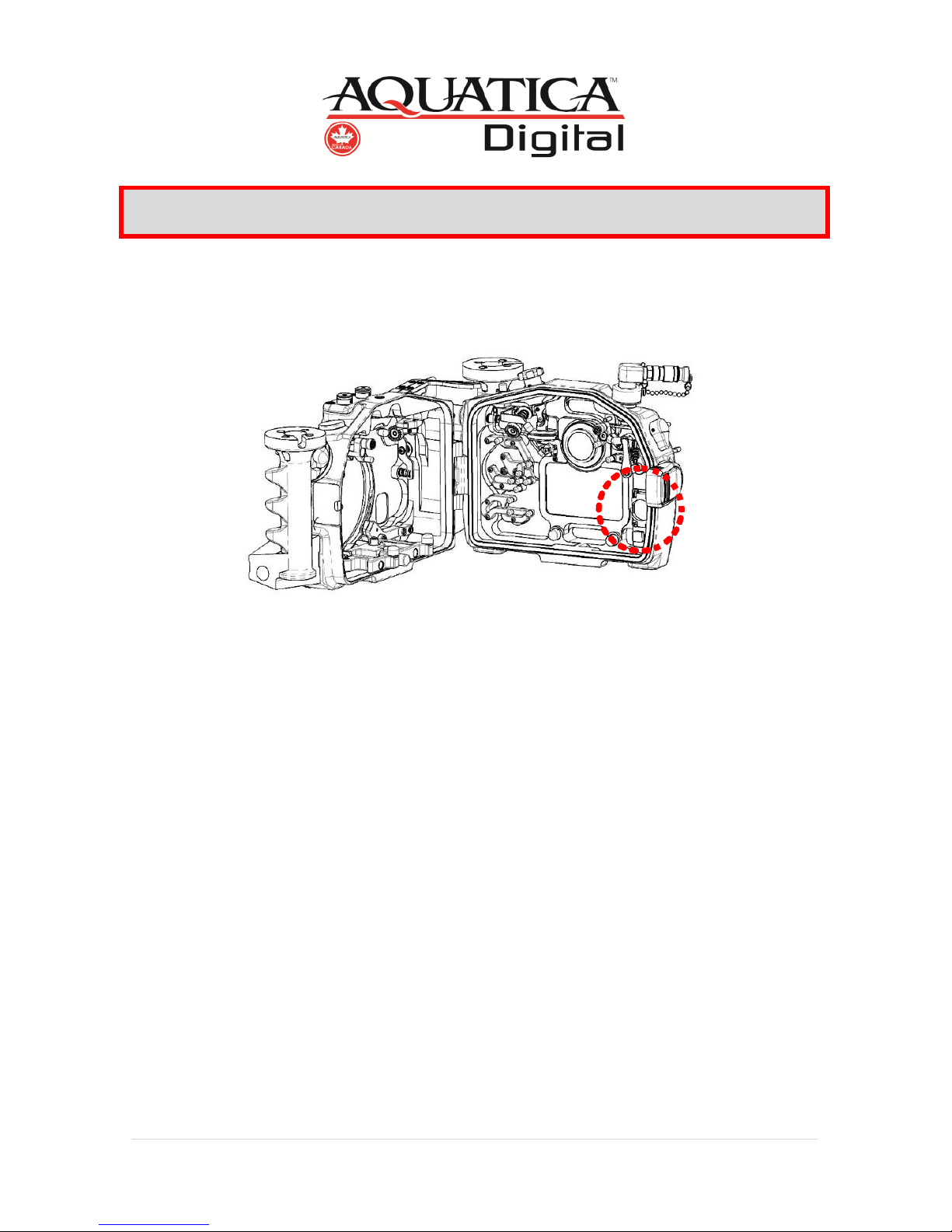

STEP 5: Insert the provided CR 2032 coin cell battery in the Surveyor alarm as described

in the, Surveyor sensor section (page 19).
