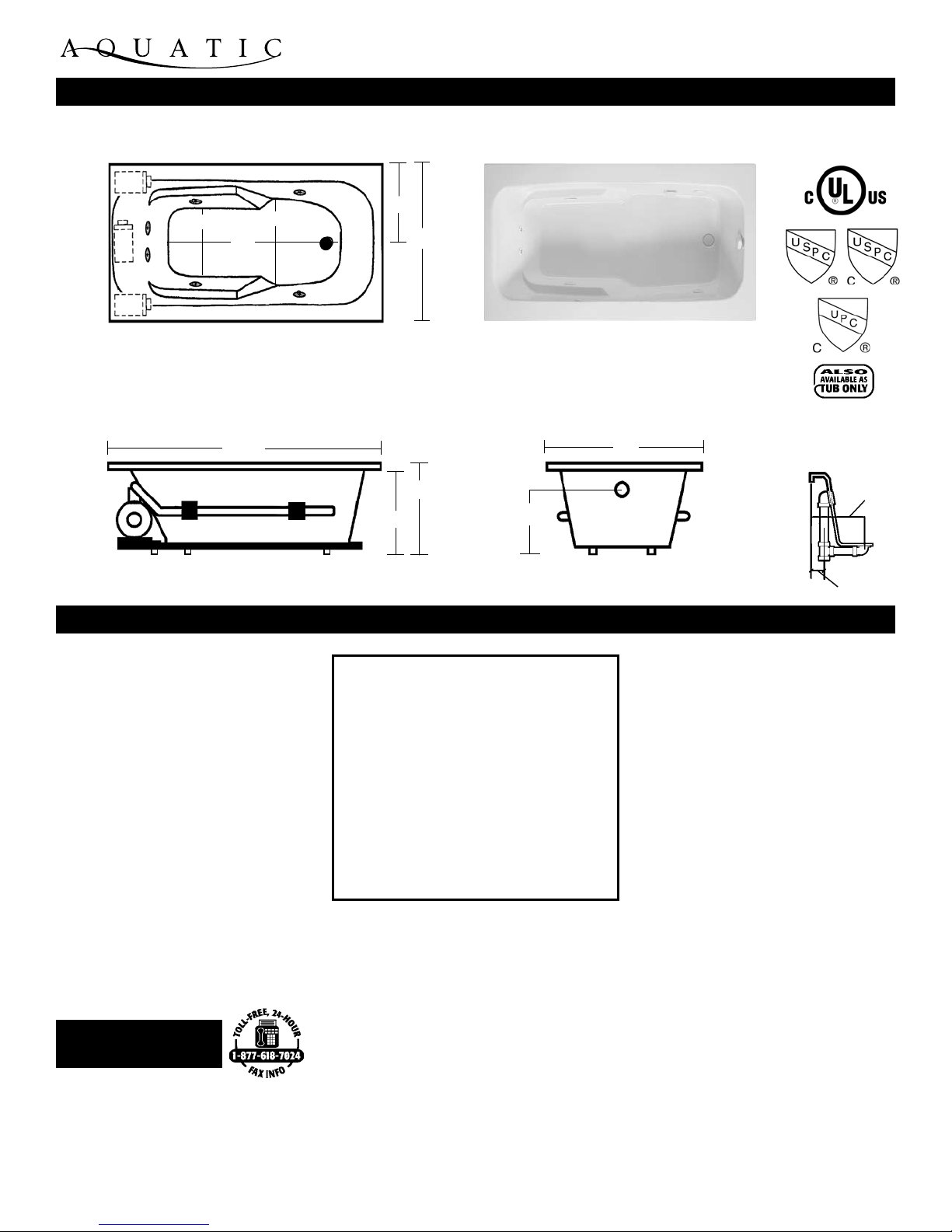

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

February 2008

Rough-In Plumbing

Measurements

GENERAL SPECIFICATIONS:

Tub Size 71 3/4” x 36” x 21”

182 cm x 91 cm x 53 cm

Bathing Well 51” long

24” wide

18 3/4” interior depth

Maximum Water Depth 16 1/2”

Shipping Weight 178 lbs. / 73 kg

Tub Weight Filled 797 lbs. / 362 kg

Tub Only Weight 131 lbs. / 55 kg

Gallons to Overow 80 gal. / 303 L

Gallons to Operate 60 gal. / 227 L

ELECTRICAL SPECIFICATIONS:

Pump .80 HP; 5.5 AMP; 110V

Requirement 15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

SymPhONy 18

• Comfort Pillow--Oval or Rectangle

• Bolt-On Grab Bars

- White, Biscuit, Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• 1.5 kW Inline Maintenance Heater (Pump Options 1, 2, 3)

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Satin Nickel,

Polished Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Satin Nickel,

Polished Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit Only)

• 3-T Integral Tiling Flange, 4-T Integral Tiling Flange

• Optional Pump Location

• Color Matched Acrylic Skirt

All acrylic colors featured by Aquatic match the industry’s

leading xture manufacturers.

OPTIONAL EQUIPMENT:

6 Hydrotherapy Jets including:

- 2 Spinning Back Jets

- 4 Directional Jets

Aquatic Quality Features:

- .80 HP Run-Dry Pump

- Bath-Side On/Off Air Button

- ”Quiet Pad”Anti-Vibration Pump Mount for Quiet Pump Operation

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- 2 Arm Rests

- Color Matched Trim and Jets (Select Colors)

Durable, Easy to Clean, Lucite

Cast Acrylic Surface

Available in 8

Standard No-Charge Colors

UL and IAPMO Listed, Factory Tested

Limited 10 Year Warranty

STANDARD EQUIPMENT:

SymPhONy SErIES Model # AIAl7236SY / AIAl7236SYTo

36”

18”

Fax-On-Demand

Document # 1286

10 3/4”

3”

18 1/4”

36”

21”

19”

71 3/4”

24”

18 1/2”

51”
