The manufacturer accepts a 1/4” variance. There are variations on each tub and specications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;

Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

January 2008

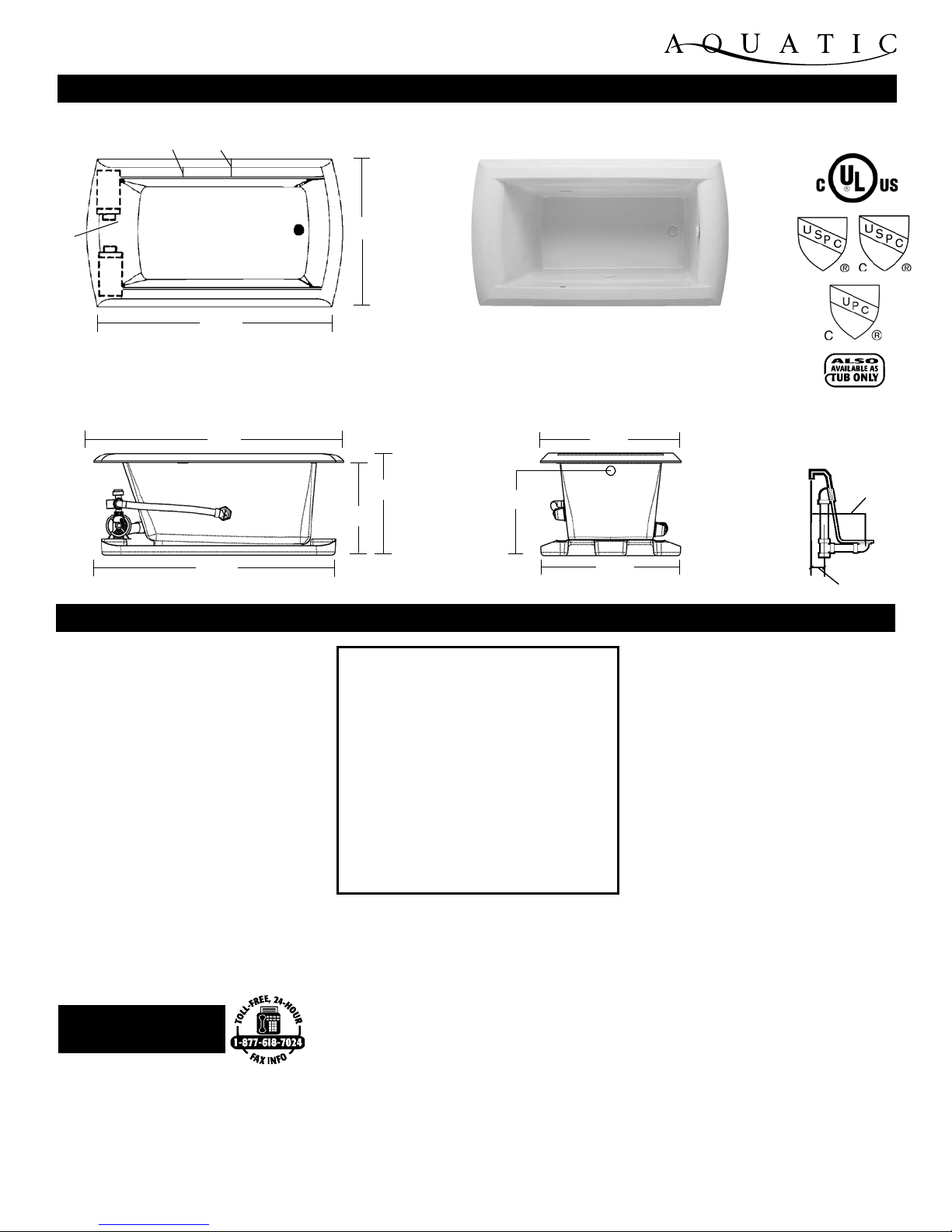

Rough-In Plumbing

Measurements

hotsoak sERIEs MODEL # AI29AIR7236HS / AI29AIR7236TO (Tub Only)

hotsoak 87 MotIf

36 1/2”

5 1/2”

13 1/2”

Deck Width

2 1/2”

Total

Width 5”

sPECIfICatIoNs:

GENERAL SPECIFICATIONS:

Tub Size 73” x 36 1/2” x 25”

185 cm x 93.3 cm x 63.5 cm

Bathing Well 46” long

20” wide

23” interior depth

Maximum Water Depth 17”

Shipping Weight 203 lbs. / 92 kg

Tub Weight Filled 885 lbs. / 401 kg

Tub Only Weight 106 lbs. / 48 kg

Weight w/Equipment 127 lbs. / 58 kg

Gallons to Overow 91 gal. / 344 L

ELECTRICAL SPECIFICATIONS:

Pump 1/15 HP; 1.3 AMP; 110V

Heater 1.5 kW; 12.5 AMP; 110V

Requirements 20 AMP; 110V, separate circuit

required protected w/ Class A GFCI

This unit is not recommended for shower installations.

Fax-On-Demand

Document #1304

Aquatic Quality Features:

- 1.5 kW Inline Maintenance Heater

- Run-Dry Pump with 20-Minute Timer

- 2 Circulation Portal Covers

- Bath-Side On/Off Electronic Button

- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation

- Slip Resistant Floor

- Extra Deep and Long Bathing Well

- Pre-leveled ABS Support Base

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

STANDARD EQUIPMENT:

• Chromatherapy*

• Comfort Pillow - Oval or Rectangle

• Bolt-On Grab Bar

- White, Biscuit, Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel, Oil Rubbed Bronze or Color Matched

(Bone, White and Biscuit Only)

• Optional Pump Location

• Premium Colors

All acrylic colors featured by Aquatic match the industry’s

leading xture manufacturers.

*This whirlpool will need to be hard wired to the breaker box.

Three outlets will be supplied on the whirlpool.

OPTIONAL EQUIPMENT:

Back

Angle

21˚

20 1/4”

73” 36 1/2”

22 1/4”

25”

68”

68 1/2” 33”
