Aquatic AI7236R Manuel utilisateur

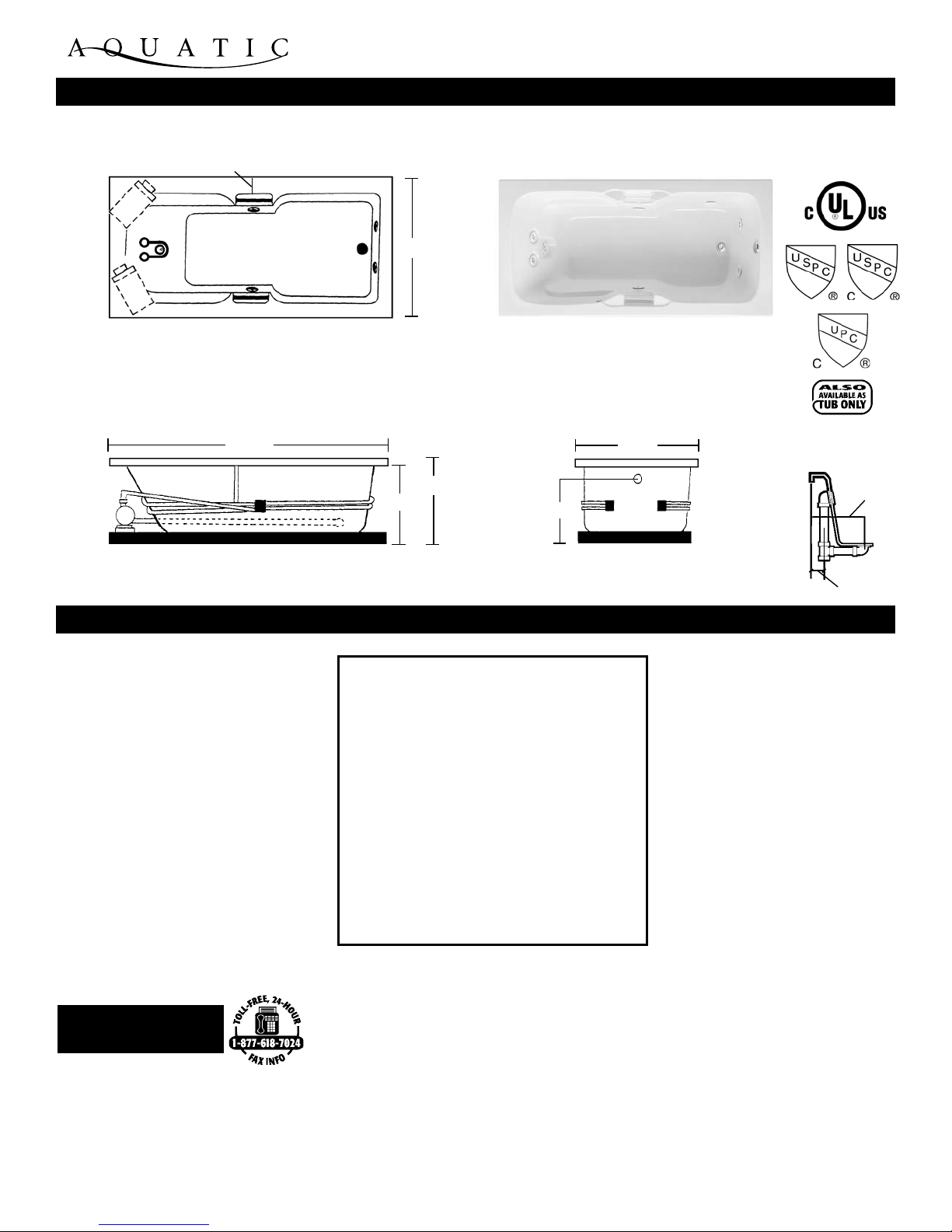

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

March 2008

Rough-In Plumbing

Measurements

dAyTONA

luxury SErIES MODEL # AI7236R / AI7236RTO (Tub Only)

GENERAL SPECIFICATIONS:

Tub Size 71 1/2” x 36 1/4” x 23 1/4”

182 cm x 92 cm x 59 cm

Bathing Well 48 1/2” long

24” wide

21 3/4” interior depth

Shipping Weight 209 lbs. / 95 kg

Tub Weight Filled 868 lbs. / 394 kg

Tub Only Weight 126 lbs. / 57 kg

Gallons to Overow 90 gal. / 341 L

Gallons to Operate 71 gal. / 269 L

ELECTRICAL SPECIFICATIONS:

Pump 1.75 HP; 12 AMP; 110V

Requirement 15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Optional Heater 1.5 kW; 12.5 AMP; 110V

Requirement 15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

OPTIONAL EQUIPMENT:

• Chromatherapy LED Lighting

• Comfort Pillow -- Oval or Rectangle

• Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel

or Satin Nickel

• Grab Bar

- White, Biscuit Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• 1.5 kW Inline Maintenance Heater

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit Only)

• Factory Installed Rigid ABS Tile Flange

• 2 HP, 3-Speed Run-Dry Pump Upgrade

• Pre-leveled ABS Support Base (Tub Only)

• Optional Pump Location

• Remote Pump Location

• Color Matched Acrylic Skirt

• Hand Held Jet - Chrome or Polished Brass

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

STANDARD EQUIPMENT:

7 Hydrotherapy Jets including:

- 4 Full Size Pressure-Flo Hydrotherapy Jets

- 2 StressEaz Neck & Shoulder Therapy Jets

- 1 Recessed Rotary Massage Jet

Aquatic Quality Features:

- 1.75 HP Run-Dry Pump with 20-Minute Timer

- Bath-Side On/Off Electronic Button

- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Color Matched Grab Bars

- 2 Arm Rests

- Slip Resistant Floor

- Pre-leveled ABS Support Base (Whirlpool)

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

23 1/4”

36 1/4”

21 3/4”

71 1/2”

Deck Width

1 7/8”

Fax-On-Demand

Document # 1038

2 1/4”

11 1/4”

Note: Tub Only units do not come standard

with the Pre-leveled ABS Support Base.

20”

36 1/4”
