Aquatic AI7240R Manuel utilisateur

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and speciﬁcations are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

October 2007

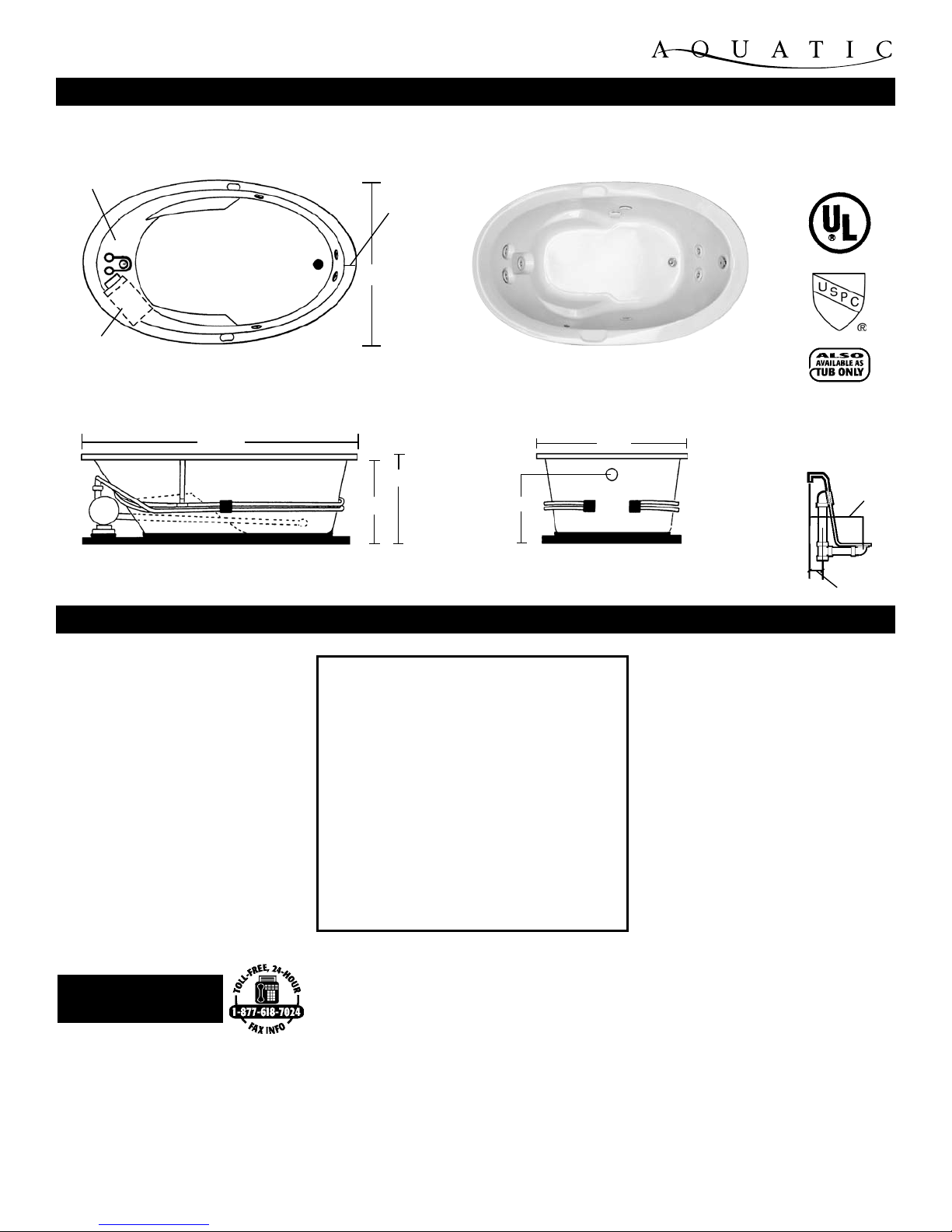

Rough-In Plumbing

Measurements

luxury SErIES MODEL # AI7240R / AI7240RTO (Tub Only)

POINT rEyES

Next Day Ship MoDel / whirlpool oNly

• Next Day Ship Model equipped with heater; upcharge applies.

GENERAL SPECIFICATIONS:

Tub Size 71 3/8” x 39 1/4” x 22”

181 cm x 100 cm x 56 cm

Bathing Well 44” long

25” wide

21 1/4” interior depth

Shipping Weight 194 lbs. / 88 kg

Tub Weight Filled 854 lbs. / 387 kg

Tub Only Weight 106 lbs. / 40 kg

Gallons to Overow 86 gal. / 326 L

Gallons to Operate 67 gal. / 254 L

ELECTRICAL SPECIFICATIONS:

Pump 1.75 HP; 12 AMP; 110V

Requirement 15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Optional Heater 1.5 kW; 12.5 AMP; 110V

Requirement 15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

• Chromatherapy LED Lighting

• Comfort Pillow - Oval or Rectangle

• Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel

or Satin Nickel

• Bolt-On Grab Bar

- White, Biscuit, Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• 1.5 kW Inline Maintenance Heater

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit Only)

• 2 HP, 3-Speed Run-Dry Pump Upgrade

• Optional Pump Location

• Remote Pump Location

• Pre-leveled ABS Support Base (Tub Only)

• Hand Held Jet - Chrome or Polished Brass

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

OPTIONAL EQUIPMENT:

7 Hydrotherapy Jets including:

- 4 Full Size Pressure-Flo Hydrotherapy Jets

- 2 StressEaz Neck & Shoulder Therapy Jets

- 1 Recessed Rotary Massage Jet

Aquatic Quality Features:

- 1.75 HP Run-Dry Pump with 20-Minute Timer

- Bath-Side On/Off Electronic Button

- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Arm Rests

- Slip Resistant Floor

- Pre-leveled ABS Support Base (Whirlpool)

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

STANDARD EQUIPMENT:

Fax-On-Demand

Document # 1047

39 1/4”

Pump

Option 2

Standard Pump

Location

Deck Width

3 1/2”

20 5/8”

22”

71 3/8”

18 3/4”

Note: Tub Only units do not come standard

with the Pre-leveled ABS Support Base.

39 1/4”

5 1/4”

16 1/4”
